NIAT 2.5 ST Freighty amphibious cargo/passenger aircraft project

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi Everyone!

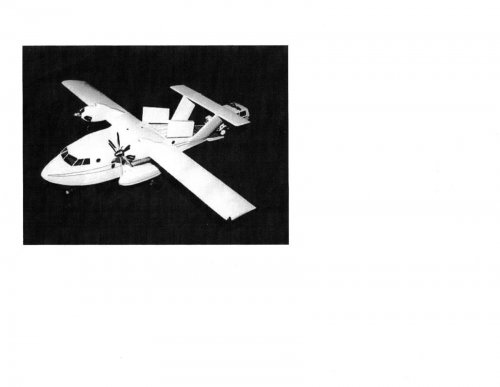

I found this picture of an interesting looking transport aircraft, with a rather unusual way to load cargo.
Can someone help to identifiy this aircraft please?
Thanks!


Chuck


Attachments

  • transport.JPG
    93.9 KB · Views: 234

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
I think that was a proposed Russian design, I recall seeing it in a past edition of either JAWA or Brassey's. I want to say Aeroprogress, but not sure.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,230
Reaction score
945
Perhaps just an accidental similarity to the Beriev Be-112 proposal ?
(picture from the book Beriev aircraft 1968-2002, sorry, for more details
regarding this book, please ask boxkite, I can't read cyrrilic letters ! ::) )


Attachments

  • Beriev_Be-112.JPG
    37.4 KB · Views: 222

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Hi,

I think it was Orel aircraft.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146

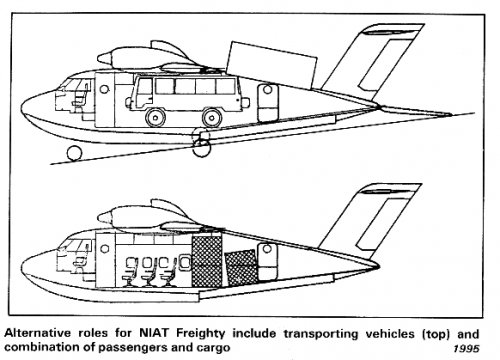

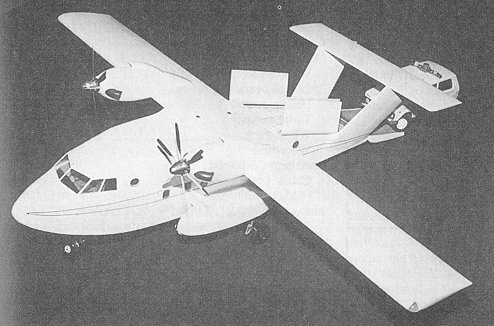

It's a Russian design named NIAT 2.5 ST Freighty. I found it in JAWA 1997-1998 when I borrowed the book a few years ago. Sorry I've forgotten to save the description then.


Attachments

  • NIAT 2.5 ST Freighty (pic 1].jpg
    NIAT 2.5 ST Freighty (pic 1].jpg
    128.6 KB · Views: 184
  • NIAT 2.5 ST Freighty (pic 2].jpg
    NIAT 2.5 ST Freighty (pic 2].jpg
    42.9 KB · Views: 174

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Oh sorry dear Chuck,

it was NIAT design,and I will find more informations
about it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Dear Chuck,

NIAT 2.5 ST Freighty:twin turboprop light amphibious cargo/passenger aircraft,
it was a cantilever high wing monoplane,constant-chord wings,without sweep,
retrangular section twin-step flying boat hull;
Span 20.00m
Length 16.15m
Height 5.41m
Estimated Speed : 350-400 km/h
powered by two 1380 hp Omsk Mars TVD-20 turboprops.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com
Type: Twin-turboprop light amphibious cargo/passenger transport.

Program:Initial design and market studies completed beginning June 1995; series production and certification planned originally for 1997.

Customers: Estimated domestic market for 350 aircraft, primarily for fuel and power engineering companies, government and local authorities and shipping companies; estimated export market for 300 aircraft. Originally planned production of seven aircraft in 1997, 30 in 1998 and 60 in 1999, but no news of progress.

Costs: Investment of approximately $2.5 million sought for program launch; basic aircraft cost estimated at $1 million to $3 million US in 1997.

Design features: Cantilever high-wing monoplane; constant chord wings without sweep; rectangular-section twin-step flying-boat hull; twin outward-canted and sweptback tail fins with tailplane mounted near tips; stabilizing float carried on long-chord fairing each side of hull.

Flying controls: Conventional three-axis; aileron and two-section flaps over full span of each wing; twin rudders and elevators.

Landing gear: Retractable tricycle type; twin wheels on each unit; main wheels retract into floats.

Powerplant: Two 1,029 kW (1,380 shp) Omsk Mars TVD-20 turboprops; other engines optional.

Accommodation: Unobstructed cabin space for such vehicles as minibuses, loaded via rear ramp and side-hinged doors forming top of rear fuselage aft of wings when closed; door on each side of flight deck; horizontally split two-piece main cabin door at rear on port side. Seats at front of cabin in combi version; emergency exit window each side under wing.

Dimensions external:
Wing span: 20.0 m (65 ft 7.5 in)
Length overall: 16.15 m (53 ft 0 in)
Height overall: 5.41 m (17 ft 9 in)
Tailplane span: 8.00 m (26 ft 3 in)

Weights and loadings: Not available

Performance (estimated):

Nominal speed in level flight 188-215 kts (350-400 km/h; 217-248 mph)
Take-off run on land: 530 m (1,740 ft)
Take-off run on water: 655 m (2,150 ft)
Landing run on land: 620 m (2,035 ft)
Landing run on water: 700 m (2,297 ft)
Max range with 2,500 kg (5,511 lb) cargo 323 n miles (600 km; 372 miles)
Max range with 1,000 kg (2,205 lb) cargo 809 n miles (1,500 km; 932 miles)


Sources:
http://articles.janes.com/articles/Janes-All-the-Worlds-Aircraft/NIAT-2-5-ST-FREIGHTY-Russian-Federation.html

Jackson, Paul ed. Jane's All the World's Aircraft 1995-96 Jane's Information Group Ltd 1995 p. 367
