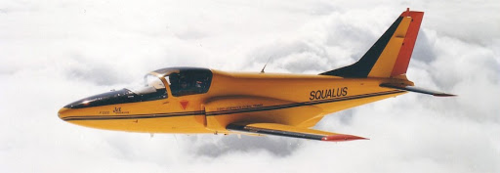

Projects and Prototypes designed by Stelio Frati

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

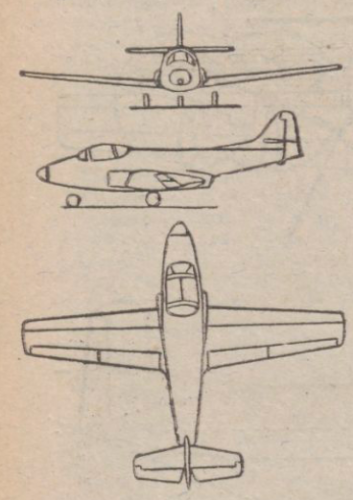

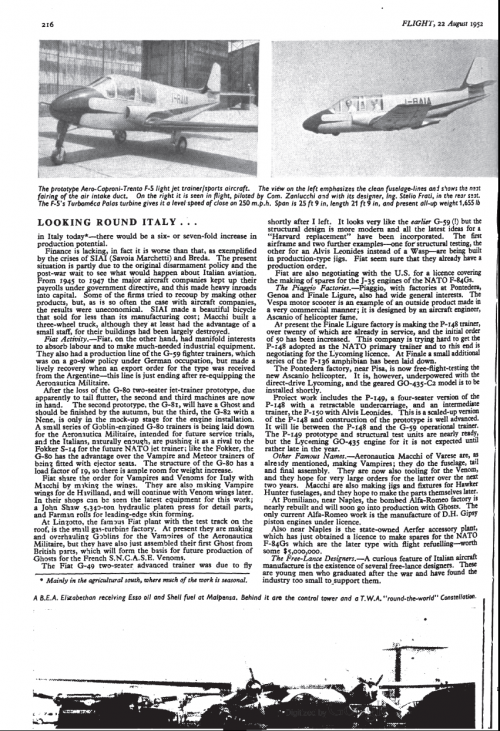

I spoke about many Frati projects before,such as F.10.
http://www.seqair.com/Frati/Designs/Jettina/Jettina.html


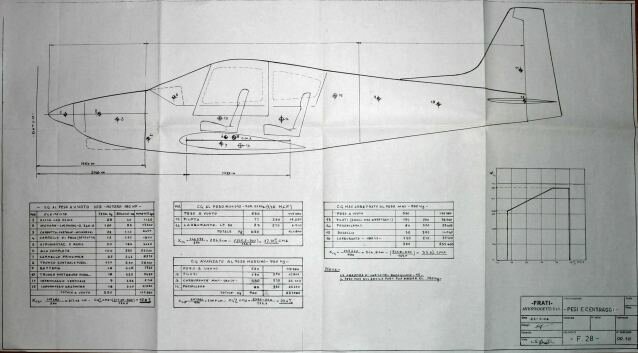

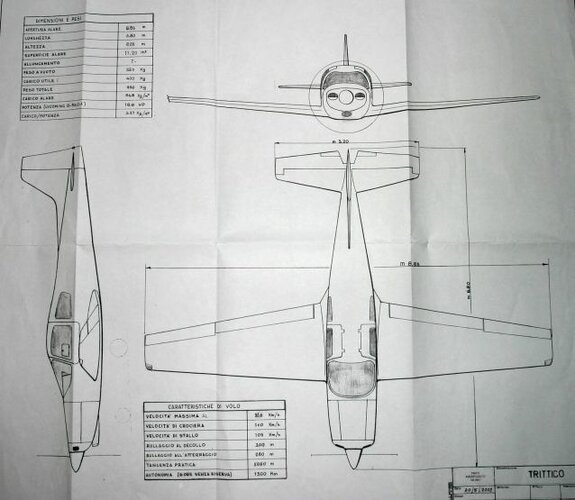

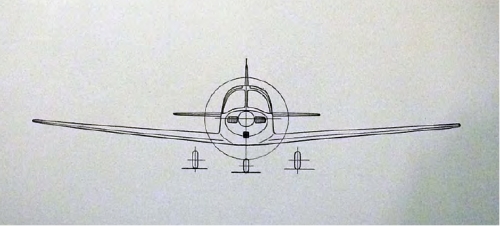

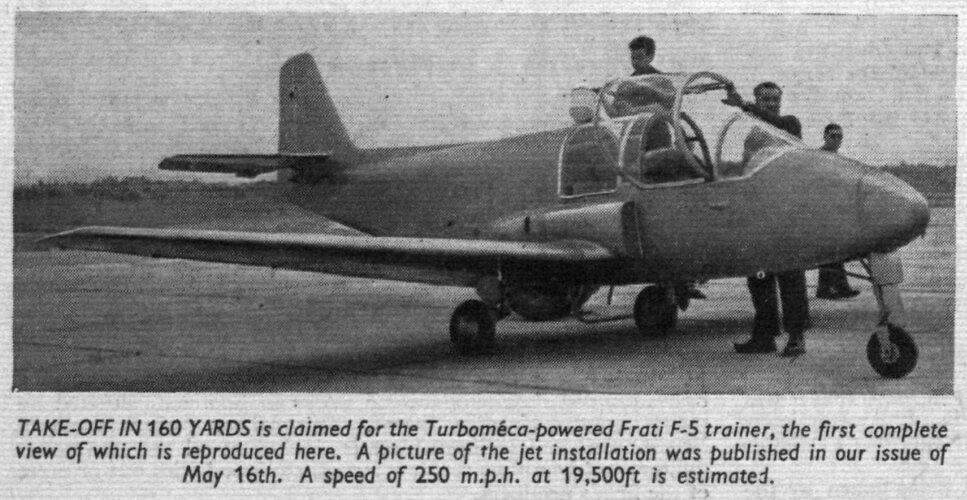

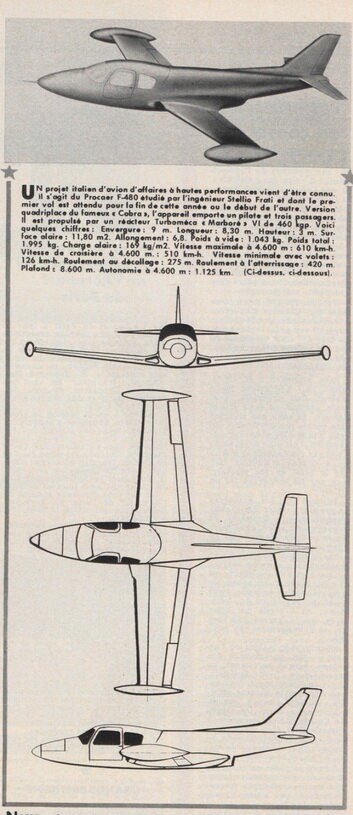

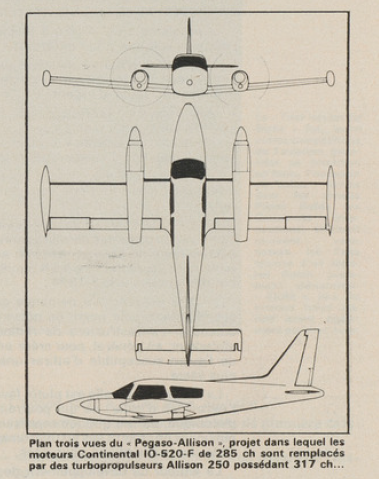

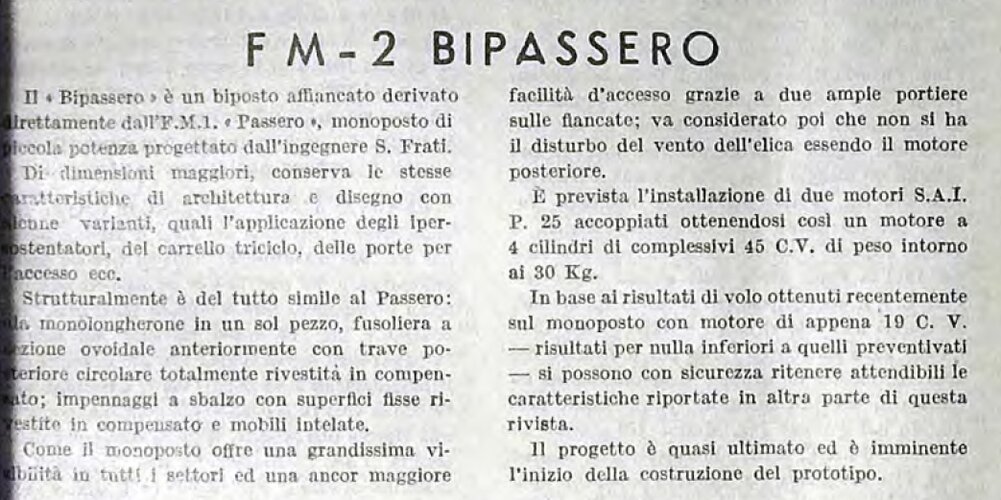

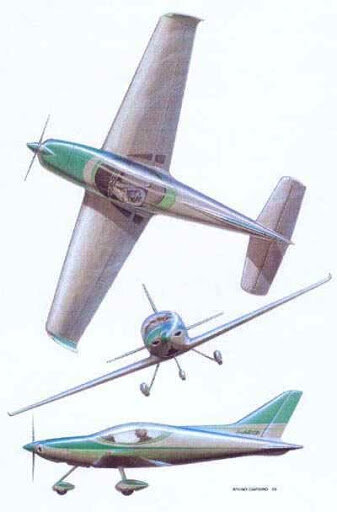

Attachments

  • F01.jpg
    126.2 KB · Views: 1,444
  • F02.jpg
    156.1 KB · Views: 1,303
  • F03.jpg
    98.4 KB · Views: 1,202
  • F04.jpg
    183.1 KB · Views: 1,104
  • F05.jpg
    169.5 KB · Views: 1,062

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

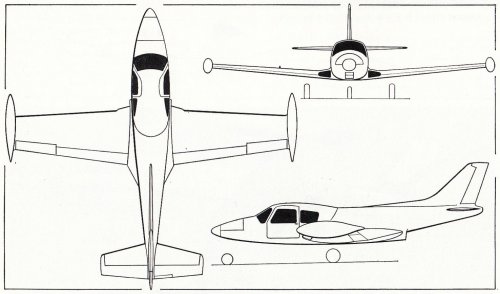

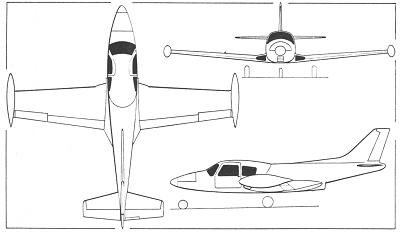

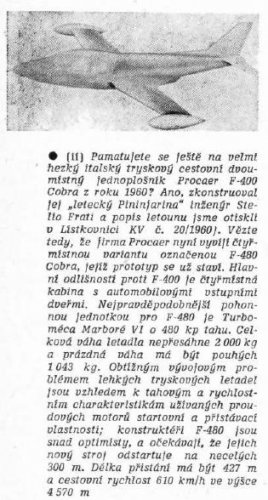

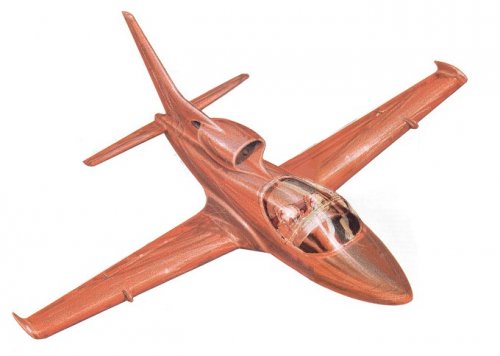

also Stelio Frati F.480,a four seat derivative of the F.400.
http://www.machdiamonds.com/cobra.html


Attachments

  • F.480.JPG
    12.9 KB · Views: 148

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322

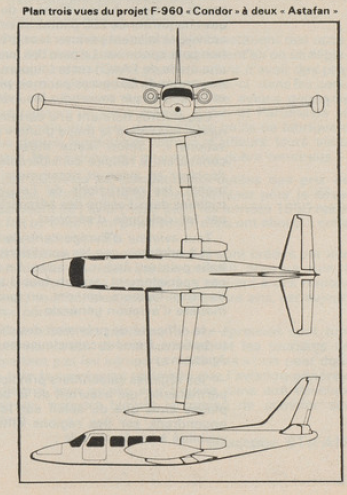

As at least the designation "F.400" was already mentioned here, I add this drawing of the
F.400, although there really aren't many similarities. This F.400, named "Condor" would
have had about 8 seats (not mentioned in the short caption) and two Turboméca Astafan
engines. Looks like an enlarged F.480.
(from InterAvia 9.72)


Attachments

  • F-400.JPG
    31 KB · Views: 156

Machdiamond

ACCESS: Secret
Joined
Jan 15, 2007
Messages
328
Reaction score
15
The F.400 Cobra was a two seat jet, I suspect the caption in the Interavia article is incorrect.

It may be one of his designs but it is not the F.400.

--Luc


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
You are absolutely right my dear Jemiba,

but InterAvia was wrong in its model,it was called F.22 Jet Condor
a project of 1972 with two Turbomeca Astafan engines and 8-seat,
it was mention in the book;Airlife's General Aviation and the F.22
later re-allocated to F.22 Pinguine side-by-side two seat trainer.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

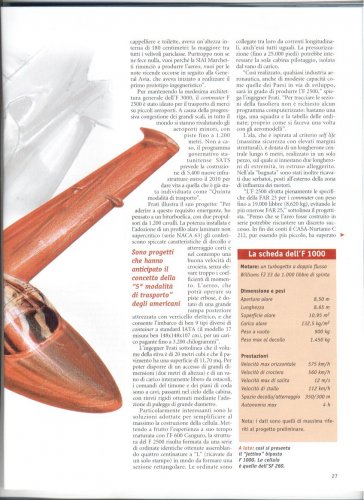

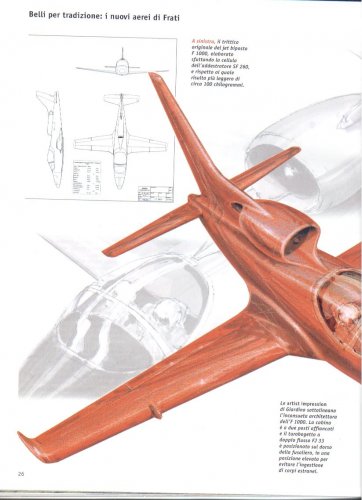

Artist's impression of Frati F.1000.

Souce:
http://www.machdiamonds.com/cobra.html


Attachments

  • f1000.jpg
    47.4 KB · Views: 166

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

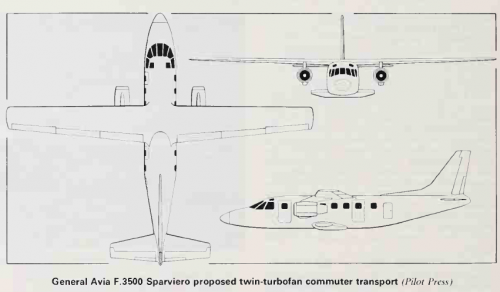

F.3500 Sparviero was a 19-seat twin turbofan high-wing light commuter aircraft project of 1983.


Attachments

  • F.3500.gif
    17.6 KB · Views: 1,432

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

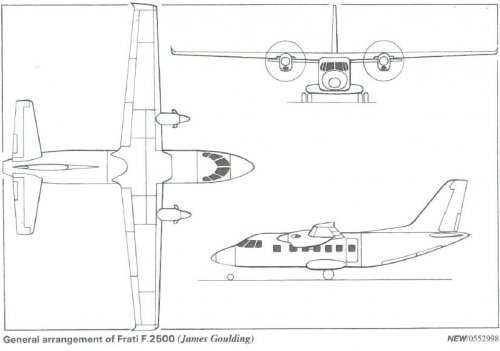

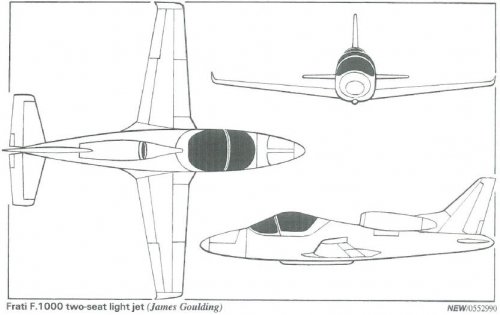

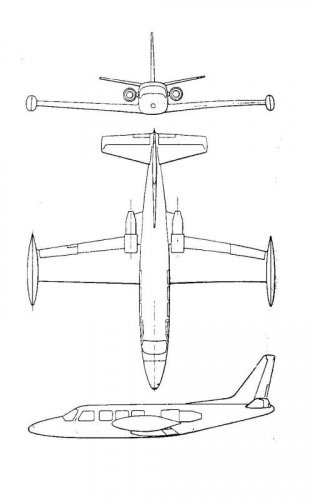

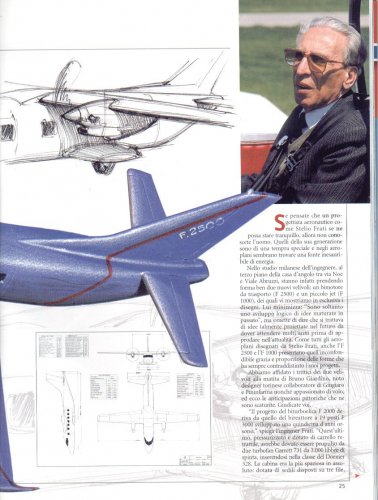

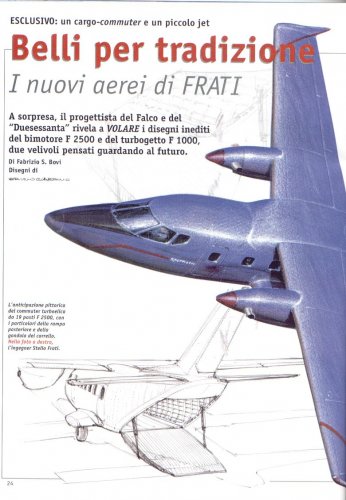

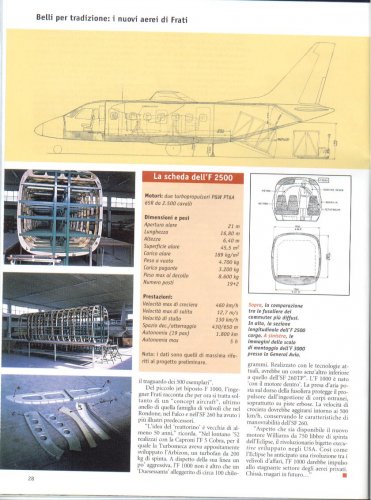

here is a 3-view to Frati F.1000 and F.2500.


Attachments

  • F.1000.JPG
    39.1 KB · Views: 217
  • F.2500.JPG
    41.7 KB · Views: 219

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,002
Reaction score
404
...


Attachments

  • Frati F-480 Cobra (Procaer)-.jpg
    Frati F-480 Cobra (Procaer)-.jpg
    118.2 KB · Views: 128

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

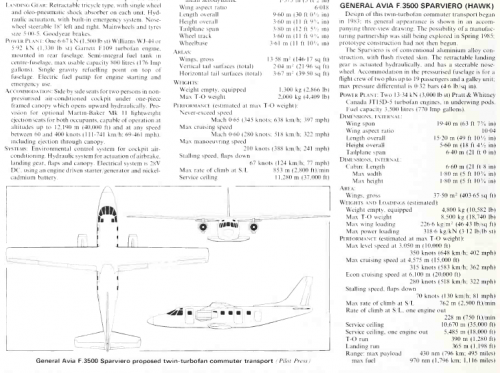

here is a 3-view to Frati F.3500 Sparviero twin turbofan commuter aircraft project.


Jane's All the World's Aircraft 1984-1985


Attachments

  • F.3500.png
    95.7 KB · Views: 152

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,

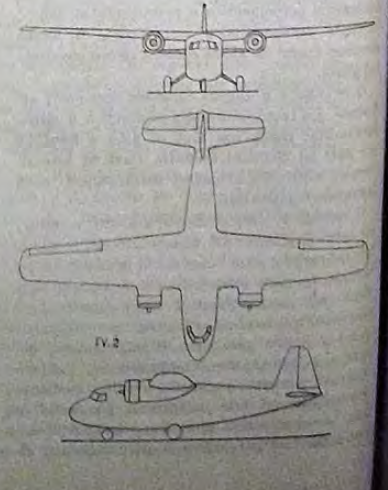

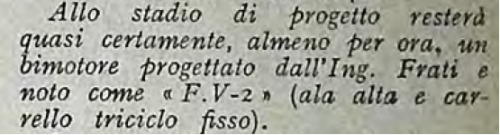

here is a little known Frati design,the FV-2,it was a twin engined high wing military/
civil transport Project.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201948%2002.pdf


Attachments

  • FV-2.png
    324.4 KB · Views: 80
  • FV-2  data.png
    FV-2 data.png
    162.8 KB · Views: 68

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274

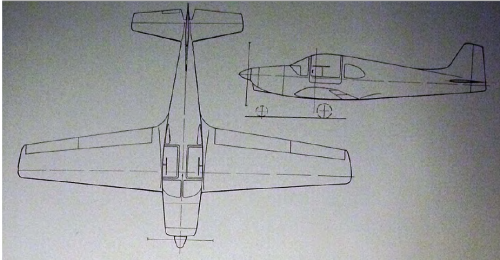

As I understand,

there was a variant from F.6 Airone,but powered by single engine and not two,maybe it
was a Project ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201954%2004-5.pdf


Attachments

  • 2.png
    914.4 KB · Views: 66
  • 3.png
    480.1 KB · Views: 62

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
116
Hi Hesham :D

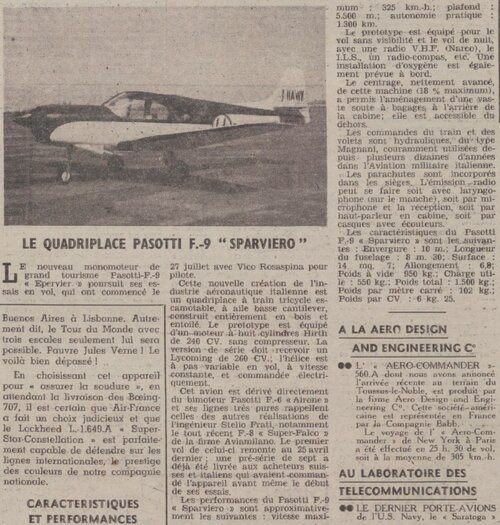

That could be the F-9 Sparviero built by Passotti. Only a single example (I-HAWK) was constructed.

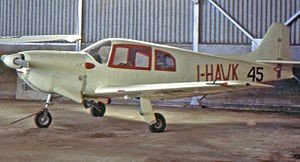

Please find a photo and some details.
4-seat sport
one 240hp Lycoming GO-435-C2 piston engine
max. speed 197 mph, cruise 160 mph, icr 1,200ft/min. ceiling 15,800ft, range 940 miles
wingspan 32.808ft; length 27.229ft
DETAILS: The F-9 Sparviero was more or less a single-engine derivative of the F-6 Airone (qv) using similar wings, tail surfaces and fuselage. It was designed by Mr. Stelio Frati and built by Legnami Pasotti SpA and only a single aircraft (registration I-HAWK) was produced. The aircraft was first flown on 27 July 1956 with one 240hp Hirth HM508 (V8) engine, but at a later stage the F-9 was re-engined with one 240hp Lycoming GO-435. The aircraft later went to the National Museum of Science and Technology in Milano. No further development took place.
Production: 1


Attachments

  • F-9 Sparviero.jpg
    F-9 Sparviero.jpg
    18 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
From JAWA 1979,

here is a Frati F.3500 Sparviero.


Attachments

  • 53.png
    188.9 KB · Views: 196

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274

Attachments

  • a.png
    261.9 KB · Views: 58
  • b.png
    139 KB · Views: 65

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274

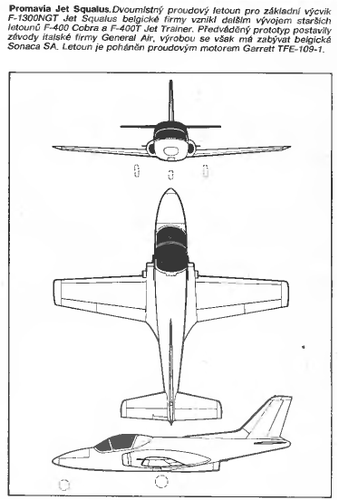

From L+K 26/1986,

what was the different between F.400 & F.400T ?.


Attachments

  • 1   26-1986.png
    1 26-1986.png
    40.1 KB · Views: 58

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274

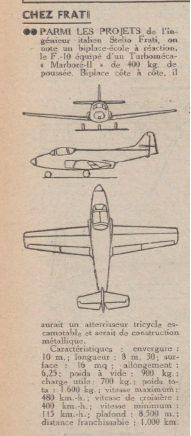

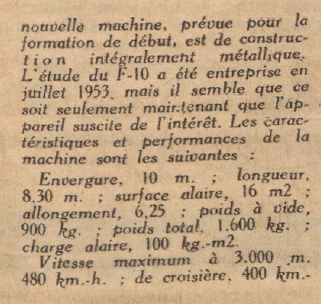

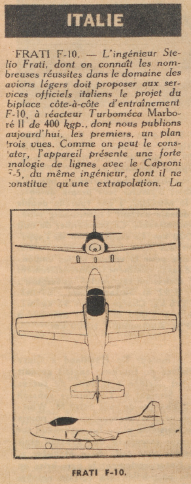

From Aviation magazine 1955,

you feel the drawing for F.10 differs a little from previous one,such as the cockpit ?.


Attachments

  • f-1.png
    193.4 KB · Views: 26
  • f-2.png
    212.3 KB · Views: 23
