Pre-Buran, OK-92 (Orbitalny Korabl', Orbital Craft)

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188

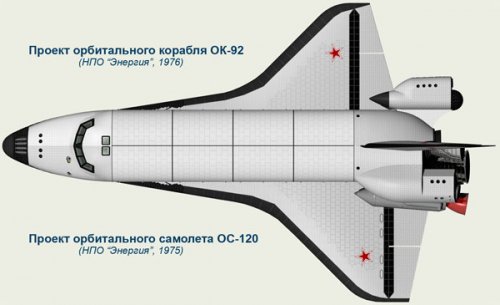

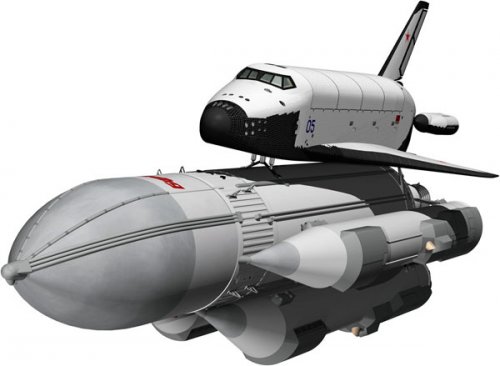

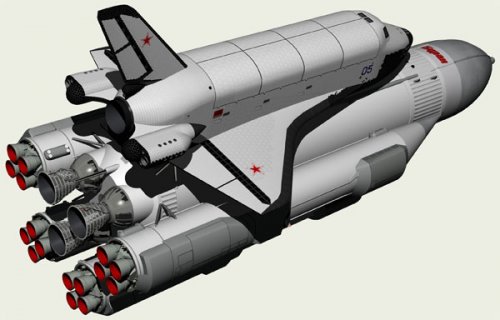

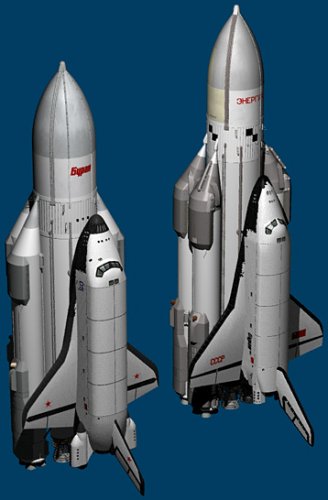

Middle step from Space Shuttle copy-cat (OC-120) to Buran as we know it, OK-92 at Vadim Lukashevich site.
http://www.buran.ru/htm/ok-92.htm with excellent hi-res graphics.


Attachments

M

McColm

Guest
Did the Buran actually fly?
As this could be used as the Space Shuttle replacement.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
you will be surprised, but it actually did fly on November 15, 1988
no, it can't be used as shuttle replacement as no one needs shuttle replacement at the moment
Buran and Energia are went into history forever


Just call me Ray

CLEARANCE: Top Secret
Joined
Aug 26, 2007
Messages
680
Reaction score
0
The only complete Buran frame (the one that went into space) was also destroyed in an earthquake.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
oh, gosh, what earthquake?


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,194
Reaction score
68
Just call me Ray said:
The only complete Buran frame (the one that went into space) was also destroyed in an earthquake.
not a earthquake
it was the Roof of „MIK-112“ Hangar collapsed, due to poor maintenance in 2002
http://www.buran.ru/images/jpg/bbur89.jpg
http://www.buran.ru/images/jpg/bbur90.jpg

poor Buran :'(

Buran 1.01 (11F35 K1) test flight was For NASA very embarrassing
because they Shuttle went back to flight
U.S. Senate and congress men ask: "Can you launch the Space Shuttle unmanned ?"
NASA official answer: "Not, that technical impossible"

some week later Buran made its two Orbit unmanned
with Analog circuits and lands with help of instrument landing system

[flash=200,200]http://www.youtube.com/watch?v=PgXcpXHw07o&hl=de[/flash]
note in begin of video show Polyus launch
is show how the Energija Analog circuits Autopilot fight for controll


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
http://buran.ru/htm/str75.htm#crash
http://buran.ru/htm/sk.htm#112
hangar collapse was caused by water leaks that caused rust is support structures...

so the space-flown Buran died such way


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,054
Reaction score
11
flateric said:
http://buran.ru/htm/str75.htm#crash
http://buran.ru/htm/sk.htm#112
hangar collapse was caused by water leaks that caused rust is support structures...

so the space-flown Buran died such way
I see the components of Energiya in the photos, but I do not see anything that looks like parts of the Buran orbiter. Are there any photos of the orbiter damage available?

The second link is a static test article, correct?


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,174
Reaction score
1
quellish said:
I see the components of Energiya in the photos, but I do not see anything that looks like parts of the Buran orbiter. Are there any photos of the orbiter damage available?

The second link is a static test article, correct?
Look at this photo:

http://www.buran.ru/images/jpg/bbur90.jpg

You're looking at the buried front end, you can see the cockpit windows.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
sic transit...etc


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,728
Reaction score
6
If I've read this correctly, according to this book :-

http://www.secretprojects.co.uk/forum/index.php/topic,4214.0/highlight,buran.html

the final irony is that the roof collapse was caused by the weight of roofing materials placed there in
readiness to repair it, overloading the weakened, and damaged structure.........

cheers,
Robin.

A

avatar

Guest
Flateric,

Keep aside Buran. But is there absolutely no chance of reviving Energiya?


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
...One of the things noted when that footage first got released to the West in quality decent enough was that it was a clear indicator of just how cash-strapped the Evil Soviet Empire was with regards to funding their space program. As we later found out, they really *didn't* have enough money in the budget to replace all the blown-out bulbs on the big lighting towers!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
avatar said:
But is there absolutely no chance of reviving Energiya?
absolutely


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,054
Reaction score
11
Michel Van said:
Buran 1.01 (11F35 K1) test flight was For NASA very embarrassing
because they Shuttle went back to flight
U.S. Senate and congress men ask: "Can you launch the Space Shuttle unmanned ?"
NASA official answer: "Not, that technical impossible"
I do not think that is entirely accurate.
http://en.wikipedia.org/wiki/Microwave_Scanning_Beam_Landing_System
The shuttle's autoland system was demonstrated on at least one flight, STS-3.


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
quellish said:
I do not think that is entirely accurate.
http://en.wikipedia.org/wiki/Microwave_Scanning_Beam_Landing_System
The shuttle's autoland system was demonstrated on at least one flight, STS-3.
...This is a navigational aid only, and no, there was no automatic landing performed on STS-3. In fact, there has never been any sort of automated landing system built into any of the Shuttles prior to the loss of STS-107. Since then, they've come up with a cludge system to make it work, but a) it hasn't been tested, and b) takes a bit to get set up because it involves a bunch of patch umbilicals and apparently it has to be an either-or situation where manual vs. automatic control is concerned.


CFE

CLEARANCE: Secret
Joined
Sep 1, 2007
Messages
258
Reaction score
0
That's a really interesting contrast between OC-120 and OK-92. It appears that OK-92 has significantly less wing area. Was this due to the realization that the US shuttle had unrealistically high cross-range requirements, and that a Soviet shuttle could get by with less?


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
CFE said:
That's a really interesting contrast between OC-120 and OK-92. It appears that OK-92 has significantly less wing area.
...How did OK-92 compare to the Analog Buran, then?


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,054
Reaction score
11
OM said:
...This is a navigational aid only, and no, there was no automatic landing performed on STS-3. In fact, there has never been any sort of automated landing system built into any of the Shuttles prior to the loss of STS-107. Since then, they've come up with a cludge system to make it work, but a) it hasn't been tested, and b) takes a bit to get set up because it involves a bunch of patch umbilicals and apparently it has to be an either-or situation where manual vs. automatic control is concerned.
The microwave system is a nav aid, but a part of the autoland system. Autoland WAS demonstrated on STS-3, which is part of the reason the landing was problematic.
http://books.google.com/books?id=rDIrUF4JQ6oC&pg=PA41&dq=sts-3+autoland
http://pbma.nasa.gov/docs/public/pbma/images/msm/5_1_06.pdf
https://www.researchgate.net/publication/23859122_Space_Shuttle_autoland_design
Feynman actually talks about this in one of his books that covered his part in the post-Challenger investigation. ("What do you care what other people think").

The only thing that prevented a FULL autonomous landing was that the autoland capability did not include the ability to lower the landing gear. The hack that is in storage on ISS right now is in fact only a patch cable from the flight deck to the middeck avionics bay that enables this. The full autonomous capability covers a little more than just landing, and this is called "Remote Controlled Orbiter Capability". You can see a presentation covering it here:
http://www.aiaa-houston.org/cy0607/event-11may07/pres/pres062.ppt
which explains the hack.


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,487
Reaction score
53
Has anyone seen this one before ?? :'(

http://www.urbanghostsmedia.com/2015/08/abandoned-buran-rotting-wind-tunnel-shuttle-model/


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188
...many times


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,767
Reaction score
812

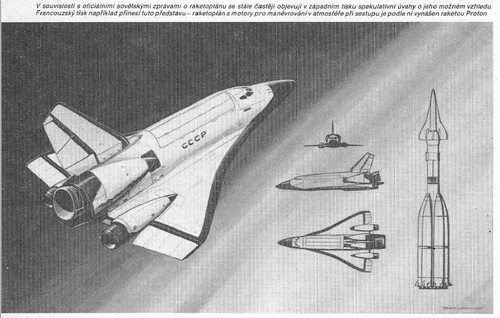

From L+K 1/1983,

I don't know if that a suitable place for it or not ?.


Attachments

antigravite

CLEARANCE: Top Secret
Joined
Apr 25, 2008
Messages
673
Reaction score
11
From L+K 1/1983,

I don't know if that a suitable place for it or not ?.
Thx alot. Interesting but pretty weird from an engineering perspective.
Is it from a Polish source? Could you please expand on the source. And help translate what the caption reads. Seems to talk about a french something.

A.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,767
Reaction score
812
Thank you my dear Antigravite,

the source was from Czech,called Letectvi a Kosmonautika 1983-01,and the translate;

In relation to the stubborn Soviet news, the Shuttles have become more common. There are speculative reflections about its possible appearance in the Western press.
For example, the French press brought this idea the shuttle with engines for maneuvering in the air as it descends is carried by the Proton rocket.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
188

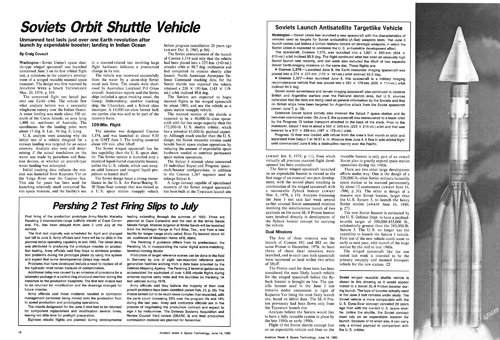

Apparently L+K art is reprint of Air&Cosmos publication based on AWST attempt to reconstruct BOR-4 vehicle


Attachments

antigravite

CLEARANCE: Top Secret
Joined
Apr 25, 2008
Messages
673
Reaction score
11
Thx a bunch, hesham and flateric.
I remember seeing the AWST issue in the early 1980s.
