Post-War Portuguese Projects

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
170
Oficinas Gerais de Material Aeronautico (= OGMA) from Portugal designed the project of a STOL transport with two engines according to JAWA 1973-74 (page 767). Does anybody have more information on it? A drawing would be welcome too :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,646
Reaction score
4,609
Yes my dear boxkite,

I heard about it,it seemed to be powered by two 480 hp Turbomeca
Astazou II turboprps,and to carry 18-24 passengers or equivalent
freight.Of shoulder wing layout,it had front and rear loading doors,
a triple tail unit and a four-wheel landing gear.Diemension included
a wing span 72 ft (22.00m),length 48 ft (14.85m) and estimated
cruising speed 261 mph (420 km/h ).


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358
Hello friends,
also from the period after World War II Portuguese-house developments are not known, perhaps there were several projects that have remained hidden from me so far? It is interesting to see whether there might have been something more than I do.
Thanks, Maveric


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

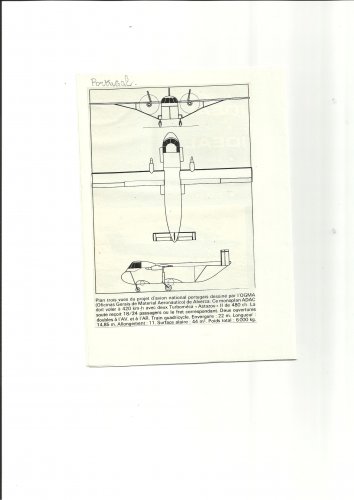

Look at. Do you know something more ?
This is from an old "Aviation magazine"
Bye


Attachments

  • Scan.jpg
    211.2 KB · Views: 410

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
30
Hi,
This project is discussed in this other thread too:
http://www.secretprojects.co.uk/forum/index.php/topic,15965.0.html
Maybe the two threads could be merged?
Adrien


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,208

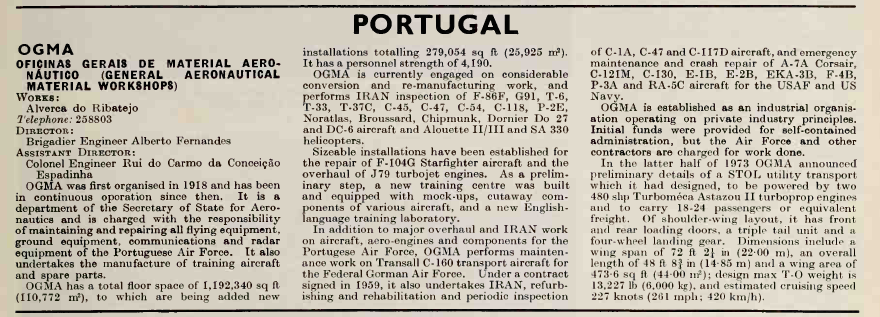

Many thanks for that clue, so a long remaining answer could be found ! ;)
(Have enlarged the picture a bit)


Attachments

  • Scan.jpg
    70.8 KB · Views: 205

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
15
Re: And now for something completely different - A Portuguese transport

2 x 480 shp seems rather underpowered for 18 - 24 pax ( planning weight 90 kg each incl. baggage ).

Or perhaps I should say that a payload of 2,100 kg or thereabouts seems a tad optimistic. The C212-100 had 2 x 710 shp for that and they kept upping in each successive version.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,208
I agree, but 480 hp doesn't match the power stated for the Astazou either.
Maybe kW were mistaken for hp here ? The Astazou II developed 390 kW/523 hp,
but the Astazou III with 480 kW/640 hp at least would get the numbers right.
