Piasecki PA-2C annular wing VTO aircraft

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,343
Reaction score
1,501

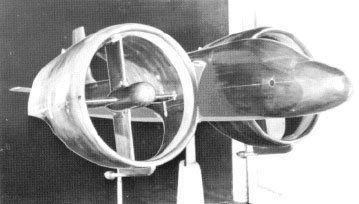

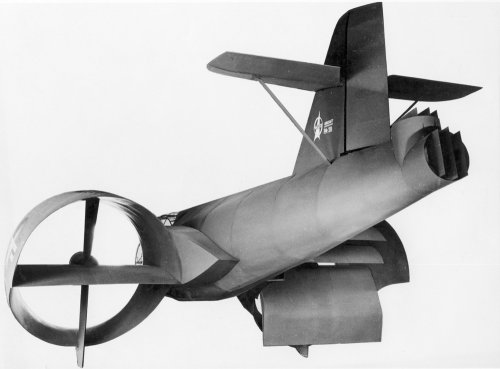

Here's another view of this windtunnel model, which was to be a single seat test
and development aircraft.
The other photo shows a mockup of another design for such a ringwing testbed.
(from Aviationweek 10/1960)


Attachments

  • Piasecki-VTOL-2.jpg
    25 KB · Views: 852
  • Piasecki-VTOL-1.jpg
    17.8 KB · Views: 860

Platt-LePage Aircraft

ACCESS: Confidential
Joined
Oct 19, 2007
Messages
59
Reaction score
20
Website
www.platt-lepageaircraft.com

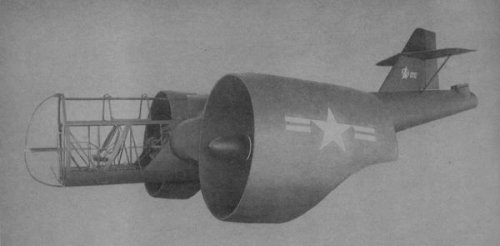

The bottom image of the Piasecki Ring Wing is of the original mock up, made from the fuselage of the Platt-LePage XR-1A helicopter.

Frank Piasecki had worked at Platt-LePage Aircraft early in his career, and bought the XR-1A postwar to flight test, and partly out of sentiment, unfortunately the airframe was later scrapped by Piasecki's works manager without Frank's permission.



Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,343
Reaction score
1,501

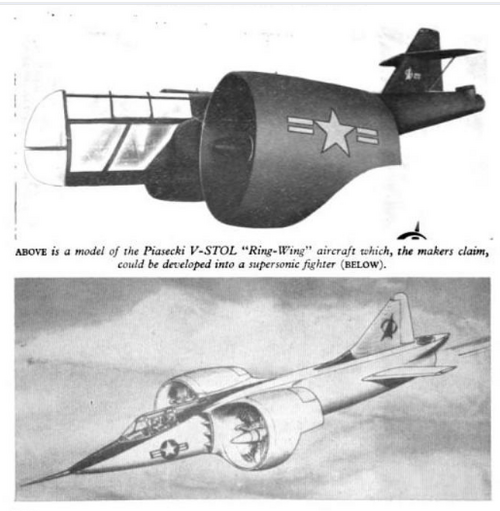

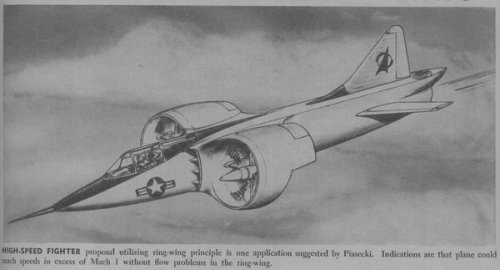

This picture, although in b/w, was shown in AW 9/1960, the article decribing it,
as a proposal for a tactical support weapon system.


Attachments

  • Piasecki-VTOL-2.jpg
    25.2 KB · Views: 848

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
245

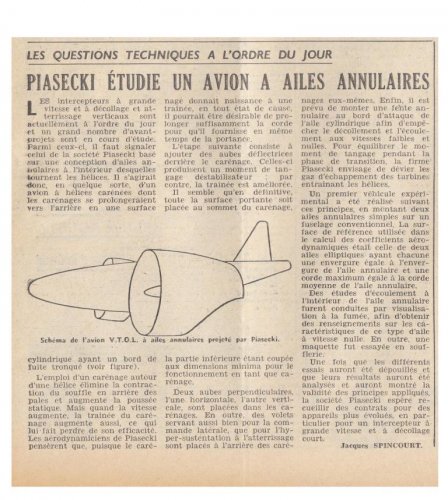

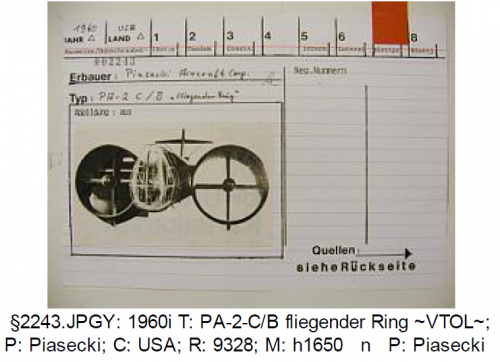

Dear Boys and Girls, here is an article in French about a Piasecki annular-wing VTOL "project"......

The article comes from the 12th November 1960 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Piasecki annular-wing VTOL concept - Les Ailes - No. 1,799 - 12 Novembre 1960.......jpg
    Piasecki annular-wing VTOL concept - Les Ailes - No. 1,799 - 12 Novembre 1960.......jpg
    138.6 KB · Views: 64

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Jemiba said:
Here's another view of this windtunnel model, which was to be a single seat test
and development aircraft.
The other photo shows a mockup of another design for such a ringwing testbed.
(from Aviationweek 10/1960)


My dear Jemiba,

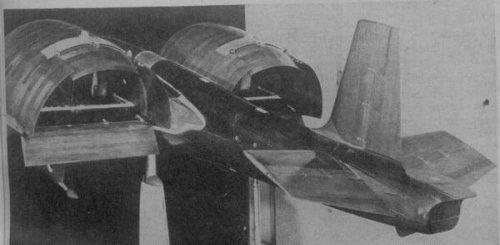

the first Model (VTOL-2) was an attack version of the PA-2;

http://www.dtic.mil/dtic/tr/fulltext/u2/a279794.pdf


Attachments

  • Piasecki-VTOL-2.jpg
    25 KB · Views: 47
  • PA-2 attack version.JPG
    PA-2 attack version.JPG
    26.4 KB · Views: 30

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24

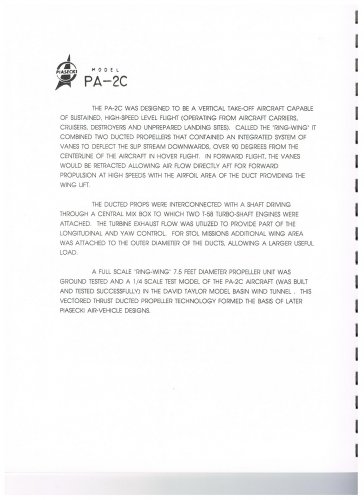

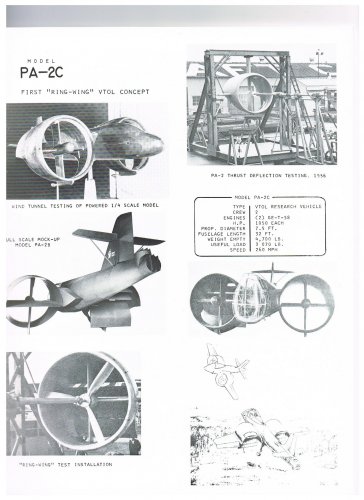

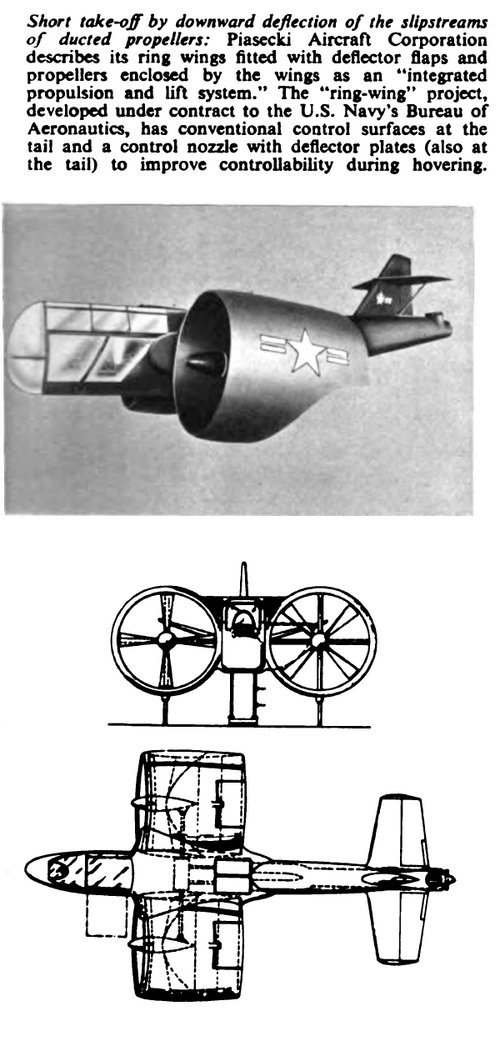

Here are two pages from "The Piasecki Story of Vertical Lift, Pioneers in progress for over 50 Years"


Attachments

  • 001.jpg
    345.9 KB · Views: 49
  • 002.jpg
    634.3 KB · Views: 105

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Jos Heyman said:
Here are two pages from "The Piasecki Story of Vertical Lift, Pioneers in progress for over 50 Years"

Awesome! Got to find that publication one day...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,343
Reaction score
1,501
Especially interesting is the sketch at the bottom right, probably showing the "service
version" with fixed wings outside of the ducts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Jemiba said:
This picture, although in b/w, was shown in AW 9/1960, the article decribing it,
as a proposal for a tactical support weapon system.

Hi,

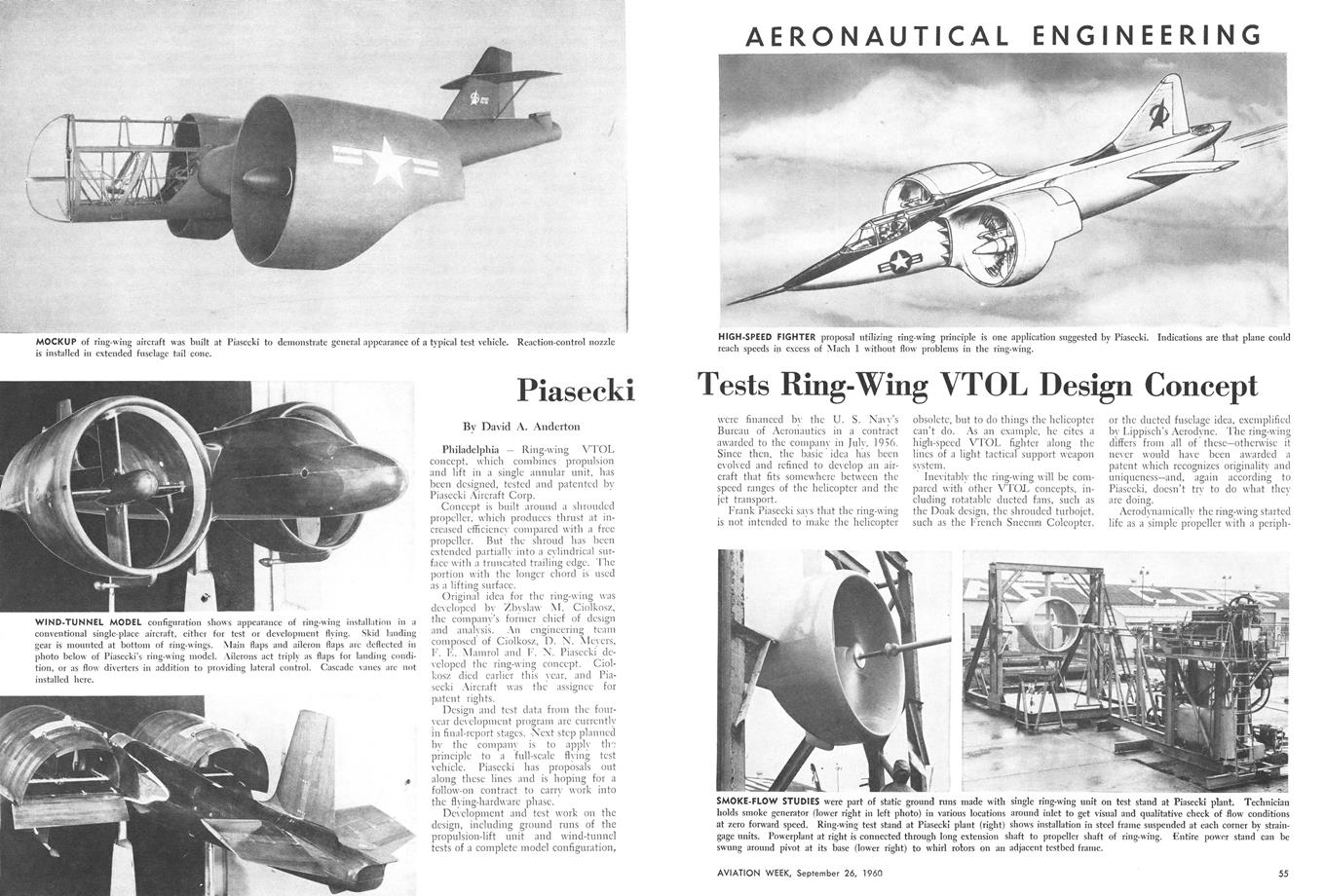

http://archive.aviationweek.com/image/spread/19600926/28/2


Attachments

  • 1.png
    168.7 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

the Piasecki PA-2B was developed from Platt-LePage XR-1,after the company bought it
in 1949.

http://www.samolotypolskie.pl/samoloty/14556/126/Piasecki-PA-2B2


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
Read also the comment made by Platt-Le-Page on 21 May 2008, suggestion that part of the XR-1 fuselage was used in a mock-up, which, if the Polish reference is correct, was, presumably, designated as PA-2B.
As such I would suggest that it would be incorrect to say the PA-2B "was developed" from XR-1.


Platt-LePage Aircraft

ACCESS: Confidential
Joined
Oct 19, 2007
Messages
59
Reaction score
20
Website
www.platt-lepageaircraft.com
That page is inaccurate.

1. Frank Piasecki bought the XR-1A in 1947, not 1949 as that page mentions.

2. Frank bought the XR-1A with the intention to flight test the old helicopter, (which he did for a time) and partly out of
sentiment, as he began his helicopter design career at Platt-LePage.

3. He grounded the XR-1A when he noticed that safely bailing out in flight, would be extremely risky at best. (His own words: "I'd have ended up like sliced salami" )

4. Frank brought the old helicopter to Essington, when he started Piasecki Aircraft. It sat outside for sometime getting vandalized by the local kids. (I have photos of the XR-1A airframe in Essington, including one in color)

5. The XR-1A fuselage was used strictly as a Mock-Up to show the basic layout of the concept.
The late John Schneider told me how they cut the pylons off the XR-1A, stripped the fabric off of the rear fuselage, and skinned the leftover air frame with painted sheets of cardboard. (John showed me the engineering book on the project in the latter 90s)

Piasecki photo of the PA-2B Mock Up http://www.piasecki.com/uav_pa2c_picture1_zoom.html

After the photos of the PA-2B Mock Up were taken, the XR-1A airframe and assorted parts were stored at Piac for a time until Frank's works manager got tired of walking around the stored parts, and had them cut up and hauled off to the dump, without telling Frank Piasecki.

Reportedly the rotor blades, rotor heads, swash plates, and transmission survived. The rotors, rotor heads and swashplates were said to have ended up at NEAM, though I've been unable to get anyone there to seriously look for the parts in sometime.

Frank Piasecki was said to have saved the transmission in his collection of parts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Thank you my dear Platt-LePage,

and we can put this picture about PA-2B Mock-up here.


Attachments

  • Ztylu-fullsize (1).jpg
    Ztylu-fullsize (1).jpg
    130.4 KB · Views: 114
