Piasecki "Gargantua"

boxkite

ACCESS: Top Secret
Senior Member
Joined
12 July 2006
Messages
892
Reaction score
454
From an aero magazine from the 1950s comes this mention on a crane helicopter project by Piasecki, named "Gargantua". No further information, so I hope anybody of the SPF readers is able to help.

You are probably referring to the Piasecki PA-39 project although my source document, 'The Piasecki Story of Vertical Lift' does not specifically refer to this as Gargatua.

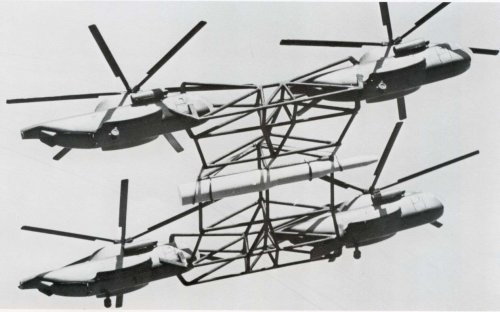

It was a concept of utilizing multiple helicopters joined together to lift a common payload. The multi helicopter lift system used rigid interconnections and would allow the individual helicopter to de disconnected so that they could also be used for their original tasks.
The publication has pics of a configuration with two CH-54 helicopters as well as four CH-53E helicopters. The latter configuration could lift 60 tons.


Attachments

  • Piasecki PA-39.jpg
    Piasecki PA-39.jpg
    106.6 KB · Views: 698
Didn't they (or Mr Piasecki himself) pursue that concept well into the 90s, later adding a small blimp for additional lift?

Kim M

They did continue to explore the concept. Sadly the prototype was destroyed when one of the H-21 (I think) aircraft broke loose from vibration through the structure. Tragically the test pilot was killed.

Hi,

The same concept was PA-97.


Attachments

  • pia-PA97.jpg
    17.5 KB · Views: 609
Hi,

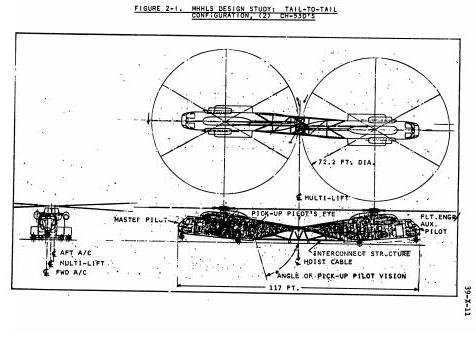

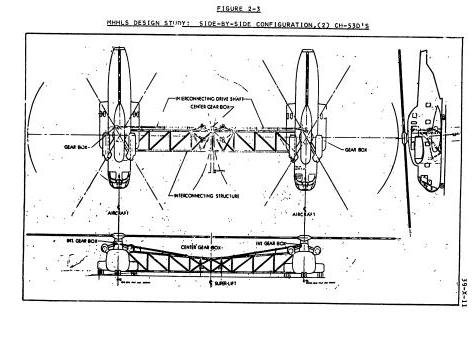

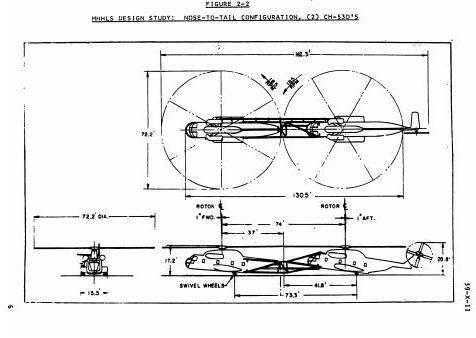

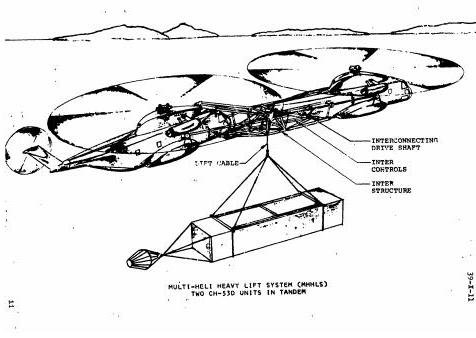

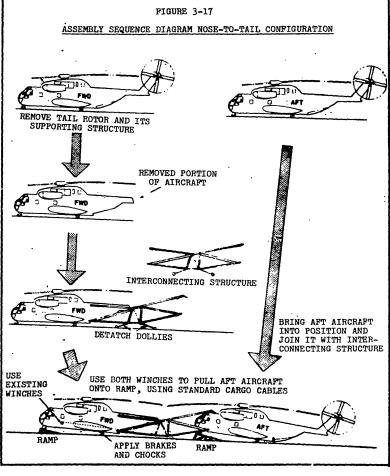

a studying to Piasecki PA-39 concept,please note
again the report number is 39-X-11 and it is called
Model-39 also.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD743516&Location=U2&doc=GetTRDoc.pdf


Attachments

  • 1.JPG
    28.3 KB · Views: 539
  • 2.JPG
    31.9 KB · Views: 510
  • 3.JPG
    25.8 KB · Views: 479
  • 4.JPG
    32.2 KB · Views: 114
  • 5.JPG
    40.4 KB · Views: 147
Scary...

IIRC, the near-equivalent Russian design had horrendous problems with vibration and resonances, not to mention the small issue of sychronising controls before 'fly by wire'...

Hi,

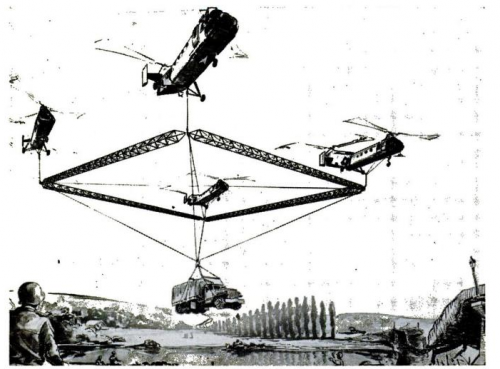

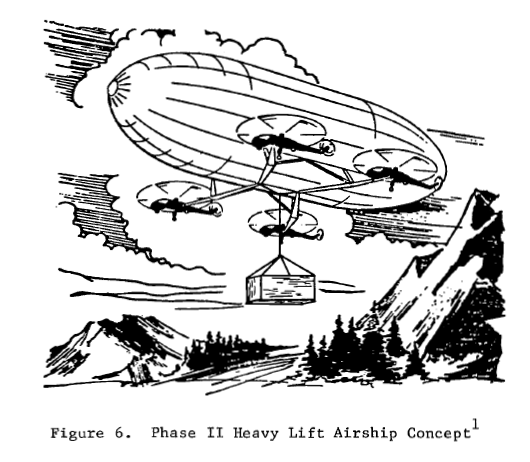

and this is from early ideas led to Gargantua;


http://books.google.com.eg/books?id=vtsDAAAAMBAJ&printsec=frontcover&dq=popular+mechanics+1959&hl=en&sa=X&ei=yJwAVNPCLcam0QWzqoGACw&ved=0CCgQ6AEwAw#v=onepage&q=popular%20mechanics%201959&f=true


Attachments

  • 1.png
    303.8 KB · Views: 98
  • 2.png
    449.6 KB · Views: 97

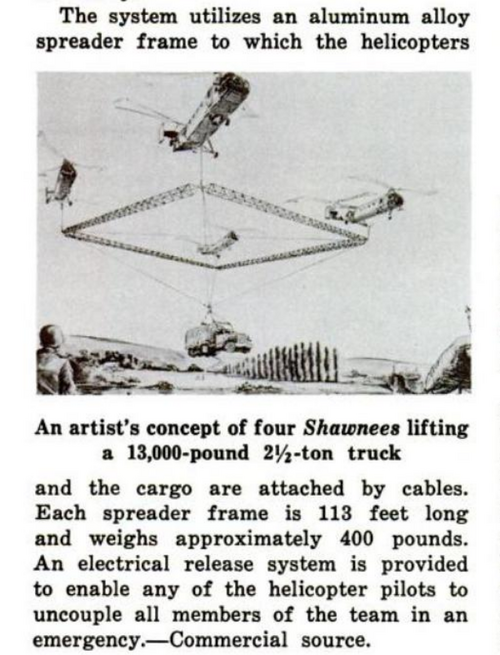

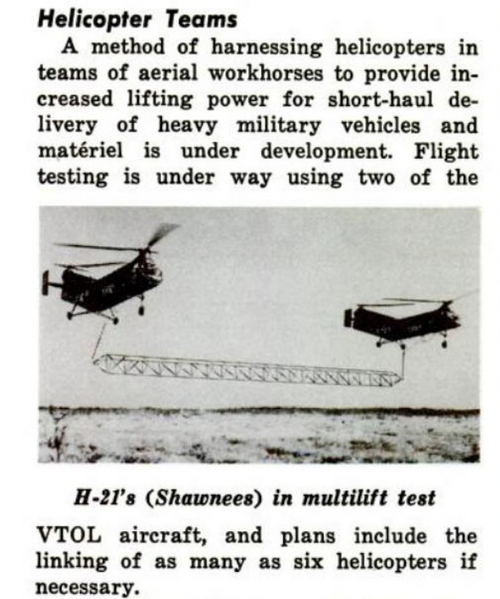

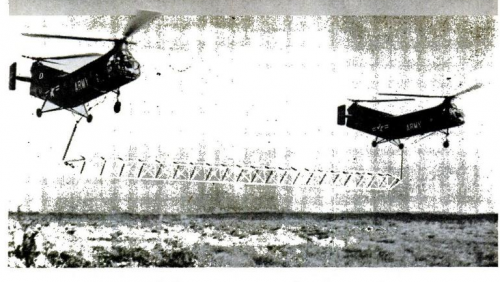

From Military Review 1959.


Attachments

  • 15.png
    523 KB · Views: 15
  • 16.png
    609.7 KB · Views: 19

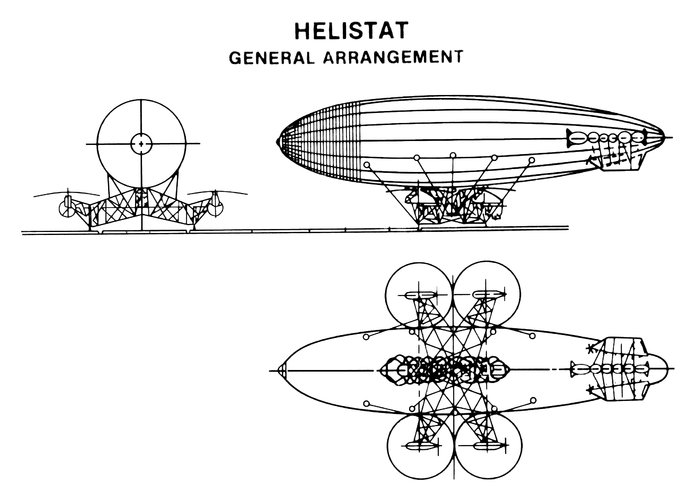

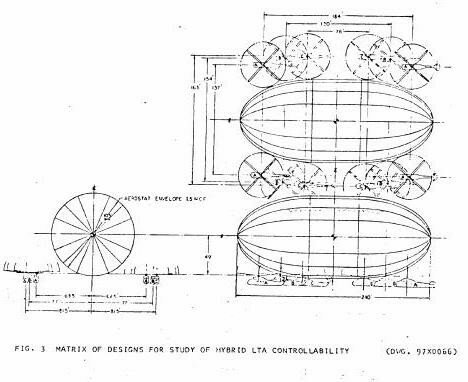

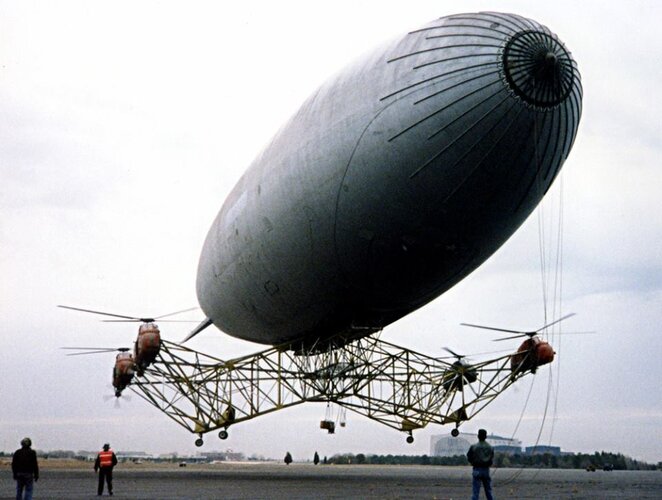

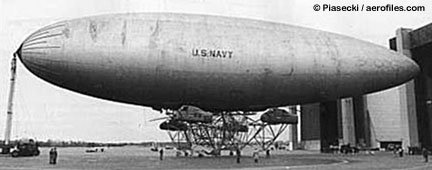

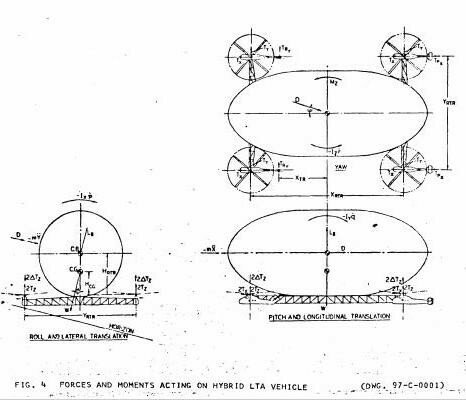

Piasecki PA-97 Heli-Stat and related HLA concepts


Attachments

  • 1468656_179067458965433_499277670_n.jpg
    80 KB · Views: 18
  • 19780003055_1978003055 (Piasecki HLA).pdf
    2.4 MB · Views: 3

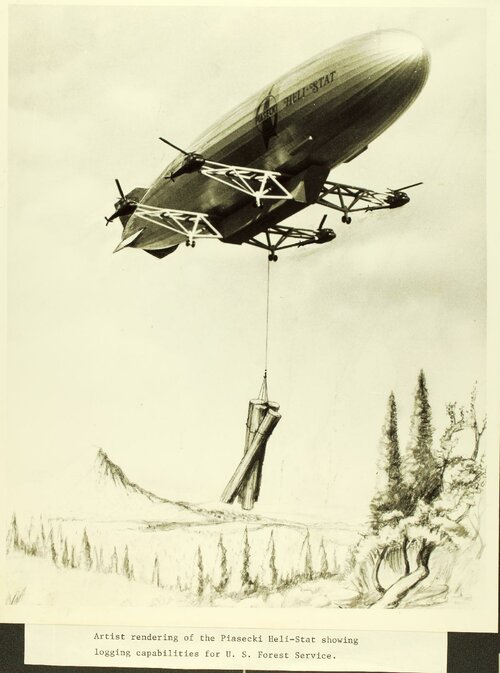

  • Artist rendering of the Piasecki Heli-Stat showing logging capabilities for US Forest Service ...jpg
    Artist rendering of the Piasecki Heli-Stat showing logging capabilities for US Forest Service ...jpg
    158.5 KB · Views: 16
  • Helistat 3-view.gif
    Helistat 3-view.gif
    207.8 KB · Views: 17
  • Piasecki HLA.gif
    Piasecki HLA.gif
    72.5 KB · Views: 17
  • Piasecki PA-97 Helistat.JPG
    Piasecki PA-97 Helistat.JPG
    43.8 KB · Views: 16
  • Piasecki PA-97 Helistat2.JPG
    Piasecki PA-97 Helistat2.JPG
    38.7 KB · Views: 15

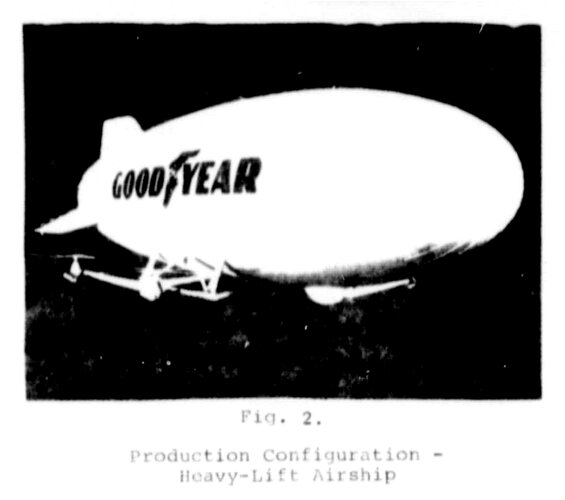

  • Production Goodyear Configuration.jpg
    Production Goodyear Configuration.jpg
    153.2 KB · Views: 21
