Piaggio P.1HH HammerHead

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439

[IMAGE CREDIT: Gizmodo/ Piaggio Aero Industries]

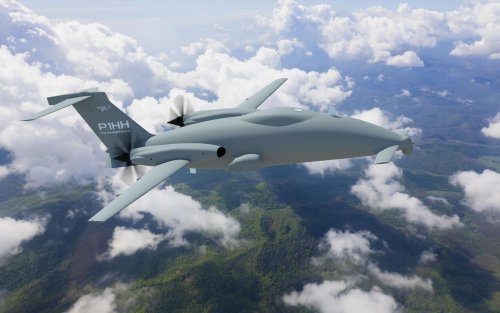

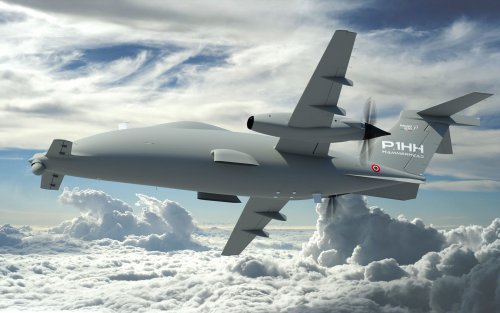

Dubbed the P.1HH HammerHead, this UAV is the result of a collaboration between Piaggio Aero and Selex ES based on the P-180 Avanti II, a twin-engine turboprop. The Avanti II is primarily utilized as a business jet with a 1400 NM range, though a "Special Mission" piloted derivative is also available for both emergency response and military operations. In the latter case, the Avanti II can perform in a variety of intelligence, surveillance and reconnaissance, electronic warfare, security surveillance roles.

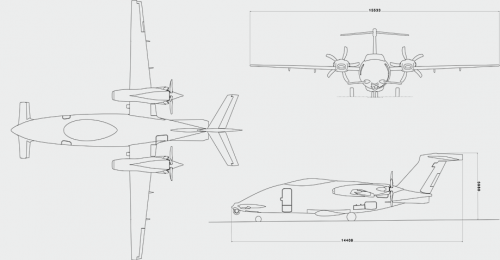

The HammerHead UAV, while maintaining the Avanti II's 47-foot fuselage length and 13 foot height, does incorporate slightly-larger reinforced wings measuring 51 feet across. It also replaces the cockpit and cabin with an oversized fuel tank, sensor suite, and avionics bay. The HammerHead will also carry an external radome. In all, the UAV will be able to take off with a maximum payload of about 4,000 pounds worth of sensors and equipment. A pair of 950 SHP Pratt & Whitney Canada PT6-66B turboprop engines will propel the aircraft to its 45,000 foot operational ceiling and keep it there for up to 16 hours.

While it is capable of autonomously taking off and landing, the P.1HH can be controlled remotely through both Line of Sight (LOS) and Beyond Line of Sight (BLOS), a satellite-based communication system, ground control stations. What's more, the HammerHead is equipped with the Selex ES-developed skyISTAR system. The skyISTAR integrates and analyzes data from the on-board sensor suite before transmitting the synthesized image to the UAV operator.

http://gizmodo.com/5985484/italian-jet-company-converts-passenger-plane-into-the-worlds-most-stylish-uav


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
210
Website
www.hitechweb.genezis.eu
Italy already ordered 10 of them. It has also weapons payload (limited to 500 kg) and first flight is scheduled relatively soon - in August or September. First production aircraft is planned for 2014 with IOC in 2016 - 2017 timeframe. It seems to be Europe's first operational UCAV.

Fight in style for sure.


Attachments

  • hammerhead_1.jpg
    106.7 KB · Views: 779
  • hammerhead_2.jpg
    94.6 KB · Views: 749
  • hammerhead_3.jpg
    108.4 KB · Views: 720
  • hammerhead_4.jpg
    115.7 KB · Views: 705

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,700
Reaction score
840
Interesting choice for an unmanned platform. It's definitely not the quietest aircraft and has a distinct sound with the pusher configuration. There's a couple of Avanti's based in the St. Louis area and there's no doubt when they fly over.

Enjoy the Day! Mark


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

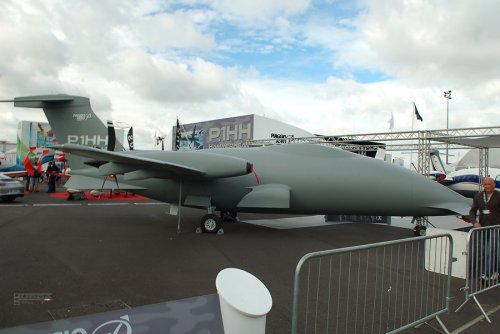

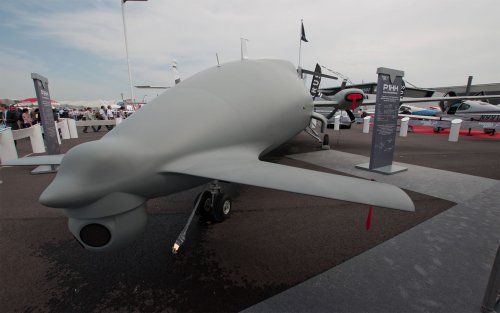

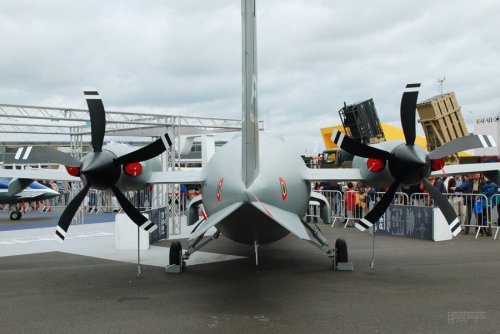

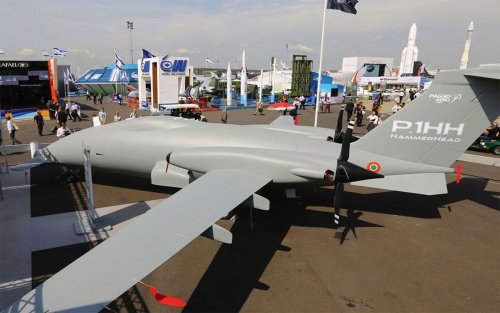

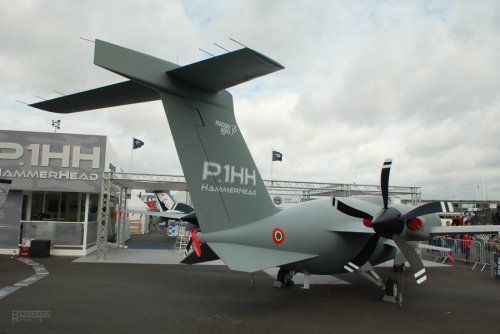

This is the kind of situation I could bang my head on the walls about... A couple of days ago I searched this forum for "Hammerhead" and "P-1HH" using the search engine (to share some photos from Le Bourget) and found nothing... Presumably because of the dot "." instead of the hyphen "-", and possibly also the second capital "H" in Hammerhead.

Can this kind of problem be addressed once and for all from a technical viewpoint? I'd like to hear what PaulMM has to say about it.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,012
Website
deeptowild.blogspot.com
Source:
http://p1hh.piaggioaero.com/


Attachments

  • p1hh-zoom6.jpg
    243.2 KB · Views: 56
  • p1hh-zoom5.jpg
    186.7 KB · Views: 49
  • p1hh-zoom4.jpg
    263 KB · Views: 49
  • p1hh-zoom3.jpg
    86.1 KB · Views: 54
  • p1hh-zoom2.jpg
    183 KB · Views: 62
  • p1hh-zoom1.jpg
    233.2 KB · Views: 60
  • p1hh-tech.png
    62.6 KB · Views: 128

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439
http://www.defensenews.com/story/defense/show-daily/paris-air-show/2015/06/16/piaggio-pitches-hammerhead-as-interim-male-uav/28781375/


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439
https://www.flightglobal.com/news/articles/uae-announced-as-first-export-customer-for-hammerhea-422929/


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439
Grey Havoc said:
https://www.flightglobal.com/news/articles/analysis-what-went-wrong-at-piaggio-and-is-there-a-454006/

More importantly, the move into the military market has struggled to get airborne. A source close to the company confirms none of the P.1HHs due to be delivered to the UAE this year have been handed over. The fact that the UAE military was buying from a company owned by its own government-run wealth fund seemed to make the deal a sure bet. However, there have been suggestions that, after hoping for backing from Rome in the form of a military order, Abu Dhabi has held back concerned by Italy’s fragile political situation.

The Italian defence ministry had sanctioned a development programme for 10 P.2HH systems, each comprising two air vehicles and one ground control station. The P.2HH, with a larger wing and airframe than its predecessor, a more composite structure, and a maximum endurance of 30h, was costed at €766 million. Work on the programme, for which Leonardo would supply the mission system, was to begin in 2017, with first deliveries 55 months later. The procurement plan was presented to parliament in February.

However, following Italy’s election, the acquisition has been put on ice. The problem appears to be the country’s dire fiscal situation, with one coalition partner, the populist Five Star Movement, promising to prioritise social programmes over defence spending. The aircraft’s backers, by contrast, talk up the medium-altitude, long-endurance (MALE) P.2HH as a low-cost alternative to other unmanned systems, and ideal for maritime patrol at a time when there are dozens of boats carrying refugees on the Mediterranean.

Piaggio flew its first P.1HH in 2013. However, that prototype crashed off Sicily in May 2016, about 100h into the flight test campaign. A second prototype flew in July 2017 and two further aircraft joined the flight test programme. In May 2017, Piaggio completed a key step in its campaign, its first beyond radio line of sight (BRLOS) sorties, with Vaghi telling FlightGlobal at EBACE: “I cannot stress how important this milestone is for us. We will be the first European MALE to market. We have had to change the entire nature of the company.”


Maury Markowitz

From the Great White North!
Joined
Feb 27, 2014
Messages
139
Reaction score
68
Mark Nankivil said:
Interesting choice for an unmanned platform. It's definitely not the quietest aircraft and has a distinct sound with the pusher configuration. There's a couple of Avanti's based in the St. Louis area and there's no doubt when they fly over.
Indeed. Superior Propane, when they existed, had one that flew out of Pearson and Buttonville...

buzzzzzzzzttttttt...

You can hear them miles off.


_Del_

I really should change my personal text... Or not.
Joined
Jan 4, 2012
Messages
688
Reaction score
504
Sure. We had a frequent local visitor, too. Very distinctive.

But at the intended 35,000' loiter, I doubt the sound signature is an overly large concern for them.


NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
63
Maury Markowitz said:
Mark Nankivil said:
Interesting choice for an unmanned platform. It's definitely not the quietest aircraft and has a distinct sound with the pusher configuration. There's a couple of Avanti's based in the St. Louis area and there's no doubt when they fly over.
Indeed. Superior Propane, when they existed, had one that flew out of Pearson and Buttonville...

buzzzzzzzzttttttt...

You can hear them miles off.

I wonder if Piaggio looked into a propfan version of the Avanti. Increase in Mach would require wing sweep which would dictate other changes to accomodate it. Though it surprises me the Avanti II has a high speed cruise of Mach .70 with the straight wing. Must be some beefy wing spars.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439
The Italian parliament is also expected to give its approval by late July to completing certification of the P1HH HammerHead – an unmanned surveillance variant of the Avanti – and the acquisition of at least one system, comprising two aircraft and one ground station, for €160 million.

HammerHead development has been on hold since the company entered receivership. Piaggio says its long-term objective is to maintain "company know-how" and participate in future Europe-wide unmanned air vehicle programmes.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,841
Reaction score
6,439
