There are a few elements on the PATRIOT that are untouched. LTAMDS is completely new and not an upgrade of the existing radar. IBCS is brand new and just going into IOT&E this month and about to enter service. MSE got fielded a few years ago and a new interceptor program is being slowly set up. I believe the new WMI is also begin to be transitioned over to operational units (or about to). IFCN with its better than 150 km range is something that doesn't even exist as a capability (to the best of my knowledge) at the moment so is going to be a completely new capability to the Army. Plus the Army is adding SM-6's to its inventory which opens up interesting future opportunities of using other Mk41 capable interceptors. The only element they haven't modernized is the launcher which even the Army's AOA from back in 2015 said that they need to get at eventually.

What the Army needs isn't a PATRIOT replacement but a full fledged doctrinal shift to the composite AD units since individual systems are far less relevant now with IBCS on the verge of being fielded. Mix and match MSE with THAAD radar, THAAD radar with PATRIOT, IFPC and PATRIOT and even USMC sensors/shooters (G/ATOR etc). This was what stood out to me in talk that Brig. Gen Gibson gave yesterday. While this was just a dream earlier with stovepiped and disparate systems..all of them now being on IBCS and IFCN really allows the Army to begin to create these composite units combining elements of various systems to best meet given theater needs. Much more efficient and effective.

The first PATRIOT battalion that gets equipped with IAMD (IBCS). and LTAMDS might as well be a completely new system from the original PATRIOT air defense system. In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Last edited:

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
I could get behind a Stinger replacement. Check out this Russian MANPADS:



bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
Last edited:

DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
1,504
Reaction score
1,716
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2
V and VM are completely different systems from the S-300/400 line. Almost like calling Aegis, "Patriot B" or something.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2

PAC-1, PAC-2, PAC-2/GEM, PAC-3 and MSE. Now they are getting the Mid Range Capability and SM-6 which will also (most probably) live on IFCN. Then there is the newly launched Future interceptor (LTFI). Several hardware and software upgrades to the two radars. And now a 360 degree non rotating Gallium Nitride based AESA. On the Command and control side, they're basically going all in on IAMD with IFCN basically making launcher, shooter and sensor agnostic choices possible with both Sentinal A3 (and A4), Marine G/ATOR, and LTAMDS integrated even before IAMD is declared operational. IFCN as a network is something that probably didn't even exist as a concept when PATRIOT was developed. So if they really had competition (in the western market) they would have probably started calling it PATRIOT NG or something like that long ago. Instead, we are talking about designations, and PDB's which no one really knows in the general public.

The headline that we need to replace PATRIOT is rather misleading but my sense is that this is already happening. PATRIOT's replacement is not another air-defense system that one can point to but the IAMD program. Having formally put it out there (along with the integrated fire control network) as the basis for all current and future systems, they won't need to develop whole new systems in the future. It will be just be radars, missiles and launchers all part of the same IBCS and IFCN collection being added or removed based on need. They are headed towards these composite units IMHO so no single system will be required making upgrades much easier (see how quickly they're moving on LTAMDS and MRC). Virtually the only legacy component left on a IAMD converted PATRIOT air defense system is the launcher. An all MSE LTAMDS and IAMD equipped system with the new interface and IFCN is virtually a completely new system with a very cutting edge radar, a highly capable BMD Lower tier interceptor and an ability to plug into other more capable radars, missiles, and sensors.

Last edited:

DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
1,504
Reaction score
1,716
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2

PAC-1, PAC-2, PAC-2/GEM, PAC-3 and MSE.

But that's the missile element, rather than the complete battery, what the Russians would call a complex, which has just kept the Patriot name. In parallel with introducing the new missiles and radars, the Russians updated the designation of the complete S-300 complex, but the US has just left it at 'Patriot', which obscures how much the system has evolved over the years.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2

PAC-1, PAC-2, PAC-2/GEM, PAC-3 and MSE. Now they are getting the Mid Range Capability and SM-6 which will also (most probably) live on IFCN. Then there is the newly launched Future interceptor (LTFI). Several hardware and software upgrades to the two radars. And now a 360 degree non rotating Gallium Nitride based AESA. On the Command and control side, they're basically going all in on IAMD with IFCN basically making launcher, shooter and sensor agnostic choices possible with both Sentinal A3 (and A4), Marine G/ATOR, and LTAMDS integrated even before IAMD is declared operational. IFCN as a network is something that probably didn't even exist as a concept when PATRIOT was developed. So if they really had competition (in the western market) they would have probably started calling it PATRIOT NG or something like that long ago. Instead, we are talking about designations, and PDB's which no one really knows in the general public.

The headline that we need to replace PATRIOT is rather misleading but my sense is that this is already happening. PATRIOT's replacement is not another air-defense system that one can point to but the IAMD program. Having formally put it out there (along with the integrated fire control network) as the basis for all current and future systems, they won't need to develop whole new systems in the future. It will be just be radars, missiles and launchers all part of the same IBCS and IFCN collection being added or removed based on need. They are headed towards these composite units IMHO so no single system will be required making upgrades much easier (see how quickly they're moving on LTAMDS and MRC). Virtually the only legacy component left on a IAMD converted PATRIOT air defense system is the launcher. An all MSE LTAMDS and IAMD equipped system with the new interface and IFCN is virtually a completely new system with a very cutting edge radar, a highly capable BMD Lower tier interceptor and an ability to plug into other more capable radars, missiles, and sensors.
Hopefully they're not ditching the PAC-2 missile. They still need a long range missile and I doubt SM-6 will ever be affordable enough to buy in large numbers.


NMaude

ACCESS: Secret
Joined
Mar 12, 2021
Messages
275
Reaction score
230
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2

PAC-1, PAC-2, PAC-2/GEM, PAC-3 and MSE. Now they are getting the Mid Range Capability and SM-6 which will also (most probably) live on IFCN. Then there is the newly launched Future interceptor (LTFI). Several hardware and software upgrades to the two radars. And now a 360 degree non rotating Gallium Nitride based AESA. On the Command and control side, they're basically going all in on IAMD with IFCN basically making launcher, shooter and sensor agnostic choices possible with both Sentinal A3 (and A4), Marine G/ATOR, and LTAMDS integrated even before IAMD is declared operational. IFCN as a network is something that probably didn't even exist as a concept when PATRIOT was developed. So if they really had competition (in the western market) they would have probably started calling it PATRIOT NG or something like that long ago. Instead, we are talking about designations, and PDB's which no one really knows in the general public.

The headline that we need to replace PATRIOT is rather misleading but my sense is that this is already happening. PATRIOT's replacement is not another air-defense system that one can point to but the IAMD program. Having formally put it out there (along with the integrated fire control network) as the basis for all current and future systems, they won't need to develop whole new systems in the future. It will be just be radars, missiles and launchers all part of the same IBCS and IFCN collection being added or removed based on need. They are headed towards these composite units IMHO so no single system will be required making upgrades much easier (see how quickly they're moving on LTAMDS and MRC). Virtually the only legacy component left on a IAMD converted PATRIOT air defense system is the launcher. An all MSE LTAMDS and IAMD equipped system with the new interface and IFCN is virtually a completely new system with a very cutting edge radar, a highly capable BMD Lower tier interceptor and an ability to plug into other more capable radars, missiles, and sensors.
Hopefully they're not ditching the PAC-2 missile. They still need a long range missile and I doubt SM-6 will ever be affordable enough to buy in large numbers.
What is the cost of a PAC-2 vs. SM-6?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
In fact most programs will call that a new Air Defense system like the Soviet/Russian S-XXX designation.

Russia's replaced the missile element of S-300 at least twice, and radars once, while still calling it S-300. What Russia has been doing, but the US seems to have gotten away from, is distinctively designating variants, so we've had:
S-300P, PT, PT-1, PS, PMU, F, FM, V, VM, PMU-1, PMU-2

PAC-1, PAC-2, PAC-2/GEM, PAC-3 and MSE.

But that's the missile element, rather than the complete battery, what the Russians would call a complex, which has just kept the Patriot name. In parallel with introducing the new missiles and radars, the Russians updated the designation of the complete S-300 complex, but the US has just left it at 'Patriot', which obscures how much the system has evolved over the years.

Yes exactly. This was my point. Just like the Standard Missile is the Standard Missile ;). If this was a competitive export marketplace (west) I'm sure they would have spun this off into Super PATRIOT, PATRIOT NG etc. But to the Inside Defense article, when someone says "we need to replace PATRIOT and get rid of it and field something newer", I feel this is someone advocating for a more rapid induction of IAMD instead of a completely new system. With IAMD and the enhancements that will be rolled into that program you don't need a completely new system just new interceptors and sensors to keep pace with the threats and other needs.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
Hopefully they're not ditching the PAC-2 missile. They still need a long range missile and I doubt SM-6 will ever be affordable enough to buy in large numbers.

For now yes. I remember initially the Army didn't want to integrate PAC-2 family into LTAMDS but soon reversed that decision. There is a large inventory of PAC-2's so they'll be around for a while until the Lower Tier Future Interceptor program picks pace and looks at the more advanced threats. We'll probably begin to see a lot more pure MSE launchers though as that missile proliferates in the Army but they aren't buying them at the scale required for a wholesale replacement not to mention that you probably don't want to use a $4+ Million missile at anything besides the most advanced BMD threat. If the integrate the MK41 kitted MRC launchers into IFCN (they've hinted at using SM-6 in a defense role as well) then that gives them interesting options going forward. Should also help reduce SM-6 cost if the Army and FMS (Australia and Japan are interested) begin to buy it.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
There is a large inventory of PAC-2's so they'll be around for a while until the Lower Tier Future Interceptor program picks pace and looks at the more advanced threats. We'll probably begin to see a lot more pure MSE launchers though as that missile proliferates in the Army but they aren't buying them at the scale required for a wholesale replacement not to mention that you probably don't want to use a $4+ Million missile at anything besides the most advanced BMD threat.

And then there's the range thing. Published sources give PAC-2/GEM as having 4 - 5 times the range of PAC-3 MSE. Don't want to lose that.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
Isn't the PAC-3 MSE optimised to intercept ballistic missiles?
It can do any kind of target, pretty much, but you'd want to use that before a PAC-2 against a missile. Something 30 miles away your only choice will be a PAC-2.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
Isn't the PAC-3 MSE optimised to intercept ballistic missiles?

It is highly effective against that threat but it is capable of defeating all the PATRIOT threats. But at 4+ million you don't want to use it to defeat cruise missiles or shoot down helicopters.

The MSI envelope (TBM's) currently exceeds the capability of the existing PATRIOT radar. This was one of the driving factors for LTAMDS so that the full capability of the MSE can be exploited. However as Sferrin said, since it doesn't loft as high as a legacy PAC-2 it won't get you the theoretical range of a PAC-2 against the slower threats (like cruise missiles or aircraft) even though it can keep out Ballistic Missiles at distances exceeding the PAC-2.

The PAC-2's biggest weakness is that it lacks an active seeker and the small magazine with just four on a launcher. Army will likely pure MSE its batteries in high TBM threat areas for this reason.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,564
Reaction score
694
I could get behind a Stinger replacement. Check out this Russian MANPADS:

Well as long as they put plenty of those tables around all their their territory, they're all set.


isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
550
Reaction score
747
If the integrate the MK41 kitted MRC launchers into IFCN (they've hinted at using SM-6 in a defense role as well) then that gives them interesting options going forward. Should also help reduce SM-6 cost if the Army and FMS (Australia and Japan are interested) begin to buy it.
With the comeback of the Multi-Mission Launcher back into vogue I do hope the Army and ADA continue their "platform agnostic" approach to launchers. If GEM-T is dropped as the news has been saying on and off for years now perhaps the Army should further look at ESSM/SM-2/SM-6 for the layered defense role? Or at the very least refresh their GEMs with active seekers, piggyback off block II ESSM experience? Raytheon wins either way :rolleyes:


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
If the integrate the MK41 kitted MRC launchers into IFCN (they've hinted at using SM-6 in a defense role as well) then that gives them interesting options going forward. Should also help reduce SM-6 cost if the Army and FMS (Australia and Japan are interested) begin to buy it.
With the comeback of the Multi-Mission Launcher back into vogue I do hope the Army and ADA continue their "platform agnostic" approach to launchers. If GEM-T is dropped as the news has been saying on and off for years now perhaps the Army should further look at ESSM/SM-2/SM-6 for the layered defense role? Or at the very least refresh their GEMs with active seekers, piggyback off block II ESSM experience? Raytheon wins either way :rolleyes:

They already have that with PATRIOT. PAC-3, PAC-3 MSE and PAC-2 GEM/T all operate off of the same launcher. Raytheon has even proposed adding a Stunner missile to it. ESSM or the SM-2 doesn't provide much value to the Army given the mission set (SM-6 is dual use so is higher value). The biggest problem with adding an active seeker on GEM/T is that one of those missiles takes up as much space as 3 or 4 PAC-3 family missiles. The SM-6 gives them the longer ranged intercepts if they want that with IBCS and JADC2 now being worked on. Beyond this, they really need a Ballistic Missiles interceptor that can fly faster, go farther and higher than the MSE and use the full extent of the LTAMDS capability.


isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
550
Reaction score
747
They already have that with PATRIOT. PAC-3, PAC-3 MSE and PAC-2 GEM/T all operate off of the same launcher. Raytheon has even proposed adding a Stunner missile to it. ESSM or the SM-2 doesn't provide much value to the Army given the mission set
I get that, and totally agree. Only suggesting Navy weapons as a hedge if PAC-2 gets dropped for whatever reason as their re-certification has been a stickler in the past few years. GEM-T seems to be doing some good work against Houthi missiles albeit the article is from 2017 "Of those 100-plus intercepts of Yemen-launched threats, Raytheon executives here credited more than 90 to the firm’s PAC-2 Guided Enhanced Missile-T (GEM-T)"

Has the Army publicly discussed their SM-6 LRPF having a secondary air defense role?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017

Has the Army publicly discussed their SM-6 LRPF having a secondary air defense role?

Cryptically so. Lt. General Thurgood reference how with the SM-6 they are getting a missile both capable of offensive and defensive fires, while VADM Hill at the same event Space and Missile defense event also said that SM-6 is easier to launch off of land compared to the SM-3 that is tightly coupled with the SPY-1/6 S band radars. With IFCN and JADC2, you now have a way to target at longer ranges that you really didn't earlier and the Army can pick up this capability for not a lot of money relatively to developing a completely new interceptor and then integrating it in an existing launcher. This allows the future LT interceptor to focus on the ballistic and hypersonic threat and leave the rest to existing inventory missiles.


isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
550
Reaction score
747

Has the Army publicly discussed their SM-6 LRPF having a secondary air defense role?

Cryptically so. Lt. General Thurgood reference how with the SM-6 they are getting a missile both capable of offensive and defensive fires, while VADM Hill at the same event Space and Missile defense event also said that SM-6 is easier to launch off of land compared to the SM-3 that is tightly coupled with the SPY-1/6 S band radars. With IFCN and JADC2, you now have a way to target at longer ranges that you really didn't earlier and the Army can pick up this capability for not a lot of money relatively to developing a completely new interceptor and then integrating it in an existing launcher. This allows the future LT interceptor to focus on the ballistic and hypersonic threat and leave the rest to existing inventory missiles.
Neat, thanks for the insight!


AN/AWW-14(V)

ACCESS: Granted
Senior Member
Joined
May 18, 2019
Messages
479
Reaction score
974
There is a large inventory of PAC-2's so they'll be around for a while until the Lower Tier Future Interceptor program picks pace and looks at the more advanced threats. We'll probably begin to see a lot more pure MSE launchers though as that missile proliferates in the Army but they aren't buying them at the scale required for a wholesale replacement not to mention that you probably don't want to use a $4+ Million missile at anything besides the most advanced BMD threat.

And then there's the range thing. Published sources give PAC-2/GEM as having 4 - 5 times the range of PAC-3 MSE. Don't want to lose that.
I think this numbers from some kind of field manual, PAC 2 and PAC 3 are estimated equal versus air-breathing target

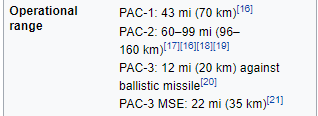

Planning ranges PAC 2 TBM: 20 km ABT: 55 km
Planning ranges PAC 3 TBM: 30 km ABT: 55 km

https://quizlet.com/230618709/patriot-exam-flash-cards/

planning range - 2/3 max range munitions fired under standard conditions


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
"The missile has a range of 70km and a maximum altitude greater than 24km. The minimum flight time is less than nine seconds and the maximum is three and a half minutes."




totoro

ACCESS: Secret
Joined
Jan 11, 2011
Messages
473
Reaction score
232
MSE range against certain aircraft might be around 100 km.
My logic stems from the following: PAC-3 was, previously, many years ago, labeled as a 65 or 70 km missile against aircraft in one publication on the NATO website. Sadly, I've no way of finding that document anymore.
And then when MSE came, it was often said that it brings give or take 50% increase in range over PAC3.

Such ranges should absolutely be attainable considering how big those missiles actually are.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
Active vs TVM is a consideration here. For TBM targets the PAC-3 MSE actually exceeds the capability of the current PATRIOT radar while the GEM/T does not. When you look into ABT's, your limitations are both kinematic and TVM related when employing the GEM/T system. For MSE/PAC-3 it is likely an altitude limitation for those max range ballistic intercept profiles.

I have seen 150+ km thrown around for the GEM/T against subsonic air-breathing threats but then that assumes that you have LOS for the link. Throw an active seeker on the gem tango and you can probably exceed this beyond the current levels.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708

GruntFox

ACCESS: Confidential
Joined
May 22, 2021
Messages
95
Reaction score
60
Funnily enough, this is what my setting is when it comes to air defense. You can't hide from the stupid amounts of sensors being deployed, so all war becomes attritional in the purest sense.
Assuming you can actually hit what you can see. Other than that you'll just see the punch coming that knocks you out.
Funny thing is that it's becoming a situation where you lack sensor data for your weapons instead of the weapons themselves.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
Being able to track something is the first requirement to be able to intercept it. IAMD opens up the aperture significantly and basically transforms the PATRIOT to a local air defense system to one that is a composite of multiple disparate sensors and shooters. Between THAAD, MSE, and the IFPC interceptors there are several really good options to go after some of these threats. Throw in SM-6, and future LT interceptor to the mix as well.

Funny thing is that it's becoming a situation where you lack sensor data for your weapons instead of the weapons themselves.

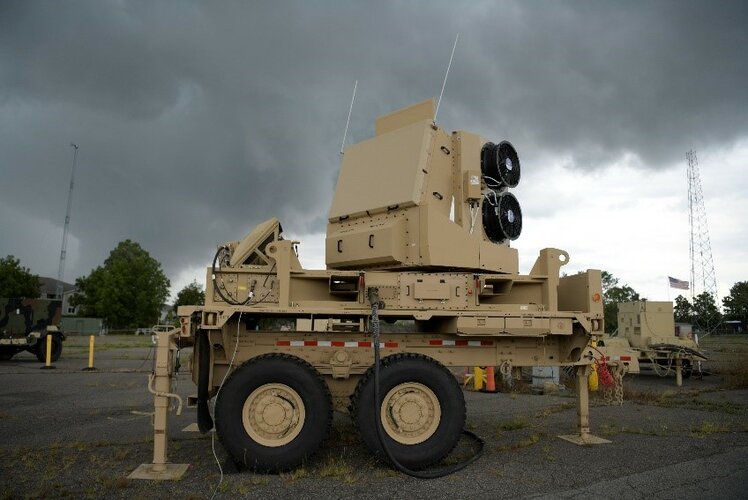

Yes that's currently the case. The current PATRIOT radar cannot realize the entire kinematic capability of the PAC-3 MSE. For Cruise Missile defense, your keep out distance is essentially limited to your ability to track these weapons during cruise using third party ground based or elevated sensors. IAMD has already demonstrated some long range shots made possible by IBCS and forward deployed Sentinels. With IFCN you can now have your launchers positioned to make use of that as opposed to having them bunched up. When the Army fields the SM-6 it will need this connectivity and the integrated fire control network to make use of that weapon to go after threats not in the PATRIOT or LTAMDS radar FOV.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
Seems like as good of place as any to put this. (It's probably elsewhere on this site but for the life of me don't know what it would be called.) This missile, second from right. Almost looks like it could be a Mk72 booster with a 21" sized second stage (think SM-6 Block IB) and a THAAD KKV. I wonder if the Navy is looking at something like this.

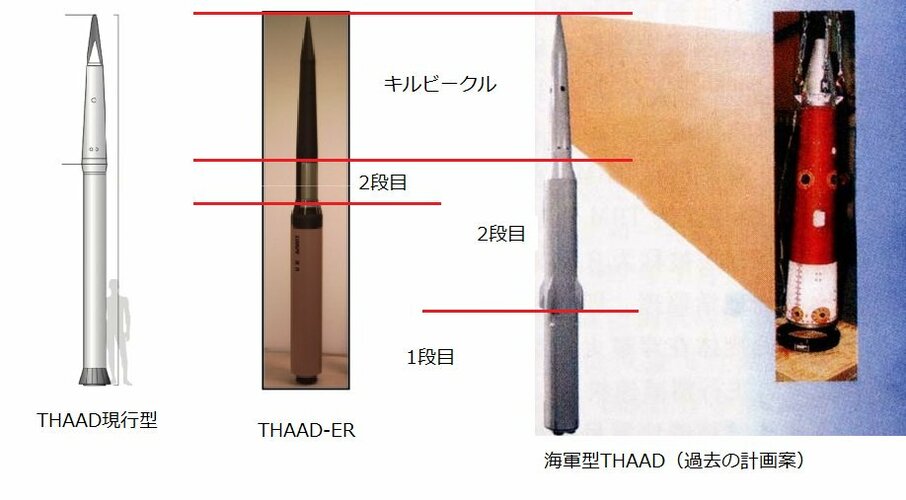

No idea.jpg


NASA

ACCESS: Restricted
Joined
Oct 13, 2020
Messages
6
Reaction score
8
Seems like as good of place as any to put this. (It's probably elsewhere on this site but for the life of me don't know what it would be called.) This missile, second from right. Almost looks like it could be a Mk72 booster with a 21" sized second stage (think SM-6 Block IB) and a THAAD KKV. I wonder if the Navy is looking at something like this.

View attachment 664699

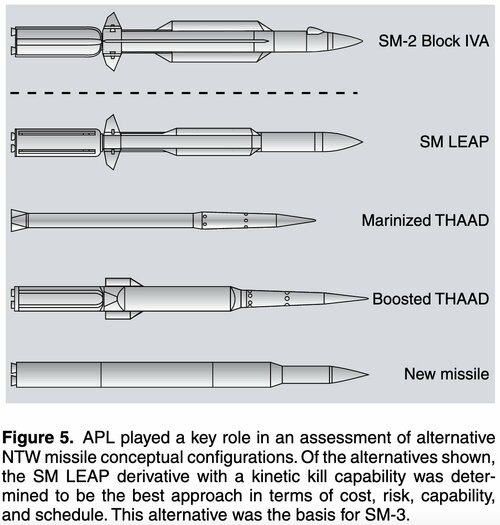

I spent couple of hours searching for this because I remembered I had seen an illustration of it somewhere before. The Navy did actually consider this long ago but it didn't win, according to JHU/APL, a "boosted THAAD" which is what is shown above was considered for the NTW but it lost out against SM LEAP.


Attachments

  • 22-03-Krill.pdf
    4.1 MB · Views: 17
  • 20211106_063026.jpg
    146.3 KB · Views: 36
