Suspension (parasite) fighter D.Pokorzhevskiy
_______________________________________

Technical requirement on designing gave OKB Myasishchуev.
Dimensions Span:5,2m
Lenght :4,5m
Engine: One 1590kg (3,500lb) license Rolls-Royce Derwent
Armament :2 x 20 or 23mm
Weights loaded 1850 kg
Accounting time of the flight 10 - 15 minutes.

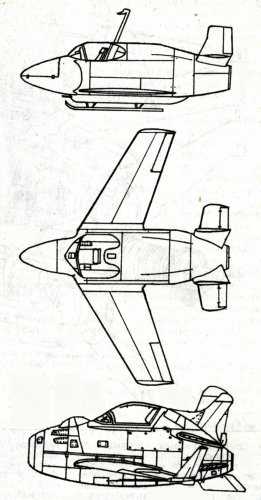

Projections of this plane were provided in one scale with Goblin

Source: Kryl'ya rodiny magazine 8' 1995


Attachments

  • P C639.jpg
    P C639.jpg
    767.9 KB · Views: 2,099

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125

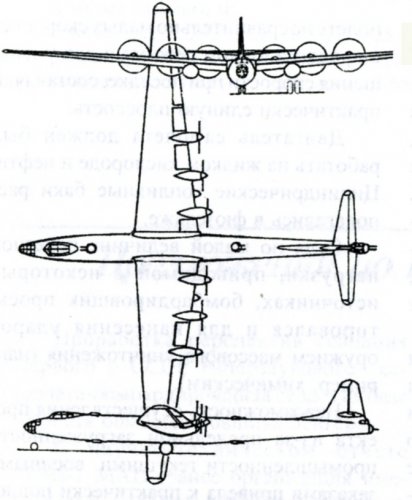

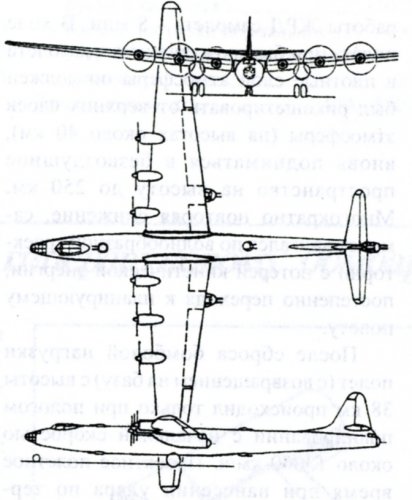

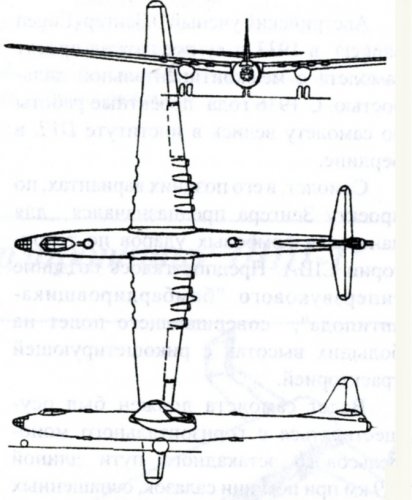

The Potential carrier - a Myasischev heavy long range strategic bomber . ОКB-482 (1946)
_____________________________________________________________________________
1) project with AM-39FTK, piston engine
accounting range -14000 km
max speed -625 km/h
2) with turboprop engine
max speed -700-750 km/h
3) with turbojet
_____________________________________________________________________________
crew - 14 person
weight empty - 65000 kg
loaded - 112000 kg
bombloaded normal, -4000 kg
max, -20000 kg
armament gun - 10 x 23 mm
_____________________________________________________________________________
Project HLRSB OKB-482 in perfect impression J.Gatial : http://www.secretprojects.co.uk/forum/index.php/topic,1660.0.html
_____________________________________________________________________________
Source : S.GANIN. A.KARPENKO V.KOLNOGOROV "Homeland (russian) bombers" Vol. 1 2001


Attachments

  • HLRSB-OKB-482. 1).jpg
    HLRSB-OKB-482. 1).jpg
    240.7 KB · Views: 1,701
  • HLRSB-OKB-482. 2).jpg
    HLRSB-OKB-482. 2).jpg
    206.3 KB · Views: 1,635
  • HLRSB-OKB-482. 3).jpg
    HLRSB-OKB-482. 3).jpg
    223.3 KB · Views: 1,590

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
82
Great Find Borovik. Thanks.

Any idea about he time frame of these concepts ?

A long time ago, I saw a drawing from a Russian publication of a Tu-4 with four(6?) parasite
aircraft below the wings.Unfortunately the drawing is lost.
Parasite aircraft were of a different configuration. Could they
be from the Yakovlev OKB ?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125

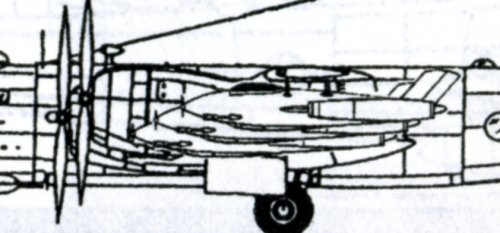

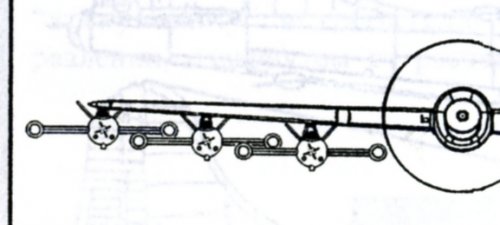

Aircraft Complex of the Interception Striking Enemy Aircraft.
_____________________________________________________
In 1948 in OKB-115 A.YAKOVLEV was winnowed development of the light small fighter Yak-40 (first with this name) with powerful cannon arms.
Aircraft complex of the interception striking enemy aircraft with use plane-wombs and fighters-interceptors with small length of the flight.


(Apologize for its bad english :'()


Attachments

  • Yak-40 parasite 2.jpg
    Yak-40 parasite 2.jpg
    158.6 KB · Views: 229
  • Yak-40 parasite 1.jpg
    Yak-40 parasite 1.jpg
    63.1 KB · Views: 245

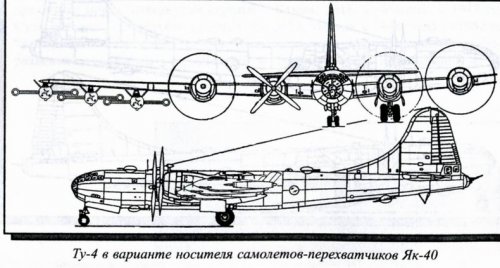

  • A.C.I.S.E.A. (Tu-4 & Yak-40).jpg
    A.C.I.S.E.A. (Tu-4 & Yak-40).jpg
    60.2 KB · Views: 1,628

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,054
Reaction score
1,447
Website
www.aerospaceprojectsreview.com
On this topic, Convair designed a nuclear-powered anti-submarine warfare flying boat in the late 1950's that was to carry two parasite fighters. A 30-inch-diameter tunnel would lead through the wings to the fighters, allowign the pilot to spend his time in the main aircraft's spacious fuselage. But the ride down the length of the tunnel would have had to have been pretty spooky... because shielding that holw tunnel adequately would be weight prohibitive, so the pilot would get nuked in transit. Fun...

More info:

http://www.up-ship.com/drawndoc/drawndocair.htm



Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
15
Video of XF-85 Goblin on YouTube:


http://uk.youtube.com/watch?v=PisUjsXSUZU


bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,572
Reaction score
1,557
Weaver - great video I always watch this early test flight stuff with amazement so dangerous, crazy.

I also think of "News article from the future/past"

XF-85 Goblin cancelled after turbulence causes pilot to crash land. Congressional inquiry to investigate billion dollar defense boondoggle.

[/color]

R

Retired In Kalifornia

Guest

Hypothetical CONVAIR "GB-60" Turboprop Picket Patrol Mothership & McDonnell F-85A/B Goblin Parasite Fighters With Trapeze Capture System
Pretty Simple 1998 Art Of Mine Drawn With Micrografx v.5​


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,572
Reaction score
3,006
Hi!
https://www.youtube.com/watch?v=jmZIDgPISR8


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
571
Reaction score
195

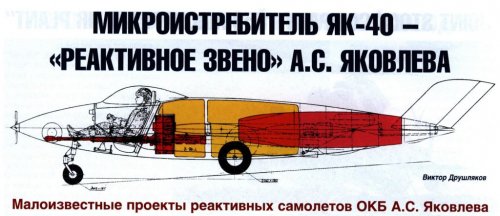

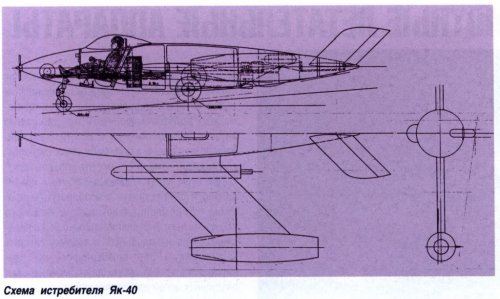

Drawings of the 1948 Yakovlev development of the light small parasite fighter, the Yak-40 (first use of the designation).

Source:

Аэрокосмическое обозрение 2013-06 (Aerospace Review issue 67)


Attachments

  • Yakovlev_Yak-40_(1)_Fighter_Parasite Project_Artwork.jpg
    Yakovlev_Yak-40_(1)_Fighter_Parasite Project_Artwork.jpg
    136 KB · Views: 98
  • Yakovlev_Yak-40_(1)_Fighter_Parasite_Artwork.jpg
    85.2 KB · Views: 126
  • Yakovlev_Yak-40_(1)_Fighter_Project_Schematic.jpg
    102.7 KB · Views: 122

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
637
Reaction score
97

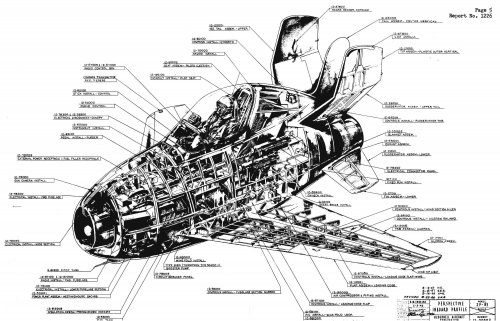

Cutaway McDonnell XF-85 Goblin, author Ramay for McDonnell date 6-5-1946


Attachments

  • Goblin cutaway.jpg
    Goblin cutaway.jpg
    1.1 MB · Views: 126

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
680
Website
deeptowild.blogspot.com

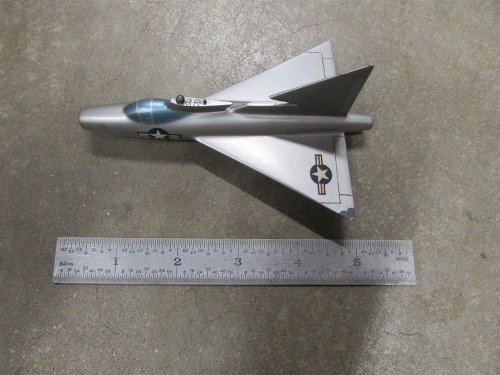

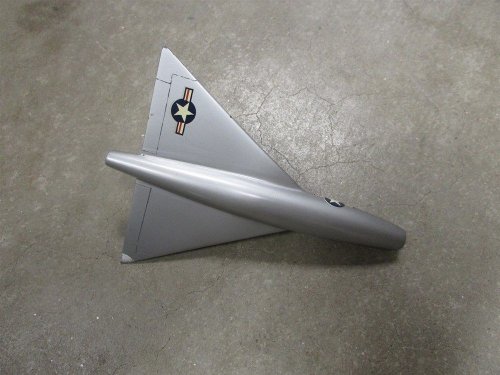

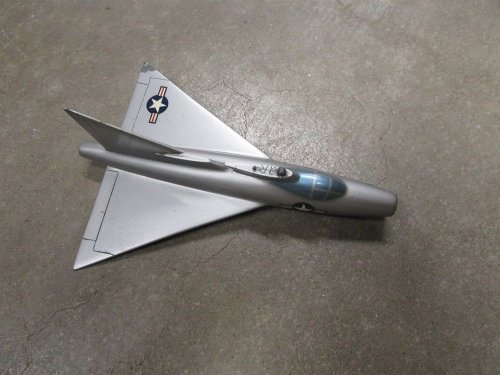

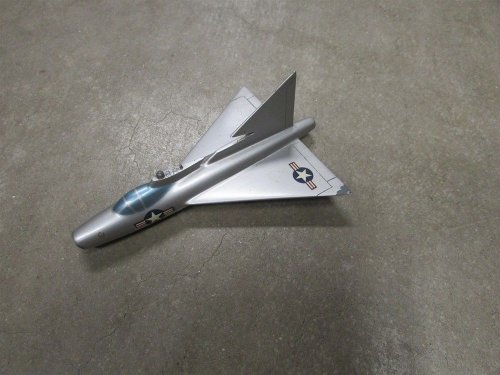

Model of Convair parasite fighter found on eBay.

CONVAIR AIRCRAFT USAF Strategic Bomber Parasite Fighter Concep Model. Metal construction with a 5" fuselage and 3.5" wingspan. This was originally part of a larger bomber proposal that included this and other style parasite fighter designs. Near mint with just a small paint chip to one wingtip.

Source:
http://www.ebay.com/itm/CONVAIR-USAF-Bomber-Parasite-Fighter-Factory-IN-HOUSE-Metal-Desk-Display-Model/162683627313?hash=item25e0b32731%3Ag%3A62gAAOSwIdpZxZCS


Attachments

  • s-l1600e.jpg
    141 KB · Views: 69
  • s-l1600d.jpg
    122.4 KB · Views: 63
  • s-l1600c.jpg
    118.2 KB · Views: 65
  • s-l1600b.jpg
    120.7 KB · Views: 85
  • s-l1600.jpg
    117.2 KB · Views: 90

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166

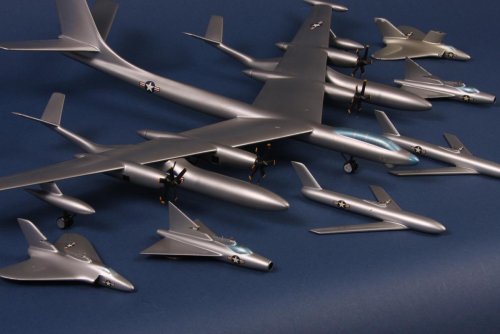

That fell off a Douglas 1211 bomber ...


Attachments

  • Douglas 1211 Parasites.jpg
    Douglas 1211 Parasites.jpg
    75 KB · Views: 666

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,362
Reaction score
4,162
Nice find Triton,

it's Convair XP-92 in parasite configuration.


litzj

BLOG : http://jaesan-aero.blogspot.com/
Joined
Feb 4, 2012
Messages
262
Reaction score
38
Website
jaesan-aero.blogspot.com
https://apps.dtic.mil/dtic/tr/fulltext/u2/529372.pdf

investigation for small jet fighters loaded on the huge transport aircraft


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
637
Reaction score
97

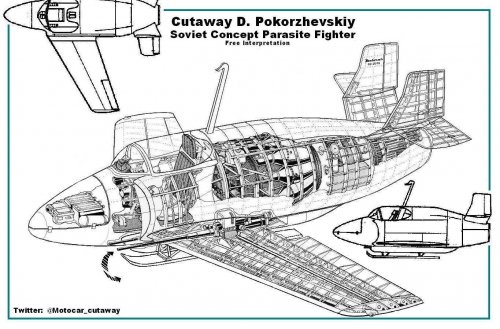

Cutaway D. Podorzhevskiy, Soviet concet parasite Fighter author Motocar


Attachments

  • Cutaway D. Pokorzhevskiy.jpg
    Cutaway D. Pokorzhevskiy.jpg
    270.5 KB · Views: 478

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
637
Reaction score
97

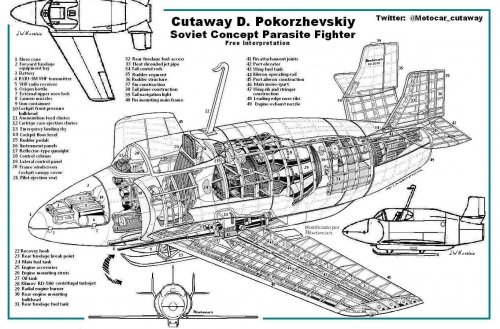

Cutaway D.Pokorzhovskiy, now wiht key cutaway, author Aviagraphica and modified by Motocar


Attachments

  • Copia (4) de Cutaway D. Pokorzhevskiy.jpg
    Copia (4) de Cutaway D. Pokorzhevskiy.jpg
    332.2 KB · Views: 329

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
109
Website
www.avicopress.ru

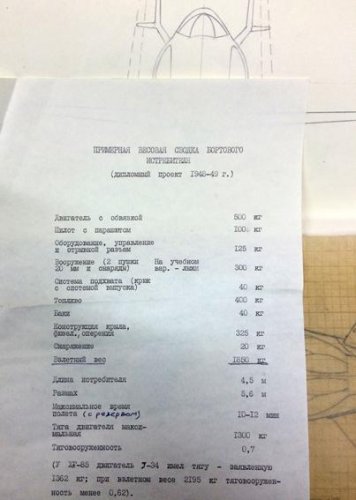

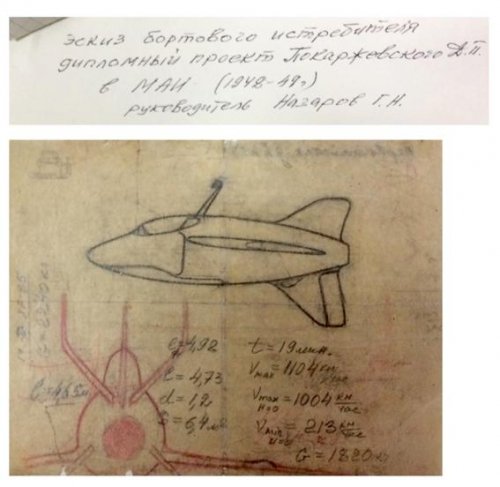

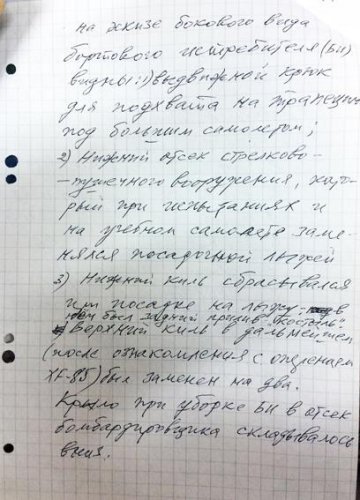

Real documents from Pokarzhevsky archiev


Attachments

  • Pokarzhevsky BI-01.jpg
    Pokarzhevsky BI-01.jpg
    18.9 KB · Views: 206
  • Pokarzhevsky BI-02.jpg
    Pokarzhevsky BI-02.jpg
    35.7 KB · Views: 196
  • Pokarzhevsky BI-03.jpg
    Pokarzhevsky BI-03.jpg
    27.9 KB · Views: 57
  • Pokarzhevsky BI-04.jpg
    Pokarzhevsky BI-04.jpg
    48.6 KB · Views: 53

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
637
Reaction score
97
Thanks ucon for that data. Motocar
