USN Carrier Based Day Fighter requirement from 1946 generated 12 submissions:

Douglas D-565
Martin Model 235

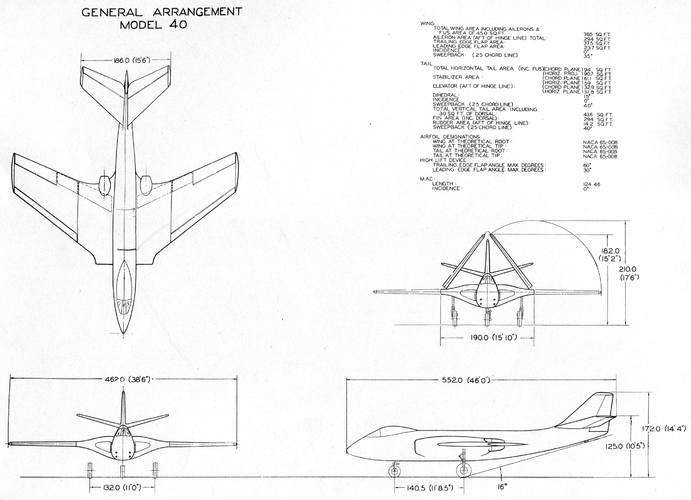

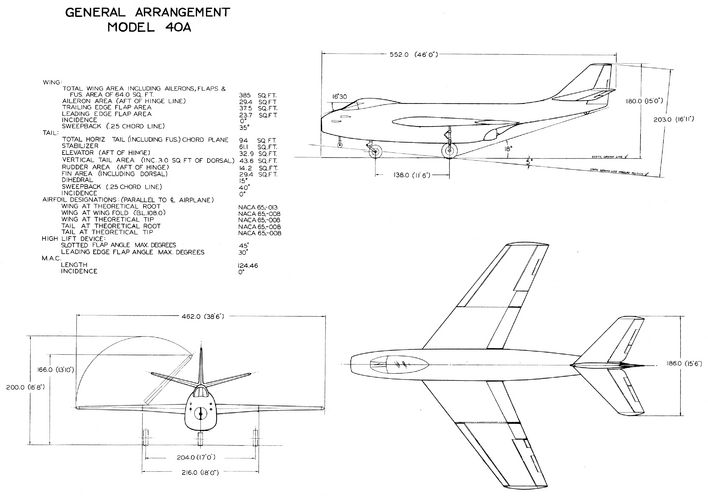

McDonnell Model 40 and 40A
Chance Vought V-346A to D
Boeing Model 454
Boeing Model 459
Curtiss Wright unknown design
North American unknown design

The winner was Model V-346A which was produced as F7U Cutlass


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,666
Reaction score
640

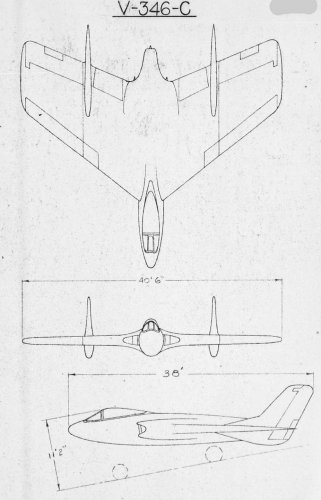

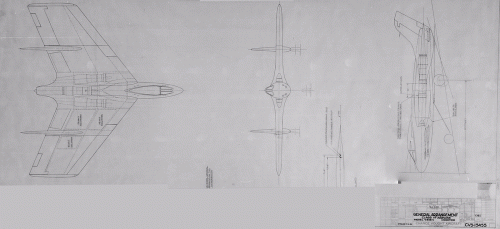

Thanks to PhotoGator, here's a look at Vought V-346C...

Enjoy the Day! Mark


Attachments

  • xCVS-15455_V-346C_General_Arrangement.gif
    362.4 KB · Views: 1,132

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,955
Reaction score
323
From 'Chance Vought F7U Cutlass', Naval Fighters 6,

"The Navy opened a 1945 fighter competition for a fighter capable of 40,000 feet and 600 mph....
Twelve designs were submitted by six companies.
Vought submitted four, McDonnell NAA and Curtiss-Wright two each, and Martin and Douglas one each.
The final contenders were Vought's V-346A,B,C, and the Douglas 565
The Vought V-346A was chosen as the winner on June 25th, 1946..."

V-346A :-Swept-wing tailless aircraft weighing 14,300lbs, with two J-34 engines inside the fuselage,
Top speed 620 mph, rate of climb 6,500 fpm.

V-346B :-Conventional swept-wing aircraft weighing 15,700lbs, with two J-34 engines inside the fuselage,
Top speed 605 knots, rate of climb 5,800 fpm.

V-346C :- Similar to the V-346A, with the addition of one J-34 engine, giving a weight of 17,500lbs,
a Top Speed of 655 knots, and rate of climb 9,700 fpm.

V-346D :-Conventional swept-wing aicraft weighing 20,950lbs with three engines,
of which two were to be mounted in nacelles under each wing, and a third in the fuselage.
Top Speed 610 knots, rate of climb 7,000 fpm.

cheers,
Robin.

[Removed pics as better ones posted below - Admin]


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
367

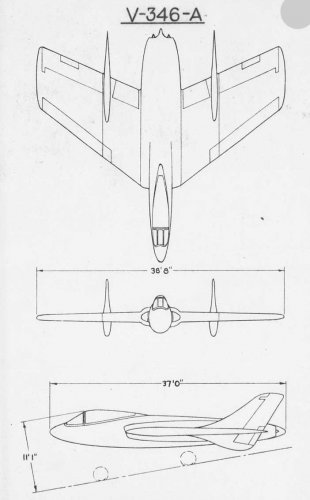

I had a little time, while sitting here scanning, to read the posts
from the beginning and found this one on the V-346.
From Vought Archives
Three years later, a response! :)


Attachments

  • xV-346A.jpg
    93.7 KB · Views: 866

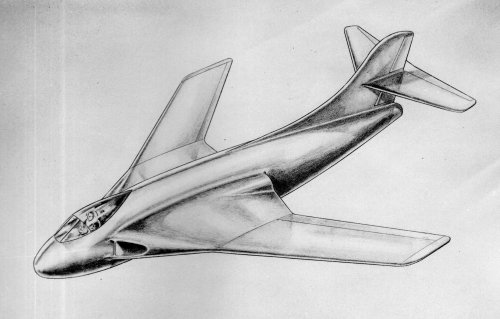

  • xV-346B.jpg
    136.2 KB · Views: 843
  • xV-346C.jpg
    107.8 KB · Views: 793

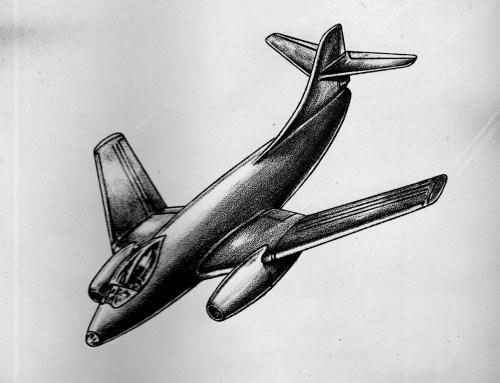

  • xV-346D.jpg
    96.5 KB · Views: 778

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,042
Also from the Spangenberg Index, courtesy of RyanCrierie;

the Curtiss-Wright proposal was P.538,and there is
P.551 may be for the same Specification,and North
American RD.1544.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240
Posted by Pometablava

USN Carrier Based Day Fighter requirement from 1946 generated 12 submissions:

Douglas D-565
Martin Model 235
McDonnell Model 40 and 40A
Chance Vought V-346A to D
Boeing Model 454
Boeing Model 459
Curtiss Wright unknown design
North American unknown design

The winner was Model V-346A which was produced as F7U Cutlass


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,523
Reaction score
274
Tailspin,

my reference for the Boeing entries come from Tony Buttler's "American Secret Projects. Fighters & interceptors 1945-1978" Page 40.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
94
Website
www.tommythomason.com
pometablava said:
Tailspin,
my reference for the Boeing entries come from Tony Buttler's "American Secret Projects. Fighters & interceptors 1945-1978" Page 40.

I don't have that book handy but Tony recently sent me an email that said he weaseled-worded (my phrasing) the formality of the Boeing proposal in the text on that page...

Of course, the omission might be the result of the Vought sales manager being misinformed or forgetting one of the competitors, but he seems to have taken a lot of care with his reports so it's probably not the latter.

The fighter class desk officer in charge later wrote that “about a dozen entries (were received) from six or eight companies”. He may not have stated an exact number of "entries" or companies because some of the proposals from some of the companies were rejected out of hand on receipt as not being compliant. That reduces BuAer's evaluation work load and would account for the omission of Boeing from the sales manager's report.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
94
Website
www.tommythomason.com

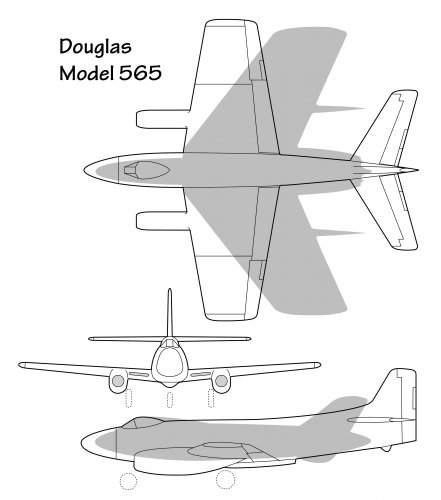

Thanks to Tony Buttler's ongoing search through the National Archives' finder's aid that is online for Record Group 72 and Ryan Crierie's expertise at pulling stuff out of the stacks there, we now have a three-view of the Douglas Model 565, which came in third in the OS-105 competition. (The shadow view is the Vought 346A proposal.)


Attachments

  • 4-9 Douglas Model 565 Three View.jpg
    4-9 Douglas Model 565 Three View.jpg
    778.7 KB · Views: 116

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
94
Website
www.tommythomason.com
Scans by Rick Koehnen from the newly accessible BuAer documents in RG 72...


Attachments

  • CW OS-105 VF I.jpg
    CW OS-105 VF I.jpg
    282 KB · Views: 703
  • CW OS-105 VF II.jpg
    CW OS-105 VF II.jpg
    320.6 KB · Views: 660

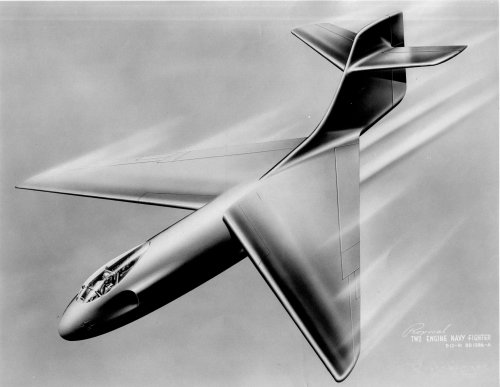

  • NAA OS-105 Fwd swept wing twin engine RD 1386A.jpg
    NAA OS-105 Fwd swept wing twin engine RD 1386A.jpg
    224.4 KB · Views: 598

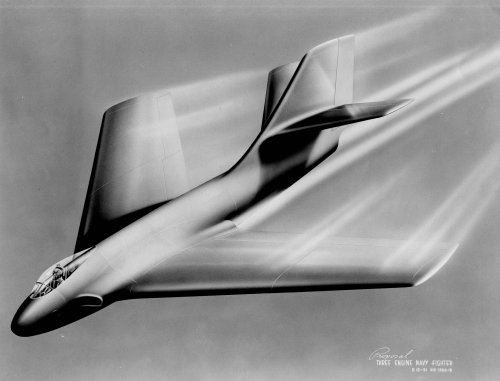

  • NAA OS-105 Swept Wing three engine RD 1386B.jpg
    NAA OS-105 Swept Wing three engine RD 1386B.jpg
    380.3 KB · Views: 564

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,105
Many thanks Mark !
The VF I looks a bit like a Hawker P.1081 clone.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,955
Reaction score
323
Tailspin Turtle, I've seen the Douglas Model 565 published in Jay Miller's 'Aerograph 5 - Douglas A-3 Skywarrior', as the 'Douglas Design based on A-3 studies', on page 14 of said book... ???

cheers,
Robin.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
94
Website
www.tommythomason.com
robunos said:
Tailspin Turtle, I've seen the Douglas Model 565 published in Jay Miller's 'Aerograph 5 - Douglas A-3 Skywarrior', as the 'Douglas Design based on A-3 studies', on page 14 of said book... ???

cheers,
Robin.

Excellent observation. Tony Buttler told me that he'd seen it somewhere before and as it turns out so had I, but only you remembered where. We can be forgiven for not seeing something hiding in plain sight because Jay didn't identify it as the Model 565 or tie it to the OS-105 competition. The title of the illustration in his monograph is Douglas Design Based On AD Studies, so the implication was that it was associated with the attack mission.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,955
Reaction score
323
That's why it stuck in my mind. It was implied that this design was the starting point for the evolution of the A3D/A-3, but it didn't look right. For a start it didn't seem large enough, or advanced enough to meet the attack requirement.
Likewise with the fighter requirement that we now know it was designed to meet. If the NAA VF I says 'Hawker P.1081', the the D-565 says 'Supermarine Attacker', it just doesn't seem advanced enough, aerodynamically. If this design was placed third in the competition, what was the last placed proposal like....?

cheers,
Robin.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
94
Website
www.tommythomason.com
robunos said:
That's why it stuck in my mind. It was implied that this design was the starting point for the evolution of the A3D/A-3, but it didn't look right. For a start it didn't seem large enough, or advanced enough to meet the attack requirement.
Likewise with the fighter requirement that we now know it was designed to meet. If the NAA VF I says 'Hawker P.1081', the the D-565 says 'Supermarine Attacker', it just doesn't seem advanced enough, aerodynamically. If this design was placed third in the competition, what was the last placed proposal like....?

cheers,
Robin.

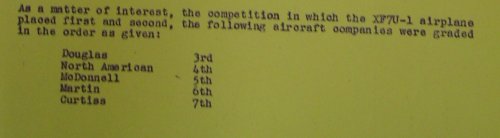

The ranking by contractor was Vought, Douglas, North American, McDonnell, Martin, and Curtiss Wright. One or both of the C-Ws was reportedly "an extremely bad design." (That may have been an observation on some of its features like a JATO-activated escape pod rather than an ejection seat, boundary layer control for low speed flight, spoiler/flap for roll control, etc.) Remember that at the time, there was very little experience with swept wings and none in flight with afterburners. The Douglas proposal didn't meet the requirement for top speed or rate of climb but it also did not have swept wings or afterburning engines.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
367

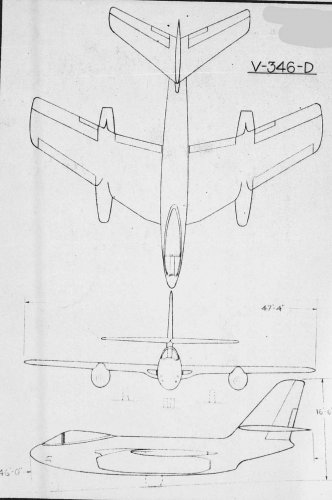

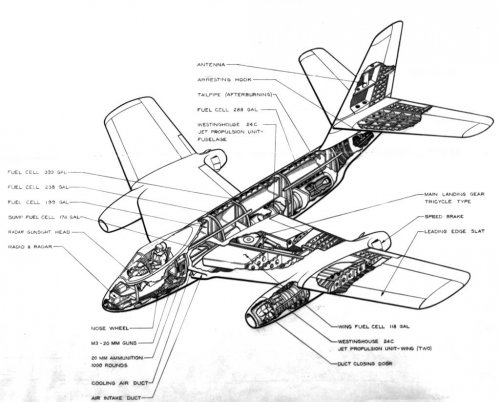

Here is another view of the V-346D showing a few of the interior details.
Vought Aircraft Historical Archives


bill


Attachments

  • CVS-15463-V-346D-Airplane-Arrangement.jpg
    77.3 KB · Views: 271

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
367

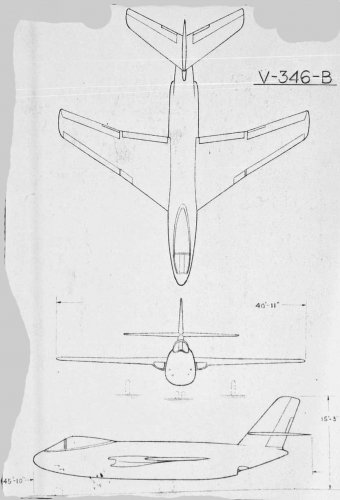

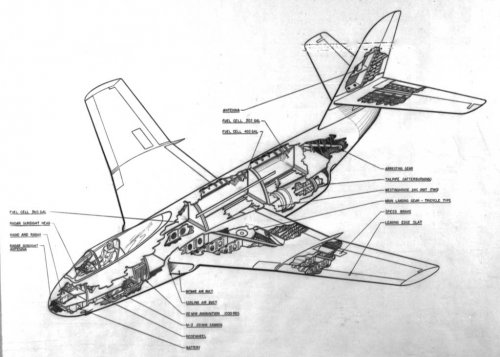

Same type drawing for the V-346B aircraft.
The film had nasty scratches on it,
I got most of it fixed except the damage on the tail.


Vought Aircraft Historical Archives


bill


Attachments

  • CVS-15433-V-346B-Airplane-Arrangement.jpg
    63.8 KB · Views: 732

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
This is great stuff, really representative of the period. It's interesting how the conventional, tailed Vought designs look like bigger, brawnier versions of the Hawker P.1052 and P.1081, the swept-wing cousins of the Hawker Sea Hawk.
