On Austro-Hungarian 38cm and 42cm Guns

[GianmarcoBianchi]

Austrian battleship plans showed studies on battleship and battlecruisers after Ersatz Monarch class, in 1915-1918. Most of these plans , 5 series of 6, use 38cm or 42cm guns. Reference can be find in KuK Late WWI Capital Ship Designs article by Erwin Sieche.
As for 35cm guns used on Ersatz Monarch and MTK battlecruiser project I series, they have exact turret plans and gun details.
Was Skoda ready for working on 38cm or much bigger guns? Did they have turret looks plans in such designs? For bigger guns, was it right that Skoda would rely on Krupp tech?



[Tzoli]

Yes the archives had data on them, also the navweaps site updated not too long ago:

Austria-Hungary 38 cm (14.96") and 42 cm (16.54") Proposed Guns 1917-1918 - NavWeaps

www.navweaps.com



[GianmarcoBianchi]

Is there any firsthand ship turret design? Or were such designs only shown in MTK capital ship projects?

Yes the archives had data on them, also the navweaps site updated not too long ago:

Austria-Hungary 38 cm (14.96") and 42 cm (16.54") Proposed Guns 1917-1918 - NavWeaps

www.navweaps.com



[Tzoli]

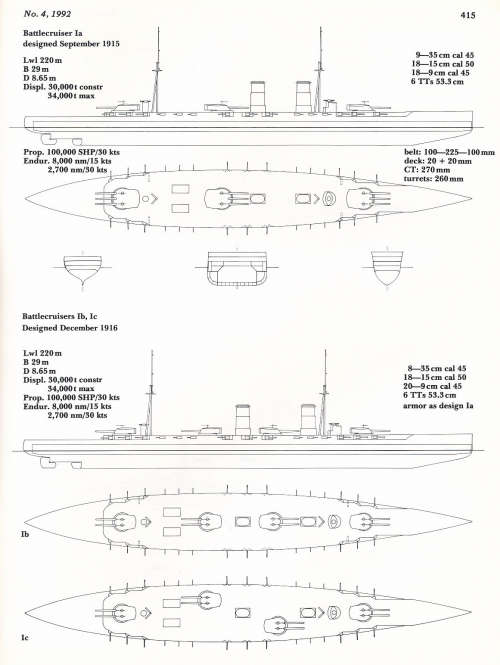

So far only on the ship drawings



[GianmarcoBianchi]

So far only on the ship drawings

Would you share such drawings? Sieche's descriptions and your artworks were secondary creation of drawings.
As for its estimated 1.5-rpm firing rate, what might be the reason? Did Austrians use silk charge bags or brass bags? Skoda big guns usually have low firing rate than Krupp's, are there any possible reasons?



[Tzoli]

I've used Erwin Sieche's drawings.



[GianmarcoBianchi]

About 9cm (maybe 88mm exactly) TAG or BAG guns on Ersatz Monarch, is there any detail about its performance? or similar to Krupp 88mm gun?



[Tzoli]

Here:
9 cm/45 (8.8 cm) Škoda (Danubius: Magyar
Ágyúgyár) guns with sliding wedge breech,
Weight of a gun with mounting: 2,270 kg
Weight of the ammunition: 18.5 kg
Allowance for each gun: 400 (AA 550)
Projectile’s weight: 10.2 kg
Muzzle velocity: 800 mps



[Tzoli]

Would you share such drawings? Sieche's descriptions and your artworks were secondary creation of drawings.
As for its estimated 1.5-rpm firing rate, what might be the reason? Did Austrians use silk charge bags or brass bags? Skoda big guns usually have low firing rate than Krupp's, are there any possible reasons?

They used full brass casings.

1,5 rounds per gun seems normal for 42cm and a bit on the lower end for the 38cm.



[GianmarcoBianchi]

Here:
9 cm/45 (8.8 cm) Škoda (Danubius: Magyar
Ágyúgyár) guns with sliding wedge breech,
Weight of a gun with mounting: 2,270 kg
Weight of the ammunition: 18.5 kg
Allowance for each gun: 400 (AA 550)
Projectile’s weight: 10.2 kg
Muzzle velocity: 800 mps

are there 3 different types? BAG, TAG and casmated guns?



[Tzoli]

are there 3 different types? BAG, TAG and casmated guns?

Yes though the casemated variant only existed in design form on the late war capital ship designs.

Austria-Hungary 9 cm G. L/45 (3.5") K12 TAG Škoda and K/16 BAG Škoda - NavWeaps

navweaps.com



[GianmarcoBianchi]

Yes though the casemated variant only existed in design form on the late war capital ship designs.

Austria-Hungary 9 cm G. L/45 (3.5") K12 TAG Škoda and K/16 BAG Škoda - NavWeaps

navweaps.com

weren't there four casemated 9cm guns on the bow of Ersatz Monarch?



[Tzoli]

weren't there four casemated 9cm guns on the bow of Ersatz Monarch?

Well, yes though I do not remember if those are proper casemate or USN style gunports were
