Hi


After the war there was build in Austria a two seat sports plane.
It was a design of Otto Kauba.
Who can help me with more details?
Such as:
Drawings, if possible with construction details;
Dimensions;
Pictures, if possible also during the construction;
How and in which colors was it painted;
Other details/matreials


Thanks
Jan


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,772
Reaction score
44
Re: Oesterreichischer Flugzeugwerke

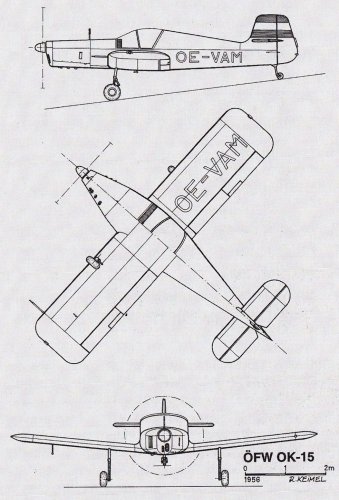

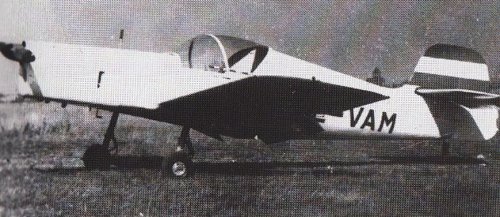

...this is all I have...


Attachments

steelpillow

So many projects, so little time...
Senior Member
Joined
Jun 25, 2014
Messages
654
Reaction score
107
Website
www.steelpillow.com
Re: Oesterreichische Flugzeugwerke OK-15

Some sources with very limited mention:
  • Reinhard Keimel; Österreichs Luftfahrt in Einzeldarstellungen: Propeller-Luftfahrzeugkonstruktionen seit 1945, Weishaupt, 1980. ISBN 9783900310028
    "Austrian Aviation in Individual Studies: Propeller aircraft from 1945."
    Kauba OK-15 listed in book description.
  • https://www.dauntless-soft.com/AviaQuiz/quizArchive.asp?id=145
    OFW OK-15, OE-VAM, the 1st aircraft built in Austria after WWII. First Flight 16-7-56 designed by Otto Kauba.
    [Note: OE-VAM has been worn by at least one other aircraft]
  • http://www.loan-airport.at/austrias-flight-history/
    In Wiener Neustadt Otto Kauba started to build a motor aircraft, it was the first Austrian construction since 1937. The aircraft, the OK-15, took off on its maiden flight on 16 July 1956.
  • "Did You Know...?", Air Pictorial, Vol. XVIII, No. 8, August 1956, p.285.
    An interesting Austrian post-war light plane, the OFW OK 15, is a two­ seater low-wing monoplane powered by a Walter Minor 4/III of 105 h.p. Span is 25 ft., length 21 ft. 4 in. and height 5 ft. 6 in. It bears a certain resemblance to the war-time Skoda SK V5.
  • "Aircraft Intelligence", Flight, 18 January 1957, p.73.
    O.K.15. The protorype of the O.K.15, the first aeroplane designed in Austria for 20 years, has now begun its flight trials. A low-wing, side-by-side two-seater, this machine is powered by a Walter Minor III and should cruise at about 124 m.p.h. It is manufactured of metal, wood and fabric and has been built by the Austrian Aircraft Factory at Wiener Neustadt.
  • Gunston; World Encyclopedia of Aircraft Manufacturers.
    ÖFW (Austria). Österreichische Flugzeugwerke GmbH built light aircraft 1958-9.

I think Keimel may have more information inside. Is that where the images already posted come from?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,772
Reaction score
44
Yes steelpillow, you´re right.


steelpillow

So many projects, so little time...
Senior Member
Joined
Jun 25, 2014
Messages
654
Reaction score
107
Website
www.steelpillow.com
Thank you.

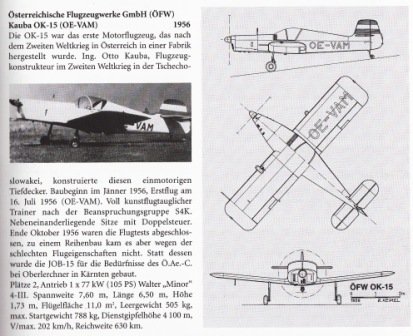

Here is my initial translation of his text:

Österreichische Flugzeugwerke GmbH (ÖFW) [Austrian Aircraft Factory]
Kauba OK-15 (OE-VAM) 1956
The OK-15 was the first powered aircraft manufactured in an Austrian factory after the Second World War. Ing. Otto Kauba, in World War II an aircraft designer in Czechoslovakia, constructed this single-engine low-wing aircraft. Construction started in January 1956, with the first flight on 16 July 1956 (OE-VAM). Full aerobatic trainer according to airworthiness category S4K. Side-by-side seating with dual control. End of October 1956, the flight tests were completed, but it did not enter series construction because of its poor flight characteristics. Instead, the JOB-15 was built to meet the needs of the Ö.Ae.C [Österreichische Aero Club] at Oberlerchner in Carinthia.
Seats 2, Power 1 x 77 kW (105 hp) Walter "Minor" 4-III. Span 7.60 m, length 6.50 m, height 1.73 m, wing area 11.0 m^2, empty weight 505 kg, max. take-off weight 788 kg, service ceiling 4,100 m, V/max. 202 km/h, range 630 km.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
There was also JOB-5,

was it in a series ?.


steelpillow

So many projects, so little time...
Senior Member
Joined
Jun 25, 2014
Messages
654
Reaction score
107
Website
www.steelpillow.com
hesham said:
There was also JOB-5,

was it in a series ?.
The JOB-5 and JOB-15 were two light sports types used by the Austrian Aero Club. They were not related to Kauba's work, as far as I know. There is some more about them, in German, in
https://www.vereinsweb.ch/albatros/docs/VariaExtern/Reportagen/JOB%20-%20Der%20Alpen%20Klassiker.pdf
But it has at least one mistake; "die JOB 5 [war] das erste fabrikmaessig gefertigte Oesterreicische Motorflugzeug..." (the JOB 5 [was] the first factory made Austrian powered aeroplane...". This honour of course belongs to the OK-15.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
Thank you my dear Steelpillow,

I want to know if there was JOB-6,JOB-7 ...... etc,or not ?.


steelpillow

So many projects, so little time...
Senior Member
Joined
Jun 25, 2014
Messages
654
Reaction score
107
Website
www.steelpillow.com
I have no real knowledge but I do not think so.

The company Oberlerchner mostly made gliders designed by Erwin Musger, see
https://www.secretprojects.co.uk/forum/index.php/topic,17923.0.html

The powered types appear to have been designed by his boss, Josef Oberlerchner.
