Marinens Flyvebaatfabrikk

M.F.1 - 1915 Maurice Farman MF.7 floatplane devel., x 5-6
- M.F.1: 1 x 100–130 hp Hall-Scott A-3 V-8, span 19.02 m
-- https://upload.wikimedia.org/wikipedia/commons/c/c0/M.F._1.jpg

M.F.2 - 1916 armed M.F.1 devel. by kaptein HG Dehli, x 3
- M.F.2: 1 x 160 hp Sunbeam 150 hp V-8, span 15.60 m
-- M.F.2 armament: 2 x 50 kg mines/bombs, 1 x Madsen mg
-- M.F.2: F.10, F.12, + F.10 (II) replacement airframe
-- 3v: http://forsvaretsmuseer.no/var/ezwebin_site/storage/images/media/images/m.f.2b/37238-1-nor-NO/M.F.2b_bigmodal.jpg
-- http://forsvaretsmuseer.no/var/ezwebin_site/storage/images/marinemuseet/sjoeforsvarets-200-aars-historie/marinens-flyvevaapen/flyene-i-marinens-flygevaapen/m.f.2-1916-1924/36877-2-nor-NO/M.F.2-1916-1924_fullwidth.jpg

M.F.3 - 1917 2-seat biplane torpedo-bomber floatplane, x 4
- M.F.3: 1 x 160–180 hp Curtiss C-6 pusher, span 15.70 m
-- M.F.3: 1 x 35 cm torpedo or 2 x 50 kg bombs, 1 x Madsen mg

M.F.4 - 1918 2-seat biplane trainer based on M.F.1,* x 6
- M.F.4: Pusher, some rebuilt M.F.1s, span: 15.60 m
-- * Some conv., shorter wings and revised nacelle
- M.F.4: Prototype F.2 (II) 1 x 130 hp Renault V-8**
-- ** F.2 (II) re-eng. w/ Scania-Vabis, July 1918
- M.F.4: Prod'n, 1 x 110 hp Scania-Vabis engine

M.F.5 - 1918 tractor biplane 2-seat trainer* floatplane, x 9
-- * M.F.5 orig. designed by Delhi to be a recce-scout a/c
- M.F.5: 1 x 160 hp Sunbeam 150 hp V-8,** span 15.00 m
-- ** Late prod'n a/c had 240 hp AS Siddeley Puma 6-cyl.

M.F.6 - 1922 2-seat pusher biplane trainer floatplane, x 2
- M.F.6: 1 x 186 hp Beardmore 160 hp 6-cyl, span: 15.60 m
-- M.F.6 interim 'Farman' trainer to repl. some M.F.4s

M.F.7 - 1923 2-seat tractor biplane trainer floatplane, x 2
- M.F.7: Various inline powerplants, span 14.65 m
-- M.F.7: F.2(III), 1 x 110 hp Scania-Vabis/160 hp Mercedes
-- M.F.7: F.8(III), 1928 1 x 160 hp Mercedes/160 hp Sunbeam
-- http://forsvaretsmuseer.no/var/ezwebin_site/storage/images/media/images/2.-m.f.7-havari/37370-1-nor-NO/2.-M.F.7-havari_bigmodal.jpg

M.F.8 - 1924 2-seat tractor biplane trainer floatplane, x 8
- M.F.8: Updated/revised M.F.7 w/ new tail & wing profile
- M.F.8 : Prototype, originally 1 x 100 hp Scania-Vabis
- M.F.8 : Prototype, re-eng. w/ 160 hp Beardmore or Sunbeam
- M.F.8B: Prod'n, 1 x 160 hp Mercedes later replaced*
-- * Incl. Bristol Lucifer, Walter Regulus, AS Cheetah IIA
-- Finally F-8 re-eng with 225 hp Jacobs L-4M, 1939-1940
-- http://borreminne.hive.no/aargangene/1993/Bilder/Borre010.jpg

M.F.9 - 1925 Høverjager single-seat biplane float fighter, x 10
- M.F.9 : 1 x 300 hp Hispano-Suiza HS.8, span: 10.45 m
- M.F.9 : Prototype (F.120) const. begun Aug 1924, service 1926
- M.F.9B: Production a/c (in two series), primarily wood constr.
- M.F.9C: [Project] 1932 steel-tube constr., F.142 near complete
-- aka Høverjager (Høver fighter) after kaptein Johan E. Høver

M.F.10 - 1929 2-seat tractor biplane trainer floatplane, x 10
- M.F.10: Derived from M.F.9, various engines, span 12.50 m
- M.F.10 : Prototype F.4 orig. with 160 hp Mercedes 6-cyl
- M.F.10 : Prototype F.4 re-engined with Hispano-Suiza V-8
- M.F.10B: Prod'n a/c with 1 x 300 hp AS Cheetah IIA radial

M.F.11 - 1930 single-engined 3-seat recce floatplane, x 29
- M.F.11: 1 x 575 hp AS Panther 14-cyl radial, span 15.40 m
-- M.F.11 armament: 1 x 200 kg depth charge, 1 x 7.7 mm mg
-- https://no.wikipedia.org/wiki/M.F.11
-- https://upload.wikimedia.org/wikipedia/commons/1/1c/MF11.jpg

M.F.12 - 1939 2-seat low-wing trainer floatplane, x 1 prototype
- MF-12: 1 x 225 hp Jacobs L-4M, span 13.60 m, twin EDO 2880 floats*
-- * MF-12 orig. designed to re-use Hansa Brandenburg W-33 floats
-- MF-12 (F-14) 1st flown 11 July 1939 by kaptein Johan E. Høver
-- 3v: http://borreminne.hive.no/aargangene/1998_99/Bilder/64-TegnMF12.jpg
-- http://borreminne.hive.no/aargangene/1998_99/Bilder/34-MF12a.jpg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Amazing work as usual my dear Apophenia.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,010
Reaction score
415

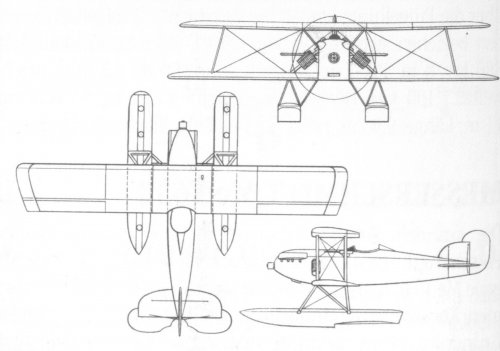

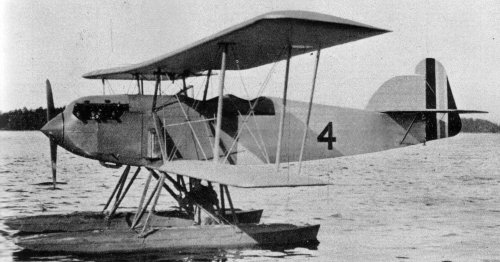

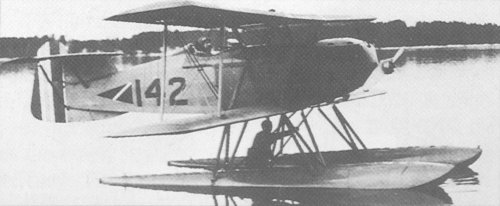

M.F. 9


Attachments

  • Marinens MF-9.jpg
    Marinens MF-9.jpg
    392.3 KB · Views: 54
  • Marinens MF-9-.jpg
    Marinens MF-9-.jpg
    279.3 KB · Views: 54

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,010
Reaction score
415
M.F. 10


Attachments

  • Marinens MF-10.jpg
    Marinens MF-10.jpg
    193.1 KB · Views: 52
