Northrop N-102 Fang light fighter

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,789
Reaction score
170
Wow thanks once again Mark, for delivering the goods once again!!
The photo with the varies cannon options is interesting!
I thought the missiles on the mock-up were Aim-4 Falcon AAM’s.........but the last photo you posted emphasises that they are in fact two different sizes! Does anyone know what missiles they are??
The more I see of the Fang, the more I think it would have been a winner!!


Please keep them coming!!

Regards
Pioneer


pathology_doc

CLEARANCE: Top Secret
Joined
Jun 7, 2008
Messages
948
Reaction score
170
Pioneer, the one on the inboard pylon certainly looks like an AIM-4 (possibly a -4D, F, or G). I almost said AIM-4D and AIM-26B at first, but the inner missile doesn't quite have the right body shape for the -26B. The one on the outboard pylon looks like a miniaturised version (developed?), but I suspect we will need an "American Secret Projects: Ramjets, Missiles and Hypersonics" book to answer that question.

I agree with you that this is one of those projects that ought to have gone ahead. For now, it will just have to sit around Heaven's hangar with the P.1121, thin-wing Javelin and the like, dreaming about what might have been!


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
30
Mark Nankivil said:
Thanks all - just very lucky to do this and find gold at times.

Here's a few more from Gerald's collection...

Enjoy the Day! Mark
The man on the left in photo # x107945-106 is none other than Edgar O. "Ed" Schmued - designer of the P-51 Mustang and Twin Mustang! - SP


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,558
Reaction score
130
Fantastic pictures Mark, now all we need is the Ginter monograph to complete the package.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Steve, still writing for Ginter?


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,789
Reaction score
170

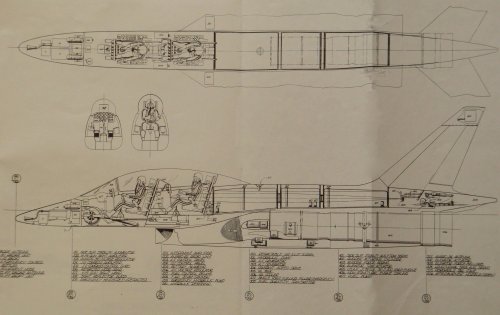

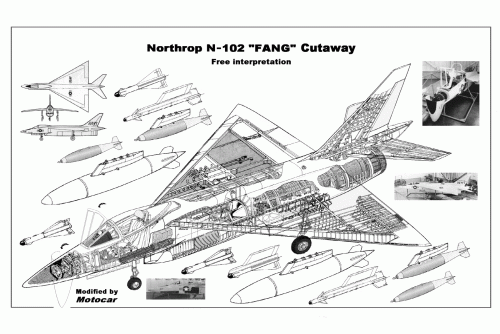

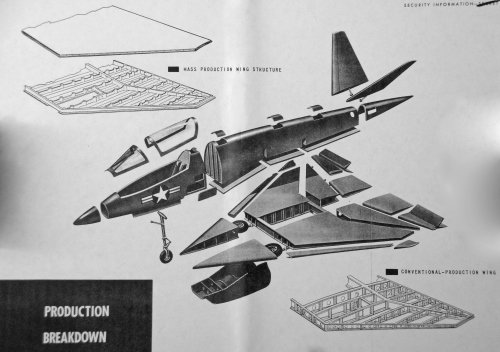

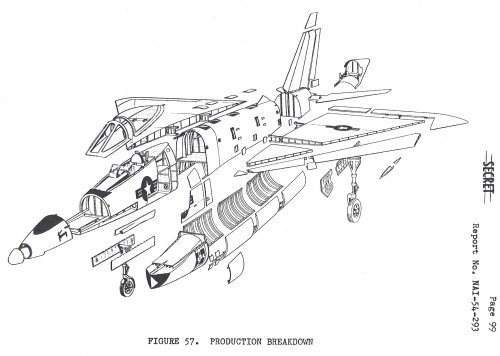

Wow great find Macca!!!
Never thought I would be able to find a cut-away of the sadley overlooked and forgotten Fang :eek:

Keep the search and finding coming :p

P.S. that M61 shore does look much bigger in the Fang, when compared to the monsters like the Phantom II, Thunderchief etc........

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,789
Reaction score
170
Does anyone know what radar was intended to be fitted to the Fang???


Regards
Pioneer


RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344

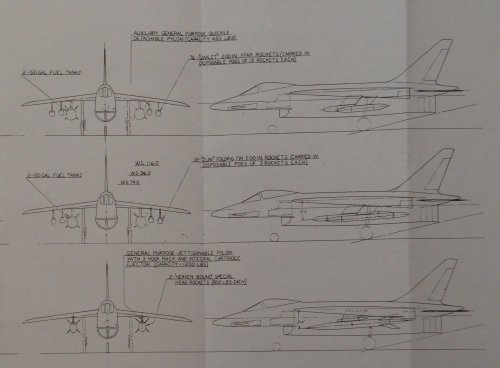

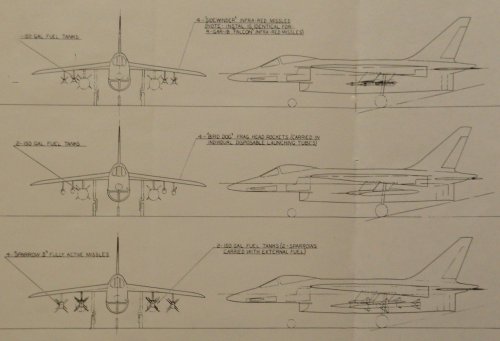

Couple of drawings showing A to A and A to G loadouts.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Great Fang stuff, RAP. Thanks for sharing!


aim9xray

CLEARANCE: Top Secret
Senior Member
Joined
Feb 20, 2007
Messages
544
Reaction score
164
Pioneer said:
Does anyone know what radar was intended to be fitted to the Fang?

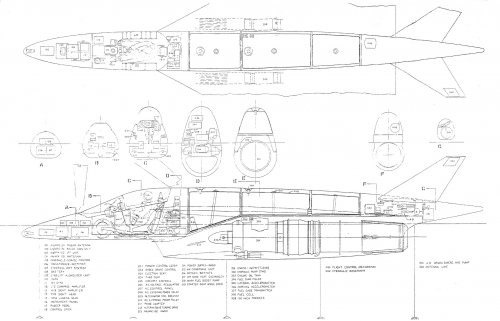

Based on the inboard profile, APG-30.


RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344

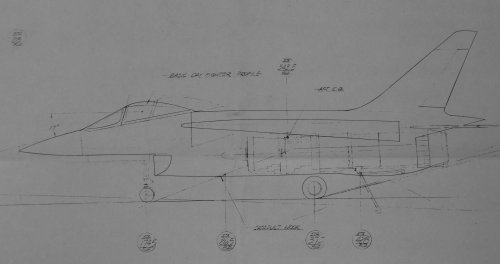

FANG for the US Navy. Cut off the year on the second drawing, proposal was dated 1954.


Attachments

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,789
Reaction score
170
Outstanding effort RAP!!!
Very interesting the carrier-based Fang proposal to the USN!
This would potentially make it a competitor to the Grumman F11F Tiger??
Please keep them coming my friend :p

Regards
Pioneer


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
I'm thrilled at all the Northrop-related material you're digging out! And the Fang has always been a pet project of mine, so it's cool.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,112
Reaction score
3,018
RAP said:

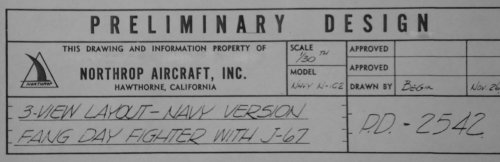

FANG for the US Navy. Cut off the year on the second drawing, proposal was dated 1954.

Gear find RAP;


and that is the Northrop design PD-2542,from PD series.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,946
Reaction score
642
coool! thank you, Rich


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,789
Reaction score
170

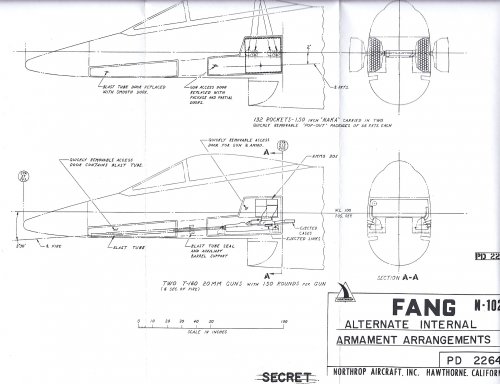

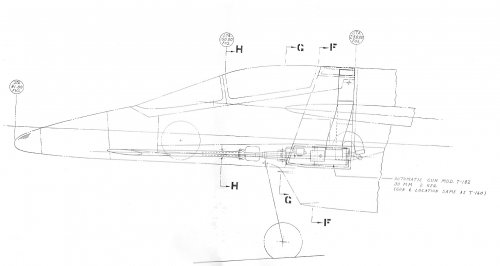

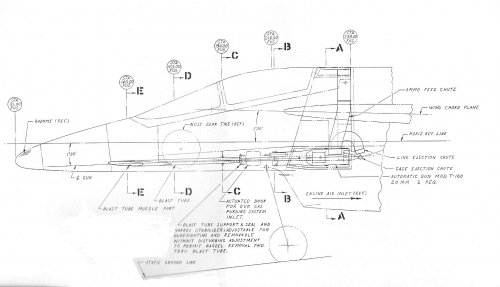

Wow nice one again RAP!!

The alternative internal weapons drawings are very interesting indeed!!
I'm surprised how far Northrop was prepared to go with a design, so confident they must have been that it would go into production!!

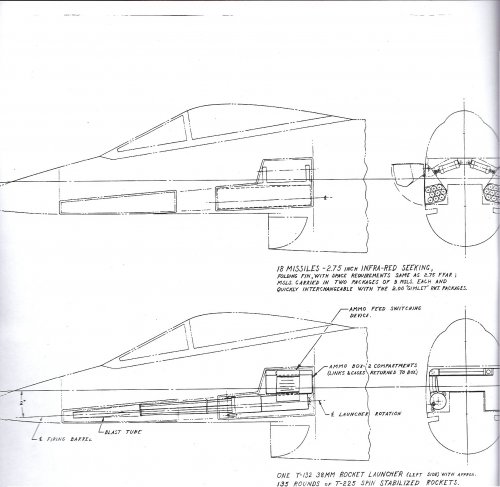

I'm very interested to see in Alternative Armament Drawing 2, the 2.75in IR-seeking air-to-air rocket!
I've never heard of this 2.75 in IR-seeking rocket before! :eek: I never new that the U.S had such refined technology in that era, let alone the ability to fit an IR seeker head of such a small size!! Can anyone direct me to more info on this rocket project??

And what of this T-132 38mm rocket launcher/gun system? Is this the same system that was trialed on a Douglas A-1 Skyraider?

Also I now have to investigate this 1.50 in NAKA rocket

Thanks heaps again RAP, but now you've opened a big can of worms on me ;)

Regards
Pioneer


RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344
Hi Pioneer- I looked through the report where I'm getting a lot of this material and it gives some specifics on the individual weapons. Basic internal armament was a T-171E2 20mm lightweight gatling gun.
Alternate-
1) 132 NAKA 1.5in rockets. Mounted in 'pop-out' packages of 66 rockets each. 23.75x1.5 inch, folding fin, weight 3.54lbs., warhead contained .40lbs high explosive.
2) 2 T-160 20mm guns, 150 rounds per gun.
3) 2 T-182 30mm guns, 120 rounds per gun.
4) 32 'Gimlet' or 'Redstone' 2in folding fin rockets. Mounted in 'swing-out' packages of 16 rockets each. 'Gimlet'- 48x2in, weight 9.3lbs, warhead contained 1 lb high explosive. 'Redstone' (T-214)- 48x2in, weight 10.43lbs, warhead contained 1.40lb.
5) 18 2.75 folding fin or infra-red seeking missiles. 9 missiles mounted in place of 'Gimlet'/'Restone' installation. No information proivded on this missile but the reports states it will be designed to be interchangable with the 2.75 FFAR rocket.
6) 1 T-132 38mm automatic rocket launcher with 135 spin stabilized T-225 rockets. 5 barrel automatic launcher. Rocket weight 1 lb., warhead contained .25lbs high explosive.
Also 4 M-3 50cal mgs with 370 rounds each could be fitted.
The alternate installations were designed as interchangable preloaded units in which the conversion from one installtion to another could be done in the field by 4 men in 3 hours.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,301
Reaction score
524
In the November 2012 issue of the French magazine "Le fana de l'aviation" there is an article about Northrop N-102 Fang.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,450
Reaction score
158
It has been already published?


RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344

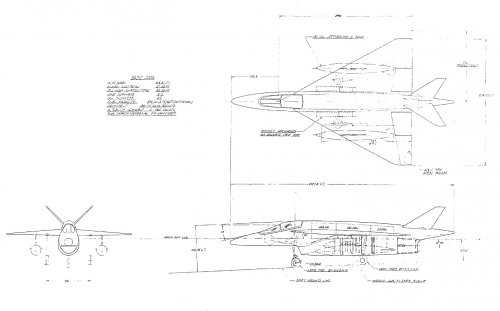

More FANG stuff. This is for the V-tailed design. The report it came from was dated January 1953. The conventional tail design replaced this version in mid 1954. The V-tail design only had guns in the fuselage. It carried rockets but those were mounted in the wing. I have drawings of these installations and cockpit layout which I'll post a little later.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
pometablava said:
It has been already published?
Le Fana usually comes out around the 20th of the previous month.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,803
Reaction score
63
This thread is better than the recent Fana article about...


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,810
Reaction score
153
RAP said:
More FANG stuff. This is for the V-tailed design. The report it came from was dated January 1953. The conventional tail design replaced this version in mid 1954. The V-tail design only had guns in the fuselage. It carried rockets but those were mounted in the wing. I have drawings of these installations and cockpit layout which I'll post a little later.
'rockets mounted in the wing' would be exciting to view, thank you in advance. :)


RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344

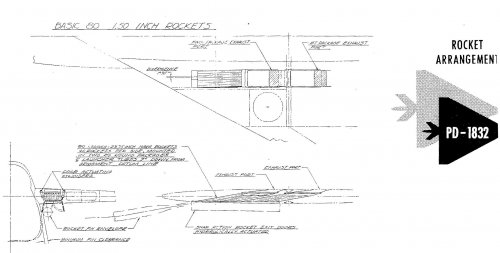

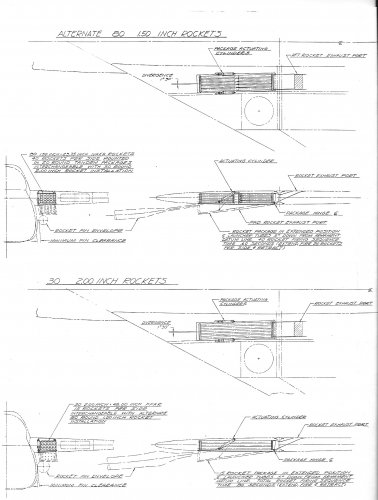

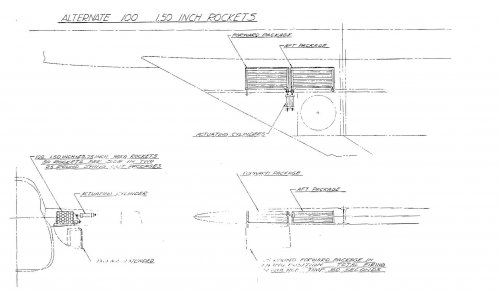

The basic rocket armament configuration was 80 1.5in rockets, 40 inside each wing and were fixed in a downward slant. Drawings show this installation as well as alternates.


Attachments

RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
673
Reaction score
344

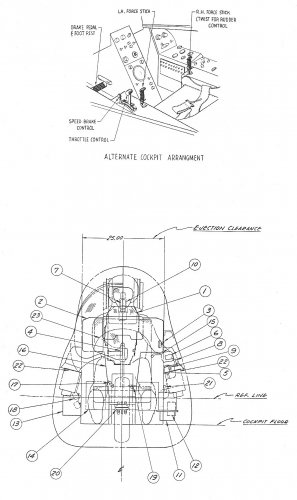

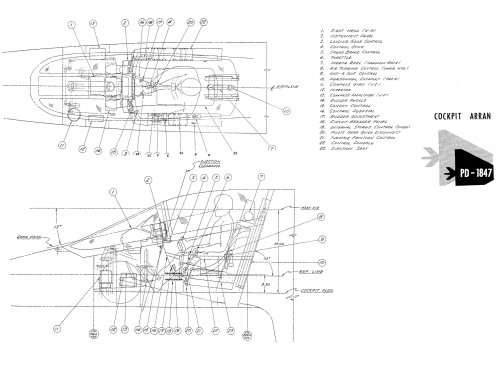

Cockpit drawings. Interesting drawing of alternate cockpit with two side stick controllers.


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,601
Reaction score
380
Excellent material RAP - thanks! Mark


jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,810
Reaction score
153
Wow, Much thanks to you RAP.
J


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Brilliant, as usual. Thanks Scott for the pointer.


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
118

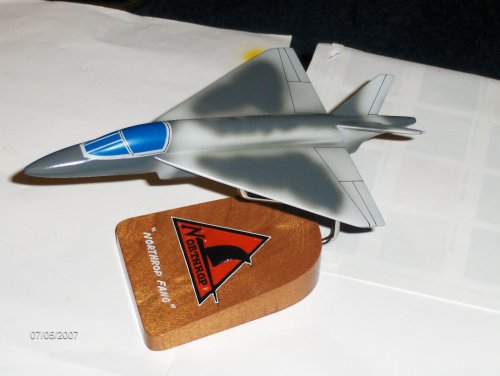

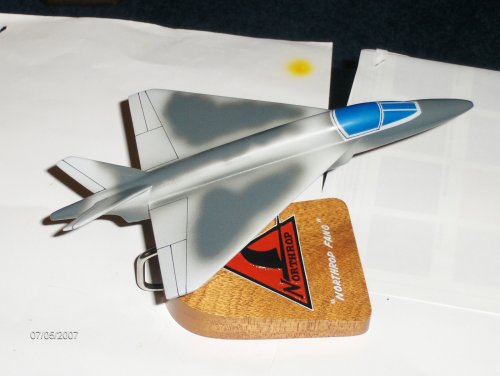

Modern Philippine replica of questionable accuracy. Not original, not recommended.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
circle-5 said:
Modern Philippine replica of questionable accuracy. Not original, not recommended.
I was under the impression the quality was not quite to a par with the original models... Now I know why. ::)

They used to have only wooden stands with metal rods... Amazing now how they even try to imitate the original logos and markings... :mad:


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
452
Website
deeptowild.blogspot.com
circle-5 said:
Modern Philippine replica of questionable accuracy. Not original, not recommended.
Thank you for taking a look, circle-5. Was hoping that it was an original. :( Although the model looks too clean and the decals are intact and not torn or yellowed for it to be an original.

Stargazer2006 said:
They used to have only wooden stands with metal rods... Amazing now how they even try to imitate the original logos and markings... :mad:
I gave the model more credibility because of the old Northrop logo on the stand. Now I know.

PaulMM (Overscan) said:
The vendor doesn't claim its an original, to be fair.
So Griffin Aerospace Models does not have the credibility of Topping, Par-Tool, Verkuiyl, or Pacmin. Good to know.
