Northrop N-102 Fang light fighter

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
89

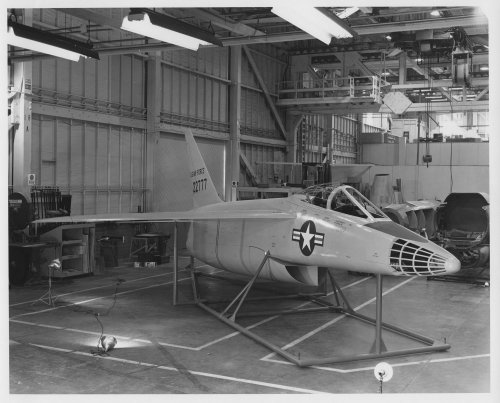

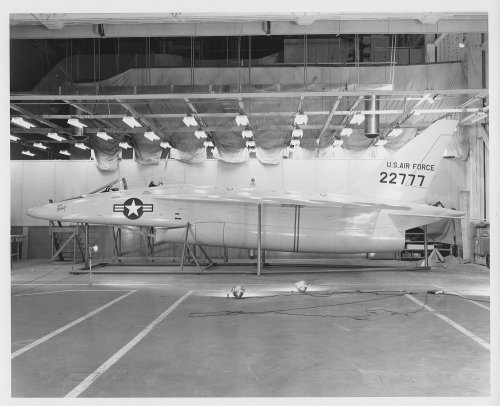

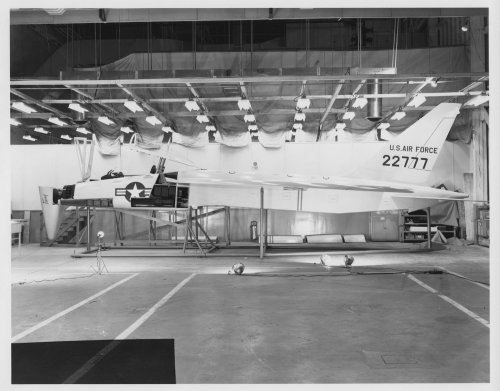

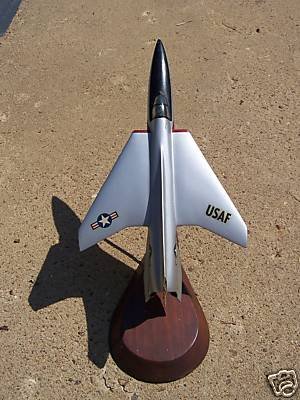

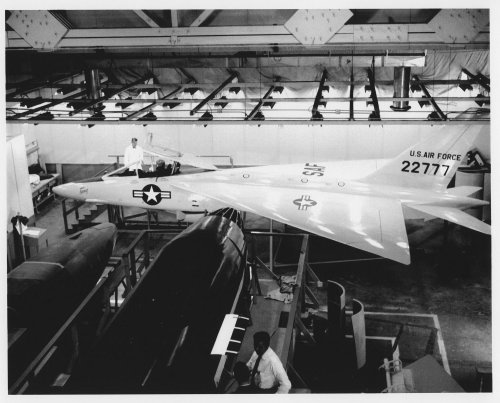

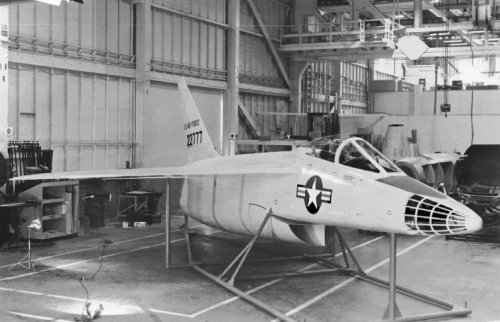

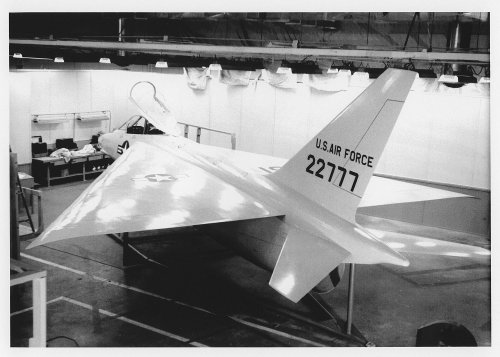

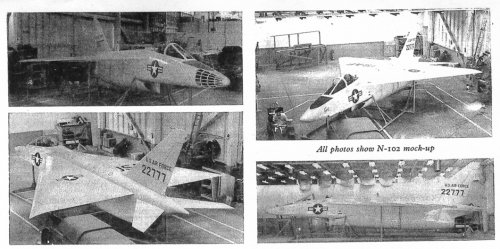

Here are two pictures of the N-102 mockup:
[links broken - Admin]
More information will follow later.

Last edited by a moderator:

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
Northrop N-102 Fang Project
Hugh W Cowin
Air Pictorial

X-Fighters
Steve Pace
Motorbooks


Towards the end of 1952, Northrop started work on a lightweight Mach 2 interceptor as a private venture. A two seater trainer variant was also studied. The N-102 design requirements were similar to those of contemporary Lockheed TDN CL-246. CL-246 also was submitted as an unsolicited proposal to USAF (November 1952) but its seductiveness was enough for them to invent a GOR calling for a new lightweight fighter to replace the F-100 (Weapon System 303A).
CL-246 then competed to another proposals and was selected for series production as the F-104 Starfighter.
Unfortunately, I have no info about that rival designs. It seems that Republic design was identified as Model AP-55.

According to Mr Cowin, the Fang was no submitted to WS 303A. It was simple dropped by Northop's directive Tom Jones in favour of the far cheaper N-156 by the close of 1954.

May be Evan can add some additional information...


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358

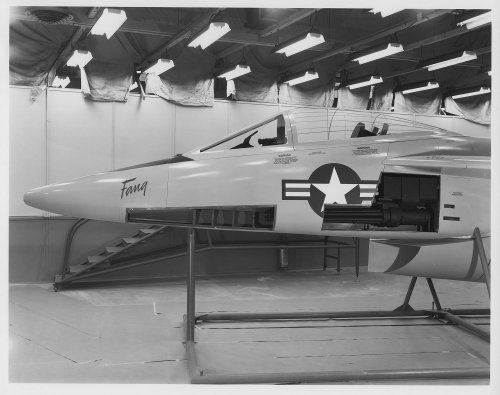

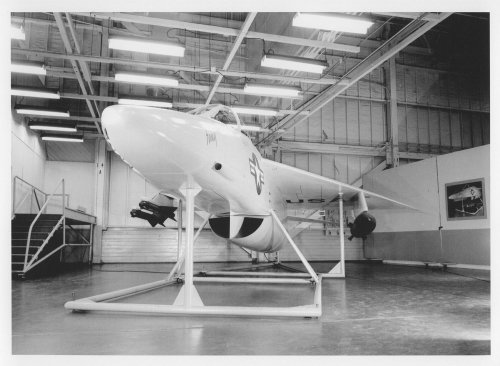

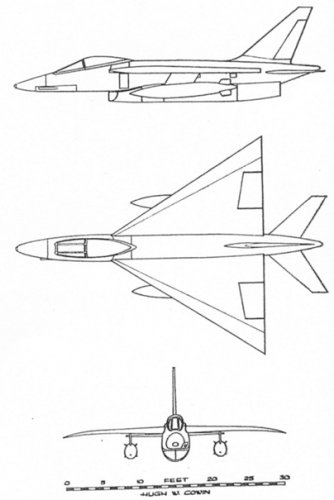

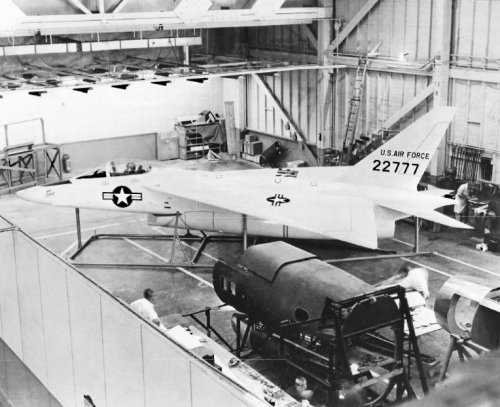

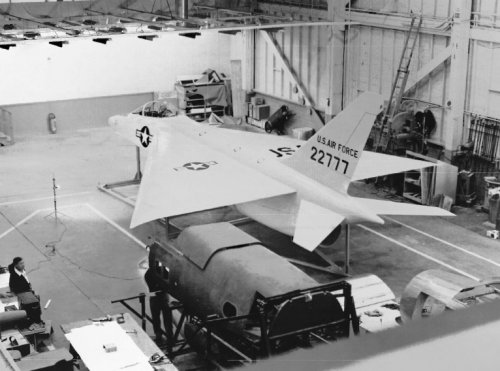

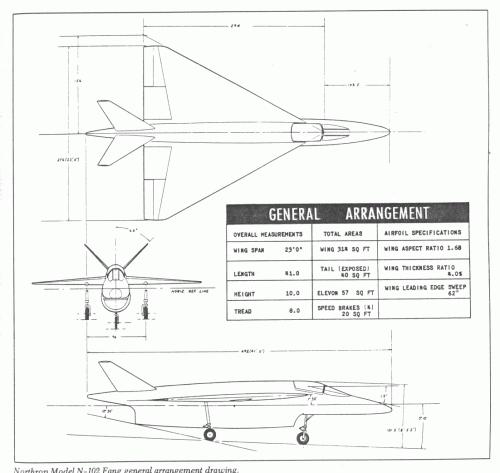

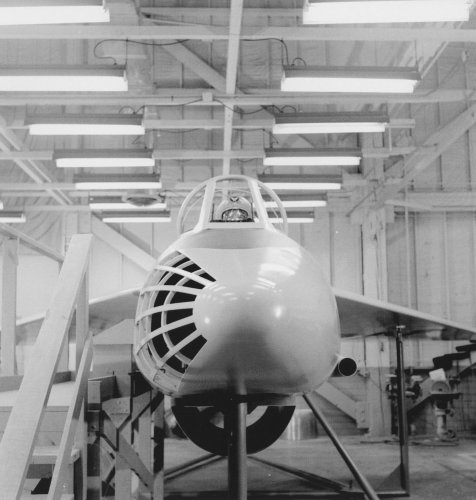

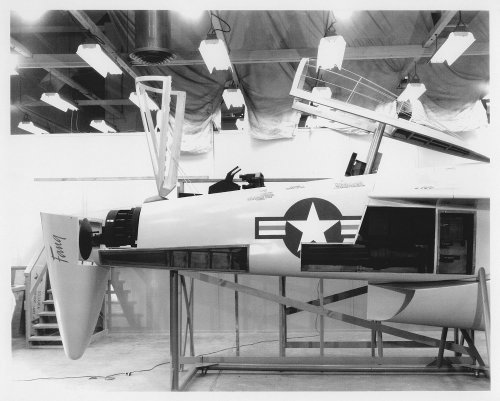

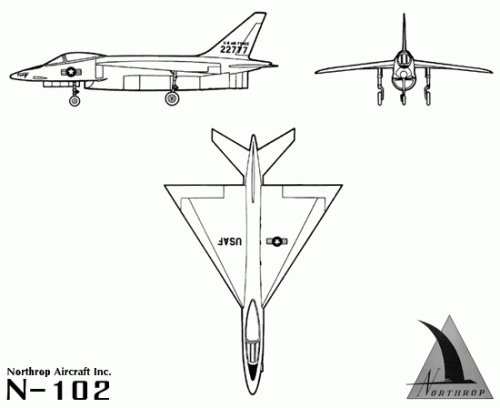

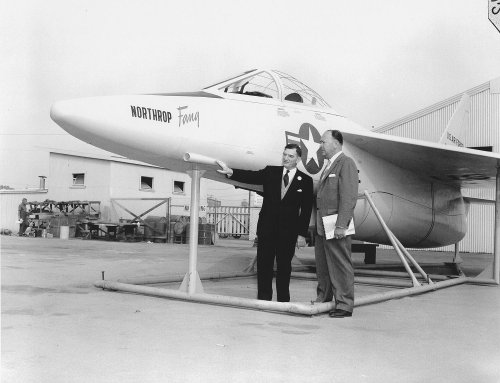

N-102 pics from Air Pictorial


Attachments

  • N-102 Fang 3v.jpg
    N-102 Fang 3v.jpg
    124.4 KB · Views: 3,073
  • N-102 mock-up.jpg
    N-102 mock-up.jpg
    455.9 KB · Views: 3,108

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
118
Website
theavgeeks.com
pometablava said:
Unfortunately, I have no info about that rival designs. It seems that Republic design was identified as Model AP-55.
I think Republic's AP-55 design was based on their XF-91 Thunderceptor, only with a solid radar nose and NACA-style flush intakes on the fuselage sides ahead of the wing.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
I think Republic's AP-55 design was based on their XF-91 Thunderceptor, only with a solid radar nose and NACA-style flush intakes on the fuselage sides ahead of the wing.

Thanks a lot for the info Sentinel.

Estimated max speed for the Republic AP-31 (XF-91) was Mach 1,5. If AP-55 was to be a Mach 2 fighter if had to be aerodimically refined (area ruled fuselage). The powerplant would have been a single J79?


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
915

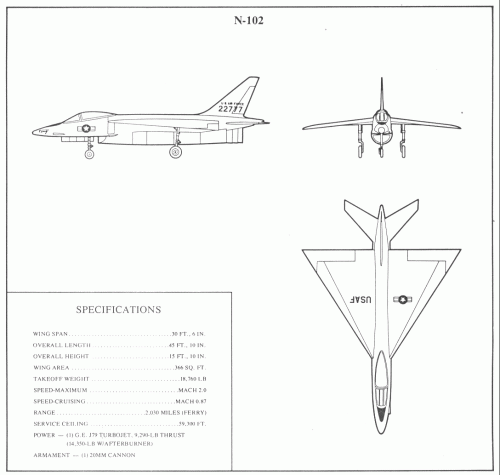

Does anyone know this book ??? ... and in't it the N-102 in the lower drawing !?!

http://www.dataviewbooks.com/

Cheers, Deino ???


Attachments

  • Speculative Warplane Designs.JPG
    Speculative Warplane Designs.JPG
    28.1 KB · Views: 2,332

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,419
Reaction score
266
It looks like it very well could be. That one is going to be on my "must buy" list.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
Thanks Deino ;)

I'm going to buy the book. I want to know more about the Bell jet fighter


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
118
Website
theavgeeks.com
pometablava said:
I think Republic's AP-55 design was based on their XF-91 Thunderceptor, only with a solid radar nose and NACA-style flush intakes on the fuselage sides ahead of the wing.

Thanks a lot for the info Sentinel.

Estimated max speed for the Republic AP-31 (XF-91) was Mach 1,5. If AP-55 was to be a Mach 2 fighter if had to be aerodimically refined (area ruled fuselage). The powerplant would have been a single J79?
That's what I understand, it was the first or one of the first light fighter designs to use the J79 engine. Ultimately the requirements that the N-102 was designed to meet evolved to result in Lockheed's F-104 Starfighter if I remember right.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
Thanks again, Sentinel

An AP-31 derivative with a more powerful engine could have reach Mach 2 performance..with this data, I think I can try to produce a drawing of the hypotetical Republic AP-55


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,250
Reaction score
1,910
Website
www.aerospaceprojectsreview.com
pometablava said:
I want to know more about the Bell jet fighter

The one on the cover isn't a Bell design. It was the BDR patented by Interstate Aircraft.

http://www.designation-systems.net/dusrm/app1/bdr.html

All the patents they mention I have. The Twin Liberator is a pretty neato design but was patented by Just Some Guy, not Convair, so it stood effectively no chance of being built.

The "McDonnell design contemporary with and similar to the XP-67 Moonbat, except being of pusher configuration" is actually a design patent for the McDonnell Model 1.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
89
Sentinel Chicken said:
Are there any schematics, drawings, or photos showing the landing gear configuration of the N-102?

The N-102 mockup - in US Air Force markings - didn't have a landing gear, but the drawings indicate that the nose gear was mounted ahead of the ventral intake. This arrangement would seem to partially obstruct airflow to the engine during takeoff and landing, but it does provide for a long and stable wheelbase - important because the N-102 Fang was also proposed for the Navy as a carrier based fighter.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,250
Reaction score
1,910
Website
www.aerospaceprojectsreview.com

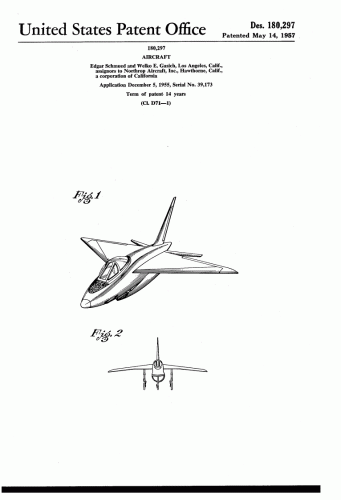

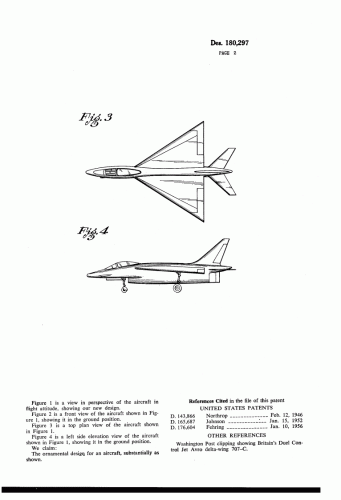

Fang patent.


Attachments

  • us0d0180297-002.gif
    58.1 KB · Views: 681
  • us0d0180297-001.gif
    47.8 KB · Views: 663
  • us0d0180297-002.gif
    58.1 KB · Views: 716
  • us0d0180297-001.gif
    47.8 KB · Views: 785

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
118
Website
theavgeeks.com
I've never heard of a V-tailed version of the Fang. Any other particulars on that design, Scott?

Gotta wonder about that ventral intake BEHIND the nose gear, though........


gfi88

ACCESS: Restricted
Joined
Jul 20, 2008
Messages
17
Reaction score
8

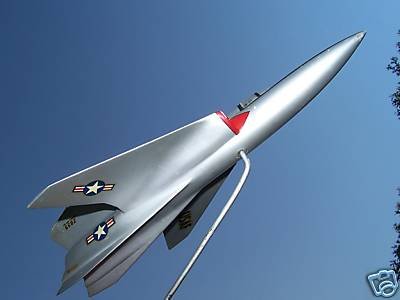

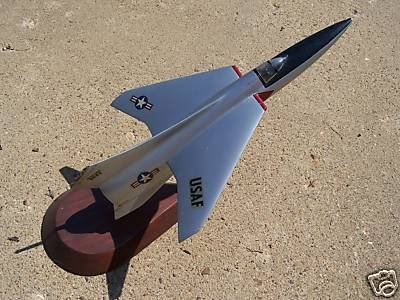

Just seen a unfamiliar Northrop fighter project posted on eBay:

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&Item=120308919382&Category=86954&_trksid=p3907.m29

Maybe related to N-102 project?


Attachments

  • 0977_1 (1).JPG
    0977_1 (1).JPG
    29 KB · Views: 507
  • 0e38_1 (1).JPG
    0e38_1 (1).JPG
    10.4 KB · Views: 499
  • 0c52_1 (1).JPG
    0c52_1 (1).JPG
    25.6 KB · Views: 830

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
Thanks a lot gfi88!

It looks like a 50-60's design... ???


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
The tail configuration is quite interesting. I'd love to see a pic from the rear. Maybe we could ask the seler for it?


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,888
Reaction score
378
It's too bad the vertical tail is broken. It's cool design, none the less.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Nice angles JPC - have any more?!

Enjoy the Day! Mark


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Greetings All -

I had the opportunity to spend two days scanning photos from my friend Gerald Balzer's collection. I was pleasantly surprised to find a folder dealing with the N-102 Fang - more art and photos of the mock up than I could have imagined. So, thamnks to Gerald, here's something to share with the rest of the gang....

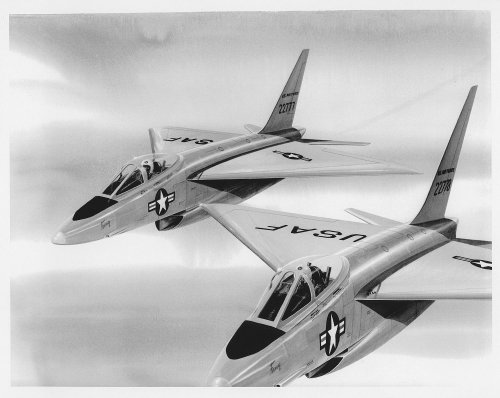

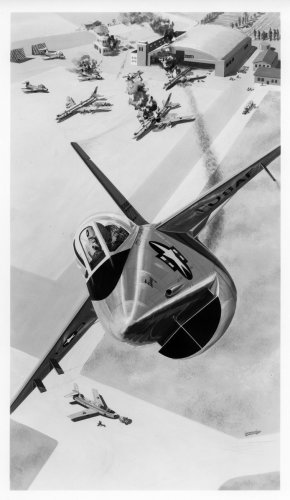

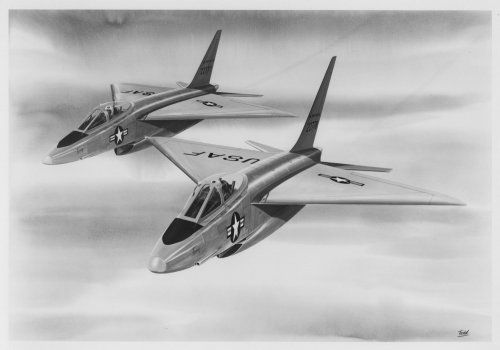

First up, artwork!

Enjoy the Day! Mark


Attachments

  • x77122-054.jpg
    103.6 KB · Views: 355
  • x77546-054.jpg
    229.8 KB · Views: 381
  • x78222-064.jpg
    134.8 KB · Views: 858
  • x78223-064.jpg
    86.8 KB · Views: 879
  • x78224-064.jpg
    104.6 KB · Views: 883
  • x78225-064.jpg
    124.4 KB · Views: 950
  • x78226-064.jpg
    137.3 KB · Views: 917

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,973
Reaction score
5,290
Great artwork of a cool design. I'm sure Gerald's collection holds some great photos.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,993
Reaction score
451
As per normal you have once again outdone yourself Mark!!!!!

You have made my day ;D


Thanks

Regards
Pioneer


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Thanks all - just very lucky to do this and find gold at times.

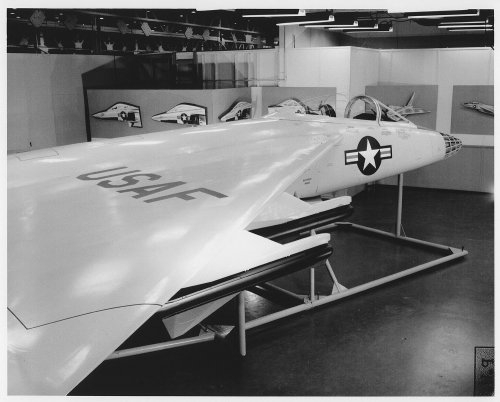

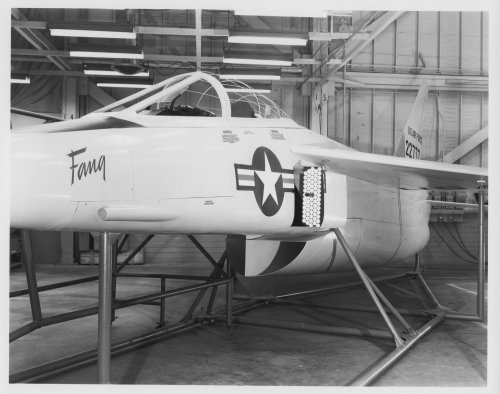

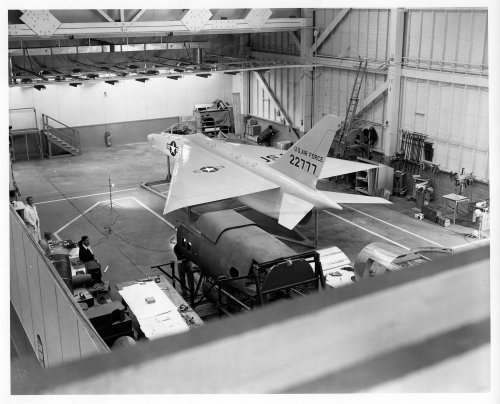

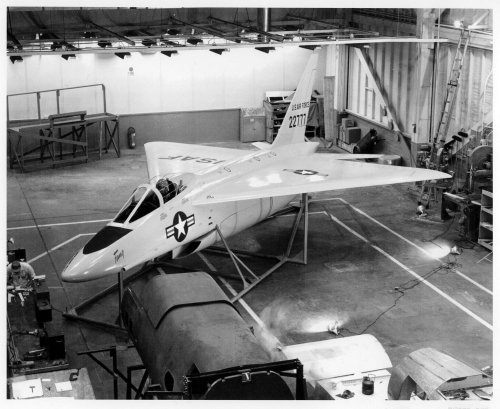

Here's a few more from Gerald's collection...

Enjoy the Day! Mark


Attachments

  • x76007a.jpg
    219.1 KB · Views: 287
  • x76001a.jpg
    219.7 KB · Views: 287
  • x75998-044.jpg
    254.7 KB · Views: 283
  • x75900-044a.jpg
    233.6 KB · Views: 631
  • x75898-044A.jpg
    199.2 KB · Views: 652
  • x75835-044A.jpg
    224 KB · Views: 652
  • x75812-044A.jpg
    269.3 KB · Views: 714
  • x107945-106.jpg
    241.9 KB · Views: 754

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736

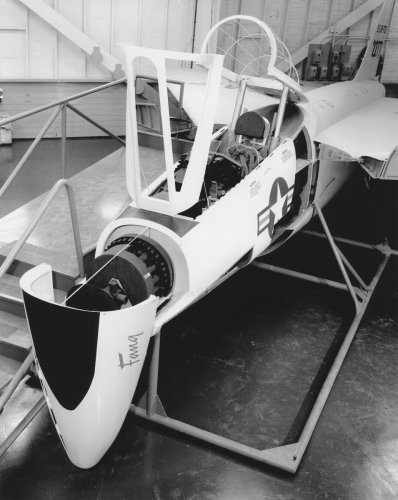

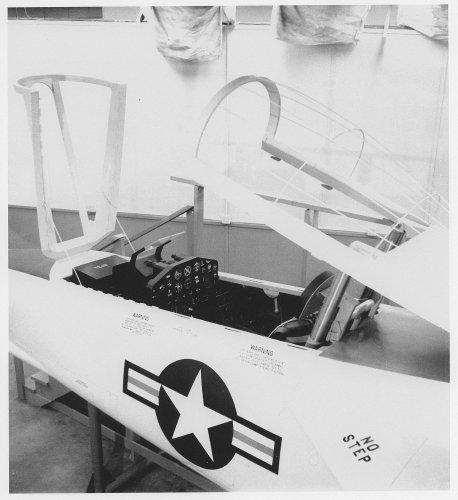

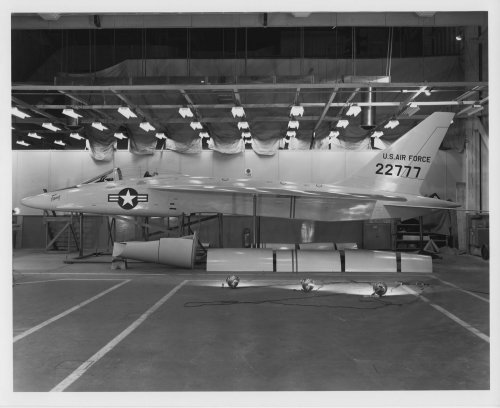

...and a few more...


Attachments

  • xUntitled-29.jpg
    137.1 KB · Views: 270
  • x90937-065.jpg
    246.8 KB · Views: 254
  • x76046-044.jpg
    258.2 KB · Views: 240
  • x76005-044.jpg
    186.7 KB · Views: 253
  • x76006-044.jpg
    168.3 KB · Views: 284
  • x76013.jpg
    231.6 KB · Views: 269

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736

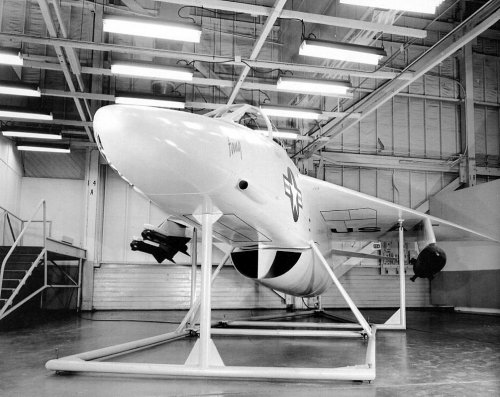

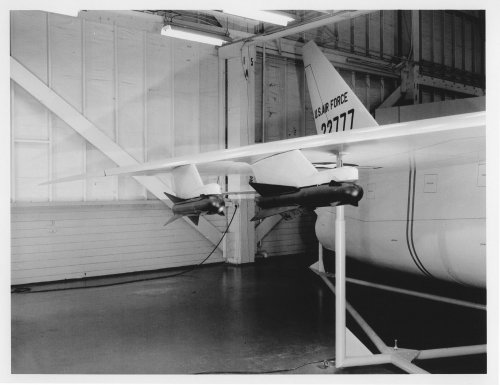

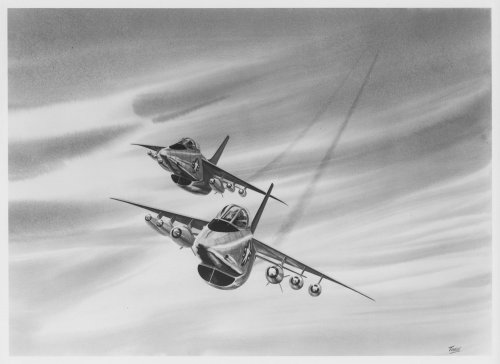

Proposed weapons loads....


Attachments

  • x77188-054.jpg
    176.4 KB · Views: 251
  • x77515-054.jpg
    184.2 KB · Views: 280
  • x77101-054.jpg
    171.1 KB · Views: 267
  • x78297-064.jpg
    160.8 KB · Views: 292
  • x90914-065.jpg
    201.5 KB · Views: 303
  • x90938-065.jpg
    174.2 KB · Views: 308

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,973
Reaction score
5,290
Great stuff, loads of detail photos I've never seen before. Would be ideal for an article on the Fang...


The ventral intake is interesting, quite like the British P.1121, but the bubble canopy makes it look much more modern than 1953. Doesn't seem area-ruled however and Mach 2 seems doubtful.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,829
Reaction score
695
Really great images!
Indeed the Fang looks like more Convair-ish than Northrop...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703
archipeppe said:
Indeed the Fang looks like more Convair-ish than Northrop...

I don't quite agree. There is something of the YA-9 in the front fuselage...


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,829
Reaction score
695
Stargazer2006 said:
I don't quite agree. There is something of the YA-9 in the front fuselage...

Of course, this is quite easy to understand since Fang and YA-9 are both Northrop product (even with 15 years of difference). My opinion was based upon some similiarities with Convair delta fighters of the time in which Fang was proposed...


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
It would be interesting to "build" a computer model and run it thru a virtual wind tunnel. The leading edge camber - I thought that was a Convair design feature that evolved with their deltas. Did the cambered leading edge instead come out of NACA studies?

The landing gear is awkward but I would love to build an R/C electric ducted fan model of the Fang - would look cool in the air...

Enjoy the Day! Mark
