NIIP N001 Myech radar

[Deino]

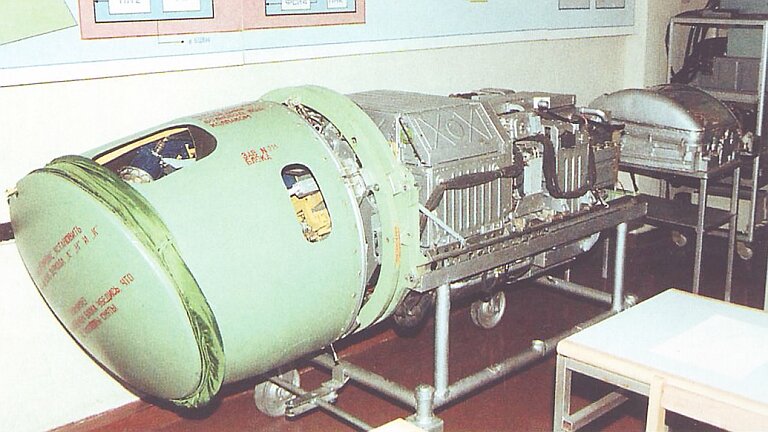

Not sure if it fits here but since it is - at least IMO - the first time I've seen an open PLAAF Su-30 radar, can anyone explain, what we see here?

Is it a protective cover since I thought its radar is still a cassegrain-type or something else?




And by the way, I need some help concerning the original N001 Myech radar used by the Chinese original Flankers. Can anyone give an estimate on how reliable and correct these summarised reports are?

www.ausairpower.net/APA-Flanker-Radars.html#mozTocId228428

www.ausairpower.net/APA-Flanker.html



[Trident]

It's the twist reflector, with the paraboloid transreflector in front removed (https://www.researchgate.net/figure/Transreflector-antenna-concept-of-operation_fig1_3305418). The latter is the "lid" on the front of light green housing shown in the photo on the APA site:



[overscan (PaulMM)]

Not sure if it fits here but since it is - at least IMO - the first time I've seen an open PLAAF Su-30 radar, can anyone explain, what we see here?

Is it a protective cover since I thought its radar is still a cassegrain-type or something else?

View attachment 675050


And by the way, I need some help concerning the original N001 Myech radar used by the Chinese original Flankers. Can anyone give an estimate on how reliable and correct these summarised reports are?

www.ausairpower.net/APA-Flanker-Radars.html#mozTocId228428

www.ausairpower.net/APA-Flanker.html

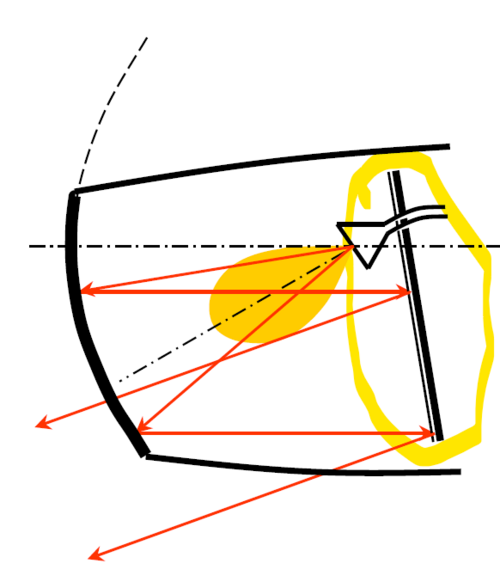

Its missing the "dustbin" part and just has the cassegrain twist reflector (circled in yellow) and feed horn.



The Carlo Kopp articles say almost nothing interesting or useful about the N001 radar, but as a very high level summary its OK I guess?

What exactly do you want to know? I can't believe we don't have a topic for it (though the MiG-29 Avionics topic has some complex technical disussions with some N001 information)



[Deino]

Thanks Paul … will contact yoiu later vi PM



[overscan (PaulMM)]

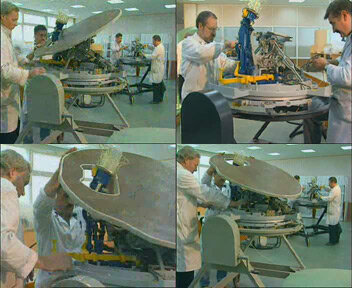

N001 naked



[F-2]

N001 passed state acceptance trials in 1991. Before that time was the Su-27 a “Blue Circle” aircraft?



[overscan (PaulMM)]

There were contemporary Western reports of Su-27 airframes in storage awaiting radars but I don't think I've read a Russian source to that effect yet. Note that it wasn't unusual for state acceptance trials to complete many years after production commenced - so is it more like IOC or FOC?



[overscan (PaulMM)]

So the SU-27 had N001 radar from first deliveries (in 1985). Early models were quite unreliable with a low mean-time-between-faliures, but they were essentially feature complete. The same was true of the AL-31F engine.



[M.A]

Does the N-001 and its upgrades have any ground mapping modes, RBM or SAR?



[overscan (PaulMM)]

Original N001, no. I think the upgrades with the Baguet processors did have ground mapping modes.



[M.A]

Original N001, no. I think the upgrades with the Baguet processors did have ground mapping modes.

i think the limiting factor would be the processor and not the antenna design, from what i can remember the Tornado Fox hunter and some Saab twist-cassegrain designs did have ground attack/mapping modes.



[overscan (PaulMM)]

Yes the antenna design is irrelevant.



[Javvp]

I’m looking for pictures of the radar in production for the Su-27 with a cassegrain antenna. There is a real chaos in hundreds of web sites, publishing wrong photographs of the Phazotron N001 developed for MIG as if they were the Sukhoi 27.

Example of MIG's radar:

https://imgur.com/YxoG0PX

The arrangements and adaptations of electronic radar equipment are completely different, the fuselage adapter, the equipment rack... Other times the Su-30’s radars are being shown as if it were the radar in the nose of the Su-27. A disaster...

The only photograph I have found as true ( I think ) is this one that you have also published here.

https://www.secretprojects.co.uk/attachments/n001_894415573-1-jpg.675093

This is other link with the same:

https://imgur.com/m8Js0mU

But is very dificult only with this, to determine the details of forms for the other side, or for the support and handler of the antenna. Are there other technical drawings, plans or photographs of the certain model? Thank you !!



[F-2]

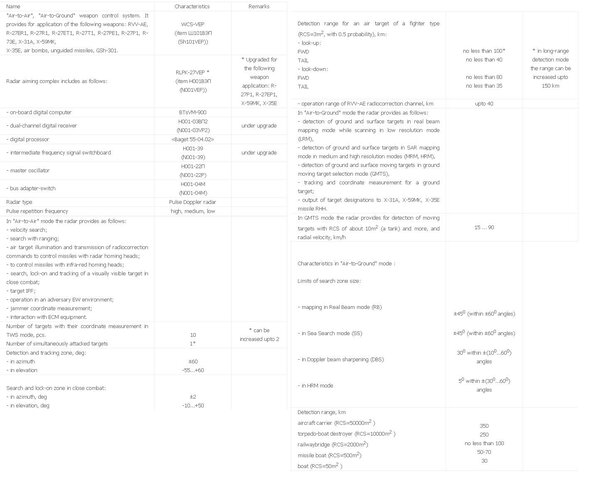

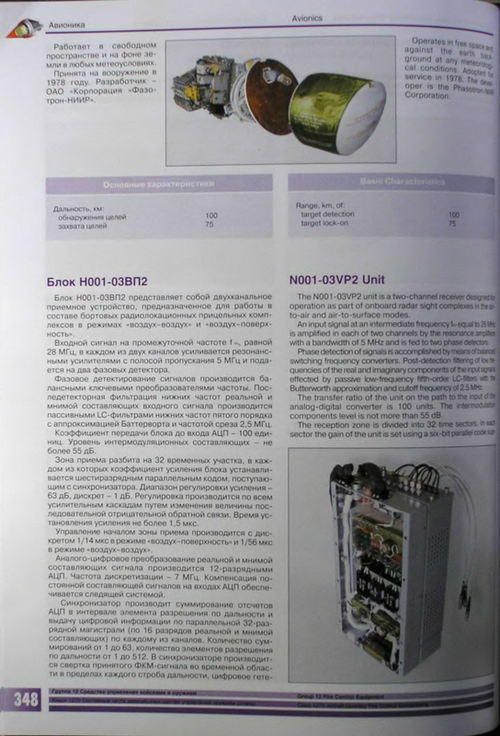

Some useful stuff



[F-2]

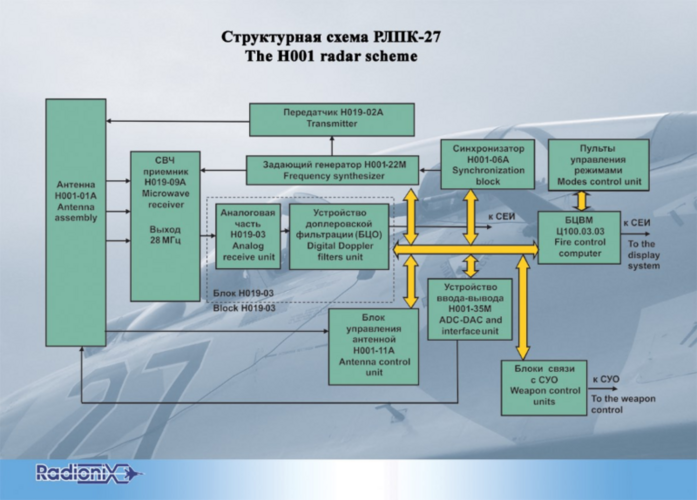

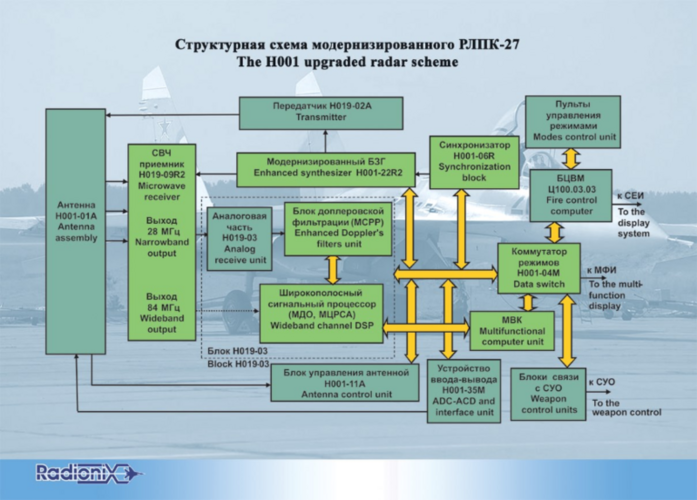

https://americamilitar.com/actualidad-militar/2372-comprendiendo-el-radar-del-flanker.html



[overscan (PaulMM)]

Pretty sure I made that screenshot.

Sources:
-Overscan guide to Russian avionics.

Ah, yep.



[F-2]

Pretty sure I made that screenshot.

Sources:
-Overscan guide to Russian avionics.

Ah, yep.

The picture of the radar being worked on or the spec sheet?



[stealthflanker]

The picture of the radar being worked on or the spec sheet?

The radar picture. It's taken directly from overscan's old guide to Russian Avionics webpage.



[qwerty123]

Is there any brochures of official pictures with informations about this radar?



[stealthflanker]

Is there any brochures of official pictures with informations about this radar?

Old NIIP Tikhomirov website has it

Wayback Machine

The radar tho appears to be out of production and no longer featured in NIIP website since maybe 2019's.



[F-2]

Old NIIP Tikhomirov website has it

Wayback Machine

The radar tho appears to be out of production and no longer featured in NIIP website since maybe 2019's.

I believe the Su-30m2 and maybe the Su-27sm3 were the last aircraft delivered with the radar.
