NGTE V/STOL Aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,338
Reaction score
5,977
Hi,

The National Gas Turbine Establishment NGTE had designed two rigid-rotor aircraft
designs,and the second was based on Bac One-Eleven.

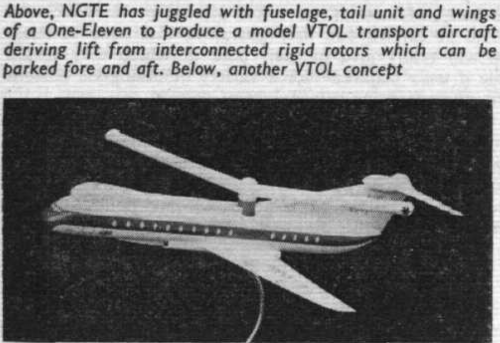

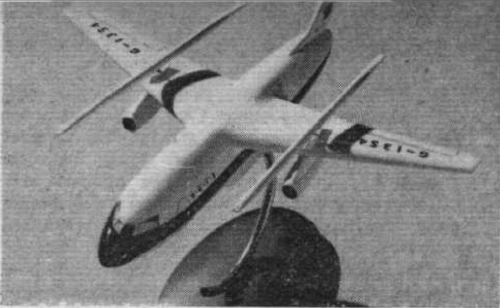

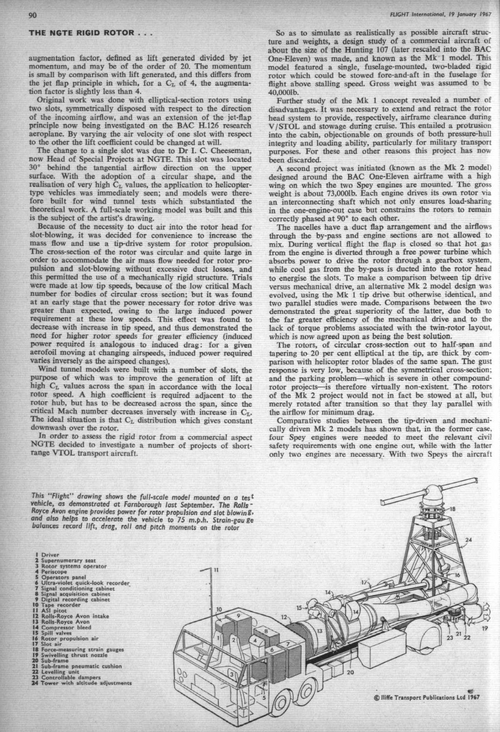

http://www.flightglobal.com/FlightPDFArchive/1967/1967%20-%200089.pdf


Attachments

  • vtol 1.JPG
    vtol 1.JPG
    16.4 KB · Views: 549
  • vtol 2.JPG
    vtol 2.JPG
    20.3 KB · Views: 451

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
969
Website
deeptowild.blogspot.com

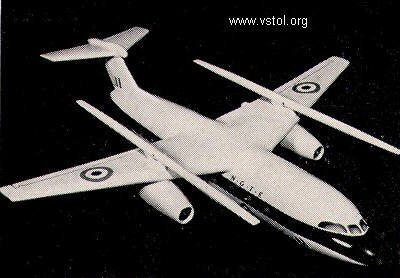

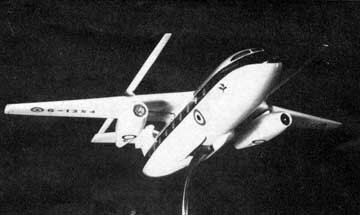

Model of National Gas Turbine Establishment (NGTE) V/STOL aircraft.

A Series 200 BAC 111 modified with two contra-rotating circulation controlled rotors (shown above). In an effort to attack storage problems of tilt-and-fold rotors, NGTE created a rigid rotor with a circular/elliptical cross-section. Lift is generated by air blowing tangentially around the upper surface of the blades from narrow spanwise slots. The result is fewer, shorter blades and no need for flapping or drag hinges. Once the airflow to the slots is cut off, no significant lift is generated. With this rotor design, lift is independent of rotor speed. R&D on this program began in 1959.

Source:
http://www.aiaa.org/tc/vstol/unbuilt/
"Straight Up and Away" Flying Review International. May 1969: 47, 51


Attachments

  • NGTE_a.jpg
    20.6 KB · Views: 411

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,338
Reaction score
5,977
Hi,

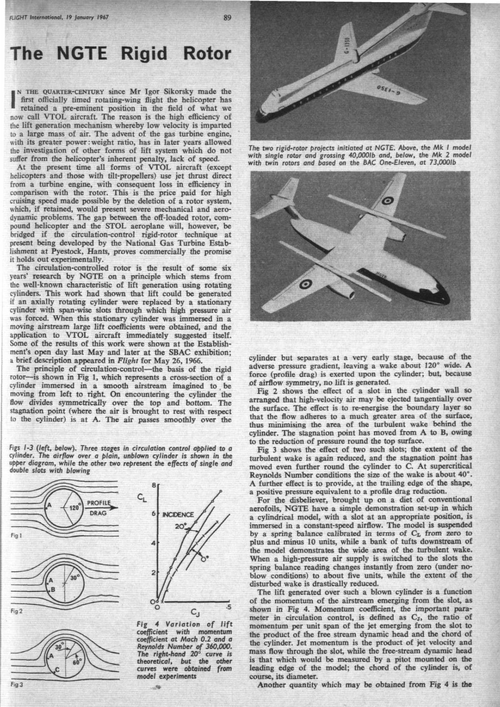

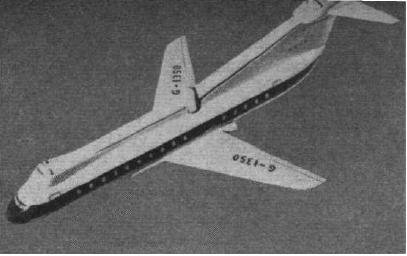

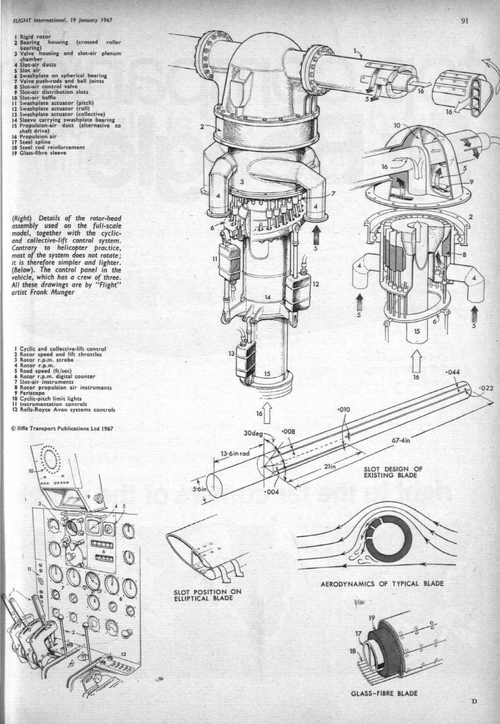

here is a more clearer pictures to NGTE aircraft projects.


http://www.flightglobal.com/pdfarchive/view/1966/1966%20-%201549.html?search=NGTE


Attachments

  • 1.png
    509.2 KB · Views: 333
  • 2.png
    598.3 KB · Views: 276

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,338
Reaction score
5,977
Hi,

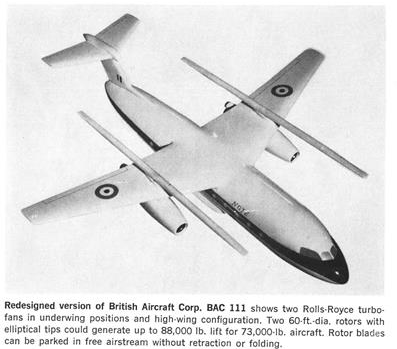

http://archive.aviationweek.com/image/spread/19680624/107/2


Attachments

  • 1.png
    115.4 KB · Views: 52

CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,578
Reaction score
1,017

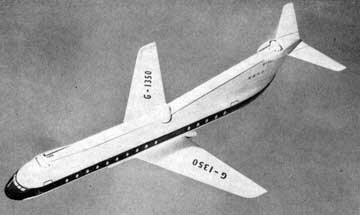

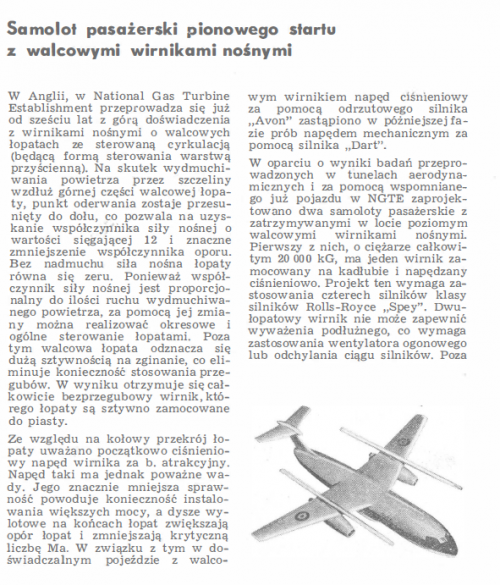

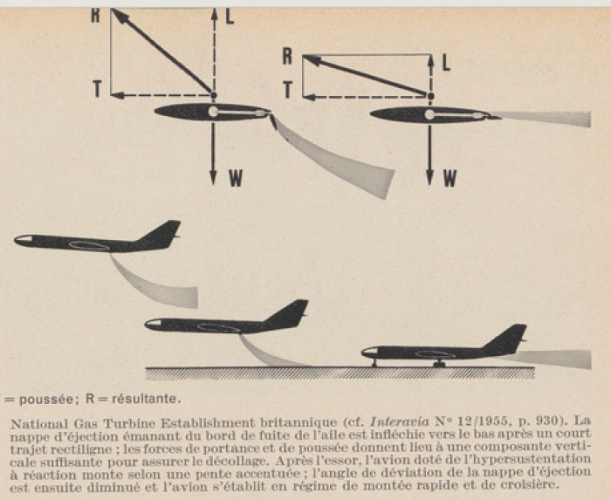

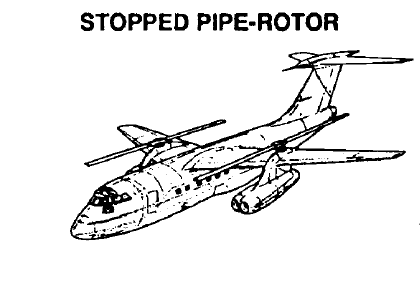

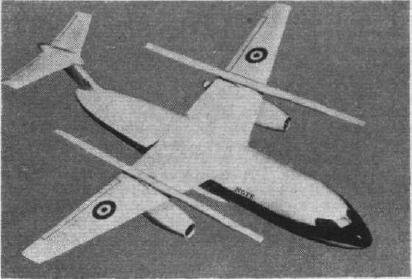

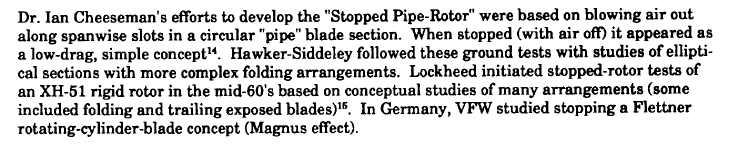

These are CCR (Controlled Circulation Rotor or Circulation Control Rotor, I can't recall offhand) concepts and was developed by Prof Ian Cheeseman of the NGTE. Quite a bit of work went into it. I knocked up an article on it last century, but got sidetracked into something else.

Interesting stuff.

I might dig the piece out and tart it up.

Chris


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,338
Reaction score
5,977

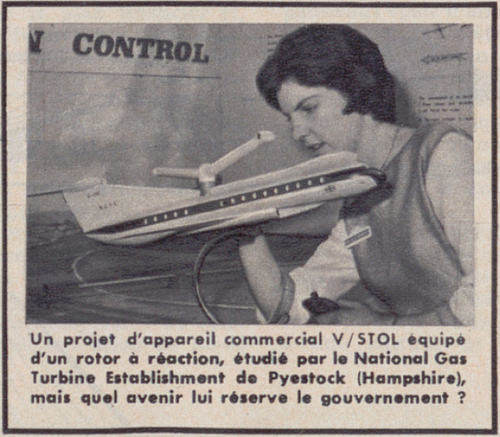

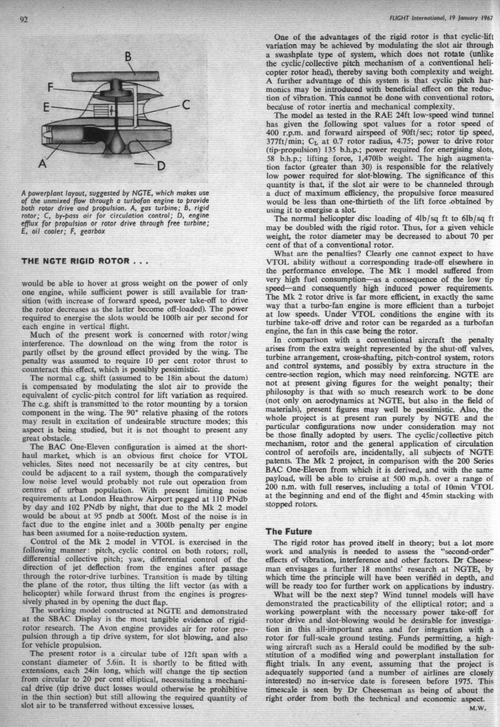

From Aviation magazine 1967.


Attachments

  • NGTE.png
    709.5 KB · Views: 38
