• Hi Guest! Forum rules have been updated. All users please read here.

New French concept of modular ships (landing craft/frigate/logistic ships)

colombamike

ACCESS: Restricted
Joined
Nov 14, 2009
Messages
18
Reaction score
2
View of new french concept about fast & modular fast landing craft/frigate/logistic ships
designed by french company CNIM


Attachments

  • p6200819.jpg
    105.6 KB · Views: 324
  • p6200835.jpg
    113.6 KB · Views: 279
  • p6190821.jpg
    104.8 KB · Views: 335

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

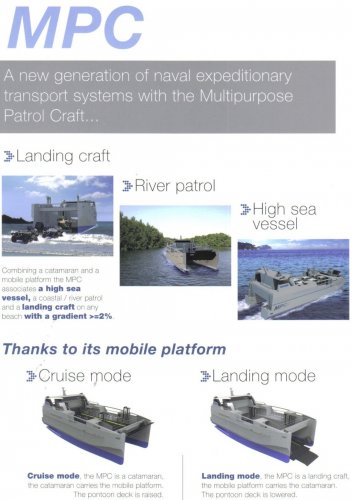

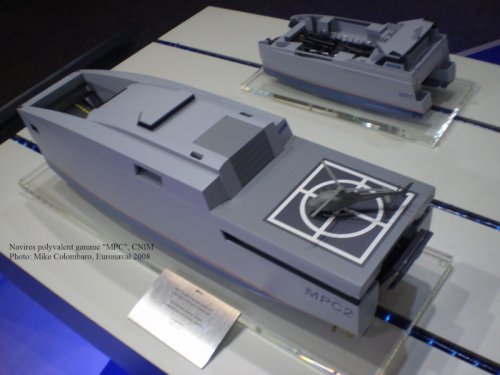

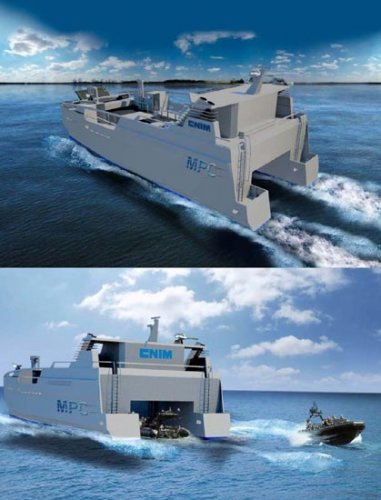

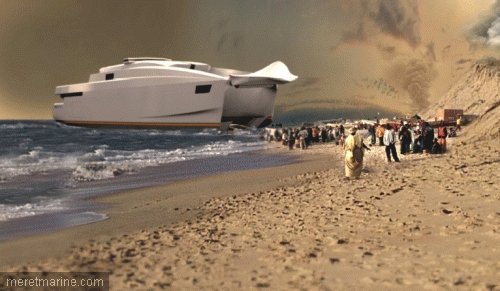

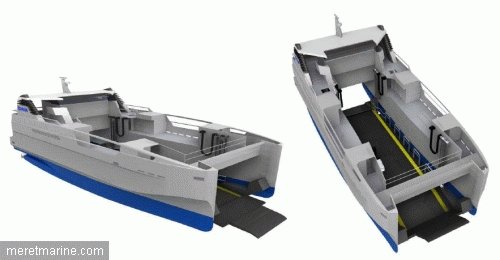

CNIM Multipurpose Patrol Craft (MPC)

The MPC is designed for combined sea and land operations as a patrol craft with all the equipment, range and autonomy that is expected from an up-to-date vessel. She can land a police unit with vehicles on the shore immediately upon detection of any suspicious activity, thus ensuring a quick law enforcement action, and can launch up to four RIBs at sea for rapid response.

The MPC’s main characteristics include:

  • Maximum speed of 27kn
  • Autonomous capability of up to seven days
  • Minimum draft 1.2m
  • Landing: beach gradient ≤ 2 %, wharf ≤ 1 m
  • Loading capacity 60t
  • Accommodation: crew 13 + 13 passengers
  • Armament: 2 x 20 mm + 2 x 12.7mm LMGs

Text source: http://www.naval-technology.com/contractors/patrol/cnim/

Image source: http://www.naval-technology.com/contractors/patrol/cnim/
http://www.meretmarine.com/article_imprimer.cfm?id=108703


Attachments

  • 4-mpc.jpg
    43.9 KB · Views: 263
  • 14801.jpg
    157.1 KB · Views: 254
  • 14800.jpg
    60.7 KB · Views: 104

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

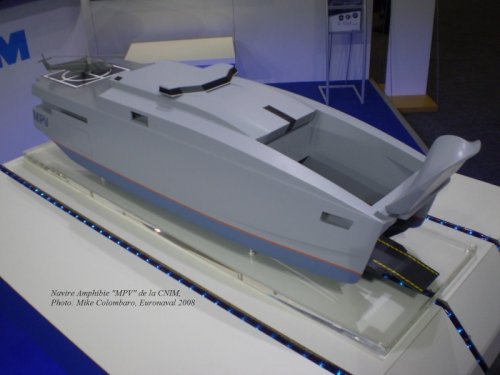

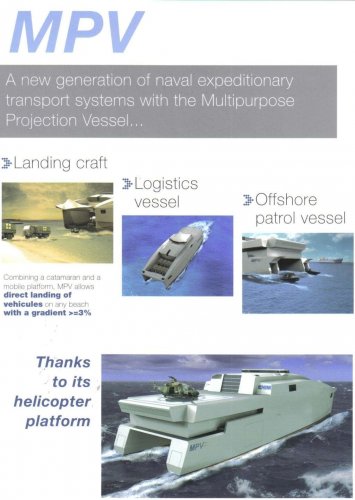

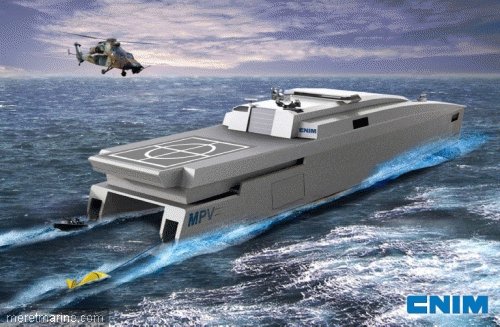

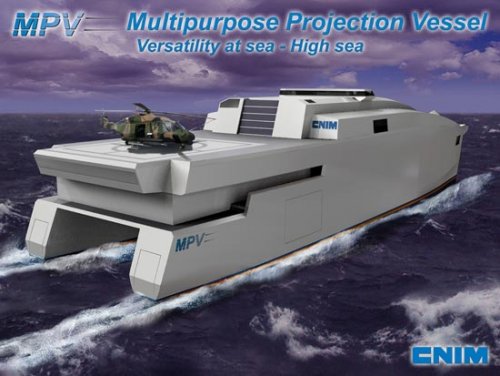

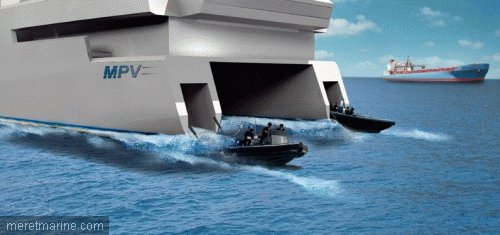

CNIM Multipurpose Projection Vessel (MPV)

The design of CNIM's MPV is a new concept of LST. It can change its shape from catamaran in cruise mode to flat-bottom ship for loading/unloading. The diversity of the MPV means that it can be utilized in a wide variety of missions, ranging from logistics, transportation and support to special operations, coastal law enforcement and maritime warfare.

The MPV has a helicopter platform and hangar to operate the NHI NH90 or Eurocopter Tiger, a garage, and two well decks for operation of high-speed boats.

Main characteristics of the MPV include:

  • Length: 90m
  • Width: 24.5m
  • Deadweight max (loaded): 1,050t
  • Deadweight max (patrol): 650t
  • Crew: 26
  • Engine power: 10 MW
  • Cruise speed (empty): 25kn
  • Cruise speed fully (loaded): 20kn
  • Speed in landing mode: 12kn
  • Autonomy: 10,000Nm
  • Navigation: Sea state 6
  • Safe: Sea state 7

Text source: http://www.naval-technology.com/contractors/patrol/cnim/

Image source: http://www.naval-technology.com/contractors/patrol/cnim/
http://www.meretmarine.com/article_imprimer.cfm?id=108703


Attachments

  • 14804.jpg
    128.3 KB · Views: 127
  • 14803.jpg
    103.7 KB · Views: 88
  • 14802.jpg
    159.6 KB · Views: 103
  • 5-naval-landing-craft.jpg
    42.4 KB · Views: 98

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,982
Reaction score
106
Very neat design. But ...does it remind anyone else of an InkJet? ;D


colombamike

ACCESS: Restricted
Joined
Nov 14, 2009
Messages
18
Reaction score
2

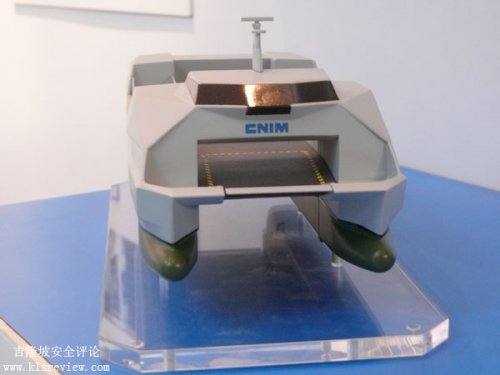

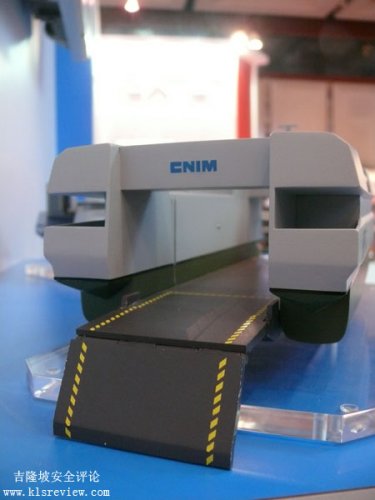

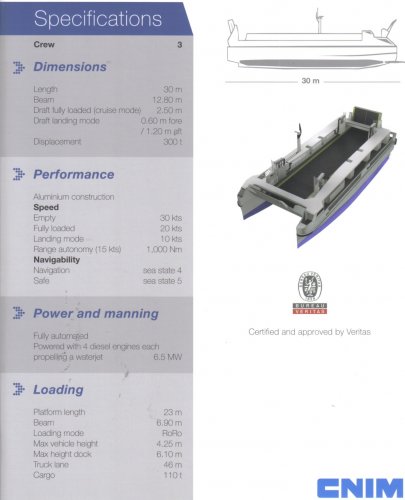

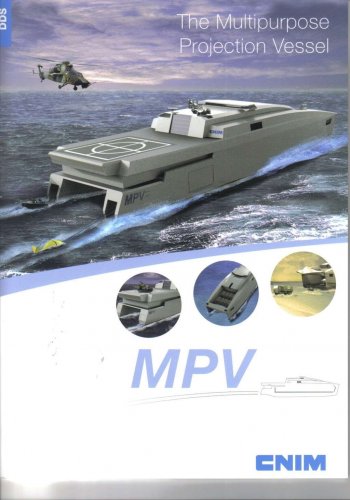

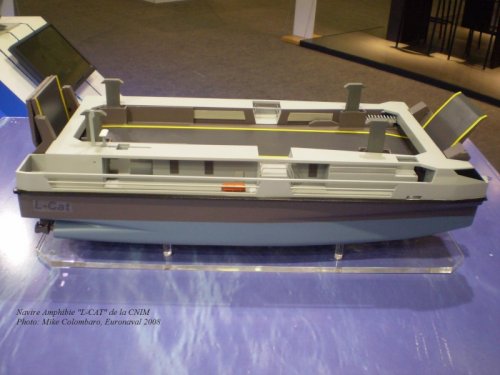

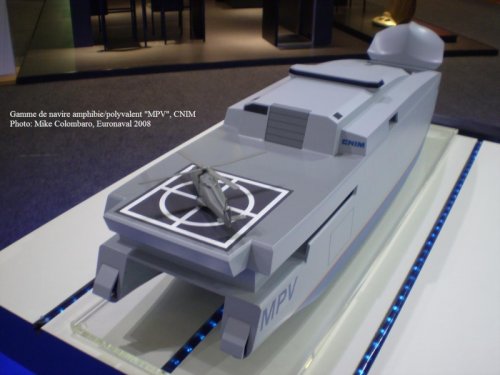

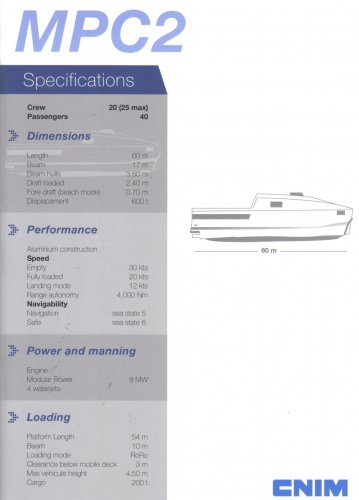

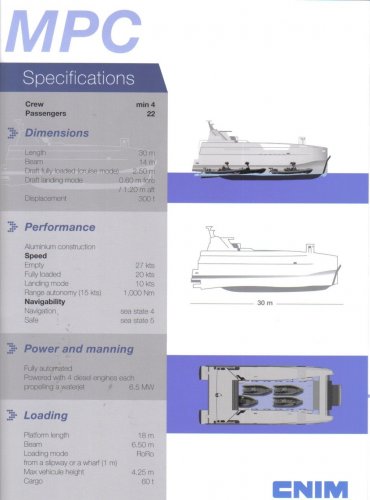

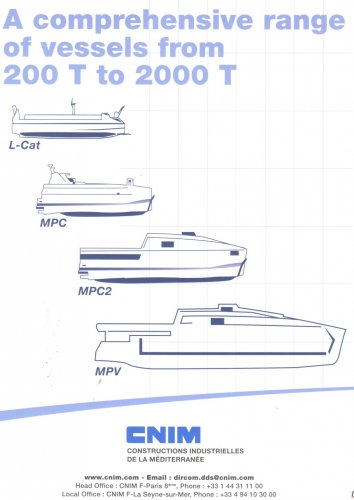

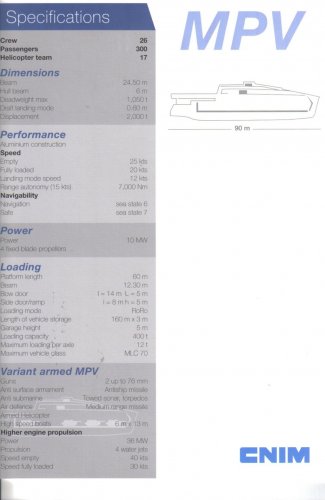

LCAT, MPV & MPC design


Attachments

  • MPV 2.jpg
    MPV 2.jpg
    118.4 KB · Views: 64
  • MPC 2.jpg
    MPC 2.jpg
    113.6 KB · Views: 57
  • MPC.jpg
    105.6 KB · Views: 67
  • MPV 3.jpg
    MPV 3.jpg
    116.6 KB · Views: 56
  • MPV.jpg
    104.8 KB · Views: 57
  • lcat.jpg
    132.2 KB · Views: 66

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

Attachments

  • mpv_310.jpg
    113.3 KB · Views: 137
  • mpv_210.jpg
    123.7 KB · Views: 136
  • thnth10.jpg
    241.5 KB · Views: 89
  • thnthn10.jpg
    231.5 KB · Views: 76
  • mpc_210.jpg
    254.9 KB · Views: 98
  • mpc10.jpg
    222.8 KB · Views: 99
  • fnthn10.jpg
    255 KB · Views: 99
  • lkhlk10.jpg
    197.5 KB · Views: 87

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

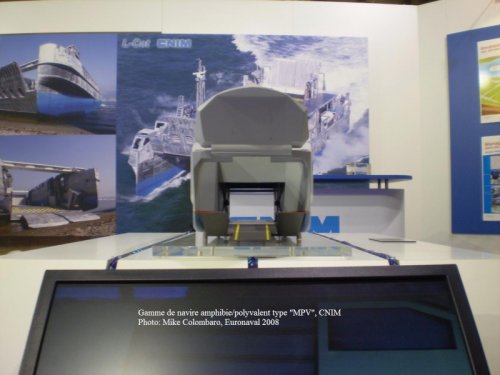

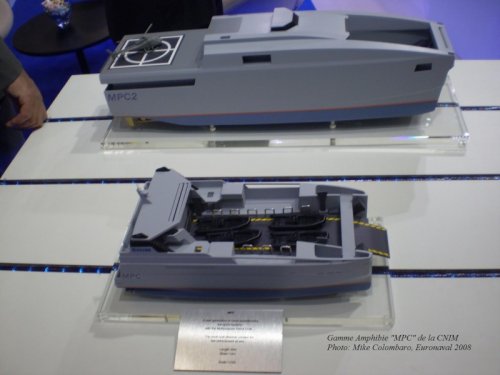

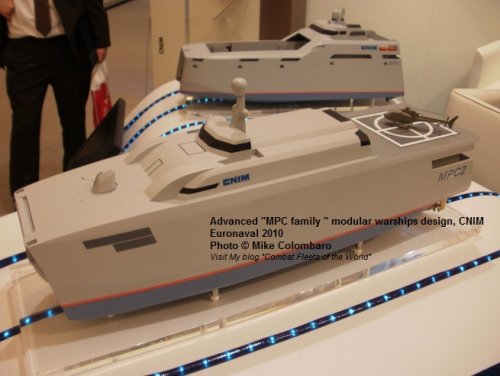

Model of CNIM MPC on display at Euronaval 2010.

Source:
http://www.defence.pk/forums/military-photos-multimedia/80759-euronaval-2010-a.html


Attachments

  • P9150258 - Copie.JPG
    P9150258 - Copie.JPG
    97.8 KB · Views: 89

Similar threads

Top
