NAMC YS-33 Project

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
Re: NAMC YS-33

No 3-view, sorry, only an artists impression from Aviation Week 8/1970 :


Attachments

  • Nihon-YS-33-1.JPG
    25.3 KB · Views: 763

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,534
Re: NAMC YS-33

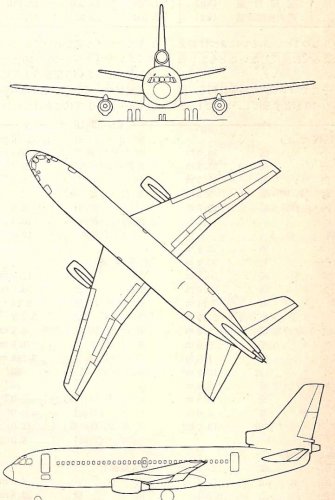

Hi! I want to introduce you YS-33. This is already ended and unbuilt project, but very fascinating middle size transport. Middle engine nacelle shape is interesting.Mean shape of Tristar's and DC-10's.

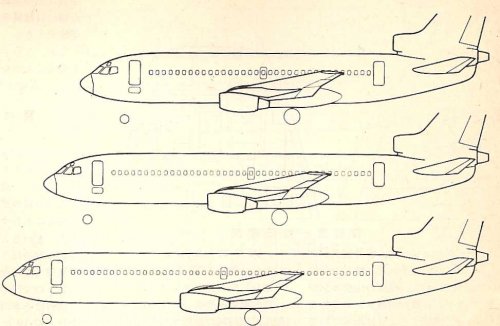

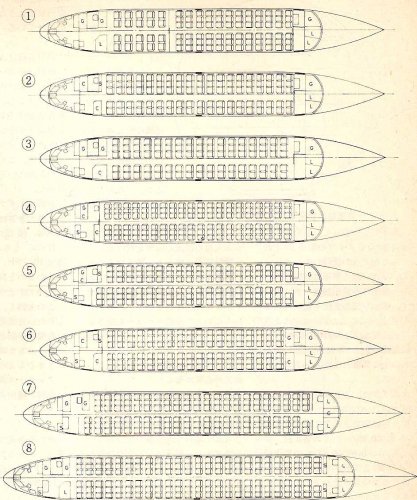

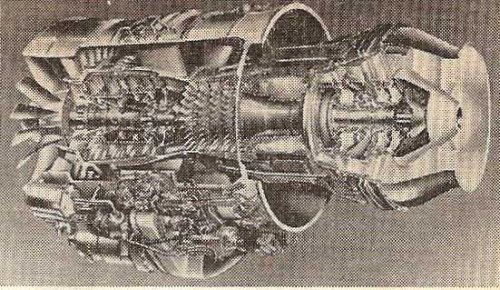

This plane was planned to be a follow on project of YS-11 in 1969. It had three types, -10(106 passengers),-20(139 passengers, -30(149 passengers). Engine was three R.R RB203(4,524kg thrust).
Source:AIREVIEW magazine in October 1969.


Attachments

  • YS-33-1.jpg
    170.1 KB · Views: 643
  • YS-33-2.jpg
    52.6 KB · Views: 600
  • YS-33-3.jpg
    44.7 KB · Views: 571
  • YS-33-4.jpg
    169.3 KB · Views: 532
  • YS-33-5.jpg
    49.7 KB · Views: 105
  • YS-33-6.jpg
    69.3 KB · Views: 119

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Re: NAMC YS-33

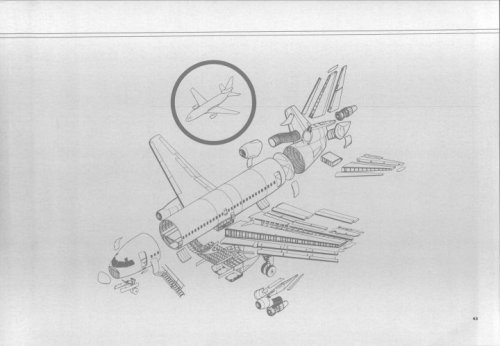

Exploded diagram of NAMC YS-33.

Artist's concept of NAMC YS-33 interior cabin.

http://www.geocities.jp/serena3430044/sub35.html


Attachments

  • YS33CABIN.jpg
    55.3 KB · Views: 84
  • YS33STR.jpg
    55 KB · Views: 73

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Re: NAMC YS-33 trimotor airliner projects......

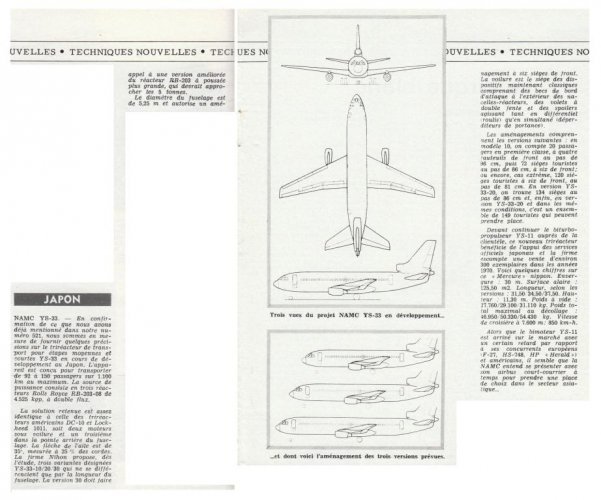

Dear Boys and Girls, here is an article in French about the NAMC YS-33 "projects" for a family of trimotor airliners......

The article comes from the 1st December 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,534

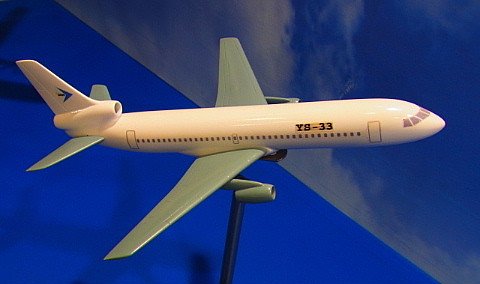

Attachments

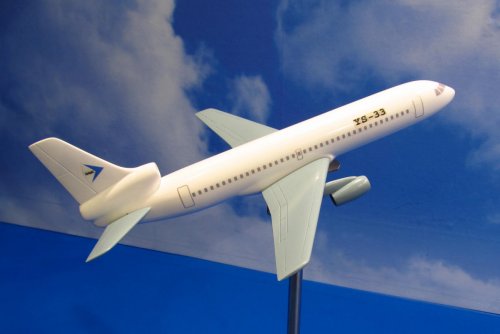

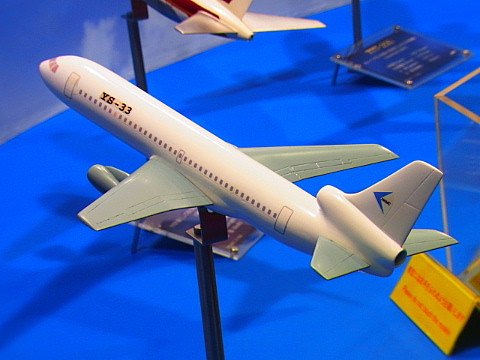

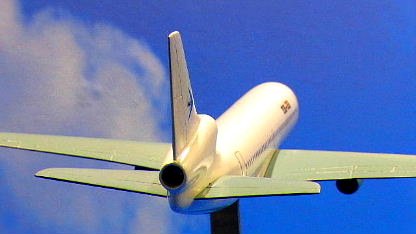

  • model pic4.jpg
    model pic4.jpg
    39.7 KB · Views: 58
  • model pic3 (2).jpg
    model pic3 (2).jpg
    73.9 KB · Views: 62
  • model pic3 (1).jpg
    model pic3 (1).jpg
    79.9 KB · Views: 66
  • model pic1.jpg
    model pic1.jpg
    53.7 KB · Views: 80

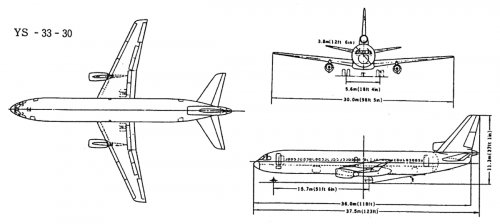

  • YS-33-30.jpg
    138.6 KB · Views: 76

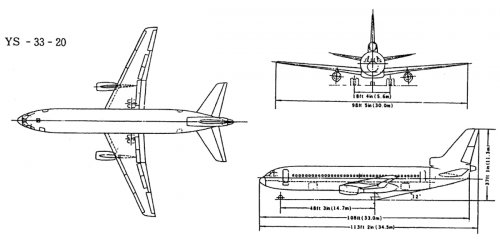

  • YS-33-20.jpg
    137.8 KB · Views: 76

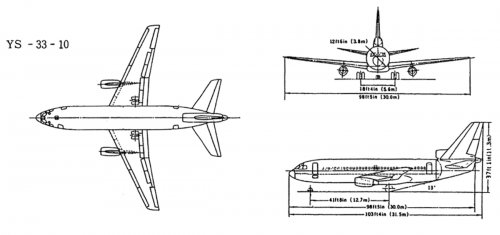

  • YS-33-10.jpg
    119.1 KB · Views: 73

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Hi,

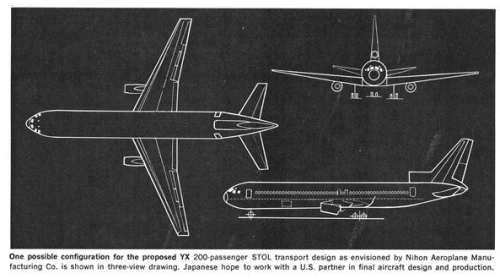

http://archive.aviationweek.com/image/spread/19711101/39/2


Attachments

  • 1.png
    172.7 KB · Views: 67

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,191
Reaction score
1,729
Flight International on-line archive has a lot of stuff over the YS-33 / Y-X. It is a long saga that started in 1965 and ended circa 1977 when Japan jumped into the 757 / 767 bandwagon.

https://www.flightglobal.com/pdfarchive/search.aspx?ArchiveSearchForm%24search=YS-33&ArchiveSearchForm%24fromYear=1966&ArchiveSearchForm%24toYear=1977&x=0&y=0
https://www.flightglobal.com/pdfarchive/search.aspx?ArchiveSearchForm%24search=Y-X&ArchiveSearchForm%24fromYear=1966&ArchiveSearchForm%24toYear=1977&x=34&y=16

Looks like they started with a jet-powered YS-11 then moved to a trijet aircraft. By 1977 they ended with a share of 15% into Boeing 767.
https://www.flightglobal.com/pdfarchive/view/1973/1973%20-%201186.html?search=CTDC

The Y-X project was first with the old NAMC company, but it was burdened by debt, so the Japanese government created a whole new entity, the CTDC, in 1973. Oddly enough, NAMC wasn't disbanded until 1982.
Establishment of the Civil
Transport Development Corporation,
with responsibility for the YX project
(as successor to Namco), by the
Japanese Ministry of International
Trade and Industry was approved on
March 30, and the company was
formally created on April 3 (1973)

http://www.jadc.jp/en/about_jadc/outline/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Than you my dear Archiblad,

and for YX,please see;

http://www.secretprojects.co.uk/forum/index.php/topic,3749.msg29390.html#msg29390


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462

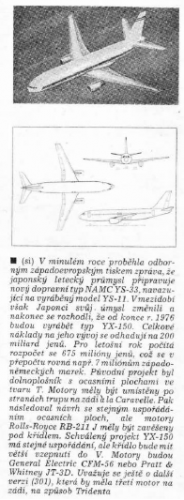

From L+K 13/1973,

it was called YX-150.


Attachments

  • 1.png
    96.6 KB · Views: 46
