N-MAS morphing wing competition

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

http://www.aoe.vt.edu/~mason/Mason_f/MorphS05Rpt.pdf

Virginina Tech Morphing Wing Team


Attachments

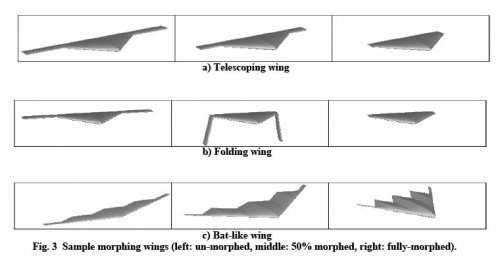

  • Virginia 1.JPG
    Virginia 1.JPG
    31.1 KB · Views: 300
  • Virginia 2.JPG
    Virginia 2.JPG
    15.4 KB · Views: 338
  • Virginia 3.JPG
    Virginia 3.JPG
    14.1 KB · Views: 308

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,155
Reaction score
1,300
Second picture is Lockheed Martin's unsuccesfull attempt, third is NextGenAeronautics MFX-1


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,155
Reaction score
1,300

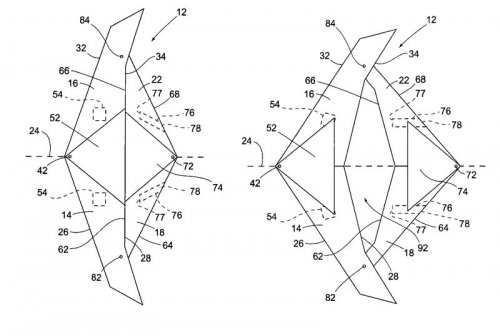

Bits of data available on Boeing's entry in DARPA Next-Generation Morphing Aircraft Structures (N-MAS) program (Lockheed and NextGen won). Co-planar joined wing, possible based on earlier MDC studies - at least Garret patent is mentioned, filed in 1996 and issued already after merger, in 1999. (This patent was previously found by Maki and Abraham Gubler - see here).

Configuration is patented by Boeing.

Source

AIAA 2008-1899
A Flutter Analysis of a Morphing Aircraft based on a Coplanar, Variable Geometry, Joined Wing
Yurkovich, Rudolph
Retired, Fenton, Missouri, 63026


Attachments

  • Boeing MASa.jpg
    Boeing MASa.jpg
    50.7 KB · Views: 237
  • Boeing MASb.jpg
    Boeing MASb.jpg
    52.9 KB · Views: 220

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,155
Reaction score
1,300
This is more close to actual Boeing UCAV vehicle shape proposed. Note intake position.


Attachments

  • Boeing_MAS_morph.jpg
    21.8 KB · Views: 70

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu

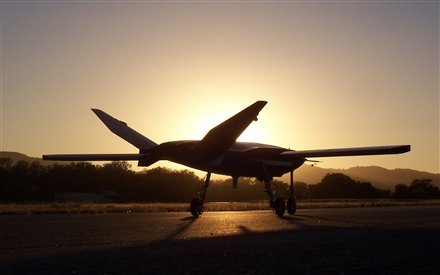

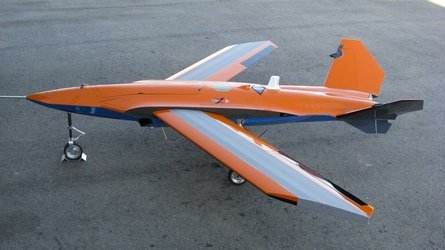

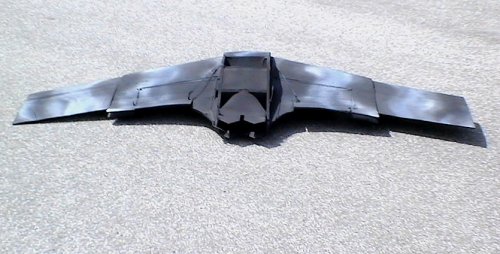

Shot of the NextGen MFX-2

Boeing´s submission here: http://www.secretprojects.co.uk/forum/index.php/topic,5418.0.html


Attachments

  • 623d63f1-bb3a-4191-bc7f-0bb245c5fac3.Large.jpg
    15.3 KB · Views: 90

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
Hmm, déjà-vu all over again, shades of the Gérin Varivol. I have always thought the earlier Gérin concept, with wings like a airfoil-shaped mast with a retractable ribbed fabric sail, had great promise for light aircraft and UAVs.


Attachments

  • varivol1.jpg
    27.3 KB · Views: 68
  • varivol2.jpg
    27.1 KB · Views: 65

quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,196
Reaction score
253

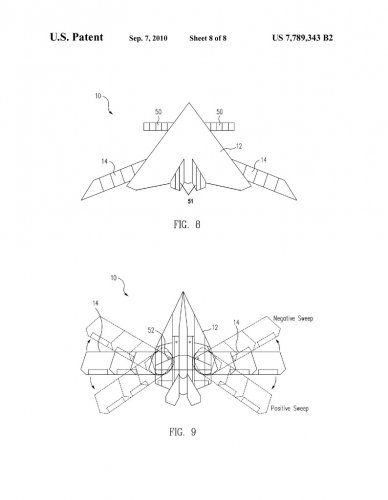

Two morphing aircraft patents:

http://www.google.com/patents/about?id=jVCcAAAAEBAJ

http://www.google.com/patents/about?id=Sh-cAAAAEBAJ


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
Hmm, déjà-vu all over again, shades of the Gérin Varivol.

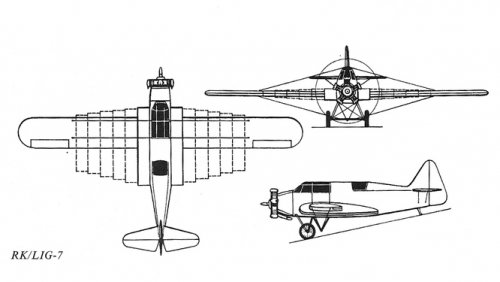

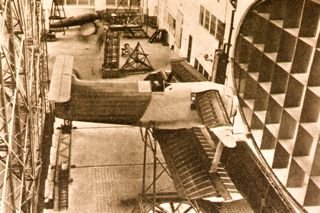

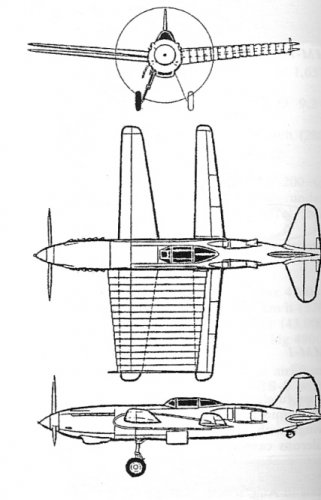

then of course, there's the russian NIAI LIG-7 (RK), and NIAI RK-1

3-views from Gunston's 'Encyclopaedia of Russian Aircraft, RK-1 images from Nemecek's 'Soviet Aircraft from 1918'.

cheers,
Robin.


Attachments

  • NIAI LIG-7 (RK).jpg
    NIAI LIG-7 (RK).jpg
    59.5 KB · Views: 46
  • NIAI RK-1.jpg
    NIAI RK-1.jpg
    94 KB · Views: 63
  • NIAI RK-I fast.jpg
    NIAI RK-I fast.jpg
    141.6 KB · Views: 68
  • NIAI RK_1 slow.jpg
    NIAI RK_1 slow.jpg
    163.1 KB · Views: 61

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
Both the Russian designs and the Gérin designs seem like great starting points for a light close air support and counterinsurgency aircraft--STOL take-off and landing and high speed. I can already imagine what Burt Rutan and Scaled Composites could do with something like the Russian tandem design and a modern turboprop engine...Quickie's big brother goes to war! ;)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
Quickie's big brother goes to war!

The only problem is, because of the way the morphing mechanism works, there's no room for underwing stores...

cheers,
Robin.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
Considering the length of the fuselage I think that here is no need for them. With the fuselage hardpoints you can also play with the center of the gravity and weight distribution. To that time it is great design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20090016348_2009016169.pdf


Attachments

  • Morphing wing.JPG
    Morphing wing.JPG
    31 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

NextGen's shape-changing UAV morphs in flight.

http://www.flightglobal.com/articles/2007/10/19/218799/nextgens-shape-changing-uav-morphs-in-flight.html


Attachments

  • MFX-2.jpg
    121 KB · Views: 62
  • MFX-2   2.jpg
    MFX-2 2.jpg
    99.1 KB · Views: 789

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu

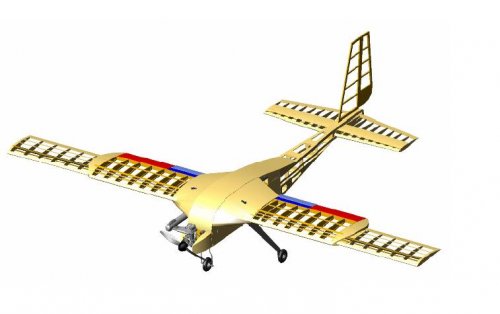

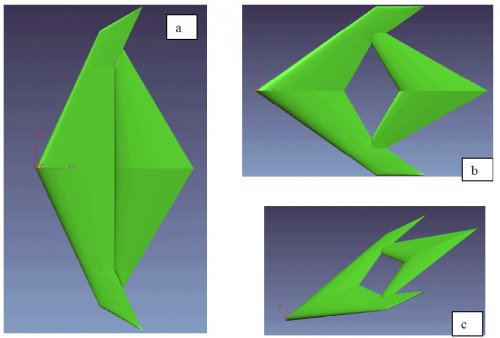

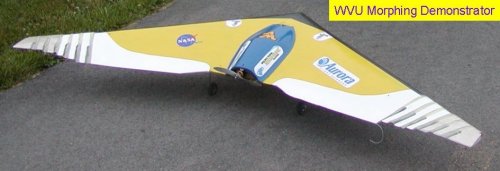

Another morphing wing attempt. There is a link called "web" at the bottom part of the page with some PDF, but I was unable to open it.

http://www.cemr.wvu.edu/research/theses/details.php?id=168


Attachments

  • CGriffin.jpg
    146.9 KB · Views: 117

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,878
Reaction score
368
"Morphing wings," because "variable geometry" wing is so old school. It reminds me of when I was in school and we were working on the HSCT, because SST was so '70's. It's a shame our research can't keep up with our acronym generation.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
Another morphing wing attempt. There is a link called "web" at the bottom part of the page with some PDF, but I was unable to open it.

http://www.cemr.wvu.edu/research/theses/details.php?id=168

The PDF is the full article of which the linked web page is the abstract.

Direct link to PDF here :-

http://wvuscholar.wvu.edu:8881//exlibris/dtl/d3_1/apache_media/13718.pdf


cheers,
Robin.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

Attachments

  • LockheedMWV.JPG
    15.9 KB · Views: 142
  • 14255.jpg
    29.5 KB · Views: 144

RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
940
Reaction score
404
Matej; You forgot to include the vehicle name with the photo.... I mean having it named the "Droid-of-Death" is funny :)

Randy


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu

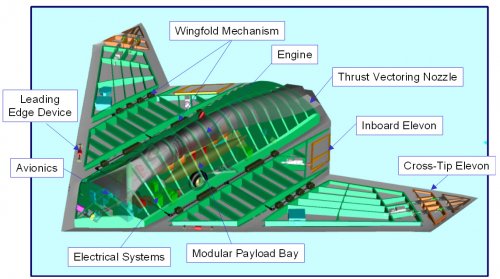

Just in case you ever wondered what is inside :)

From the presentation about advanced accuators by Gary Koopmann.


Attachments

  • lockheed_hunter_killer.jpg
    238.5 KB · Views: 79

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
I think that the third design is unrelated and is there only to illustrate the third high speed/dash configuration. In fact its this: http://www.secretprojects.co.uk/forum/index.php/topic,4451.msg106812.html#msg106812

But the other two stages of mophing are somehow weird too. For example what is the advantage of having that kind of rounded fuselage, especially in front of the air intake?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,155
Reaction score
1,300
http://www.youtube.com/watch?v=N1VZ7HisSik


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,155
Reaction score
1,300
Matej said:
NG concept - I am not sure, how it is supposed to work.
http://www.secretprojects.co.uk/forum/index.php/topic,1885.0.html


Mr London 24/7

ACCESS: Secret
Senior Member
Joined
Apr 27, 2008
Messages
407
Reaction score
93
Unusual looking Morpher from AFRL doc, presumably to dash and then loiter?:

http://www.hpc.msstate.edu/UAS/files/03-Turcotte.pdf


Attachments

  • Morph_Unk.jpg
    6.4 KB · Views: 411

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

here is the Lockheed Martin Shunk Works Advanced
Development Programs ADP.

http://dror-aero.com/ac/morph_wing.pdf


Attachments

  • morphing wing.JPG
    morphing wing.JPG
    35.7 KB · Views: 402

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,321
Reaction score
256
mr_london_247 said:
Unusual looking Morpher from AFRL doc, presumably to dash and then loiter?:

http://www.hpc.msstate.edu/UAS/files/03-Turcotte.pdf

Hmmm...their sense of aesthetics hasn't improved - not that the Lockheed one is a beauty.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,350
Reaction score
479
Morphing Aircraft Systems: Historical Perspectives and Future Challenges

https://www.scribd.com/doc/285819506/Morphing-Aircraft-Systems-Historical-Perspectives-and-Future-Challenges?secret_password=hO1h54pZb6M6acliFSme


bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,845
Reaction score
1,976
http://aviationweek.com/MorphingWing?NL=AW-05&Issue=AW-05_20161104_AW-05_989&sfvc4enews=42&cl=article_1&utm_rid=CPEN1000000230026&utm_campaign=7554&utm_medium=email&elq2=68b7f45cf0c3488da706b2bd237d638e


kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
666
Reaction score
20
With all that wing morphing and folding, isn't that going to affect internal volume in a negative way? Less room for fuel tank other systems...solve one problem create another? But I see where this is going eventually something that can morph almost like a bird.
