Mustang FTB

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com

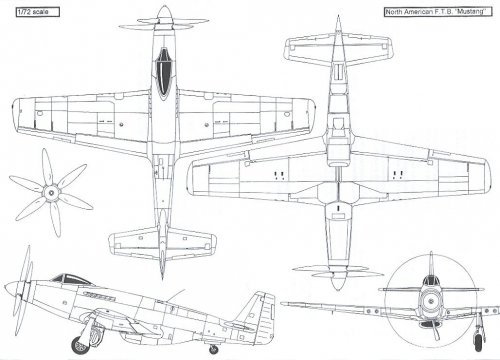

A drawing by myself SOURCE GRADING 4 and some additional stuff


Attachments

  • Escanear0001.jpg
    86.5 KB · Views: 1,205
  • Escanear0002.jpg
    52 KB · Views: 1,128
  • Escanear0003.jpg
    66.1 KB · Views: 902
  • Escanear0006.jpg
    118.2 KB · Views: 880

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,806
Reaction score
1,386
Thanks Justo. I had no idea that this aircraft had a bubble canopy (I did mine based on the Mustang I ... back to Photoshop for that one! :-[).


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
These are Rolls-Royce projects. For a detailed account see:
Rolls-Royce and the Mustang by David Birch, Rolls-Royce Heritage Trust historical series No 9, pages 91 to 105.
Except for JM's first one the above drawings and photos and others including jet layouts are there. so is RR's original 1942 project with the Eagle engine, not based on the Mustang.
I'm not posting ten pages - if it is still available buy it and help the Trust!


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
Sorry. I've looked at the text, then more closely at the drawings.
The engines were not jets, but turboprops like Trent, with very prominent jet exhausts.


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,278
Reaction score
1,143
Website
beyondthesprues.com
What was the story behind the Mustang FTB concepts?

Regards,

Greg


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com
smurf said:
These are Rolls-Royce projects. For a detailed account see:
Rolls-Royce and the Mustang by David Birch, Rolls-Royce Heritage Trust historical series No 9, pages 91 to 105.
Except for JM's first one the above drawings and photos and others including jet layouts are there. so is RR's original 1942 project with the Eagle engine, not based on the Mustang.
I'm not posting ten pages - if it is still available buy it and help the Trust!

Thanks for identifying the book.
It seems interesting.
I just ordered it from Amazon.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,018
Reaction score
514

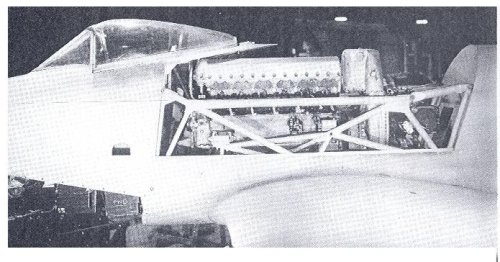

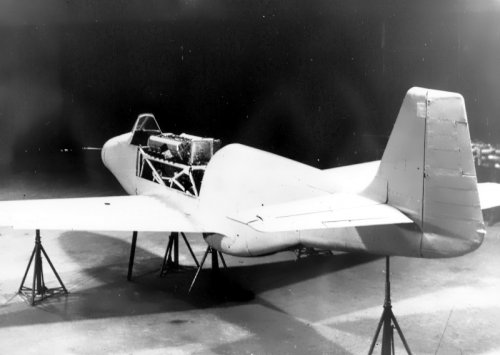

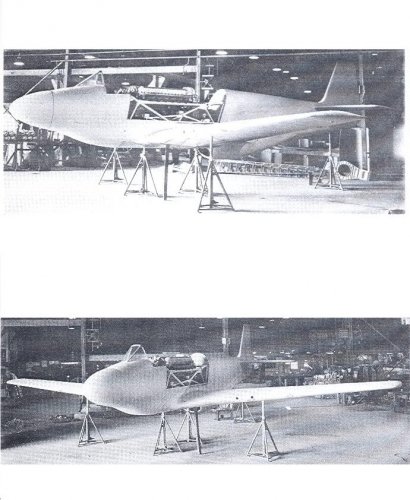

i've seen the images 'escanear0003' and 'escanear0006', before, i think in Gunston's book about RR aero engines, but captioned as a mockup/prototype for an air racer.

cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
773
Splendid, fightingirish, thanks! I wasn't aware they'd gone as far as the full-scale mock-up stage.


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
445
Reaction score
189
While building the Unicraft FTB conversion (in 1/72), I found certain things didn't jive with what info was available. So as I'm an Air-Britain member, I was able to ask the Rolls Royce specialist who just happens to be David Birch (he's also the official Rolls Royce Historian) about some things. He was able to confirm what the overall length was as the 1/10 wind tunnel model still exists and he knew who has it. Another bit of info he gave me was that the wind tunnel tests showed that the tail surfaces were undersize and needed about 60% more area. He then told me that the plan was, if the project had proceeded to production status, the aircraft would have had a Tempest tail assemble (a complete Tempest tail assembly was issued to RR for the project). He said that he didn't know of any model of it with the Tempest tail.

But now he does know, 'cause I built one and then sent him the photos of it. He said he was quite impressed with the result.

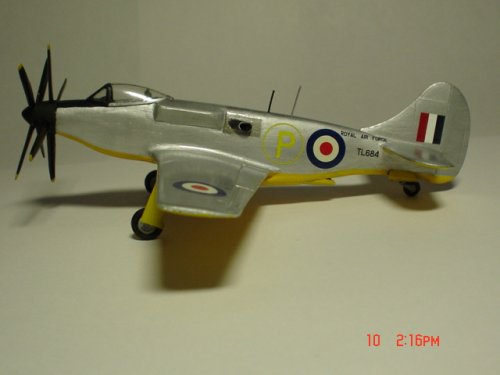

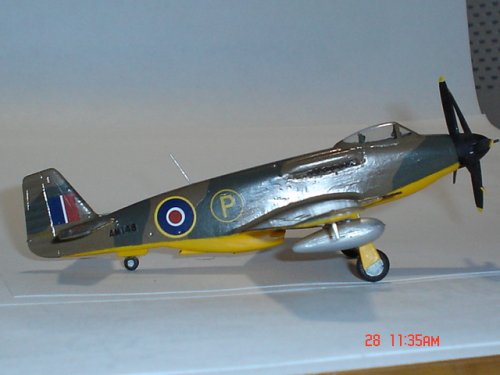

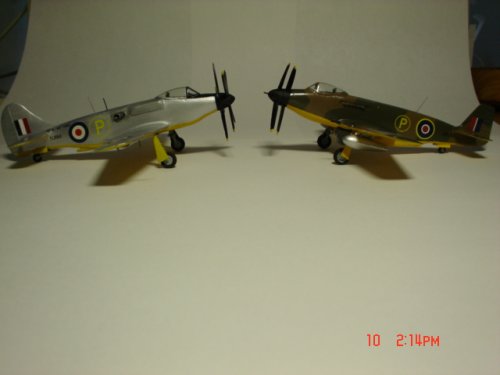

Top pic is of the PV Fighter (Private Venture), middle photo is of the FTB Tempest tailed version, I also have it as testing the RR Crecy engine, then the bottom photo of the two together.


Attachments

  • RR Mustang with Tempest Tail 001.jpg
    RR Mustang with Tempest Tail 001.jpg
    120.7 KB · Views: 131
  • RR Mustang with Tempest Tail 004.jpg
    RR Mustang with Tempest Tail 004.jpg
    153.6 KB · Views: 117
  • RR Mustang FTB 2.JPG
    RR Mustang FTB 2.JPG
    146.5 KB · Views: 109

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,995
Reaction score
4,009

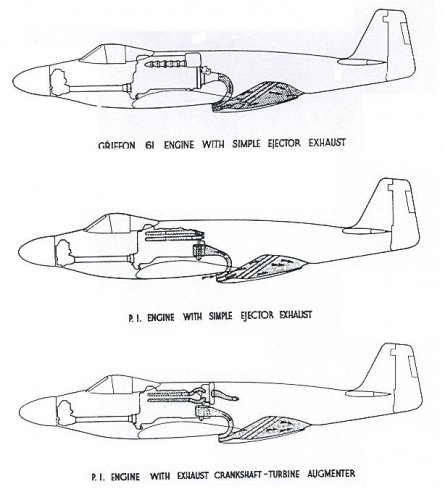

Engine with exhaust crankshaft-turbine augmenter?


kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
445
Reaction score
189
Yes, but in hind-sight, I think the exhaust stubs should exit further back to where I have it


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,995
Reaction score
4,009

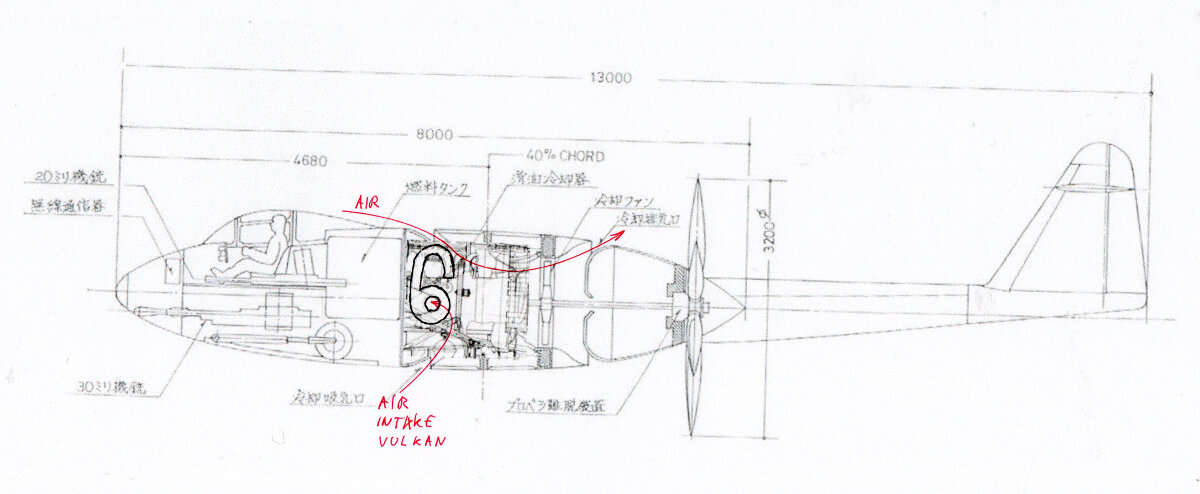

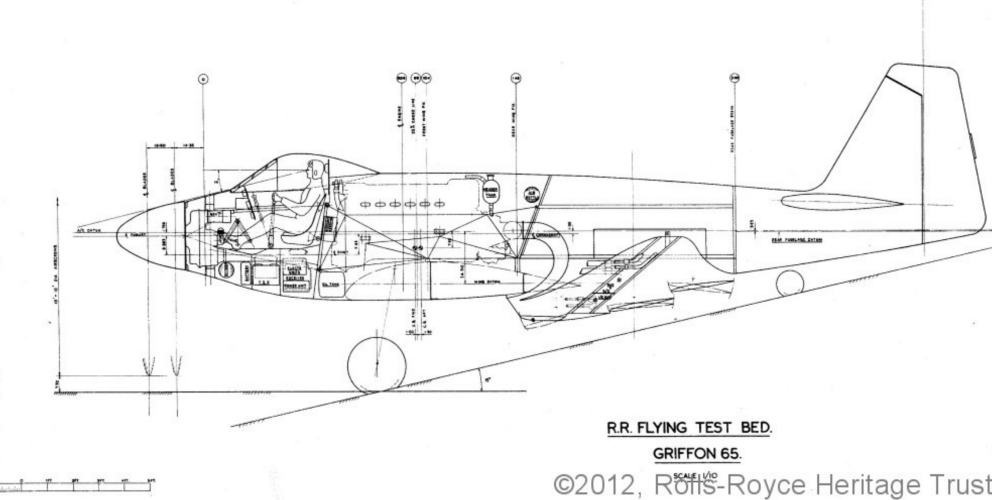

Hi! I saw this drawing.

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=3440.0;attach=27731;image


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
572
Reaction score
217
So what's a P.1. engine? I can't think of which of RRs engines this could be - it looks like a 'V' but apart from the Crecy where RR working on any other 'V' projects? Most were 'X' types by late war I thought.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,488
Reaction score
947
blackkite said:
Engine with exhaust crankshaft-turbine augmenter?

.....................................................

Similar in concept to the Wright Turbo-Compound engines installed in the last Lockheed Constellations: an exhaust-driven turbine drives a super-charger AND it drives the crankshaft.
Crankshaft drive might be geared, or it might be hydraulic.
The goal is to extract the maximum amount of waste energy from the (piston) engine exhaust.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,995
Reaction score
4,009
Hi! Turbo compound engine include following case.
(1) Without turbocharger unit (Only power recoverly turbine)
(2) Power recoverly turbine is located before turbocharger unit
(3) Power recoverly turbine is located after turbocharger unit
http://www.enginehistory.org/Wright/Kuhns/CurtissWrightTC18/TurboCompounds.shtml

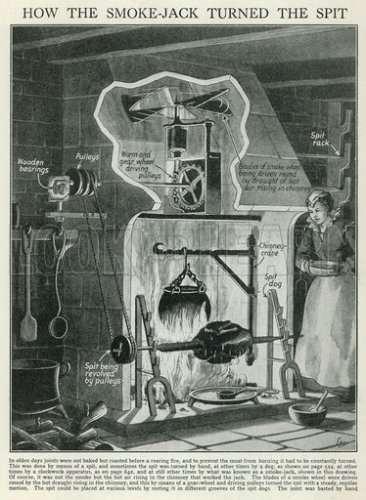

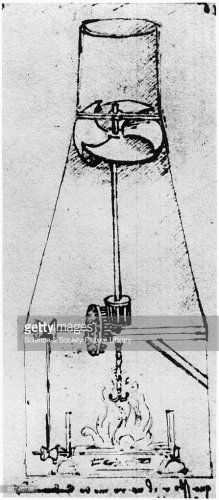

Almost same concept smoke jack. Sorry for off topic.


Attachments

  • Smoke Jack.jpg
    Smoke Jack.jpg
    61.3 KB · Views: 207
  • 90740759.jpg
    304.9 KB · Views: 199

kitnut617

ACCESS: Secret
Joined
Dec 15, 2006
Messages
445
Reaction score
189
Nick Sumner said:
So what's a P.1. engine? I can't think of which of RRs engines this could be - it looks like a 'V' but apart from the Crecy where RR working on any other 'V' projects? Most were 'X' types by late war I thought.

I'll have to dig out my two RR Heritage Trust books, "Rolls Royce and the Mustang" and "Rolls Royce Crecy", and have a look again because I can't remember. But P.1 I think was one of the Crecy concept V-Twins (there were six V-12 Crecys built and tested, but IIRC, twelve of the V-Twins). Then again I could be wrong and it might be one of the previous concept engines that lead to the Crecy
