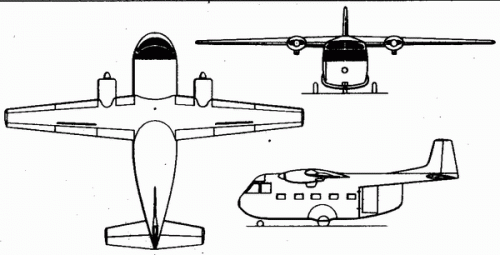

A couple of designs from JP4 magazine

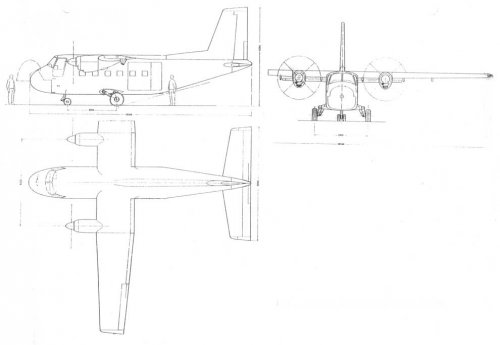

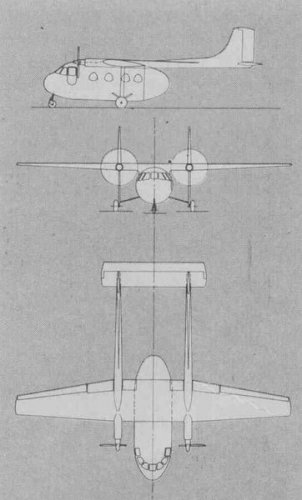

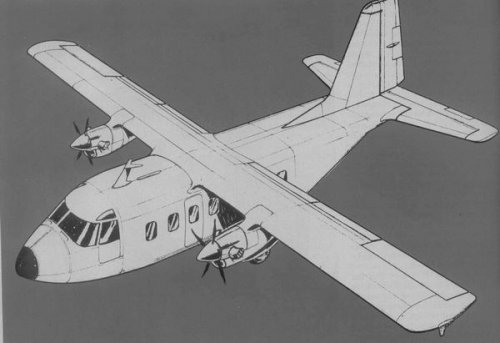

Air Metal AM-C 111 (Germany). First flight was scheduled for 1977. Estimated production: 500 aircraft from 1977 to 1986. Turkey and Malaisya were very interested in the project.

Versions: Passenger (24 seats) , VIP (13 seats), Cargo (up to 3000 kg), Medevac, military transport, photoplanimetric, navigation trainer and geophysic research

Powerplant: UACL PT6A-45

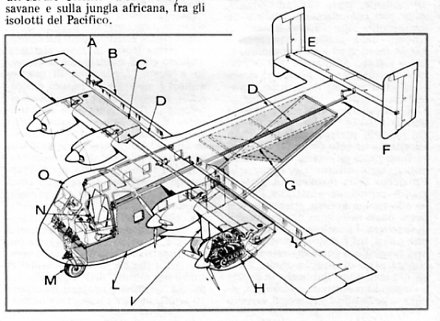

SAAB MULAS Transporter.

Versions: Passenger (19 seats), Cargo (up to 2000 kg), Medevac, SAR, geophysic research
, agricutural and firebomber.

Powerplant: Continental TIARA T6-320 (4 engined version) or UACL PT6A-41 (twin engined version)


SAAB considered that CASA 212 was no rival for its design so it had a bright future.


Attachments

  • Air Metal AMC-111.jpg
    Air Metal AMC-111.jpg
    51.5 KB · Views: 1,240
  • SAAB Transporter.jpg
    SAAB Transporter.jpg
    103.9 KB · Views: 1,197

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Similar in layout and time frame :

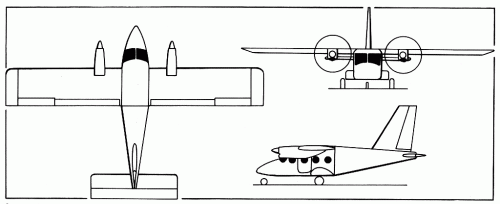

Pilatus launched a sales subsidiary with the munich, german based Poligrat
development in 1973, to sell a twin-engined STOL transport, called the
Master Porter PD-01, which was expected to enter the market in 1976
and would have been sold as completet aircraft or as a kit for local assembly.
(AviationWeek 4/74)


Attachments

  • Master_Porter_PD01.JPG
    28.7 KB · Views: 1,035

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194
Very interesting projects, the Pilatus Master Porter is similar to the CASA C-212 Aviocar while the Air Metal AM-C 111 looks close to the Let 410/610 series. It is my personal opinion, of course


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi Everyone!

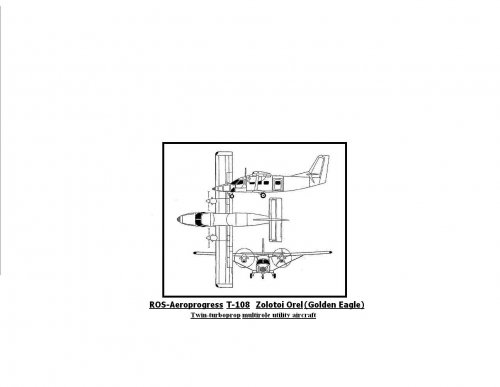

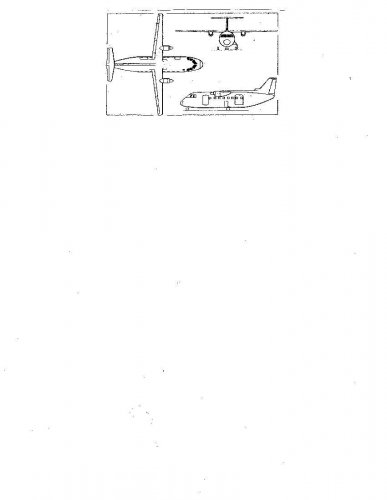

Another aircraft in this category is the ROS-Aeroprogress T-108 Zolotoi Orel (Golden Eagle), twin turboprop multirole utility aircraft.

This aircraft has wings with 3-section slats and double-slotted flaps braced to stub wings carrying fixed levered main wheels, spoilers ahead of each aileron, nose for baggage or radar and a castoring nose-wheel.

DIMENSIONS
Wingspan:........................................19.9 m (65' 3 1/2")
Length:............................................16.8 m (55' 13/8")

WEIGHTS
Payload:............................................1.8 t (3,968 lbs)
MTO:................................................6.3 t (13,889 lbs)
Fuel:.................................................1.6 t

ENGINES:..........................................Two (2) TVD-10B [Export Option PT6A-65]

PERFORMANCE
Maximum Speed:.................................390 km/h (242 mph)
Cruising Speed:....................................360 km/h (224 mph)
Operational Ceiling:...............................4 km (13,125')
Range (30-min reserve, Max Payload):......450 km (280 miles)
Range (Max Fueled):..............................1250 km (777 miles)

SOURCE:
The Encyclopedia of Russian Aircraft 1875-1995
p. 317
Author: Bill Gunston
Original Publishers: Osprey, Great Britain
Publishers: Motorbooks International, Osceloa WI, USA
Copyright Bill Gunston, 1995


Chuck


Attachments

  • T--108.JPG
    58.8 KB · Views: 1,172

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi pometablava!

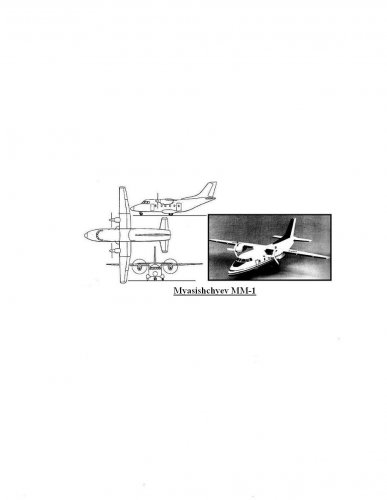

This is a Russian-built aircraft, the Myasishchyev MM-1 which was based on the Air-Metal AM-C 111.
It was to have flown some time after SEPT 1993 (I think), but I haven't any further information.

SOURCE:
The Encyclopedia of Russian Aircraft 1875-1995
pp. 264-265

Chuck


Attachments

  • _MM1.JPG
    51.8 KB · Views: 1,135

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194
Well done, Chuck and thanks a lot for that valuable info! ;)

Nice people keep the forum working ;D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

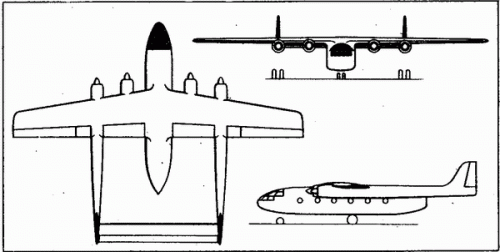

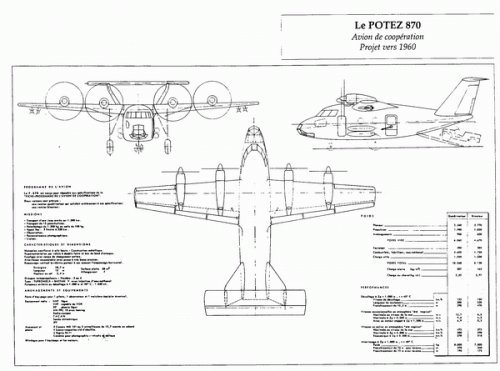

STOL transports weren't just interesting for commercial use, as can be seen by
this project, the Potez 870, which was intended as an army cooperation a/c,
with quite an impressive ground attack capability.
The drawing is , I think from "Planeurs et Avions", Christian Castello, I'm not
sure, but the copy was among other copies from that book ... ::)


Attachments

  • Potez-870.GIF
    73.7 KB · Views: 749

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

anther projects:
Master Porter PD-02 QSTOL transport and cargo aircraft.
Air Metal AMZ-102T STOL transport which was the basis to AM-C 111.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

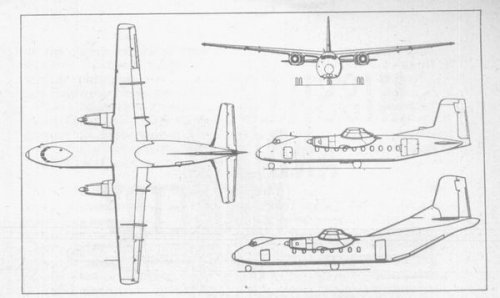

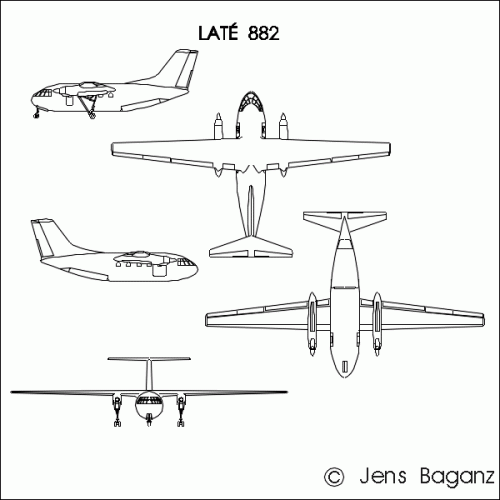

Two other french projects from the early sixties, roughly comparable to the Shorts
Skyvan :

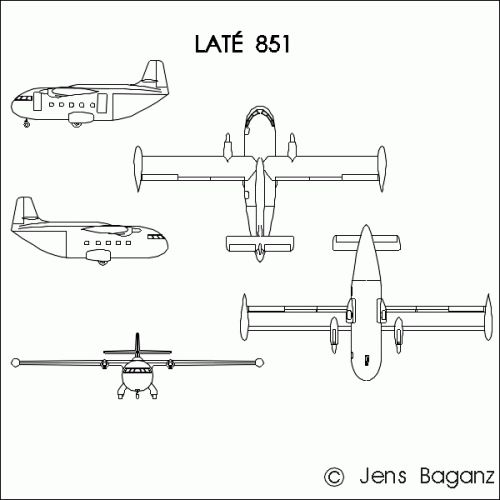

The Latécoère 850 to 853 series (shown the 851) with two Astazou I or II engines,
with a power of 469 to 562 hp and a MTOW of about 5500 kg and a take-off run
of around 400m.
and
the Latécoère 880 to 882 series with two Astazou II, MTOW 5300kg and a 430m
take-off run, kind of a refined 850.
(Data from J.C.Cuny " Latécoère-Les Avions et Hydravions").


Attachments

  • Late-882.GIF
    22.4 KB · Views: 335
  • Late-851.GIF
    15.3 KB · Views: 301

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

also the Dornier DO-33 was VTOL transport aircraft project.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,997
Reaction score
495
Website
beyondthesprues.com

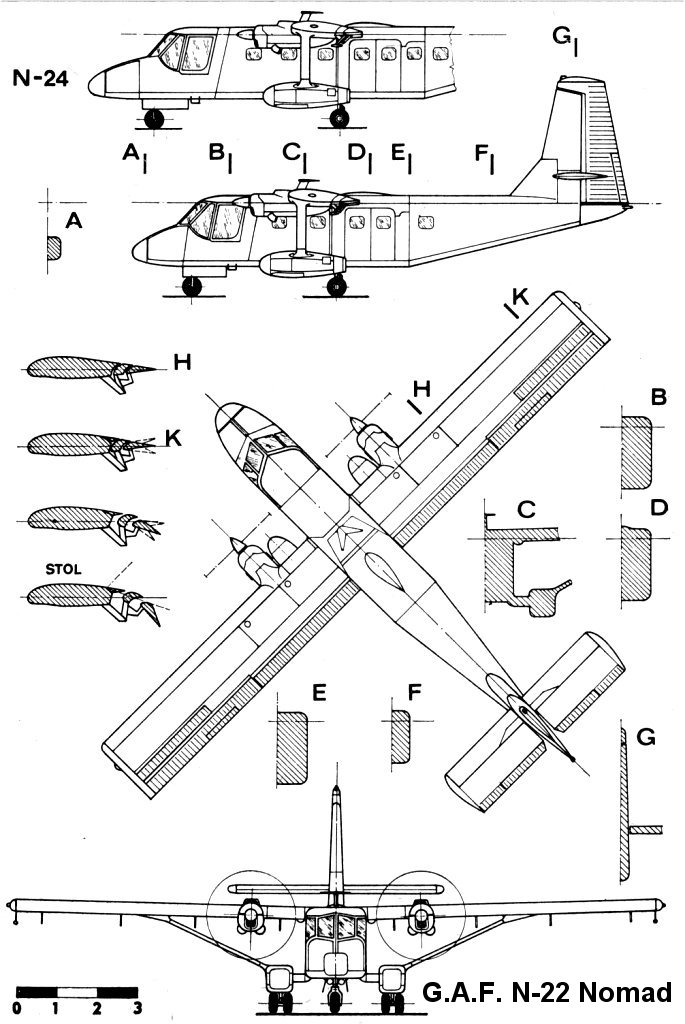

Interesting how all the different aircraft start to look the same - I guess the same problem often ends up with the same solution. Another to add to the list (and this one made it into service) was the GAF N-22/N-24 Nomad:

Accommodation : 1-2 crew + 12-13 passengers Dimensions Span : 16.52m (54'1ft) Length : 12.56m (41'3ft) Height : 5.52m (18'2ft) Weight empty : 2,150kg (4,741lb) max : 3,855kg (8,500lb) Power Plant : 2x 400shp Allison 250-B17B turboprops Performance : max speed : 311km/h (193mph) max climb : 1,460ft/min (742m/sec) ceiling : 21,000ft (6,400m) range : 1,074km (668miles)

It was operated in both civilian and military roles by a couple of countries.






Regards,

Greg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
from Indonesia,

Lapan XT-400 :twin engined light STOL transport aircraft,
FF 1980.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

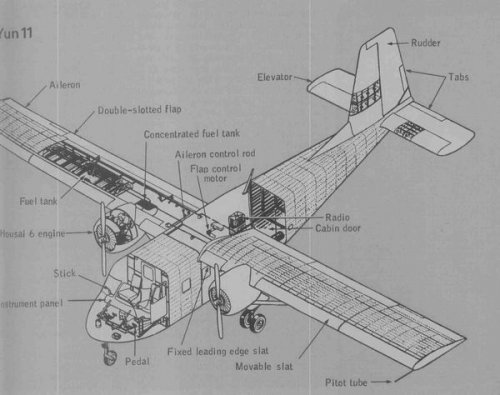

Chinese Yun-11, first flight in 1976, intended for light transport and agricultural work
(from AviationWeek 12.79)


Attachments

  • Yun-11.JPG
    43.2 KB · Views: 263

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194
On Aviation Magazine Number 516, 15 June 1969 I have seen pics from a model of the SOCATA Sherpa. The model depicted it is a clone of the IAI Arava :eek:

Are both types related?

Arava's first flight was on November 27th 1969


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
WHAT ? WHERE ?? WHEN ?? :eek:
More infos, please, especially as SOCATA includes Morane Saulnier !
The only french Arava "clone" I know, is the SIPA 270 Présence,
the project first shown to the public in 1960, so maybe the Arava
is in fact a clone of the SIPA !


Attachments

  • SIPA_270.JPG
    31 KB · Views: 372

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Just found : A brazilian project, the Embraer EMB-500, powered by four
PT-6A, fitted with a rear loading ramp. As a pure passenger lay-out fitted
with 30 seats.


Attachments

  • EMB-500.JPG
    22.8 KB · Views: 641

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146

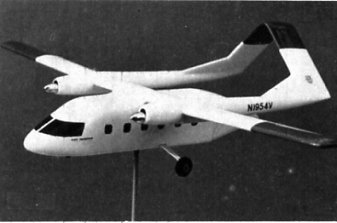

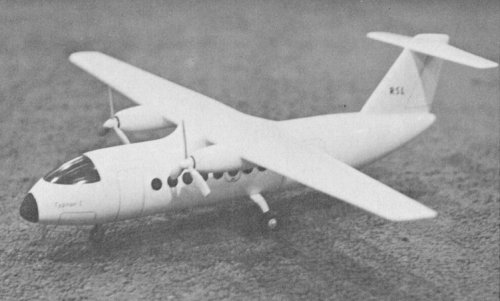

Aero Southwest "Typhon"

“Turboprop DC-3 replacement is expected to be in prototype form by the end of the year. "Typhon" is up to 26-passenger third-level airliner from Aero Southwest Corp., Santa Maria, Calif. Powerplants will be P&W PT6A-27 units, producing 652-eshp each. Predicted performance calls for a cruise speed of 225-mph at 10,000-ft, payload 3,460-lbs, range 860-miles.”

SOURCE: “Air Progress” September 1968 (pg 17)


Attachments

  • Aero Southwest Typhon.JPG
    Aero Southwest Typhon.JPG
    210.4 KB · Views: 483

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hallo,

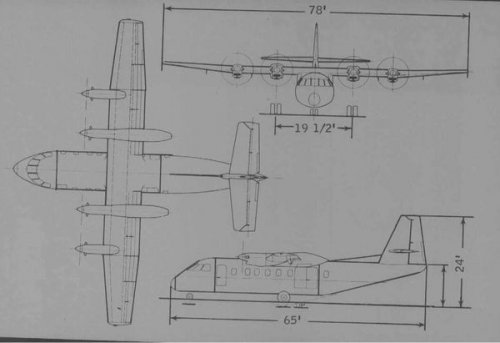

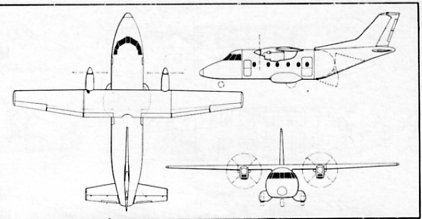

in USA during 1968 Surnise design S-1600, high wing cantilever monoplane,
it was STOL short-haul transport aircraft, first flown in 1968,powered by
Pratt & Whitney PT-6 turboprops engines.produced in three model:
S-1600P 24 passenger.
S-1600C cargo transport version.
S-1600S 30 passenger.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Another design in this class:
Bölkow-SIAT BS-210, 8.800 lbs (3.990 kg) empty weight.powered by two Turbomeca
Astazou II engines, able to carry 12 passengers over a distance of 300 miles (480 km).
(From Flying Review 10/63)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
A couple of Aermacchi proposals. MB-331 (piston engines) and MB-331T (turboprop). Both were intended for both passenger and cargo roles. Very simplified desgn, with fixed undercarriage. 1968. Dimension for the -T version were lenght 13,4 m, span 18,00 m. The basic version was smaller.


Attachments

  • MB-331.jpg
    21.8 KB · Views: 518
  • MB-331T.jpg
    24.8 KB · Views: 507

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194

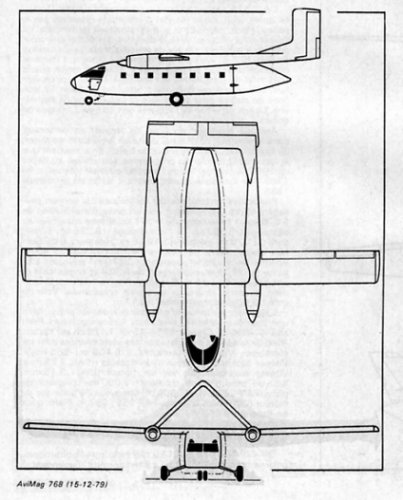

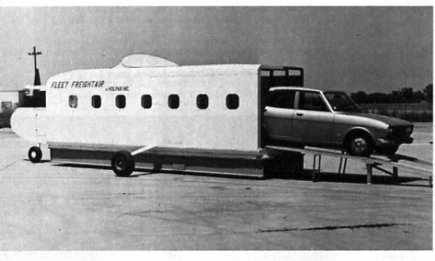

Aviation Magazine Num 768 (15-XII-79)

Fleet Freightair from A-Systems (San Diego)

Engine: turboprop Garret TPE 331-10 1000 hp
Lenght: 14.63 m
Span: 20.55 m
Empty weight: 3175 Kg
Load: 2266 Kg
Range: 4000 Km
Cruise speed: 402 Km/h


Attachments

  • Fleet Freightair mokup.jpg
    Fleet Freightair mokup.jpg
    48.5 KB · Views: 204
  • Fleet-Freightair.jpg
    30.4 KB · Views: 237
  • Fleet-Frightair 3v.jpg
    Fleet-Frightair 3v.jpg
    91.8 KB · Views: 254

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194

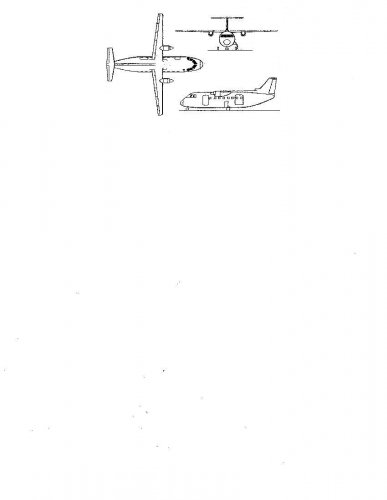

An Italian project for passenger and cargo duties:

Aeritalia AIT 230

Aviation Magazine Num 768 (15-XII-79)

First Flight was expected about 1983 and it could be ready for deliveries by 1985.
Aeritalia wanted to partner with an US manufacturer to ensure its introduction in the American market. An stretched version (50-60 passenger) was also studied to be launched after the 30 passenger version.

Engine: turboprop PT6A-65
Lenght: 16.35 m
Span: 21.26 m
Empty weight: about 5500 Kg
Max weight: 9367 Kg
Cruise speed: 386 Km/h


Attachments

  • Aeritalia AIT-230 3v.jpg
    Aeritalia AIT-230 3v.jpg
    86.5 KB · Views: 241

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
From Japan,

NAL project of 1995 :it was medium-range lift/cruise fan 100 passenger
VTOL airliner.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,346
Reaction score
117
Would the propsed but never-built CV-10 version of the Bronco fit in this category? I'll try and post some info when I get home.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
hesham said:
Hallo,

in USA during 1968 Surnise design S-1600, high wing cantilever monoplane,
it was STOL short-haul transport aircraft, first flown in 1968,powered by
Pratt & Whitney PT-6 turboprops engines.produced in three model:
S-1600P 24 passenger.
S-1600C cargo transport version.
S-1600S 30 passenger.

Hi hesham!

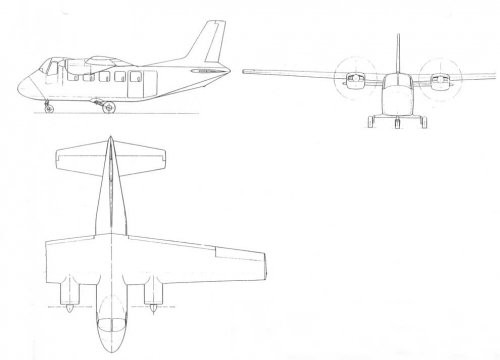

I've located a three-view line drawing of the Sunrise Aerion S-1600.


Chuck


Attachments

  • sunrise S-1600.JPG
    sunrise S-1600.JPG
    29.3 KB · Views: 233

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
From Flying Review 5/65 an early layout of the famous Short Skyvan
and (especially for Tophe !) the Short PD.15.


Attachments

  • Short_Skyvan_early.GIF
    30.6 KB · Views: 245
  • Short_PD-15_01.GIF
    31.3 KB · Views: 270

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
And here a type, which, although in its basic form not renowned for STOL capabilities,
should be improved by Dart 10-1 engines, improved high lift devices, spoilers and a
new brake system to achieve better short field performance for the military version
of the Handley Page Herald 500, the HP.131 :
(from Flying Review 6/65, profile only)


Attachments

  • Handley-Page_Herald-400_HP-131.JPG
    25.5 KB · Views: 287

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi hesham!

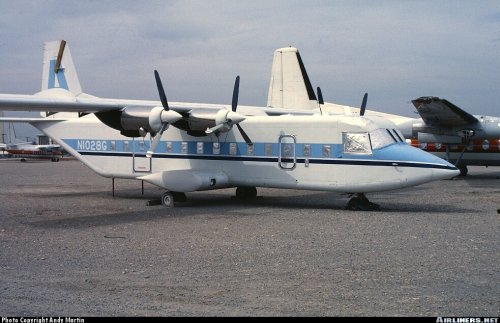

Had we included the Ahrens AR-404 yet? Only two were ever built, and it was thought that it might replace the C-2 Greyhound in the Carrier On-Board Delivery role.


Chuck


Attachments

  • ahrens ar-404.jpg
    ahrens ar-404.jpg
    203.1 KB · Views: 266

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Yes dear Chuck,

and there was also Ahrens AR-402 STOL transport aircraft
project with only two engines.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Slightly off-topic, I know ... but as Chuck mentioned, that the
AR 404 was proposed as a Greyhound replacement, I thought,
it might be interessting, what I found in Air & Cosmos '68 :

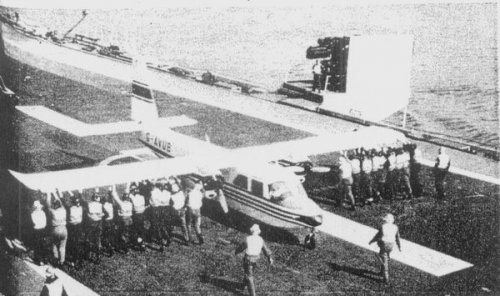

Did you know, that a british twin engined civil STOL aircraft
anded on and took off again from a british carrier ?
A BN-2 Islander landed on May 26th 1968 on the HMS Hermes
and was launched again, without the use of arresting gear and
catapult. Ok, compared to the Hercules carrier trials, not really
a great achievement .... ;D


Attachments

  • Islander.JPG
    51 KB · Views: 520

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146

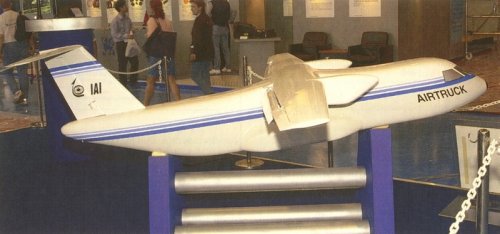

IAI C-5WA Airtruck
IAI submission chosen in principle by Federal Express of USA against competition from Saab (Sweden) and Ayres (USA) in mid-1998 as replacement for Fokker Friendship parcel transports.

SOURCE: JAWA 2001-2002


Attachments

  • IAI C-5WA Airtruck.JPG
    IAI C-5WA Airtruck.JPG
    262.1 KB · Views: 562

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
And here comes a candidate from Iran - the AII (Aviation Industries of Iran) AVA-404, planned with two Walter M 601E turboprops. Is there somebody who needs the estimated dimensions, weights and performances? Next Wednesday I have to give back the borrowed JAWA 2001-2002 ...


Attachments

  • AII AVA-404.GIF
    AII AVA-404.GIF
    38.4 KB · Views: 450

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

also Bristol Model-208 and Model-209 were V/STOL freighter
aircraft with 20.000 Ib payload for GOR.351 specification.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

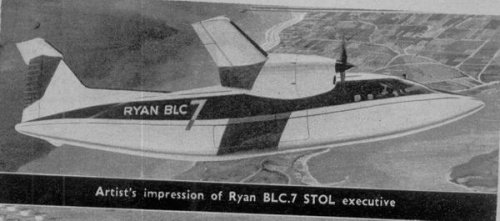

Just found in RAF Flying Review 3/1962 : The Ryan BLC.7 , mainly intended
as a STOL executive aircraft, but also proposed for military use.
It would have been powered by two Allison T63 turboprops and have used
boundary layer control.


Attachments

  • Ryan.JPG
    30.3 KB · Views: 479

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,346
Reaction score
117
Jemiba said:
Just found in RAF Flying Review 3/1962 : The Ryan BLC.7 , mainly intended
as a STOL executive aircraft, but also proposed for military use.
It would have been powered by two Allison T63 turboprops and have used
boundary layer control.

Hmm, I'd consider the Allison T63 (Allison 250) to be a bit on the small side for only two to be used with that size airframe, I'd think that the T74 (PT6A) or T76 (TPE331) would be better choices.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Within the "harvest" of my visit to the States Library :
The Wagner W-18, designed around 1963, with the maiden
flight expected for 1965, was intended as a DC-3 replacement.
A new kind of boundary layer control was envisaged, with span-
wise ducts in the very small high-aspect-ratio wings. These
ducts would have been fed with air from an APU in the tail and
fuel should be burned in it, to accelerate the airflow.

Drawing from Flight International, May 1964


Attachments

  • Wagner_W-18.JPG
    25.4 KB · Views: 574

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

The IPTN N-219 is 19-seat STOL transport aircraft
project and intended to replace NC-212.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

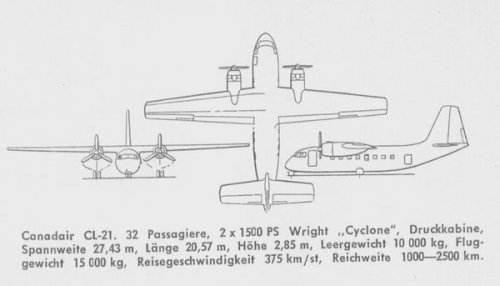

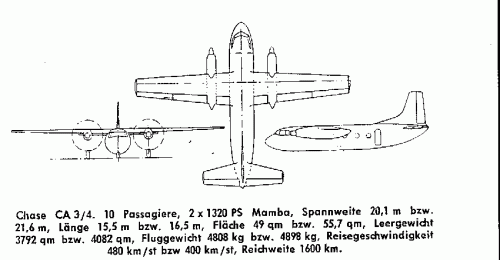

From "Der Flieger", 1954 : Canadair CL-21, with two Wright Cyclone of 1500hp
and a pressurized cabine


Attachments

  • CL-21.jpg
    21.2 KB · Views: 377

Similar threads

Top
