Motocar's Cutaway drawings

kcran567

CLEARANCE: Top Secret
Joined
Aug 15, 2009
Messages
663
Reaction score
1
If they flipped over the fuselage and added horizontal tails it would look like and Iranian mini super hornet.


JohnR

CLEARANCE: Secret
Joined
Sep 8, 2006
Messages
353
Reaction score
3
Looks like the product of the cross breeding of a Tigershark, Hornet and a Nighthawk.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,536
Reaction score
950
I think its no more than a fan built scale model.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

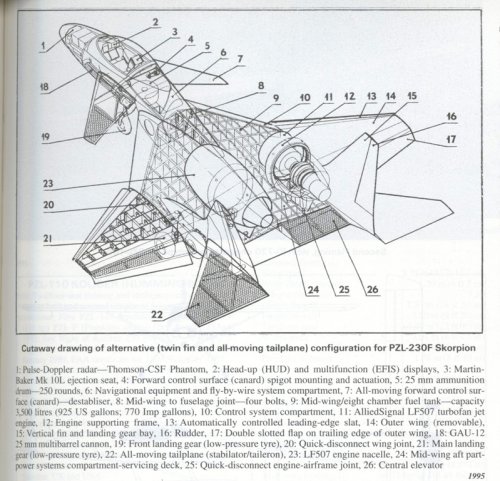

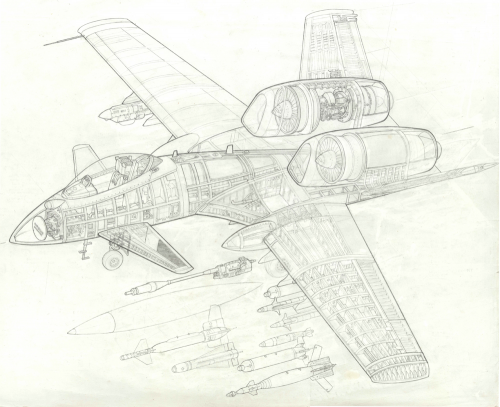

Cutaway Poland Scorpion, aircraft attack project

Success


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,143
Reaction score
120
I presume, the picture "Cutaway Poland Scorpion, aircraft attack project" is still in progress.
You might find it at his Flickr-Site.


Link: www.flickr.com/photos/76270395@N02/


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
This is my galery in Flickr.com


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

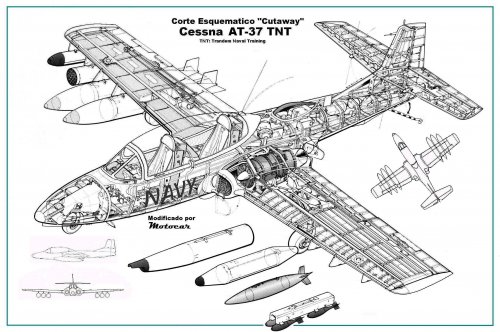

Cessna AT-37 Cutaway TNT, Tandem Navy Training, the company proposed in 1959 for a naval training aircraft, based on his T-37, it lost against the North American / Rockwell T2-A and rear engined version T2- C / D I operate providing excellent services to the beginning of the new century, it is distinguished by having a new arrangement of the seats in tandem and reinforcements of the cell for including arrester hook, original author WEAL and modified by Motocar for recreate this version


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Cessna AT-37 Cutaway TNT, Tandem Navy Training, the company proposed in 1959 for a naval training aircraft, based on his T-37, it lost against the North American / Rockwell T2-A and rear engined version T2- C / D I operate providing excellent services to the beginning of the new century, it is distinguished by having a new arrangement of the seats in tandem and reinforcements of the cell for including arrester hook, original author WEAL and modified by Motocar for recreate this version


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

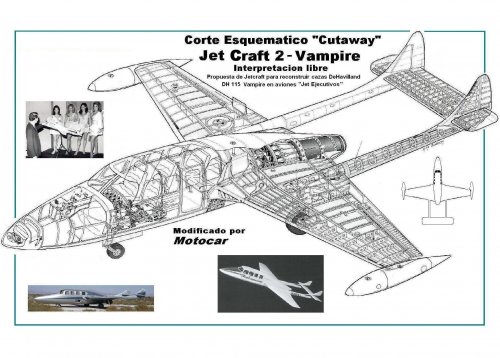

Some time ago I made a modification on the Vampire to recreate the Jetcraft Business Jet, derived from DeHaviland Training Kids Vampire T11 is relatively easy to recreate this again and to my unknown Hawker Dehaviland project for a coach prpulsado by a Viper engine, less powerful but lighter and more economical in consumption, I took a little time (I have several cutaways in progress) will be here soon but for now I leave the modification of Jetcraft Vampire

.

greetings Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

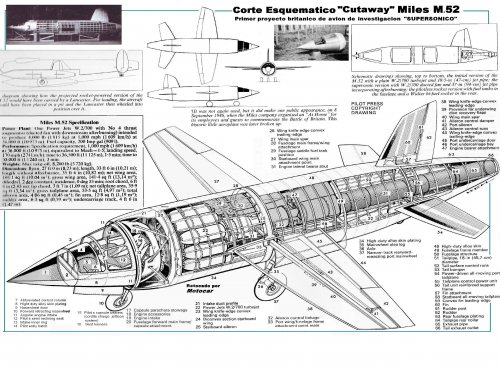

Cutaway Miles M52 the supersonic research jet, author WEAL (Retocado por Motocar)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
89
Motocar said:
Cutaway Miles M52 the supersonic research jet, author WEAL (Retocado por Motocar)
Please could you let us know exactly in what way all the cutaways you share are "retocaded"?? (touched up)

Perhaps I am the only one around here that seems to mind, but I find it extremely difficult to appreciate the extent and/or validity of your work because 1°) a lot of it seems based on guesswork, and 2°) more often than not I have no idea why you decide to modify the work of established cutaway artists.

So if at least you could explain your approach to the work it would be appreciated, instead of simply sharing the images (especially when you post them in the "regular" projects topics and not the "user artwork section).

Thanks.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,536
Reaction score
950
Agreed. They appear to be previously published cutaways by famous artists, often scanned badly, and saved in a way that destroys the image quality by creating jagged edges. Presumably something is "modified" somewhere, whether for better or worse is hard to say, and added to that are some random pics of the said project or aircraft around the edge.

I really don't understand this at all.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,402
Reaction score
263
Website
www.aerospaceprojectsreview.com
Agreed. What's the added value? A lot of the images have *really* bad scanning issues, text that's blurry and the like. That, at the very least, should be cleaned up; *all* the text simply replaced. The JPG compression artifacts cleaned up. Otherwise... what's the point? Just post the scan and be done with it.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Note that my contribution to the topic Miles M52 was removed. and placed here, I'll explain why what I call "Touch up or Modification" pictures retouched are those that I place on the web and the same are divided into parts or together with loss of information, other cutaways are deformed lines product poor scanned, in the case of M52 wings were twisted and computer graphics and text were severely damaged, rebuilt the original text with the letters one by one, as well as the motor in the original image, eliminate shadows in the central area and the diagrame different to add a photo, in my post you can read the original author and legend that clearly says (modified or retouched) others have a legend with the inscription (Provisional Work). On the other folklore work of WEAL is speculative because of it there are very few and even drawing the wing ribs or internal structure .....!
Much of the work it says is amended as follows recreate and offer a vision as close as possible to the model in most of the times lacks a schematic cut or are versions of any model that has a cutaway, such as the Dassault Mirage IIIB or the Mirage IIID, both models lacked drawings of this kind, based on known data recreate modifying the work of large and renowned artists, these have been made sometime speculative work on airplanes the best known case is the cutaway Tupolev Tu -16 Badger of your cut is indicative only and speculative but still today is the only work done on it there. Last but not least I made some original models from scratch as was the Heinkel He 178 which until this modest work that did not possess a schematic cut.
Just say I'm a fan of this art, the study and practice it as a hobby, he himself performed using modest "Paint" from Windows, I share my work for free in various forums without demanding anything in return and just to give life to those airplanes lacking one, as was the case of M52 that once started his drawing checked the existence of the work WEAL but to locate on the web had poor quality, "Retouch" and the result is displayed here I leave before and after that process just to illustrate.
Finally commend them for their excellent forum has given me great satisfaction and a lot of material that has tremendous value for this server.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Motocar said:
Note that my contribution to the topic Miles M52 was removed. and placed here, I'll explain why what I call "Touch up or Modification" pictures retouched are those that I place on the web and the same are divided into parts or together with loss of information, other cutaways are deformed lines product poor scanned, in the case of M52 wings were twisted and computer graphics and text were severely damaged, rebuilt the original text with the letters one by one, as well as the motor in the original image, eliminate shadows in the central area and the diagrame different to add a photo, in my post you can read the original author and legend that clearly says (modified or retouched) others have a legend with the inscription (Provisional Work). On the other folklore work of WEAL is speculative because of it there are very few and even drawing the wing ribs or internal structure .....!
Much of the work it says is amended as follows recreate and offer a vision as close as possible to the model in most of the times lacks a schematic cut or are versions of any model that has a cutaway, such as the Dassault Mirage IIIB or the Mirage IIID, both models lacked drawings of this kind, based on known data recreate modifying the work of large and renowned artists, these have been made sometime speculative work on airplanes the best known case is the cutaway Tupolev Tu -16 Badger of your cut is indicative only and speculative but still today is the only work done on it there. Last but not least I made some original models from scratch as was the Heinkel He 178 which until this modest work that did not possess a schematic cut.
Just say I'm a fan of this art, the study and practice it as a hobby, he himself performed using modest "Paint" from Windows, I share my work for free in various forums without demanding anything in return and just to give life to those airplanes lacking one, as was the case of M52 that once started his drawing checked the existence of the work WEAL but to locate on the web had poor quality, "Retouch" and the result is displayed here I leave before and after that process just to illustrate.
Finally commend them for their excellent forum has given me great satisfaction and a lot of material that has tremendous value for this server.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

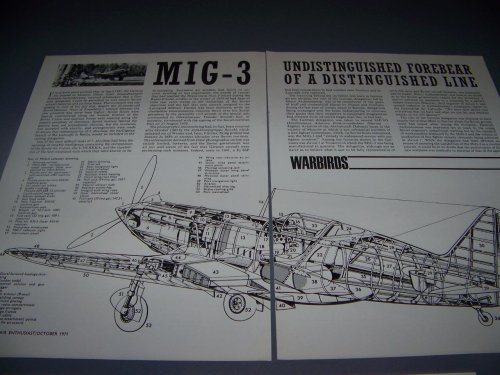

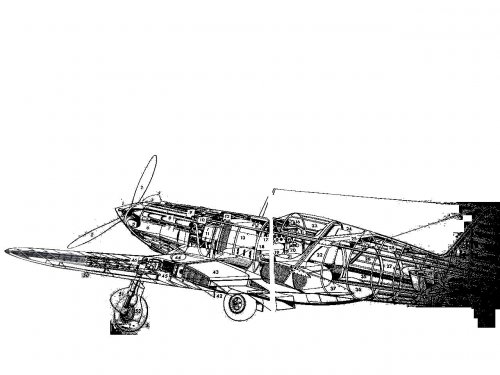

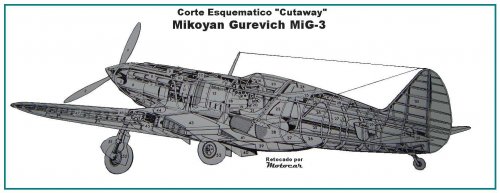

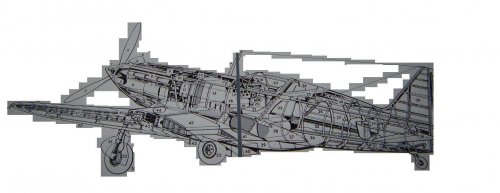

Following the brief explanation about: What is tweak or modify? here I leave a clear example of how a given cutaway is located and how it proceeds to tweak it, such as MiG-3 before in progress and after, the latter still not ready .....!

Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Continuing ....! Here I leave a sample before and after still in progress, you will say whether or not a touch ....?


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,536
Reaction score
950
I appreciate what you are trying to do, but you are using the wrong tool to achieve the task.

Try using GIMP (free) or Paint.net (free) to do the same task and it will be much much easier and support things like

Antialiased text (so the writing is not jagged)
Better tools for editing (bezier curves, different types of pens etc)
Curves tool for editing brightness, contrast etc
Filters to reduce scanning artifacts, sharpen, remove noise
better file export options (try at least 85% quality on JPGs)


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Thanks for the tip about drawing programs recently started the search for one that has more tools in principle use the paint to be one available on any computer with Windows tool, but I need more tools to improve a bit more quality of my tweaks modifications and original designs, I will review those recommended me and I will use it more convenient and easy to use, must go through a brief training period to get the maximum of the tool.
The long explanation is the forum for friends who do not understand the use of the terms "retouched" and "Modified" hope that answers your concern.

Greetings Motocar


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,536
Reaction score
950
Paint.net is a native Windows program, designed originally as a student project to replace MS Paint.
GIMP is cross platform but available on Windows, I use it every day on Windows :)


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

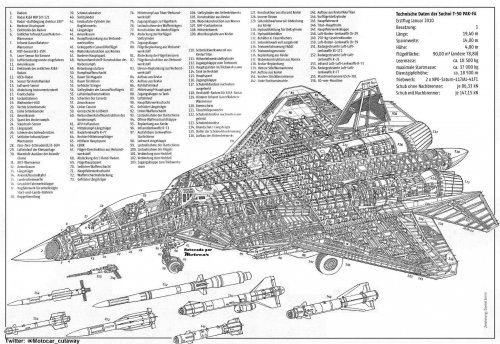

Cutaway Sukhoi PAK-FA T-50 two place author Daniel Jorns and and retouched by Motocar to recreate the two-seater version recently proposed to be built jointly by Russia and India



Success


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33
Cutaway HAL Hindustan Ajeet Trainer, prototype two place for training combat pilots, author Aviagraphica and modified by Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

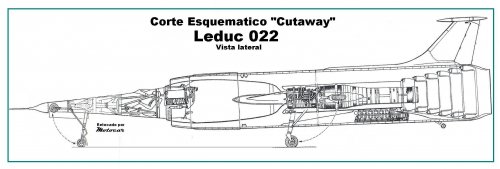

Cutaway Leduc O22, lateral court author unknow and modified by Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
596
Reaction score
33

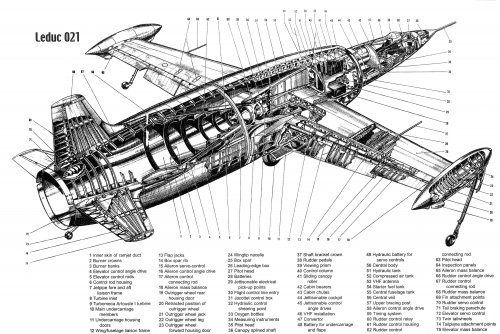

Cutaway Leduc 021 author unknow
http://www.operatorchan.org/v/res/14172-100.html


Attachments
