Morane Saulnier three engined cantilever monoplane of 1921

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,538
Reaction score
6,260
Hi,

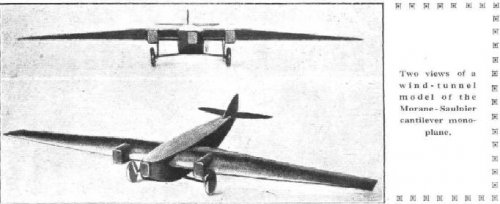

http://www.flightglobal.com/pdfarchive/view/1921/1921%20-%200255.html


Attachments

  • MS 1.JPG
    MS 1.JPG
    28.3 KB · Views: 293
  • MS 2.JPG
    MS 2.JPG
    31.8 KB · Views: 310

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,597
It looks a bit like inspired by the Junkers R.I . But it seems to be a design by Raymond
Saulnier only, without participation by Léon und Robert Morane.
The aircraft of Morane Saulnier, with some exceptions, weren't renowned for their
futuristic design ! ;D
But many thanks for this one, I didn't know, that R.Saulnier "went solo" after teaming
with the Morane brothers.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,538
Reaction score
6,260
Hi,

From my dear Tophe,and the source is "Le Trait d'Union" magazine,
issue #255 Jan/Feb.2011;

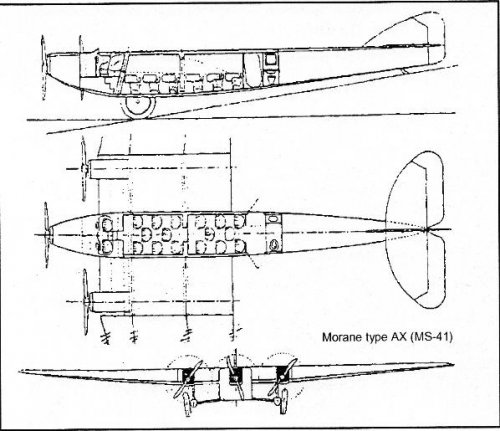

the aircraft was called Morane-Saulnier Type AX or MS.41 and it
was powered by three 370 hp Lorraine 12 Da engines,and had
an estimated speed of 200 km/h.

The Type AW or MS.40 was a cabin two-seat light aircraft powered
by one 180hp Hispano-Suiza 8 Ab engine,only one aircraft was
built.


Attachments

  • MS.41.JPG
    54.3 KB · Views: 245

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,301
Reaction score
153
Website
zeef.com
hesham said:
Hi,

http://www.flightglobal.com/pdfarchive/view/1921/1921%20-%200255.html
there also second part ! :)
http://www.flightglobal.com/pdfarchive/view/1921/1921%20-%200256.html


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,597
Could be the first project for a twin-aisle airliner . Or was there any other before ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,538
Reaction score
6,260

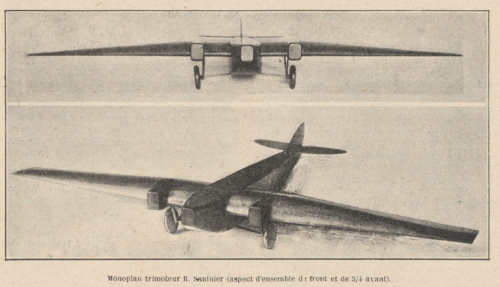

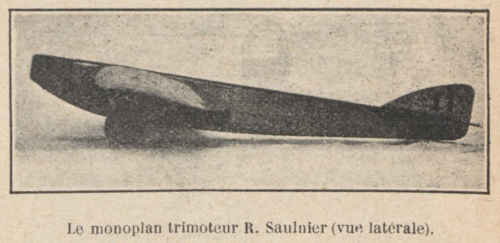

From Aerophile 1921,


here is a clearer view to MS.40 Model.


Attachments

  • 1.png
    655.2 KB · Views: 142
  • 2.png
    777.6 KB · Views: 127

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,538
Reaction score
6,260

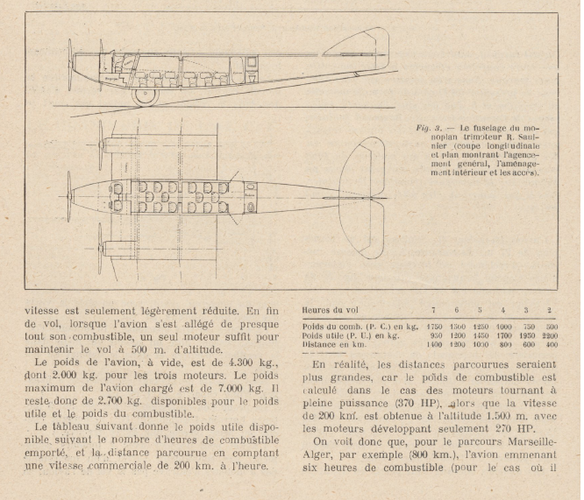

From Aerophile 1921,

more details about MS.41.


Attachments

  • 1-1921.png
    655.7 KB · Views: 24
