Mitsubishi Ki-97 Experimental Transport project (Ki-67 derivative)

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
365
Reaction score
22
hi Folks Ive read an article in the magazine aeroplane (2004) about experimental Japanese transports.
I saw an air craft that i never heard of namely the competitor of the Tachikawa Ki-92 its configuration
was very like of that of the Tachikawa design twin engined .
But this aircraft had a very advanced stream lined nose,comparable to the Ki-77 also from the Tachikawa company.
Now I'm looking for more drawings or artist impressions of this very modern looking aircraft,i hope some one could make me very happy.
greets T-50


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
367
Reaction score
118
blackkite said:
Hi! Mitsubishi Ki-97
Crew/Passenger:2/21, Engine:HA104(Air cooling radial 18 cylinders with forced cooling fan, 1900hp take off), Wing span:23.0m, Length:20.0m, Height:5.7m, Wing area:67.5m2,
Dry weight:8,450kg, Payload:4,550kg, MTOW:13,000kg,Max speed:546km/h(5,400m),
Range:2,580km. Terminated in September 1944 by IJA's order.

Source:My No.2 bible.

From http://www.historyofwar.org/articles/weapons_mitsubishi_ki-97.html

"The Mitsubishi Ki-97 was to have been a transport aircraft based on the Mitsubishi Ki-67 Hiryu. It would have used the wings, tail surfaces, engines and undercarriage of the Ki-67 combined with a new elliptical transport fuselage capable of carrying 21 passengers. Work on the project began in February 1943, but by the time the project was abandoned in 1945 had reached no further than the mock-up stage. Work on the Ki-97 was cancelled in 1945 to allow Mitsubishi to concentrate on the far more urgent problem of home defence."


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
367
Reaction score
118
Can someone post a 3 view of the Ki-67 to compare with the Ki-97? I'm curious if the wings and tail are really borrowed from the '67.


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
365
Reaction score
22
Hi Blackkite you can see the ancestry between the the Ki-67 hiryu and the Ki-97,especially the wings and the engine nacelles are in my opinion the same.
but nevertheless its a very nice aircraft,if it had the Chance to fly


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Blackkite

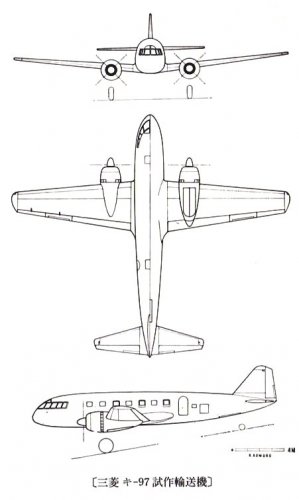

Here is a 3 view of the Ki-97 cargo plane derived from Hiryu.

Enjoy!


Attachments

  • 3-View.jpg
    35.7 KB · Views: 139

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,571
Reaction score
3,000
gerhard said:
Blackkite

Here is a 3 view of the Ki-97 cargo plane derived from Hiryu.

Enjoy!
Thanks a lot. gerhard.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,352
Reaction score
4,157
Hi,

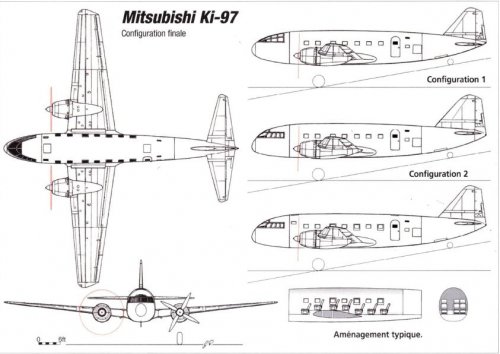

from Le FANA 425,the Mitsubishi Ki-97 cargo transport
aircraft,and its early drawing.


Attachments

  • Ki-97.JPG
    65.3 KB · Views: 127

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,571
Reaction score
3,000
Wow thanks my dear hesham and GTX!


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,098
Reaction score
696
Website
beyondthesprues.com
Yes, Giuseppe "Joe" Picarella's work with this book is outstanding. For those unaware, he is Flight International's Senior Technical Artist. If ever you need to contact them re a drawing or cutaway, he will often answer you directly and very promptly. :)
