Mitsubishi Ki-67 Variants and Derivatives (Ki-69, 109, 167)

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

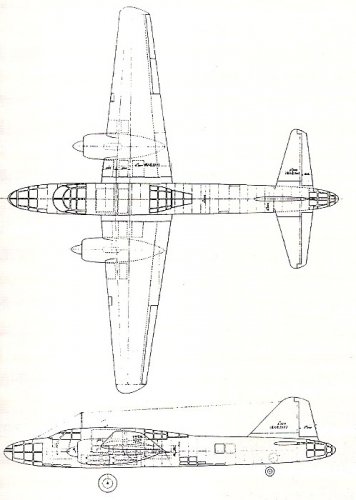

Let's begin this topic with Ki-67 original design.
Source : All the Experimental Aircraft in Japanese Army. Kantosha, ISBN978-4-87357-233-8 C9476


Attachments

  • Mitsubishi Ki-67 original design.jpg
    Mitsubishi Ki-67 original design.jpg
    72.3 KB · Views: 913
  • Ki-67 productiion medel.jpg
    Ki-67 productiion medel.jpg
    62.7 KB · Views: 902

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

Attachments

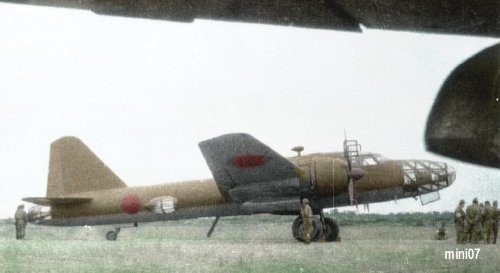

  • img_1552809_50304287_5.jpg
    52.7 KB · Views: 82
  • img_1552809_50304287_4.jpg
    180.3 KB · Views: 68
  • img_1552809_50304287_3.jpg
    163.1 KB · Views: 65
  • img_1552809_50304287_2.jpg
    154.7 KB · Views: 63
  • img_1552809_50304287_1.jpg
    135.2 KB · Views: 741
  • img_1552809_50304287_0.jpg
    178.4 KB · Views: 788
  • HIRYUa.jpg
    63.7 KB · Views: 824

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
377
Reaction score
144

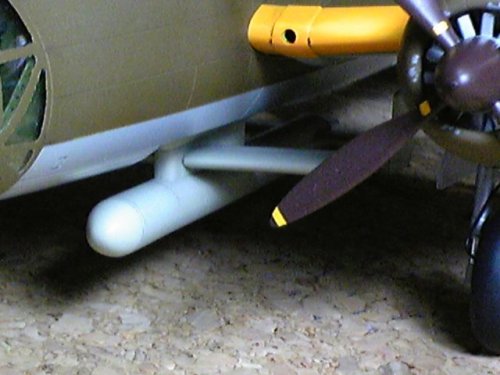

The last pic of Blackkites Ki-67 model shows a Mitsibushi Ki-147 I-Go-1A radio guided bomb underneath the plane. The Ki-67 was used to test this device late in the war. The bomb never achieved production status.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

Attachments

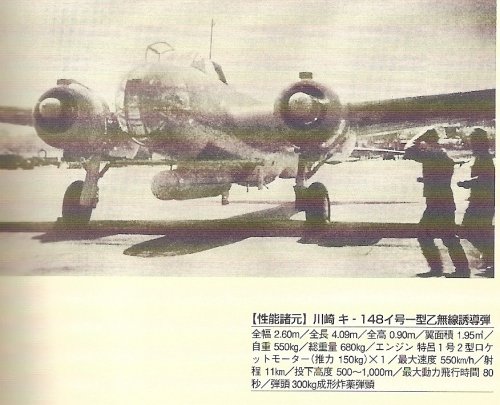

  • Kawasaki Ki-148 I-GO 1-gata otsu.jpg
    Kawasaki Ki-148 I-GO 1-gata otsu.jpg
    242.6 KB · Views: 136

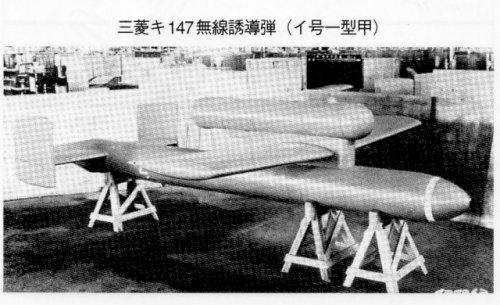

  • Mitsubishi Ki-147 I-go 1-gata kou.jpg
    Mitsubishi Ki-147 I-go 1-gata kou.jpg
    237.8 KB · Views: 160

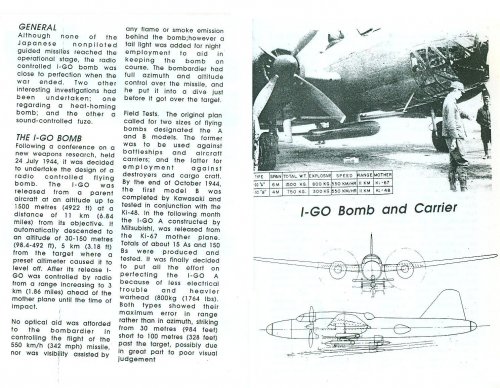

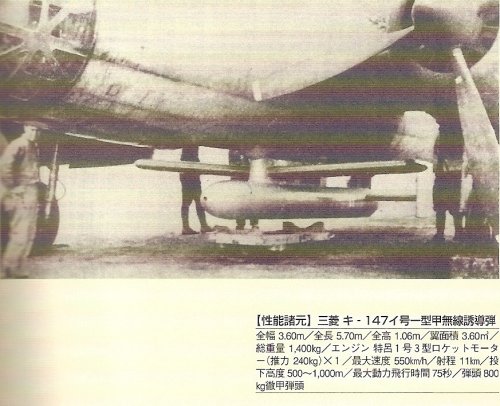

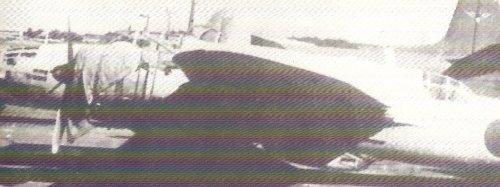

  • RENZAN WITH I-GO BOMB.jpg
    RENZAN WITH I-GO BOMB.jpg
    27.3 KB · Views: 175
  • I-GO BOMB.jpg
    I-GO BOMB.jpg
    119.9 KB · Views: 163
  • Ki-147.jpg
    179 KB · Views: 130

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

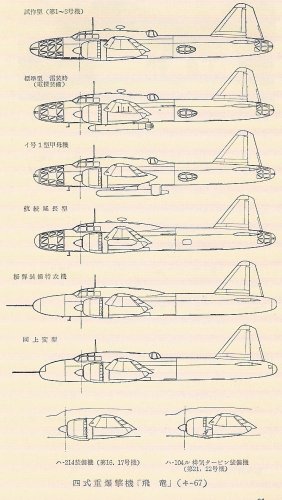

There were many Ki-67 variants.
For example,
Torpedo bomber; 100 aircraft were planned to modify from Ki-67 pure bomber to torpedo
bomber, actually operated in aerial battle of Taiwan-Okinawa.
Hiryu 1 gata kai; Ordered to made prototype in fall of 1943, Engine HA104 with turbocharger,
2 planes were tested, but turbochargers did not work well until the end of the war as usual.
Armaments; nose 20mm cannon×1, each side 12.7mm gun×1, upper aft 20mm cannon×1,
tail 20mm cannon×1
Hiryu 2 gata; Engine ha214 RU(2400hp), only planned.

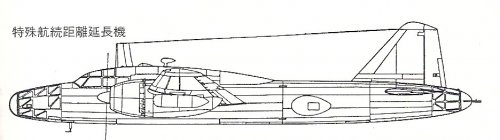

Special long range bomber type for Marianas B-29 base attack. Range 5000km, Armament only
12.7mm gun×1(tail), bomb 50kg×15

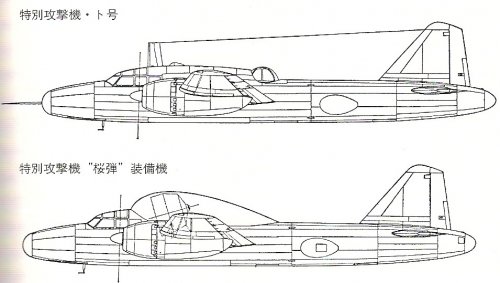

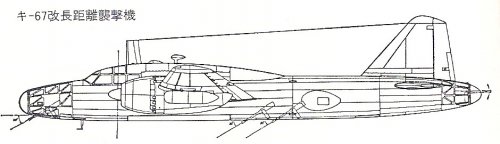

Special long range attack aircraft for Marianas B-29 base attack. Armament; 20mm cannon×1
tail, under the nose 20mm cannon×1, under the fuselage 20mm cannon×4

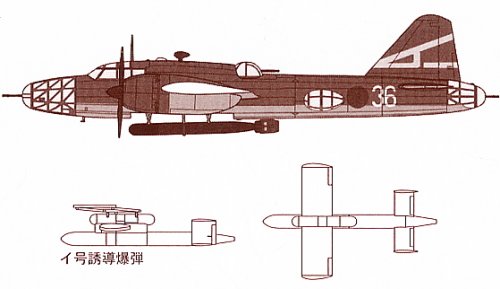

Mother plane for Mitsubishi Ki-148 I-go missile; 10 planes were completed and tested, but did
not use for real mission.
Ki-69; Gunship for Ki-67 bomber escort. Only planned.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Stargazer2006 said:
And don't forget the Ki-109 versions and the Yasukuni!
Hi! Thanks for your attention. Yes of course I will continue this topic with my slow pace.
You know Yasukuni! ::) It's the IJN's name for Hyryu.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Maveric said:
Please, show us the Ki.69 ::)
I will give you some data of Ki-69. Some one please try! ;D
I can't find any drawings of Ki-69. I imagine it's like a hedgehog.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767

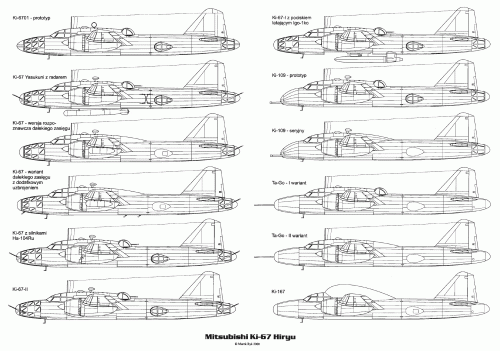

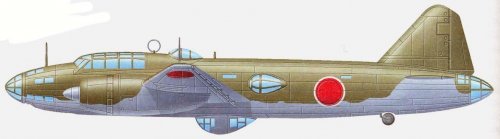

A nice set of profiles including the Yasukuni (Japanese Navy) and Ki-109 variants:


Attachments

  • Ki-67 series.gif
    Ki-67 series.gif
    188.5 KB · Views: 307

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Thanks Star! It's a comprehensive one.

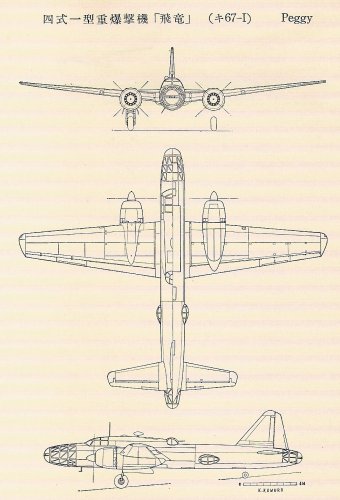

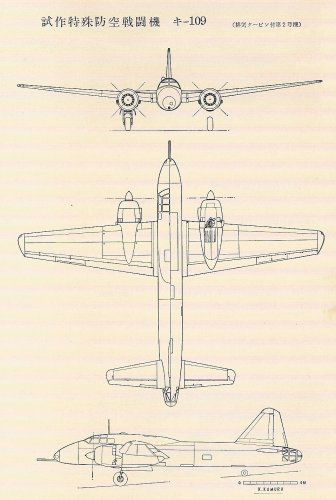

You can see turbocharger in a Ki-109 3 side view.

Source : ENCYCLOPEDIA OF JAPANESE AIRCRAFT 1900-1945 Vol1 Mitsubishi's aircraft


Attachments

  • Ki-67-1.jpg
    318.3 KB · Views: 195
  • Ki-67 variants.jpg
    Ki-67 variants.jpg
    292.9 KB · Views: 231
  • Ki-109.jpg
    313.8 KB · Views: 221

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Yes! :-\

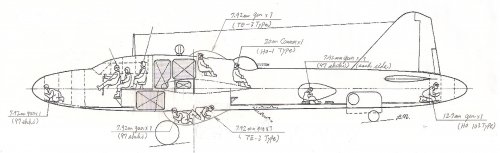

Ki-69 specification
Crews : 9 to 12, Engine : HA101 or HA103 or HA104 class,
Span : 22.5m, Length : 18.7m, Height : 5.605m(horizontal)/4.8m(3 point position), Length between landing gears : 6m, Wing area : 65.85square meter (perhaps same as Ki-67)
Armaments :
Fore : 7.92mm gun×1 (97 shiki)
Fore under : 7.92mm gun×1 (97 shiki)
Under : 7.92mm gun×1(TE-3 type)
Upper after forward : 20mm cannon(HO-1 TYPE) or 7.92mm gun(TE-3 type)×1
Upper after backward : 20mm cannon(HO-1 TYPE) or 7.92mm gun(TE-3 type)×1
Left side : 7.92mm gun×1 (97 shiki)
Right side : 7.92mm gun×1 (97 shiki)
Tail : 12.7mm gun×1 (HO 103 type)

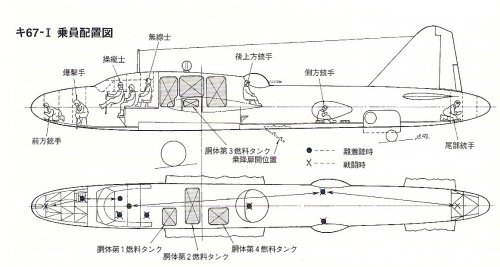

Source All the Experimental Aircraft in Japanese Army, 2008, Kantosha, By Minoru Akimoto, ISBN978-4-87357-233-8 C9476

離着陸時 : take off and landing period, 戦闘時 : combat period


Attachments

  • Ki-67 crew position.jpg
    Ki-67 crew position.jpg
    160.8 KB · Views: 197

Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
448
Reaction score
37
You'd think that after the debacle with the G6M1, Mitsubishi wouldn't have entertained the Ki-69. I cannot see how the Ki-67 turned into a heavy escort fighter would have turned out any better or useful than the G6M1. Even the U.S. failed with the Boeing YB-40. Rather interesting the parallels between the G6M1's history and the YB-40. Such was the poor performance of the YB-40, it pretty much canned the similar Consolidated XB-41 escort fighter program.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Hi! I am interested in projected shape of Ki-69. ;)


Attachments

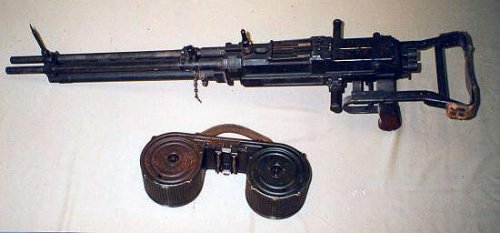

  • 98-shiki gun(MG15).jpg
    98-shiki gun(MG15).jpg
    27.2 KB · Views: 746
  • Ho-103-01.jpg
    16.7 KB · Views: 715

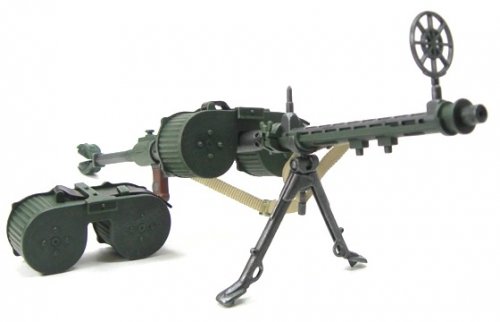

  • TE-3 7.92mm gun.jpg
    TE-3 7.92mm gun.jpg
    21.2 KB · Views: 710

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

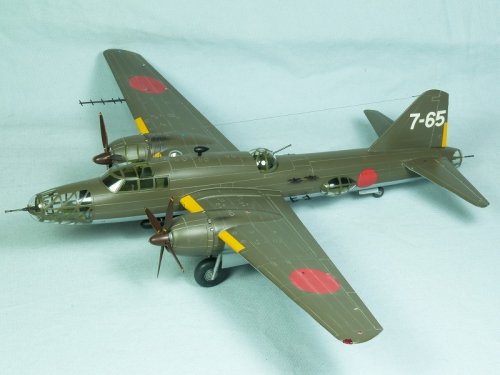

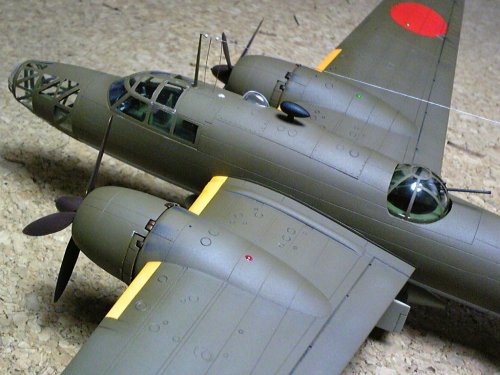

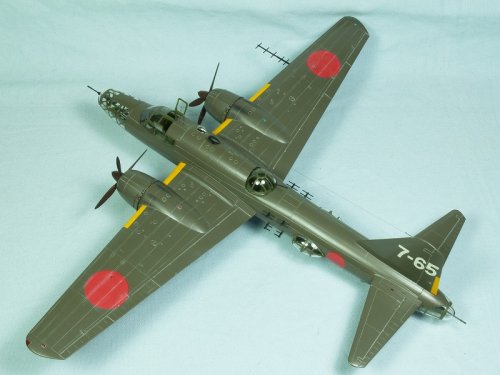

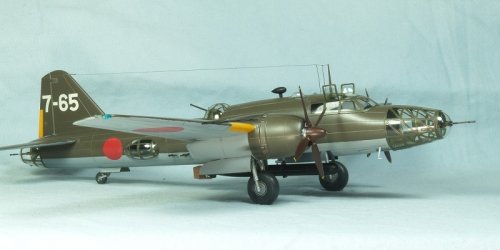

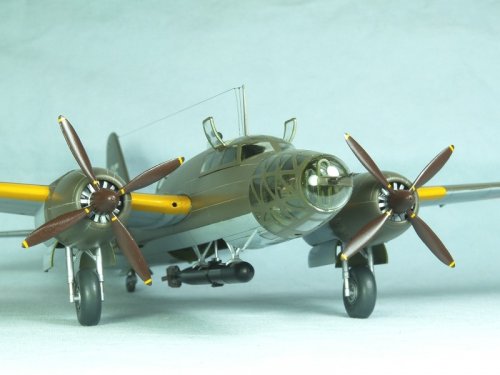

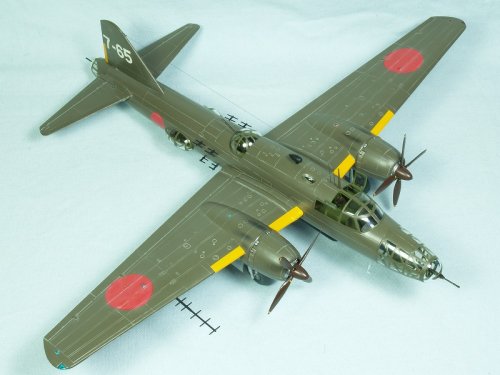

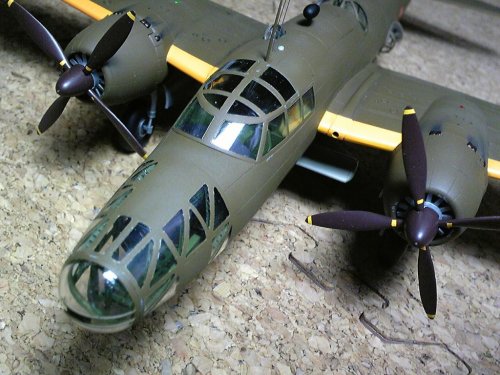

Hi! Ki-67 torpedo bomber model.
http://homepage2.nifty.com/yamagiwa/reciprocal-1/Ki-67.htm
You can see Taki-1 radar antenna both side of the fuselage.
Taki-1 radar could detect big ship within 100km and small ship within 20km.
Also you can see Taki-1 radar antenna at the wing. It was a Yagi antenna for forward direction ship detection.


Attachments

  • Ki-67 UFR.jpg
    Ki-67 UFR.jpg
    137.2 KB · Views: 90
  • Ki-67 UBL.jpg
    Ki-67 UBL.jpg
    141.7 KB · Views: 90
  • Ki-67 RSF.jpg
    Ki-67 RSF.jpg
    198.6 KB · Views: 93
  • Ki-67 LUF.jpg
    Ki-67 LUF.jpg
    127.1 KB · Views: 630
  • Ki-67 FRW.jpg
    Ki-67 FRW.jpg
    200 KB · Views: 669

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

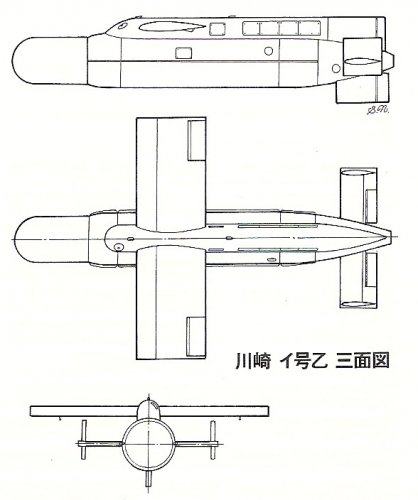

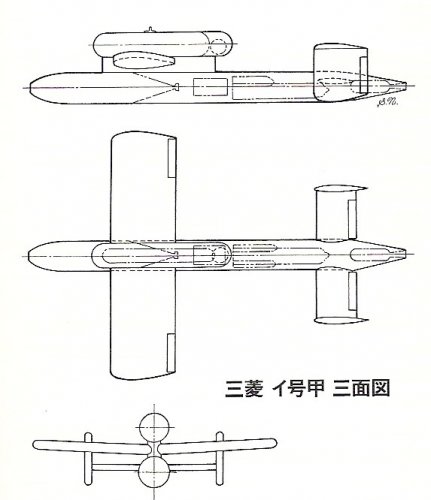

Hi! Mitsubishi I-go kou(イ号甲) and Kawasaki I-go otsu(イ号乙) 3 side view.
Mitsubishi I-go kou
Span : 3.6m, Length : 5.77m, Height : 1.05m, Gross weight : 1400kg, Engine : Tokuro 1 go 3gata
liquid rocket : thrust 240kg, Final speed : 550km/h, Endurance : 75seconds, Head bomb weight : 800kg, Mother aircraft : Ki-67

Kawasaki I-go otsu
Span : 2.6m, Length : 4.09m, Height : 0.9m, Gross weight : 680kg, Engine : Tokuro 1 go 2gata
liquid rocket : thrust 150kg, Final speed : 550km/h, Endurance : 80seconds, Head bomb weight : 300kg, Mother aircraft : Ki-102 otsu

The IJA thought that it's difficult for both missile to reach launching point(10km before target), and after launch, the mother aircraft must fly straight toward the target until collision.
Mother aircrafts were very easy target for U.S. Navy fighters.


Attachments

  • Mitsubishi I-go kou.jpg
    Mitsubishi I-go kou.jpg
    65.6 KB · Views: 103
  • Kawasaki I-go otsu.jpg
    Kawasaki I-go otsu.jpg
    70.6 KB · Views: 121

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Some data for Ki-69.
Source : The IJA's and the IJN's Bombers and attack aircrafts 1930-1945, Bunrindo, by Shigeru Nohara, 2007, ISBN978-4-89319-155-7


Attachments

  • Ki-49-?.jpg
    227.4 KB · Views: 179
  • Ki-49.jpg
    603.1 KB · Views: 208
  • Ki-48-1.jpg
    640.7 KB · Views: 194
  • Ki-48.jpg
    218.9 KB · Views: 152

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,011
Reaction score
417
blackkite said:
Some data for Ki-69.
Source : The IJA's and the IJN's Bombers and attack aircrafts 1930-1945, Bunrindo, by Shigeru Nohara, 2007, ISBN978-4-89319-155-7


Hi blackkite, do you mean Ki.49-I ???


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Maveric said:
blackkite said:
Some data for Ki-69.
Source : The IJA's and the IJN's Bombers and attack aircrafts 1930-1945, Bunrindo, by Shigeru Nohara, 2007, ISBN978-4-89319-155-7


Hi blackkite, do you mean Ki.49-I ???
Hi Maveric! We are trying to guess Ki-69 gunship aircraft shape.

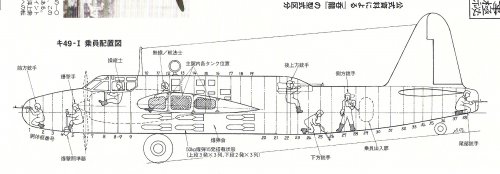

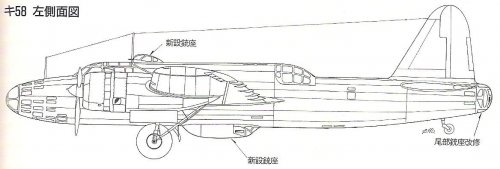

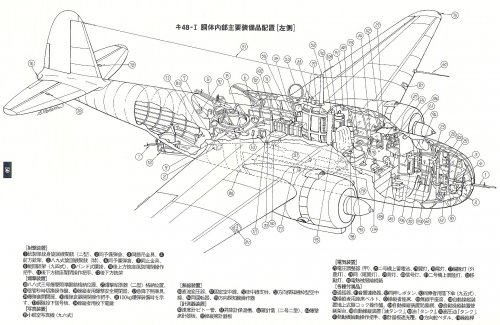

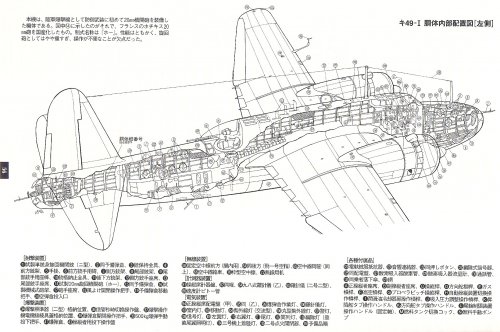

I mean Ki-49-1 and Ki-48 armament arrangement are good data for Ki-69 armament arrangement.
Sorry for my bad explanation.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
377
Reaction score
144
Thanks for the great illustrations Blackkite! For the crew positions in the Ki-48: Did they have a 4 man crew with the radio operator using the ventral gun position? Also if you have the chance, could you translate the numbered labels on the left side?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Ok windswords. Give me some time.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

Attachments

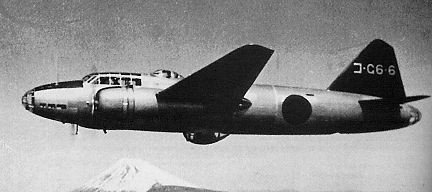

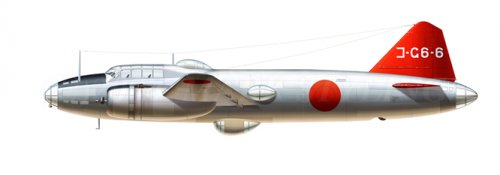

  • G4M.01.jpg
    51 KB · Views: 120

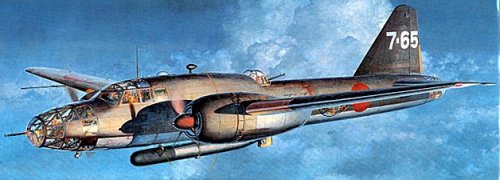

  • 65_8.jpg
    15.1 KB · Views: 112

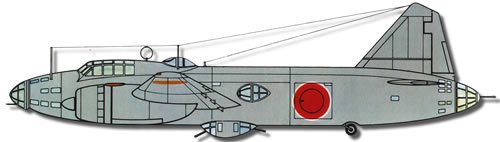

  • g6m1_color.jpg
    46.1 KB · Views: 107
  • G6M1.JPG
    17.5 KB · Views: 127

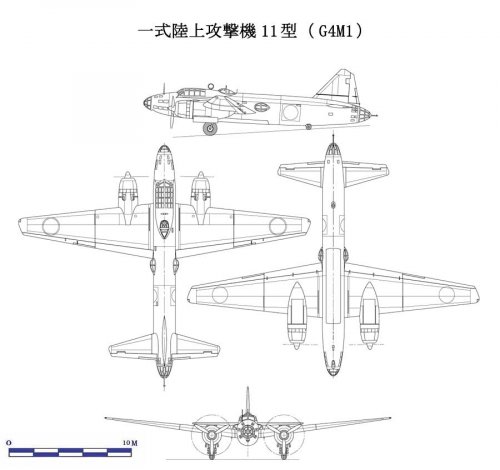

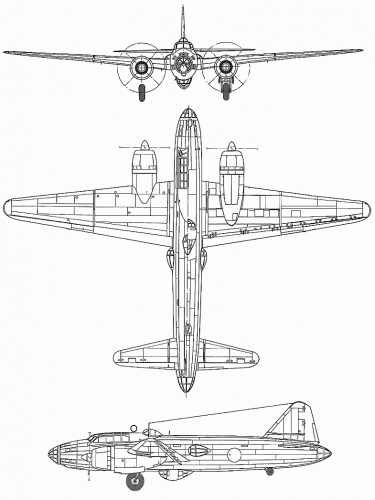

  • G4M1 3 SIDE.jpg
    G4M1 3 SIDE.jpg
    45.3 KB · Views: 141
  • G6M1_3D_view.gif
    48.9 KB · Views: 178

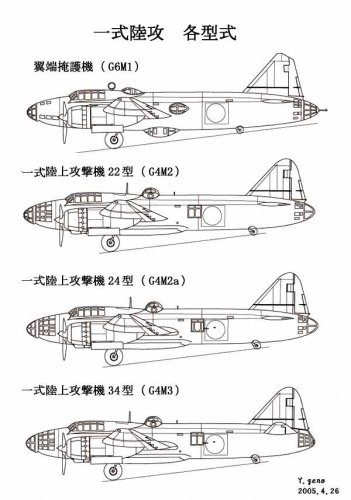

  • Mitsubishi G4M variants.jpg
    Mitsubishi G4M variants.jpg
    42.5 KB · Views: 163

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

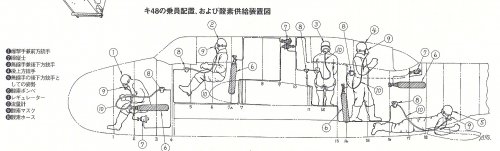

[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Sorry for delay.[/font][/font]
①[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Bombardier/bog[/font][/font]
②[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Pilot[/font][/font]
③[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Radio operator/Rear under gunner[/font][/font]
④[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Rear upper gunner[/font][/font]
⑤[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Rear under gunner position of radio operator[/font][/font]
⑥[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Oxygen bombe[/font][/font]
⑦[font=times new roman, serif][font=verdana, arial, helvetica, sans-serif]Regulator[/font][/font]
⑧[font=times new roman, serif]Flow meter[/font]
⑨[font=times new roman, serif]Oxygen mask[/font]
⑩[font=times new roman, serif]Oxygen hose[/font]


Attachments

  • Ki-48.jpg
    218.9 KB · Views: 98

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

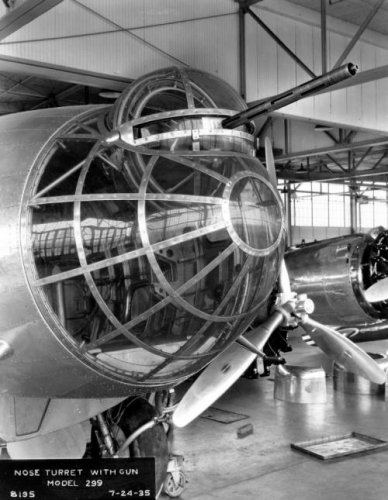

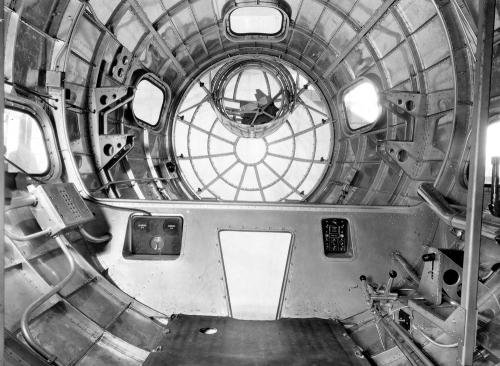

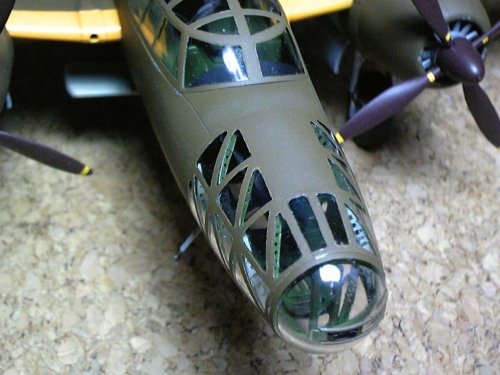

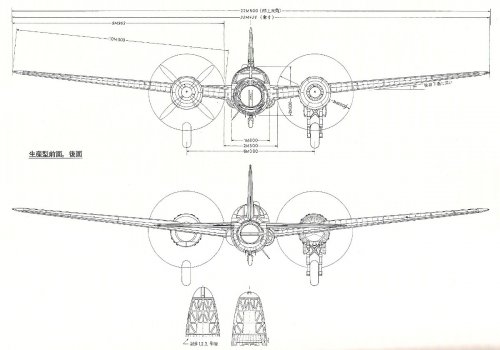

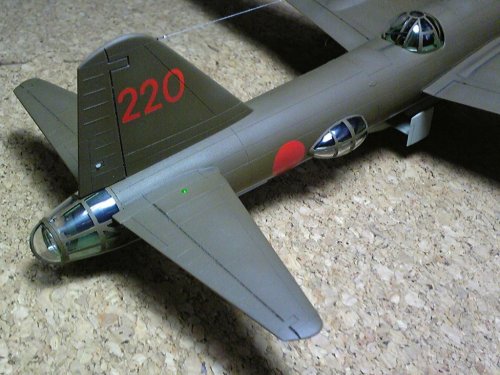

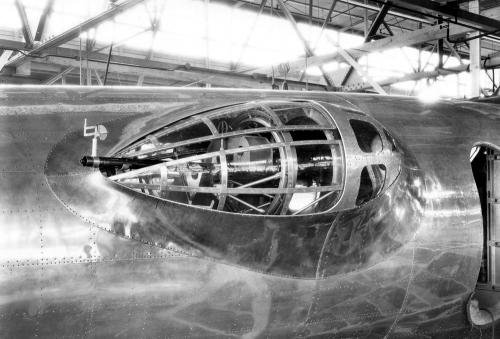

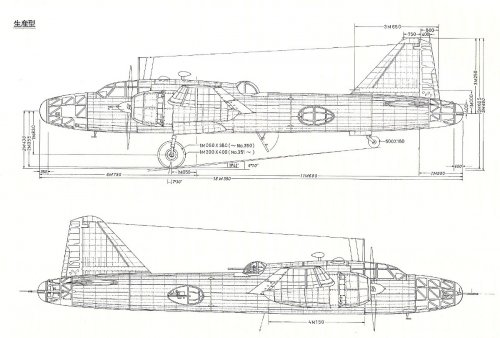

Nose and tail turret dome shape between Ki-67 prototype model and production model were little different. Nose and tail turret dome rotated manually. It's low drag but not practical shape. B-17 mock up had a same nose turret concept.
Type 1 attack bomber G4M1 had a same tail turret shape, but because of poor operability, G4M2 had various tail turret dome shapes.
Source : ①FAMOUS AIRPLANES OF THE WORLD, No.98 ARMY TYPE 4 HEAVY BOMBER "HIRYU" BUNRINDO ISBN978-4-89319-098-7 C9453.
②Mechanism of Military Aircraft "Ginga" "Type1 Attack Bomber" Kojinsha ISBN4-7698-0922-0 C0372


Attachments

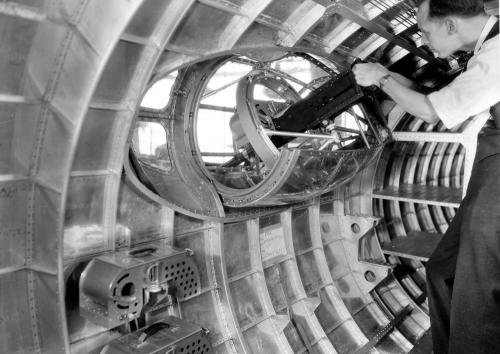

  • Boeing-B-17-Flying-Fortress-065.preview.jpg
    42.8 KB · Views: 91
  • Boeing-B-17-Flying-Fortress-067.preview.jpg
    60.2 KB · Views: 119
  • G4M tail turret shape.jpg
    G4M tail turret shape.jpg
    114.5 KB · Views: 143
  • Production model and prototype.jpg
    Production model and prototype.jpg
    140.1 KB · Views: 139
  • Production model.jpg
    Production model.jpg
    218.6 KB · Views: 155

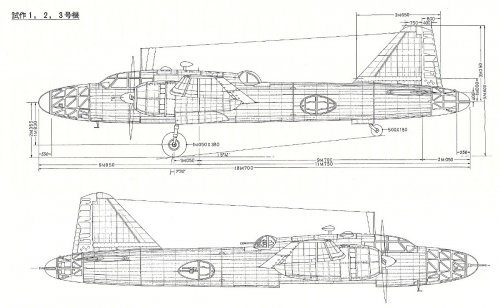

  • Prototype No1 and 2 and 3.jpg
    Prototype No1 and 2 and 3.jpg
    209 KB · Views: 153

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Hiryu's side turret wind shield after part was removable same as G4M's. Light weight but operability was poor. B-17 mock up had another concept.

Source : ①FAMOUS AIRPLANES OF THE WORLD, No.98 ARMY TYPE 4 HEAVY BOMBER "HIRYU" BUNRINDO ISBN978-4-89319-098-7 C9453.


Attachments

  • Hiryu fore part.jpg
    Hiryu fore part.jpg
    911.7 KB · Views: 153

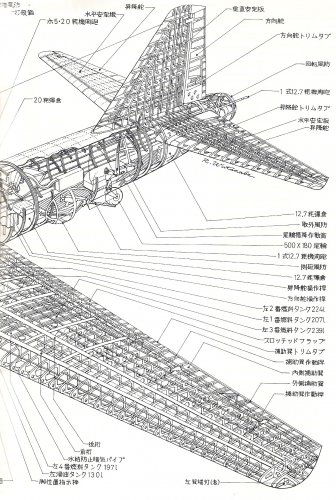

  • Hiryu after part.jpg
    Hiryu after part.jpg
    809.8 KB · Views: 141
  • Boeing-B-17-Flying-Fortress-064.preview.jpg
    34.1 KB · Views: 115
  • Boeing-B-17-Flying-Fortress-063.preview.jpg
    35.3 KB · Views: 111

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Hi! My image for Ki-69. Enjoy.


Attachments

  • My image for Ki-69.jpg
    My image for Ki-69.jpg
    285.3 KB · Views: 625

shaba

ACCESS: Confidential
Joined
Jan 28, 2008
Messages
124
Reaction score
4
hello blackkite can you tell me the defirence between the ki 69 and the ki112 some people speculate that the 112 is a wooden version of the 69.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
shaba said:
hello blackkite can you tell me the defirence between the ki 69 and the ki112 some people speculate that the 112 is a wooden version of the 69.

Hi!
Ki-112 was a experimental heavy bomber by Mitsubishi, planned only.
Source : Ki-NUMBER CATALOG, KOKU-FAN Illustrated, 97-2 No.92

Ki-112 was a short range bomber with turbocharged HA214 engines and wooden/partial steel structure.

The fore armament was enhanced from 12.7mm gun to 20mm cannon.
The shoulder 20mm cannon was enhanced from single to double.
Source : All the Experimental Aircraft in Japanese Army, Kantosha, ISBN978-4-87357-233-8 C9476


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958

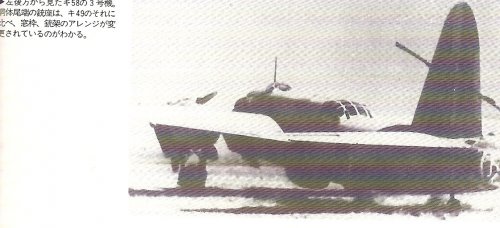

Hi! Nakajima Ki-58 heavy escort fighter. Only 3 aircrafts were made and tested.
Sorry off topic.


Attachments

  • Ki-58.jpg
    209.6 KB · Views: 495
  • Ki-58 heavy escort fighter 1.jpg
    Ki-58 heavy escort fighter 1.jpg
    209.8 KB · Views: 536
  • Ki-58 side view.jpg
    Ki-58 side view.jpg
    62.7 KB · Views: 558

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Hi!
There was a v-tail Hiryu plan(案) by ”the major Sakamoto(坂本少佐)" to increase control response and decrease vibration due to propeller flow, but the effect was not satisfactory in wind tunnel test.
Hiryu long range attack version with five 20mm cannons was not completed. Perhaps it was planned to use B-29 base attack in Saipan or Iwo-jima.

The special attack version (Ki-167) had a Sakura-dan(thermit bomb, diameter : 2m, bomb weight : 1600kg, exploded in a cup shape structure, concentrated explosion force to the forward direction ).
A few aircrafts were used in Okinawa battle.


Attachments

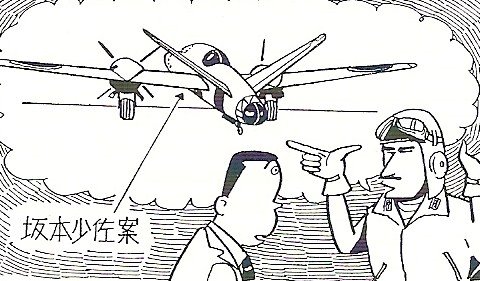

  • V TAIL HIRYU.jpg
    V TAIL HIRYU.jpg
    65.2 KB · Views: 472
  • Hiryu long range attack  variant never completed.jpg
    Hiryu long range attack variant never completed.jpg
    72.9 KB · Views: 174
  • Hiryu long range variant.jpg
    Hiryu long range variant.jpg
    69.2 KB · Views: 160
  • Hiryu special attack variants.jpg
    Hiryu special attack variants.jpg
    121.4 KB · Views: 181

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,979
Reaction score
3,958
Is this picture a real one or a fake one?


Attachments

  • hiryuu-vs-uss.jpg
    211.6 KB · Views: 177

Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
174
Reaction score
48
My guess is no, I was close enough to WWII to have US Navy AA training based on Kamikaze attacks and my memory of the films is that none looked like that. I cannot imagine trying to hold a perfect formation position when the best tactic would probably have been to come from different directions and split up the AA Defenses. But that is just SWAG.

Best Regards,

Artie Bob (Air Defense Officer USS Hermitage)


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,318
Reaction score
1,389
It looks, what I would expect a torpedo attack to look like, not a Kamikaze attack,
but probably a little bit to close to the target.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
567
Reaction score
212
blackkite said:
Is this picture a real one or a fake one?
Its a fake, its based on an image of Yorktown under attack from Hiryu's aircraft at Midway.

Top
