Does anyone have any good views of this twin-engined fighter? The only ones I have seen are blurred and usually in US markings.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
Hi saturncanuck!

I have a good 3-view line drawing that I can send you.

Just let me know and I'll send it right away!

Chuck Anderson
cbakiteskites@yahoo.com


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,326

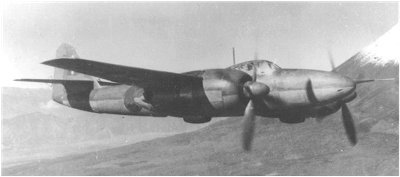

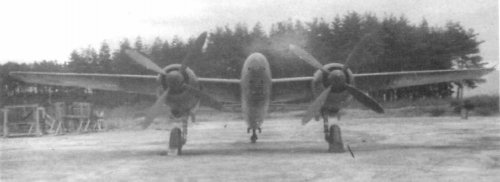

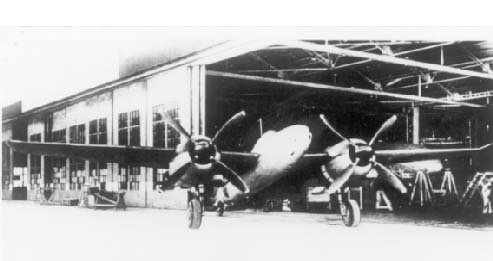

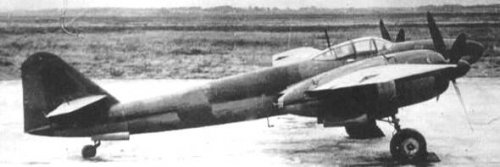

Hi Ki-83 pictures.


Attachments

  • ki 83-1.jpg
    ki 83-1.jpg
    17.7 KB · Views: 216
  • Ki-83-2.jpg
    11.4 KB · Views: 255
  • ki 83-3.jpg
    ki 83-3.jpg
    17.3 KB · Views: 195
  • Ki-83-4.jpg
    24.8 KB · Views: 187

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,326
Hi! Please check the site which I posted and you can find them.
Background was Mt.Fuji.(富士山)


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
blackkite said:
Hi! Please check the site which I posted and you can find them.
Background was Mt.Fuji.(富士山)

Thanks

But was it taken with Fuji film?

(giggles)


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320

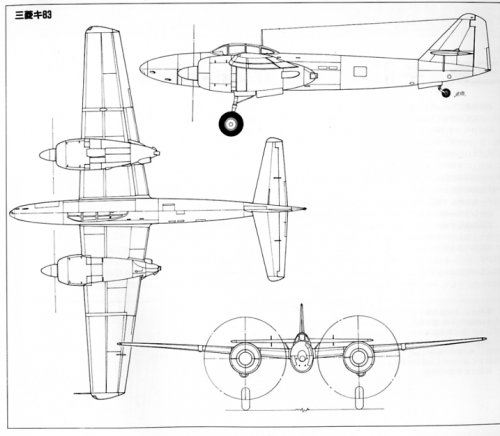

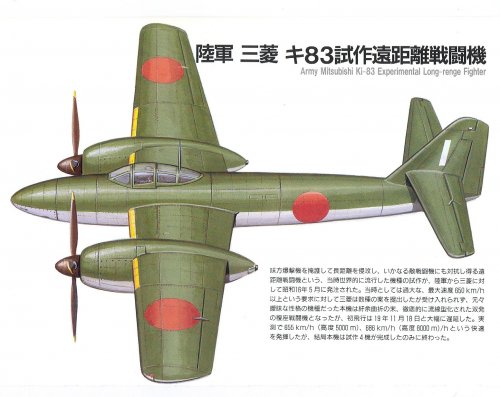

From Koku-fan Illustrated: Imperial Japanese Army Aircraft

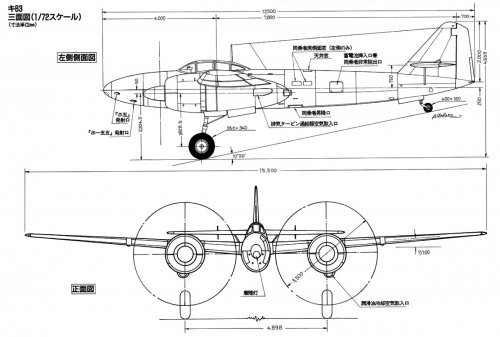

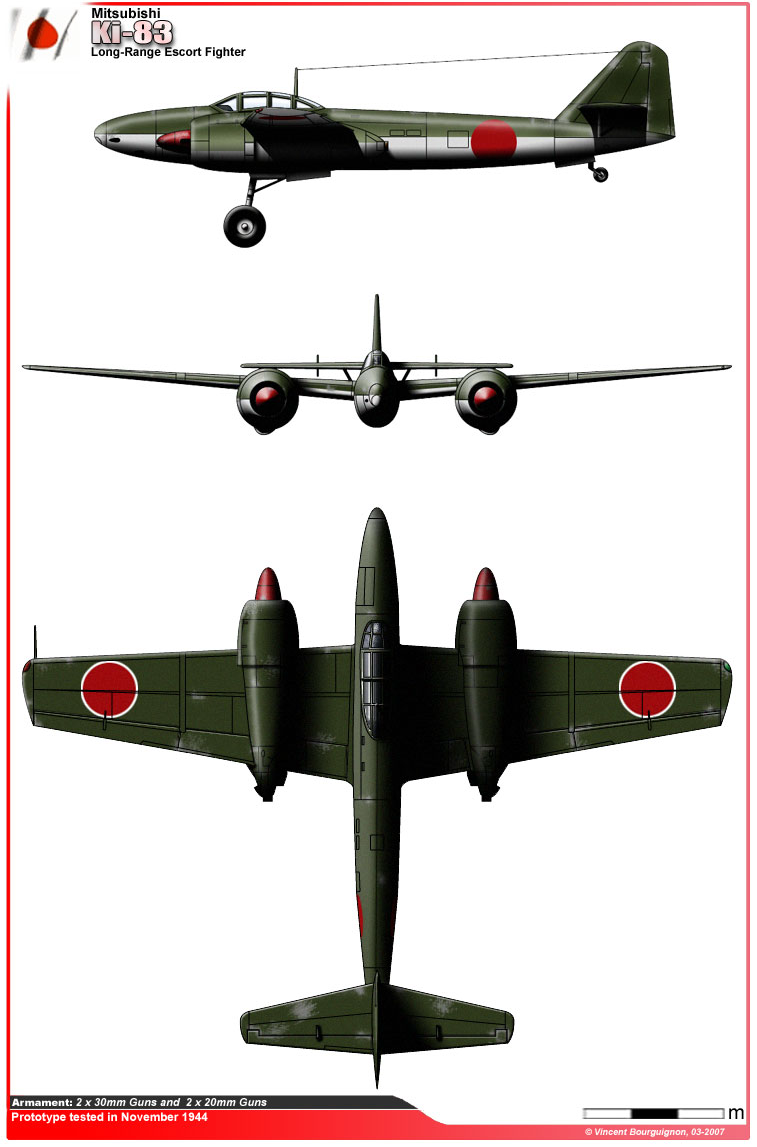

1. 3 view drawing

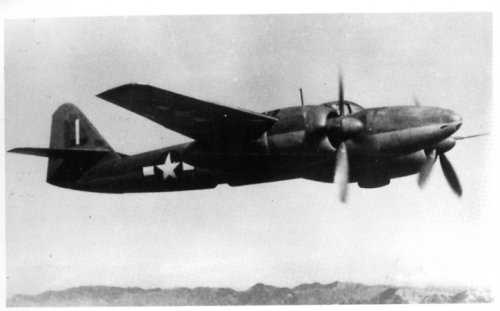

2. Ki-83 in flight (sorry, in US markings but I think it's a nice shot anyway)


Attachments

  • Ki-83 3 view.jpg
    Ki-83 3 view.jpg
    153.8 KB · Views: 237
  • Ki-83 in US markings.jpg
    Ki-83 in US markings.jpg
    133.1 KB · Views: 97

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,326
Thanks for good picture. It was very dangerous to fly with Rising-Sun at post war. ;D
This picture represent her beauty and power very much.

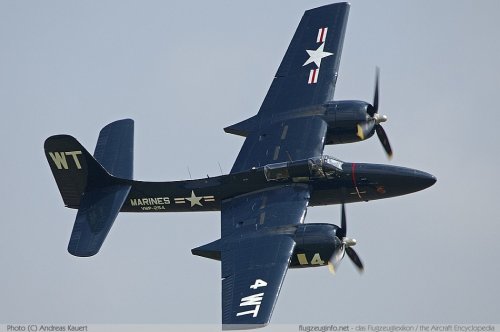

Ki-83 was as fast as Grumman F7F.
Both fighters are also good looking.


Attachments

  • F7F.jpg
    103.7 KB · Views: 42

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
I go for the Mitsubishi Ki-83,because it was planned with cannons and the F7F has only machineguns.
The Ki-83 has better aerodynamics,better visibility for the pilot.
And it was equipped with armor plates for pilot,engines and fueltanks,that early designs from Japan sadly not possed


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com

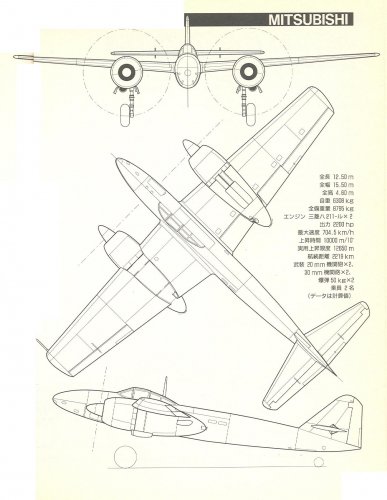

From
WWII Illustrated -1945 Japan Project Aircraft
Koei Co.LTD.
1997


Attachments

  • Escanear0001.jpg
    188.4 KB · Views: 124
  • Escanear0002.jpg
    280.3 KB · Views: 110

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
On some of the drawings it looks like their is a set of 3 or so small windows on the fuselage between the canopy and the Hinomaru (national marking - red "meatball"). Does anyone know it is in fact windows and what its purpose is?


gral_rj

ACCESS: Confidential
Joined
Sep 6, 2006
Messages
93
Reaction score
34
windswords said:
On some of the drawings it looks like their is a set of 3 or so small windows on the fuselage between the canopy and the Hinomaru (national marking - red "meatball"). Does anyone know it is in fact windows and what its purpose is?

They're windows indeed. It's the second crewman's station.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
What did this second crewman do? It looks like you better not have claustraphobia if you were assigned that position!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
"What did this second crewman do?"

Radio operator/ navigator ? The position may have been not worse, than in the
"coal hole" in a SeaVixen or a Canberra B(I).8. ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,740
Reaction score
3,326
Hi! It's not meatball. It's Rising-Sun. ;D
Development of Ki-83 began in May 1941. Meiden flight was November 1944. Chief designer was Tomio Kubo(久保富夫,Ki-46 designer).
Ki-83 was a long range escort fighter and a ground attacker. Basically it's a single seater but commander plane had a unlucky navigator/radio operater seat.
Overall length:12.5m, wing span:15.5m, Height:4.6m, Wing Area:33.71m2, Empty weight:5,910kg, MTOW:8,930kg, Seavice ceiling:12,600m,
Range:2,800km, Max speed:704.5km/h(9,000m), Engine:Mitsubishi HA-211 RU 18 Cylinder Turbo Charged engine(Take off power:2,200HP),
Armament:30mm canon;2, 20mm canon;2.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
62
Hi all!

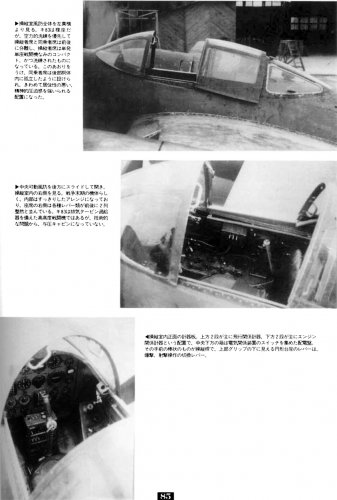

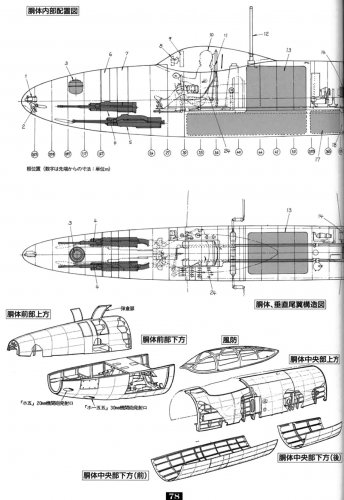

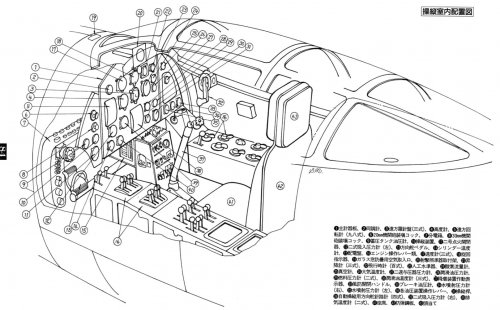

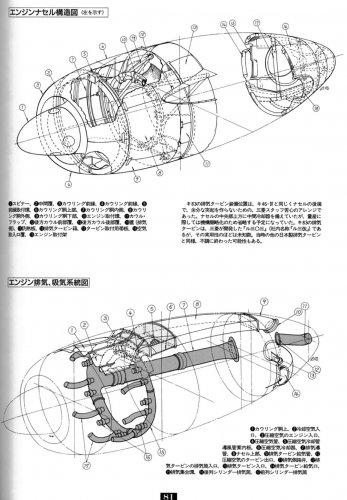

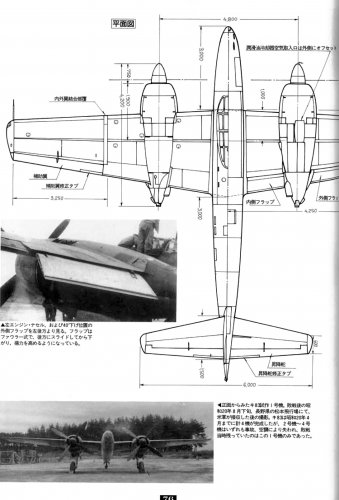

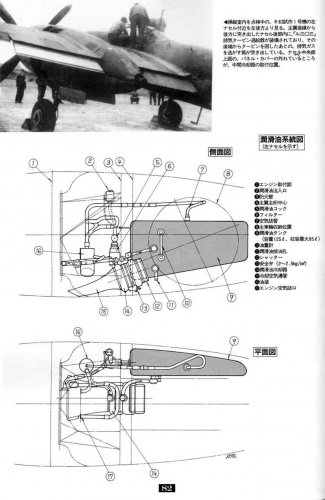

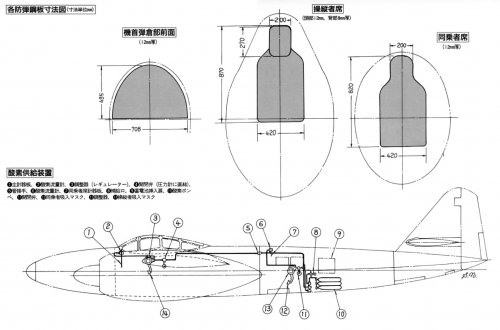

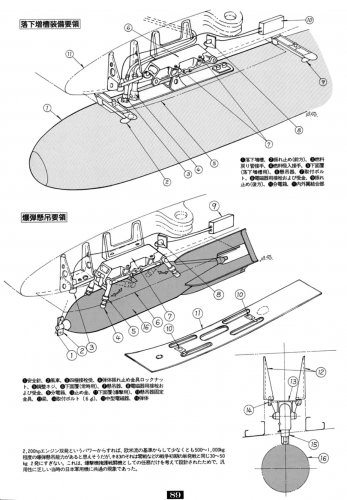

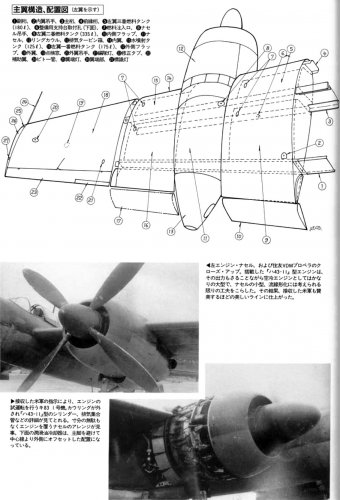

Some info on this beautiful aircraft from this book:

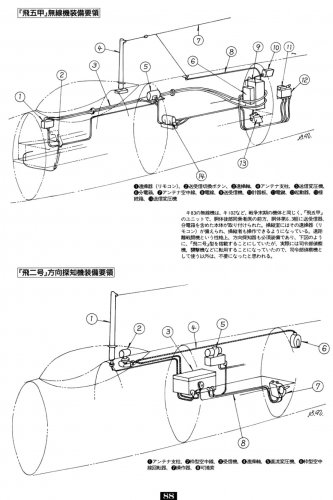

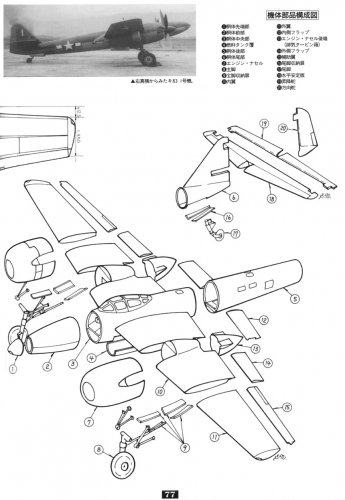

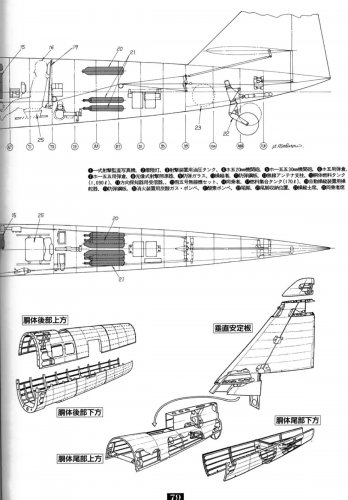

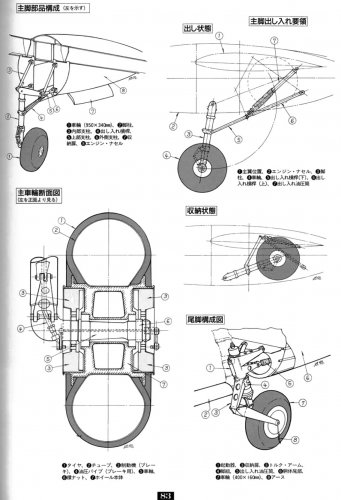

Attachments

  • Japan-Xplanes_82.jpg
    223.7 KB · Views: 111
  • Japan-Xplanes_81.jpg
    308.6 KB · Views: 105
  • Japan-Xplanes_80.jpg
    250.1 KB · Views: 110
  • Japan-Xplanes_79.jpg
    258.4 KB · Views: 169
  • Japan-Xplanes_78.jpg
    268.1 KB · Views: 174
  • Japan-Xplanes_77.jpg
    172.4 KB · Views: 160
  • Japan-Xplanes_76.jpg
    412.9 KB · Views: 192
  • Japan-Xplanes_75.jpg
    353.6 KB · Views: 223

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
62

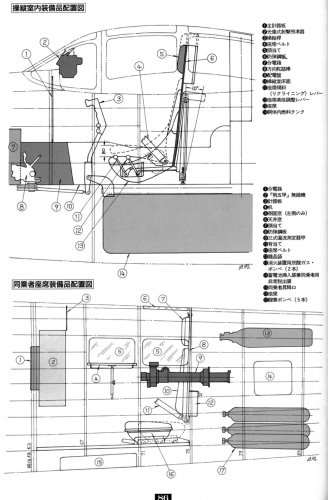

And some more...


Attachments

  • Japan-Xplanes_88.jpg
    228 KB · Views: 83
  • Japan-Xplanes_87.jpg
    174.7 KB · Views: 97
  • Japan-Xplanes_86.jpg
    249.6 KB · Views: 96
  • Japan-Xplanes_85.jpg
    162.7 KB · Views: 91
  • Japan-Xplanes_84.jpg
    278.6 KB · Views: 94
  • Japan-Xplanes_83.jpg
    247.1 KB · Views: 78
  • Japan-Xplanes_89.jpg
    273.5 KB · Views: 90

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
371
Reaction score
130
redstar72,

Thanks for these great diagrams! It seems from looking at them that the only way for the 2nd crewmen to enter or leave the aircraft was through a hatch in the bottom of the plane just in front of his seat. Hmmm, that might be a problem during a belly landing! If anyone else knows for sure what his duties were please let us know.


Kugelblitz

ACCESS: Restricted
Joined
May 25, 2008
Messages
29
Reaction score
5
"Hi! Enjoy. Ki-83 marked 762km/h in post war American test in Matsumoto airport Japan."

Thank you very much Blackkite!

I´ve been looking for confirmation of this fact, since stumpling upon the number 762 in connection with the Ki-83 on a polish site years ago.

It´s interesting how Japanese fighters performed better in allied post war tests, than the textbook figures tell. Do you know if there´s any single accesible source to the measured performances in allied post war tests?


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
I'm curious if there was an radar equipped Ki-83,if so which radar or antennae type was planned for this beautiful aircraft.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
171
Reaction score
39
Just a thought, If post WWII tests by the US used american fuel, then performance might be significantly improved. I am not knowledgeable concerning Japanese ratings, but my intuition says the american fuel might allow engine operation at significantly higher manifold pressure.

Best Regards,

Artie Bob


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
I realize that this is probably a question for the "designations" section, but, speculating, being as the JNAF was supposed to get some of the Ki-83s, any thoughts on what the designation might have been.

(Andreas, please dont move this.... David)


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
62
SaturnCanuck said:
as the JNAF was supposed to get some of the Ki-83s, any thoughts on what the designation might have been.

J5M1, maybe?...


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
redstar72 said:
SaturnCanuck said:
as the JNAF was supposed to get some of the Ki-83s, any thoughts on what the designation might have been.

J5M1, maybe?...

The number "5" was allocated to the J5N1 Nakajima Tenrai twin-engined fighter. So, I was thinking J9M1.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
62
Yes, I know about Tenrai, and this is the main reason for number "5" as for me! Ki 83 was twin-engined fighter conceptually similar to the Tenrai, while the last was rather unsuccessful (only 597 km/h maximum speed, instead of 660 km/h required by specification, etc.); so, it could seem logical if the Navy would decide to cancel Tenrai and replace it with Ki 83 - in this case, naturally, Ki 83 would become J5M1... And I think, "8" and "9" numbers were allocated to rocket and jet projects / prototypes. In some sources, the Kikka is mentioned as J9N1.


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
redstar72 said:
Yes, I know about Tenrai, and this is the main reason for number "5" as for me! Ki 83 was twin-engined fighter conceptually similar to the Tenrai, while the last was rather unsuccessful (only 597 km/h maximum speed, instead of 660 km/h required by specification, etc.); so, it could seem logical if the Navy would decide to cancel Tenrai and replace it with Ki 83 - in this case, naturally, Ki 83 would become J5M1... And I think, "8" and "9" numbers were allocated to rocket and jet projects / prototypes. In some sources, the Kikka is mentioned as J9N1.

J6K was the Kawanishi Jinpu (but was not proceeded with)
J7W was the Kyushu Shinden
J8M was the Mitsubishi Shusui (sort of a Japanese Me 163)

So, being as the designations were used and never cancelled, that leaves J9N1. However, if the Kikka was allocated a short designation, then the Ki-83 would have predated it, so the Kikka would have been J10N.

That's my take on it, but I want to hear other opinions..........


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
229
T-50 said:
I'm curious if there was an radar equipped Ki-83,if so which radar or antennae type was planned for this beautiful aircraft.
Perhaps the nicely streamlined installation, with wooden radome, of the Aichi S1A1?


DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
883
Reaction score
678
SaturnCanuck said:
redstar72 said:
Yes, I know about Tenrai, and this is the main reason for number "5" as for me! [snip]

[snip]
So, being as the designations were used and never cancelled, that leaves J9N1. However, if the Kikka was allocated a short designation, then the Ki-83 would have predated it, so the Kikka would have been J10N.

That's my take on it, but I want to hear other opinions..........

There's precedent for duplication of the ordinal number where the aircraft were developed to the same requirement or were otherwise related:

Mitsubishi A1M
Nakajima A1N

Aichi D3A
Nakajima D3N
Yokosuka/Kugisho D3Y

So if the Ki-83 was procured to the same requirement as the Tenrai it would be the J5M, the J6M if it was to the requirement that led to the J6K and so on.
