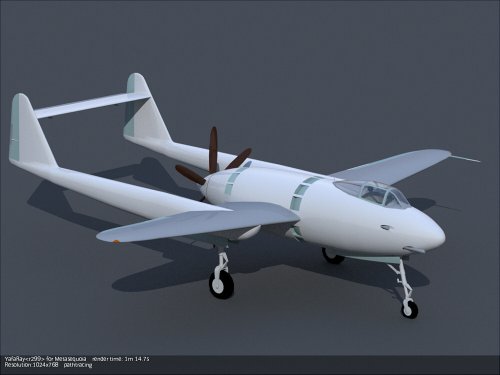

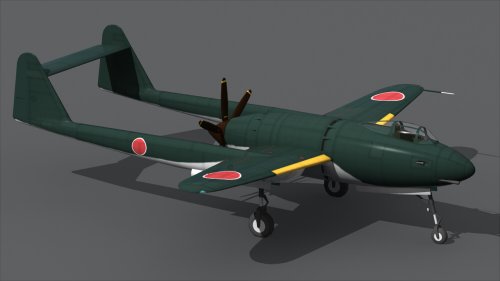

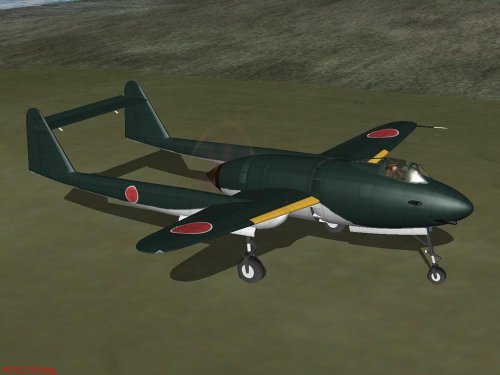

Mitsubishi J4M Senden ''Luke'' pusher fighter

Hi Xin
Good info here
Unknown source


Attachments

  • Escanear0001.jpg
    168.2 KB · Views: 1,517
  • Escanear0002.jpg
    149 KB · Views: 1,427
  • Escanear0003.jpg
    221.6 KB · Views: 1,288
  • Escanear0004.jpg
    208.7 KB · Views: 1,198
Hi Xin
Good info here
Unknown source
Post-2


Attachments

  • Escanear0005.jpg
    89.9 KB · Views: 370
  • Escanear0004.jpg
    212.7 KB · Views: 359
  • Escanear0003.jpg
    208.3 KB · Views: 409
  • Escanear0002.jpg
    87.2 KB · Views: 465
  • Escanear0001.jpg
    121.3 KB · Views: 429
Justo,

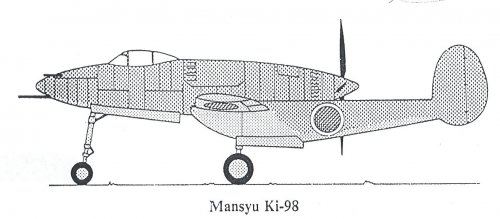

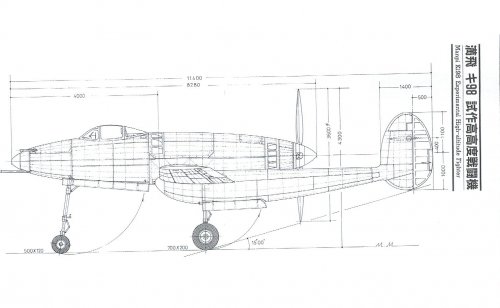

Aren't the drawings in your 'Post 2', the Mansyu Ki-98,
rather than the Mitsubishi J4M ??


cheers,
Robin.

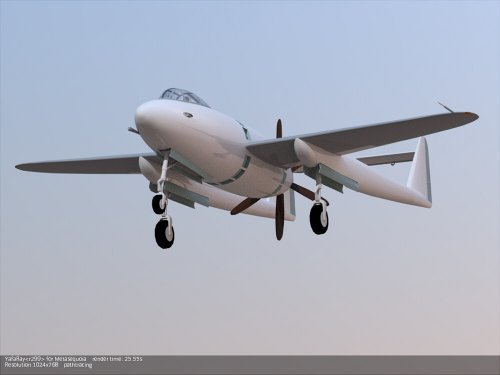

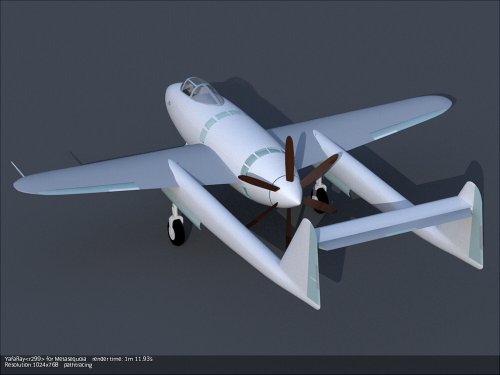

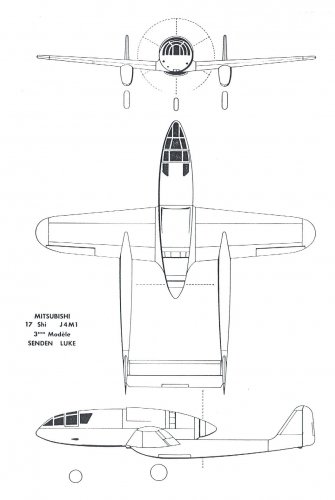

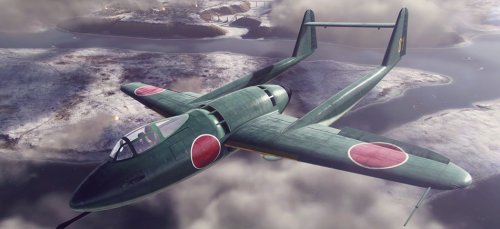

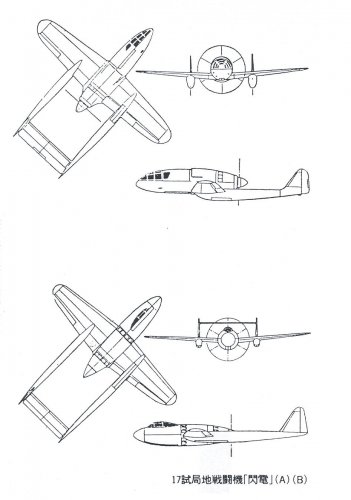

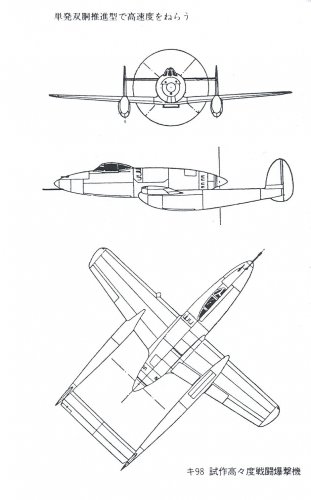

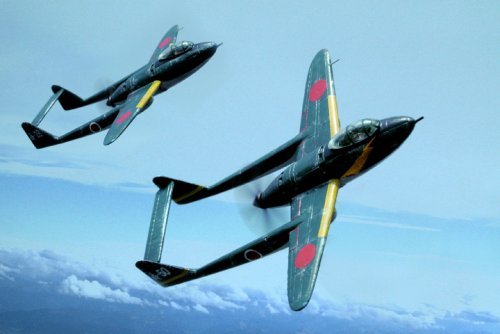

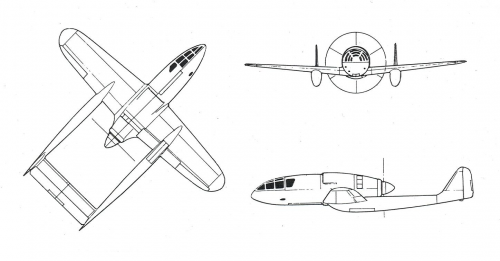

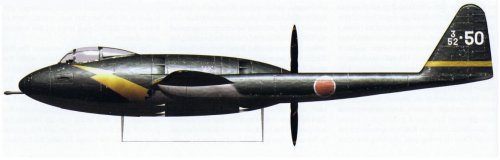

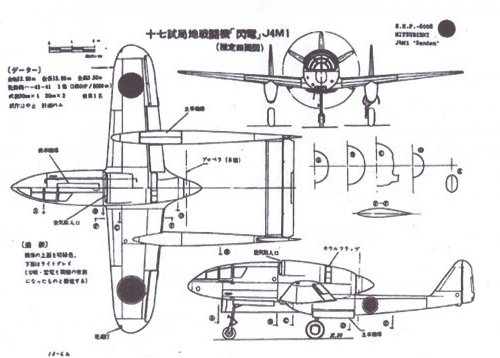

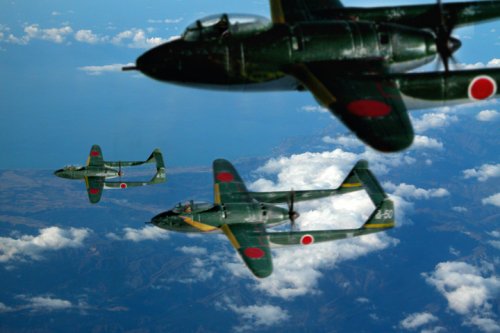

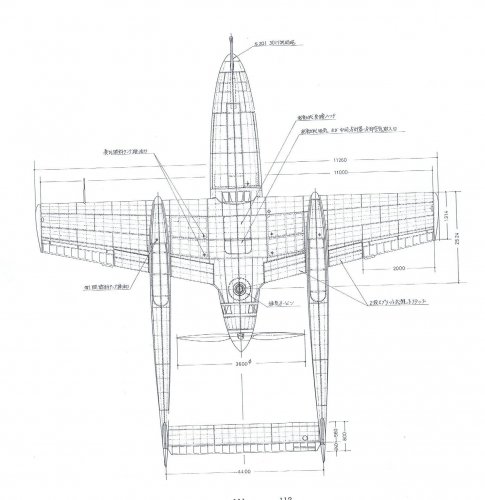

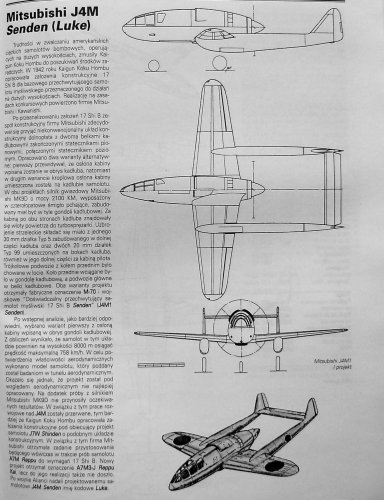

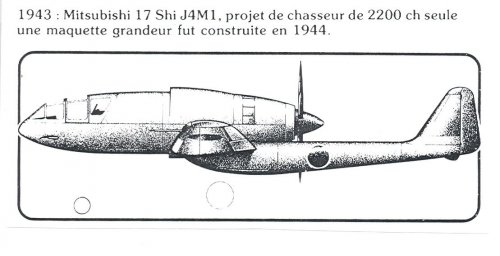

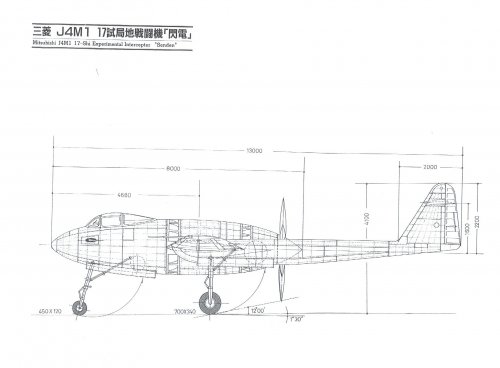

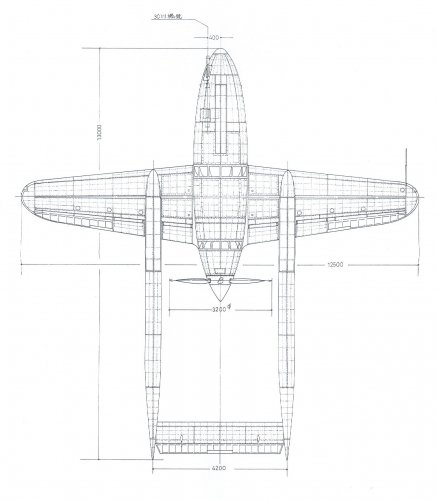

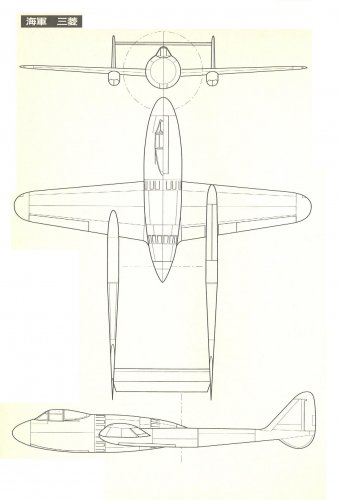

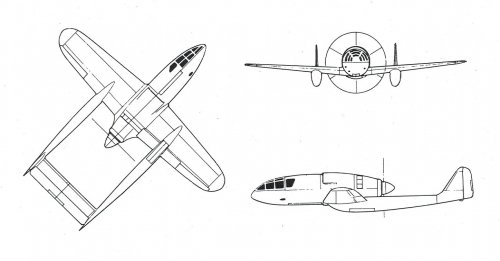

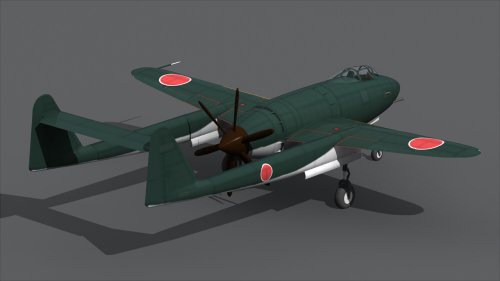

Project of the Mitsubishi J4M1 Senden was designed in two versions.

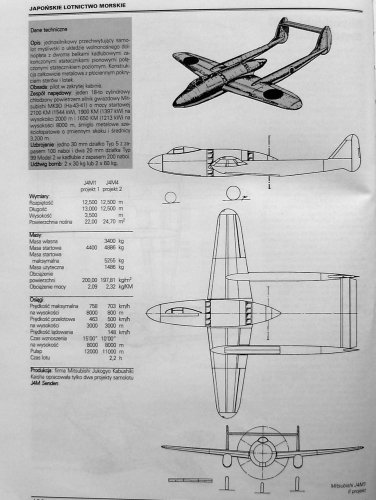

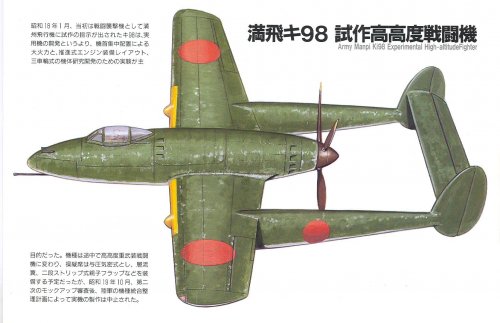

Sorry, I attach only photos of pages from my book " Japońskie Samoloty Marynarki " and a nice painting
of the Mansyu Ki-98.


Attachments

  • Mansyu Ki-98.jpg
    Mansyu Ki-98.jpg
    22.2 KB · Views: 317
  • Mitsubishi J4M1 ( II ).jpg
    Mitsubishi J4M1 ( II ).jpg
    532.6 KB · Views: 367
  • Mitsubishi J4M1 ( I ).jpg
    Mitsubishi J4M1 ( I ).jpg
    625.8 KB · Views: 345

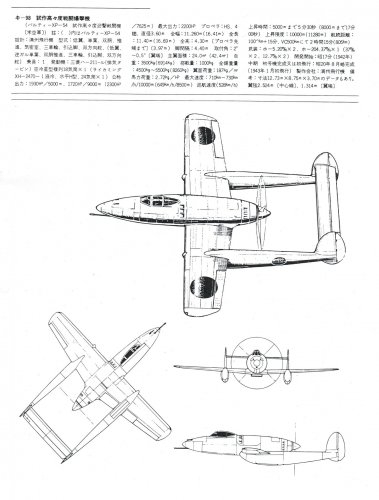

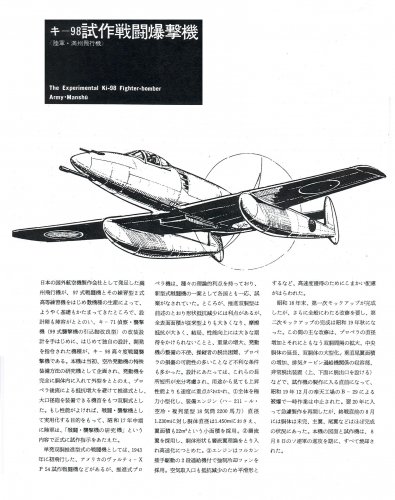

Mansyu here


Attachments

  • Mansyu-7.jpg
    266.4 KB · Views: 297
  • Mansyu-6.jpg
    466.5 KB · Views: 296
  • Mansyu-5.jpg
    252.1 KB · Views: 320
  • Mansyu-4.jpg
    463.1 KB · Views: 302
  • Mansyu-3.jpg
    109.5 KB · Views: 247
  • Mansyu-2.jpg
    169.4 KB · Views: 226
  • Mansyu-1.jpg
    119.1 KB · Views: 218
Mitsubishi A here


Attachments

  • Mitsubishi A-6.jpg
    Mitsubishi A-6.jpg
    124.1 KB · Views: 249
  • Mitsubishi A-5.jpg
    Mitsubishi A-5.jpg
    94.8 KB · Views: 283
  • Mitsubishi A-4.jpg
    Mitsubishi A-4.jpg
    150.1 KB · Views: 281
  • Mitsubishi A-3.jpg
    Mitsubishi A-3.jpg
    76.5 KB · Views: 233
  • Mitsubishi A-8.jpg
    Mitsubishi A-8.jpg
    77.2 KB · Views: 226
  • Mitsubishi A-7.jpg
    Mitsubishi A-7.jpg
    377.6 KB · Views: 210
Many thanks Justo! You are really outstanding.


Attachments

  • senden5.jpg
    114.7 KB · Views: 236
  • senden4.jpg
    137.1 KB · Views: 228
  • senden3.jpg
    87.9 KB · Views: 227
  • senden2.jpg
    126.9 KB · Views: 218
  • senden1.jpg
    115.8 KB · Views: 233
  • senden c.jpg
    senden c.jpg
    116.2 KB · Views: 204
  • senden b.jpg
    senden b.jpg
    126.6 KB · Views: 213
  • senden a.jpg
    senden a.jpg
    91.8 KB · Views: 199
Justo Miranda said:
Mitsubishi A&B here

Am I correct that in Mitsubishi A&B-3.jpg drawing a jet-engined version may be seen (at the bottom of the drawing)?

Piotr

Next. Enjoy.
Another one is Manshu(満州飛行機) Ki-98 high altitude fghter.

Please enjoy previous page,too. ;D


Attachments

  • senden k.jpg
    senden k.jpg
    91.3 KB · Views: 199
  • senden j.jpg
    senden j.jpg
    93 KB · Views: 218
  • senden i.jpg
    senden i.jpg
    81.9 KB · Views: 1,169
  • senden h.jpg
    senden h.jpg
    90.3 KB · Views: 1,200
  • senden g.jpg
    senden g.jpg
    106.8 KB · Views: 1,225
  • senden f.jpg
    senden f.jpg
    106.8 KB · Views: 1,247
  • senden d.jpg
    senden d.jpg
    55.5 KB · Views: 1,261

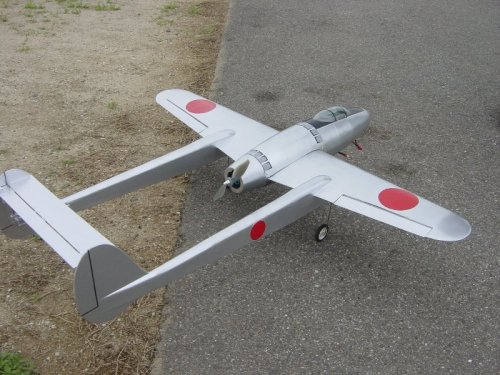

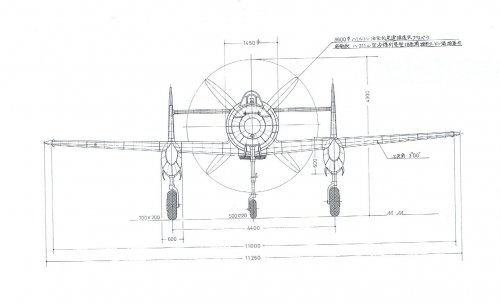

Cool pics. The Senden was truly one of the most beautiful aircraft of World War II in my humble opinion...

Hi!

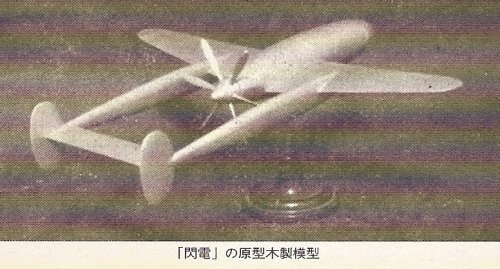

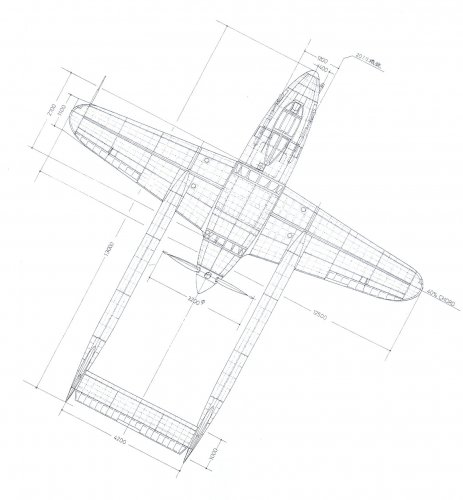

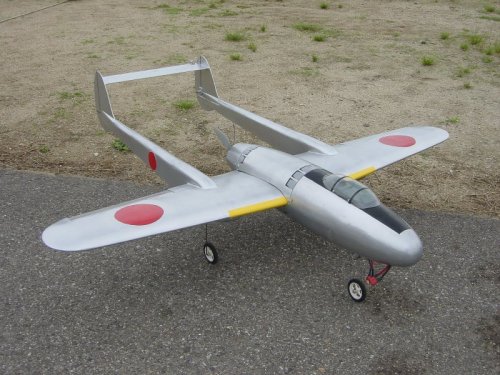

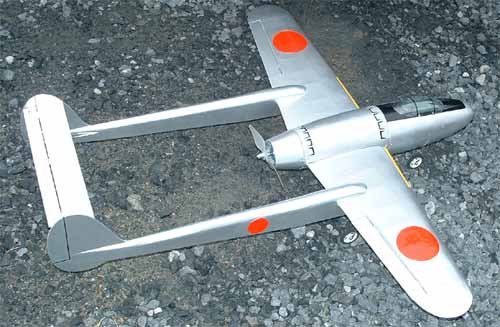

Senden prototype early wooden model.


Attachments

  • Senden prototype early wooden model.jpg
    Senden prototype early wooden model.jpg
    162.6 KB · Views: 220
Hi!

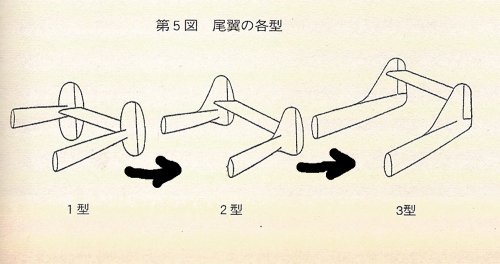

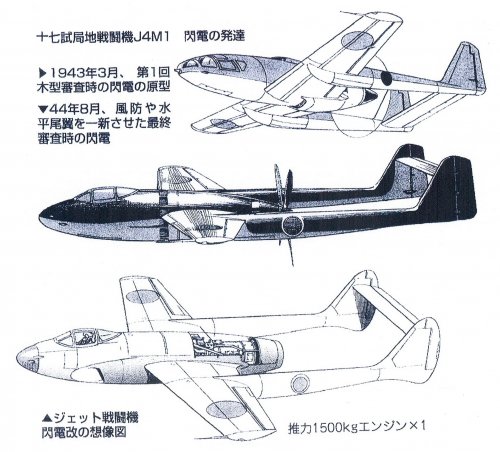

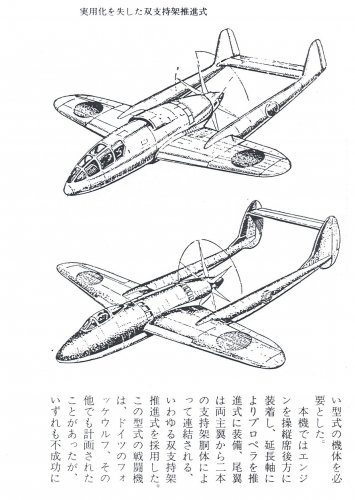

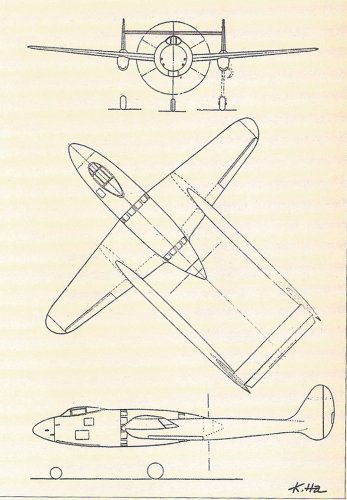

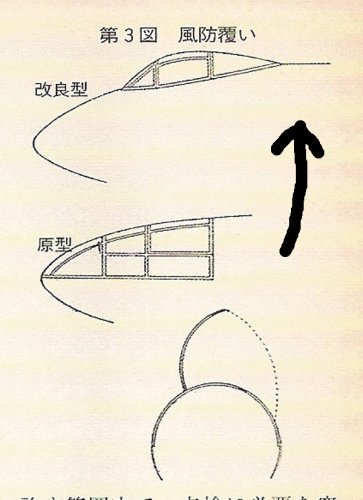

Senden early design and final design. Please watch vertical tail stabilizer shape.
Source : Unknown militaly aircraft development Vol(2/2), Aireview magazine special edition, 1999, ISBN4-87357-051-4
and internet.


Attachments

  • Senden early design.jpg
    Senden early design.jpg
    1.1 MB · Views: 206
  • senden final design.jpg
    senden final design.jpg
    68.1 KB · Views: 216
  • Senden stabilizer.jpg
    Senden stabilizer.jpg
    478.6 KB · Views: 188

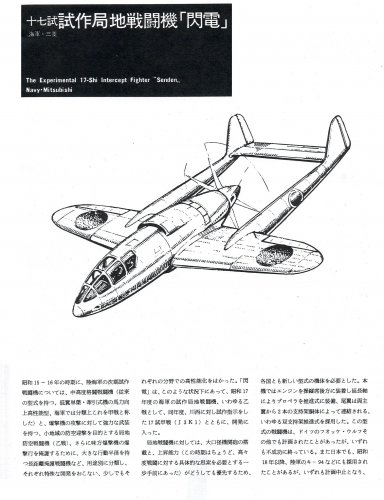

The first mockup inspection for Senden by the IJN was held in March 1943, after inspection, the IJN ordered Mitsubishi to change wind shield design from fast back shape to bubble shape to get better view from the cockpit.


Attachments

  • Senden canopy.jpg
    Senden canopy.jpg
    121.5 KB · Views: 183
  • Senden initial design.png
    Senden initial design.png
    316.4 KB · Views: 175

Attachments

  • senden 1.jpg
    senden 1.jpg
    155.1 KB · Views: 130
  • senden 2.jpg
    senden 2.jpg
    145.2 KB · Views: 114
  • senden 3.jpg
    senden 3.jpg
    78.6 KB · Views: 101
  • senden 4.jpg
    senden 4.jpg
    55.8 KB · Views: 96
  • senden 5.jpg
    senden 5.jpg
    68.1 KB · Views: 99
  • senden 6.jpg
    senden 6.jpg
    27.1 KB · Views: 106

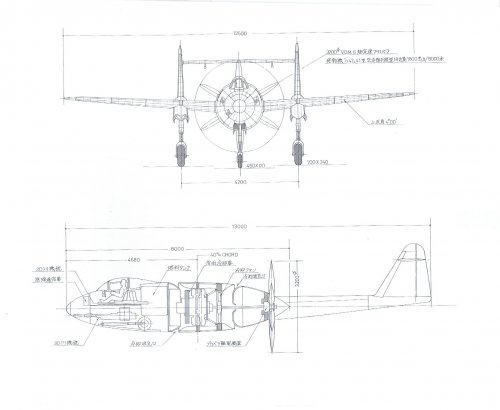

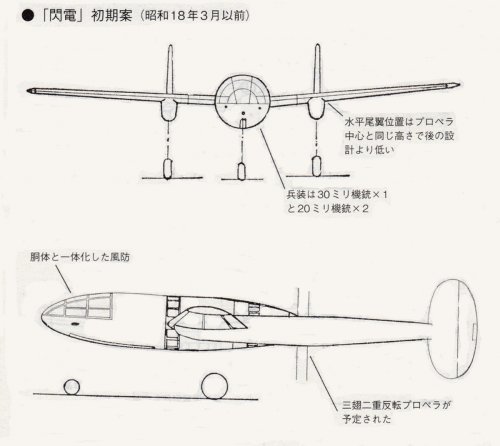

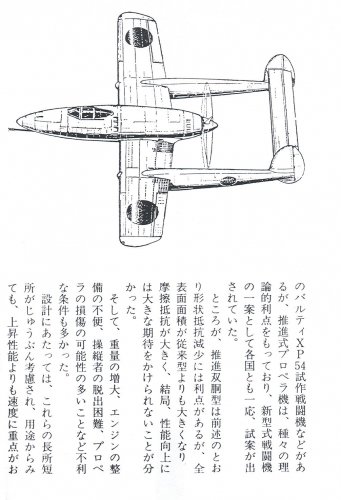

Senden initial plan with 3 blades contra rotating propeller. (Before March 1943)
Source : Maru magazine March 2015

This shape is different from the initial Senden shape which we have been seen. (The third picture, I think that it's a Senden another plan)
This shape is same as Mitsubishi wooden model.(Second picture)


Attachments

  • Maru magazine cover.jpg
    Maru magazine cover.jpg
    215.2 KB · Views: 144
  • Senden initial design.png
    Senden initial design.png
    316.4 KB · Views: 143
  • Senden prototype early wooden model.jpg
    Senden prototype early wooden model.jpg
    162.6 KB · Views: 153
  • Senden initial plan.jpg
    Senden initial plan.jpg
    151 KB · Views: 167

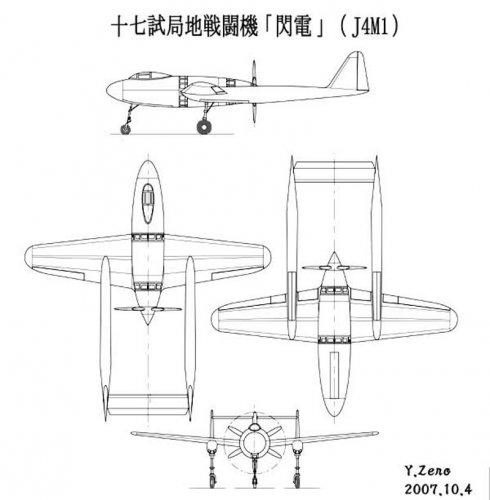

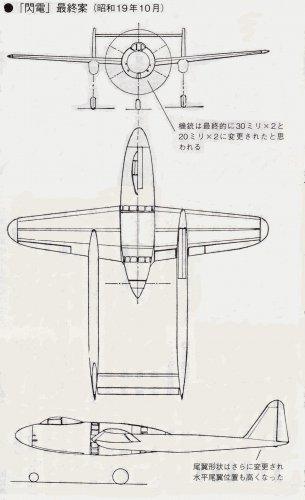

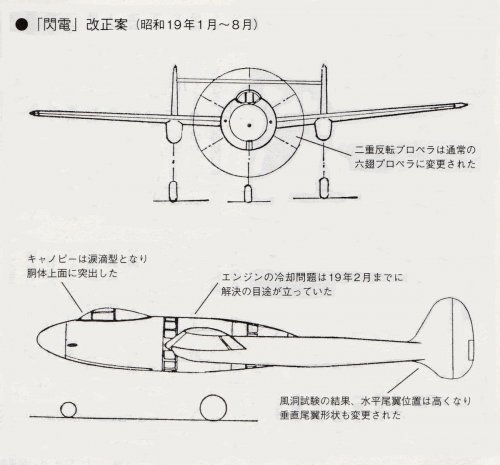

Senden modified plan in January to August 1944 and final plan in October 1944.


Attachments

  • Modified Senden plan in 1944.jpg
    Modified Senden plan in 1944.jpg
    222.9 KB · Views: 158
  • Senden final plan in October 1944.jpg
    Senden final plan in October 1944.jpg
    384 KB · Views: 156
Gildasd said:
Are there any studies or tests on how this kind of aircraft performed, especially how they reacted to compressibility?
I can't find any answer about your question in this Maru magazine.
I only find these equivalent sectional area.
Type 96 carrier fighter : 0.45 (square meter)
Zero fighter type 52 : 0.23
Suisei carrier dive bomber : 0.17
Raiden interceptor : 0.21
Shiden fighter : 0.23
Reppu : 0.17
Shiden-kai : 0.17
Senden : 0.12 (calculated value)

Senden
Span : 12.5m, Length : 13m, Height : 3.5m, Wing area : 22 square meter, Gross weight : 4400kg
Senden another plan
Span : 12.5m, Length : 12.5m, Height : no data, Wing area : 24.7 square meter, Gross weight : 4886kg

Chief designer Eitaro Sano said that
(1)Senden engine cooling system was successfully established in February 1944.
(2)Hard vibration of tail horizontal stabilizer was also disappeared by design change.
(3)But the development of Mitsubishi MK9D engine with valcan coupling was not easy, the highest level member of the IJN and Mitsubishi lost interest for Senden.

Eitaro Sano designed F1M2 observation plane.
http://www.pacificwrecks.com/reviews/famous_airplanes_f1m2.html

The design group of Mitsubishi was very busy with improvement of Raiden, zero and development of a Reppu.
Design team of senden which had trouble on its hands variously fell the painful situation gradually.


Attachments

  • Senden chief designer Eitaro Sano.jpg
    Senden chief designer Eitaro Sano.jpg
    405.2 KB · Views: 122
Hi!
Source : internet


Attachments

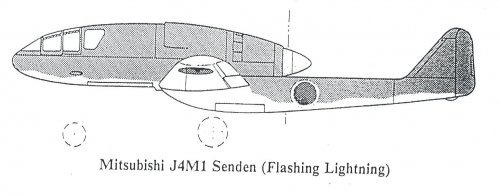

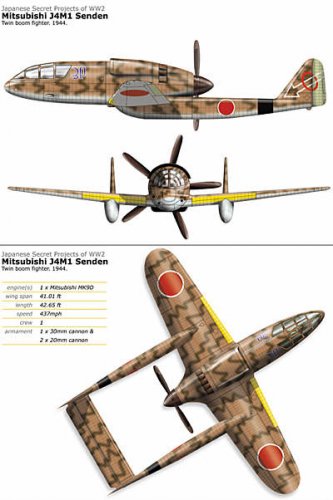

  • Senden side view.jpg
    Senden side view.jpg
    101.2 KB · Views: 242
  • senden.jpg
    211 KB · Views: 327
Hi!
Source : internet


Attachments

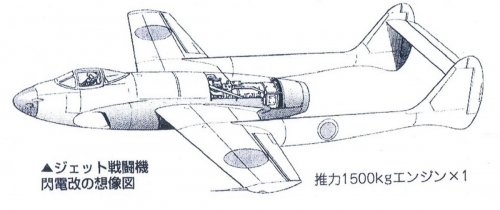

  • The artistic impresssion of jet powered Senden 2.jpg
    The artistic impresssion of jet powered Senden 2.jpg
    97.8 KB · Views: 205
  • The artistic impression of jet powered Senden 1.jpg
    The artistic impression of jet powered Senden 1.jpg
    232.6 KB · Views: 181
  • new_j4m_1_s_1.jpg
    141.1 KB · Views: 161
  • j4m1_3.jpg
    616.6 KB · Views: 225
  • j4m1_2.jpg
    213.7 KB · Views: 241
  • j4m1_1.jpg
    427.6 KB · Views: 276

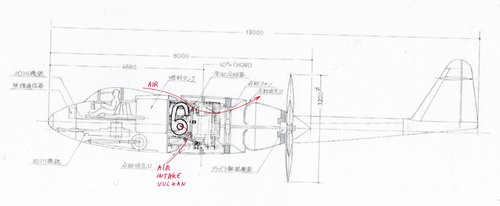

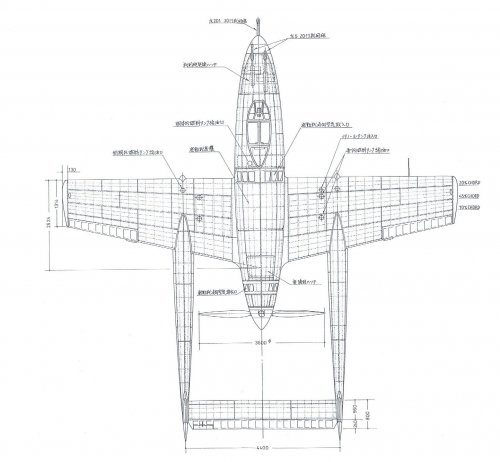

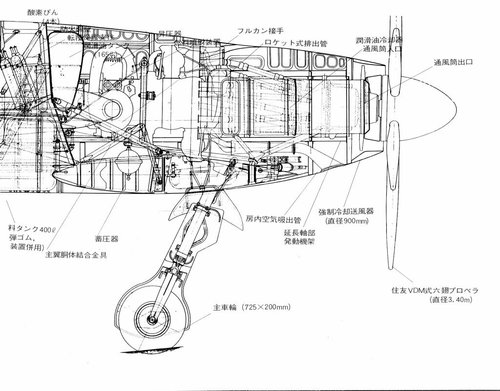

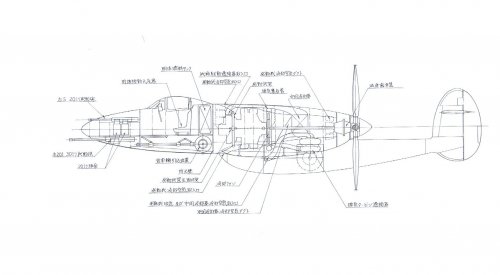

I tried to install Shinden HA43-42(MK9D) engine to Senden drawing. But very difficult especially to think about ram air intake concept for Vulkan coupling drive first stage supercharger.
Senden is very hard to understand. It's a big mystery.
For me the best solution is to have ram air intake at outside of the fuselage, but existing Senden model picture did not have such a air intake.
Oil cooler position is also mystery for me. Is it located surrounding outside of the engine?:confused:
Am I making some big misunderstandings?


Attachments

  • senden.JPG
    57.9 KB · Views: 220
Last edited:
Thanks a lot brilliant Justo-san.:)
Bottom air intake is for Vulkan coupling drive supercharger and engine coling.
Bottom air intake and Vulkan coupling drive supercharger were connected by ram air duct. Excellent solution!!:cool:

How do you think about oil cooler position? Were there some space between engine and fuselage outer skin for oil cooler?

Last edited:
Senden’s span was 12.5 m, total length was 13 m, the main wing area was 22 m2 and the total weight was 4-4 tons.
Senden’s size was slightly larger compared with Manshu Ki-98, and the total weight was almost same.
The wing area of Senden was 2m2 smaller that Ki-98.
The engine was the Mitsubishi "Ha 43" 41 type, and because of the almost same engine system as the Ki 98, the overall shape became similar.
But Senden had middle wing and the fuselage which support the horizontal tail stabilizer was slightly long.
The problem was in the engine, as all of the other Japanese prototypes were.
According to "Zero Fighter" by Jiro Horikoshi , co-authored Masatake Okumiya ,
"In the spring of 1944, when we made the fuselage for the engine experiment and carried out the operation test with a prototype engine, the engine cylinder temperature distribution was good, and it was a prospect of practical use if limited to engine cooling".
However, the element that the performance decrease was repeatedly increase every time at the operation test, and the Vulkan coupling to drive supercharger did not work well, and the outlook was not bright at all.
Moreover, unfortunately, because it was found that there was a possibility of vibration of the tail stabilizer by the propeller flow in the wind tunnel test, position change of the horizontal tail stabilizer was needed, the progress with a design wasn't desirable.
Technical difficulties were expected because Senden was an inexperienced special type aircraft.
Mitsubishi actively received orders for Senden, chief designer Eitaro Sano and engineers worked on the development with great enthusiasm, but most of the people in the company hesitated to focus on Senden. Under these circumstances, the company's upper management's willingness to Senden gradually faded.
Therefore, the engineers in charge of Senden were put in a painful position.
After that, in October 1944, prototype models were consolidated for the unification of the prototype model reduction, and the Senden was truncated.
Compared to the Ki 98, which continued to work until just before the completion of the prototype, the Senden engineers in charge were unlucky.


If Senden engine exhaust gas nozzles were designed properly, it might act as the ejector to induce oil cooler cooling air same as Shinden.

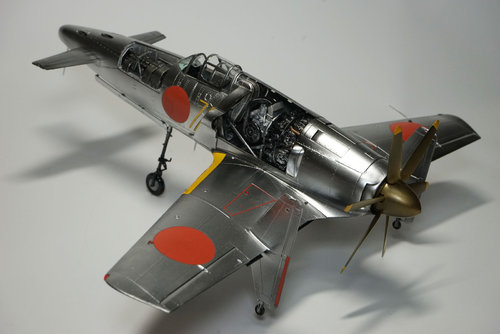

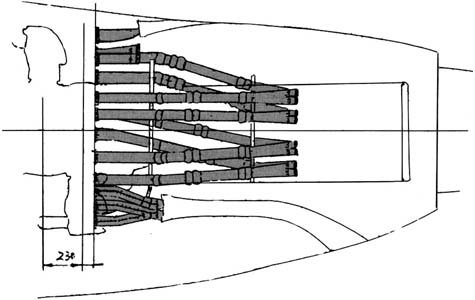

Shinden's engine had 18 exhaust nozzles.
4 nozzles exhaust gas were used for thrust.(Located upper part of the engine.)
8 nozzles exhaust gas were used for ejector(jet pump) which take oil cooler cooling air. (Located middle part of the engine.)
6 nozzles exhaust gas were used for ejector which exhaust engine room hot air.(Located bottom part of the engine.)
Of course engine was cooled by mainly forced cooling air by forced cooling fan which located behind the engine.

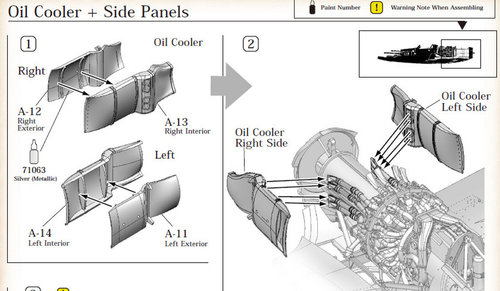

You can see oil cooler air intake in the first and the third picture.(After end of the fuselage)


Attachments

  • Shinden engine 1.jpg
    Shinden engine 1.jpg
    165.4 KB · Views: 152
  • Oil cooler.jpg
    Oil cooler.jpg
    173.6 KB · Views: 148
  • 20161017_sinden_01.jpg
    225.6 KB · Views: 130
Last edited:
Shinden's engine had 18 exhaust nozzles.
4 nozzles exhaust gas were used for thrust.(Located upper part of the engine.)
8 nozzles exhaust gas were used for ejector(jet pump) which take oil cooler cooling air. (Located middle part of the engine.)
6 nozzles exhaust gas were used for ejector which exhaust engine room hot air.(Located bottom part of the engine.)

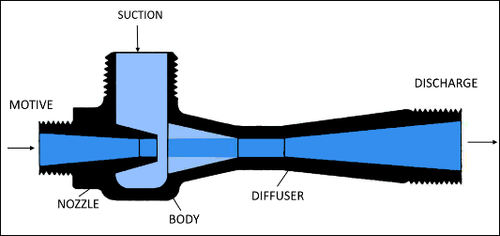

This might be a better picture for ;your explanation of the Shinden's exhaust nozzles J7W1 engine exhaust layout.jpg :

Thanks a lot windswords-san!
Oil cooler was located suction side. It's better to have air intake, ejector and oil cooler position in the windwords-san's drawing.
Of course oil cooler was located front of the ejector, left side of the exhaust nozzle aft end which is seen in the windwords-san's contribution.
And there was a air intake front of the oil cooler. https://www.secretprojects.co.uk/attachments/20161017_sinden_01-jpg.620546/


Attachments

  • Venturi-jet.png
    23.5 KB · Views: 161
Last edited:
Shinden had six air intakes outside of the fuselage, which were
(1) Engine cooling two big size intakes locared both side of the fuselage.
(2) Two Ram air intakes beside of the engine cooling intakes.
(3) Two oil cooling air intakes located engine end.

But Senden had no air intakes located outside of the fuselage. Very ideal and radical design.
According to "Zero Fighter" by Jiro Horikoshi , co-authored Masatake Okumiya ,
"In the spring of 1944, when we made the fuselage for the engine experiment and carried out the operation test with a prototype engine, the engine cylinder temperature distribution was good, and it was a prospect of practical use if limited to engine cooling".

Last edited:
