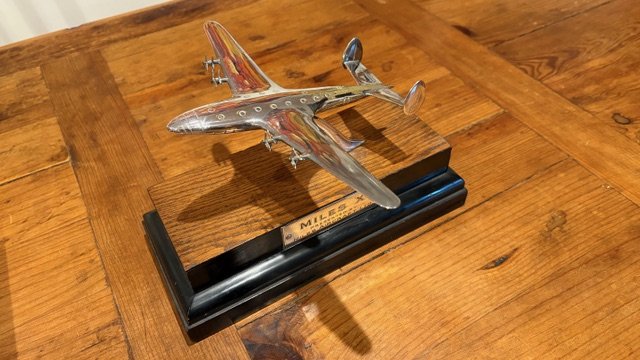

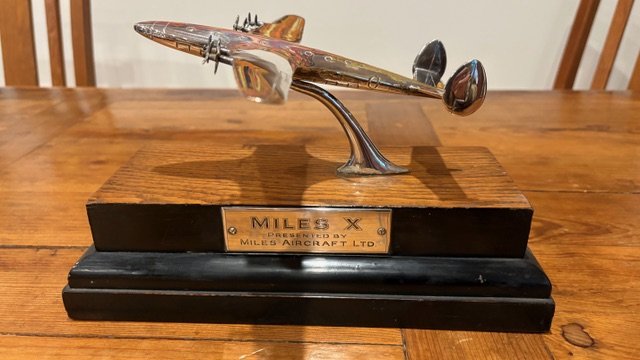

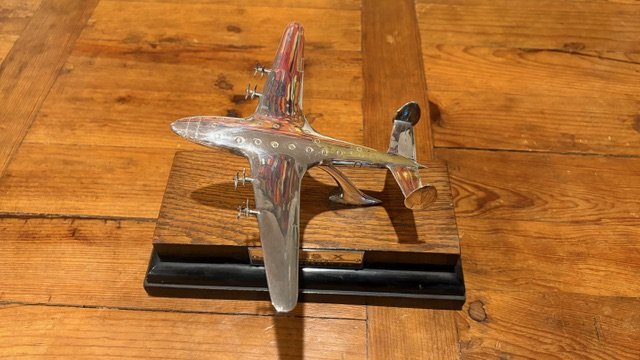

Miles X - blended fuselage-wing projects

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
638
Reaction score
145

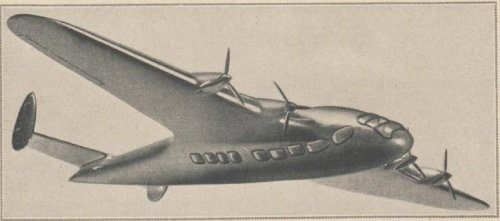

Hi!

To continue the story, that has been started in XP-67 topic - small sraps from "Flight":

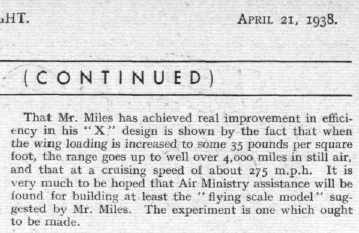

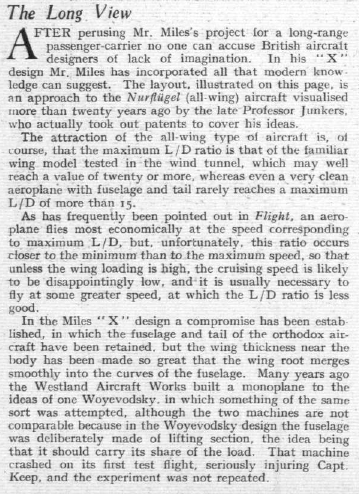

http://www.flightglobal.com/pdfarchive/view/1938/1938%20-%201072.html?search=Miles

It looks, like in the end of 1930th many designers tries to incorporate into the projects the idea of blended wing-fuselage configuration, as the further development of wing-fuselage fairings.

There was a small flying testbed of this airliner build - I'm couldn't remember the designation...

Cheers!


Attachments

  • m1.png
    216.6 KB · Views: 1,080
  • m2.png
    256.5 KB · Views: 891
  • m3.png
    104.6 KB · Views: 769

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
106
Re: Miles X - blended fuselage-wing airliner project

For more about the Miles -X- series see:
"Miles projects gallery" started by Skybolt...


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,744
Reaction score
1,211
Re: Miles X - blended fuselage-wing airliner project

Silencer1 said:
There was a small flying testbed of this airliner build - I'm couldn't remember the designation...

Miles M.30 X Minor


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376
Re: Miles X - blended fuselage-wing airliner project

Did Miles use this research in a bomber proposal - what with its projected speed and low drag?


Regards
Pioneer

J

joncarrfarrelly

Guest
Re: Miles X - blended fuselage-wing airliner project

A bomber version of the later X.11 design was proposed as the X.12.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
Re: Miles X - blended fuselage-wing airliner project

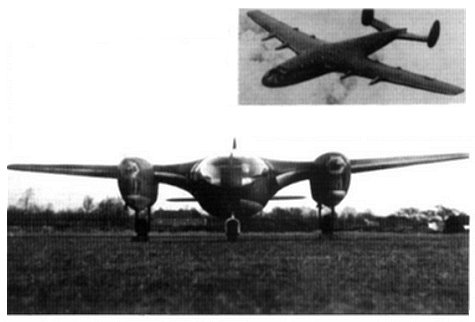

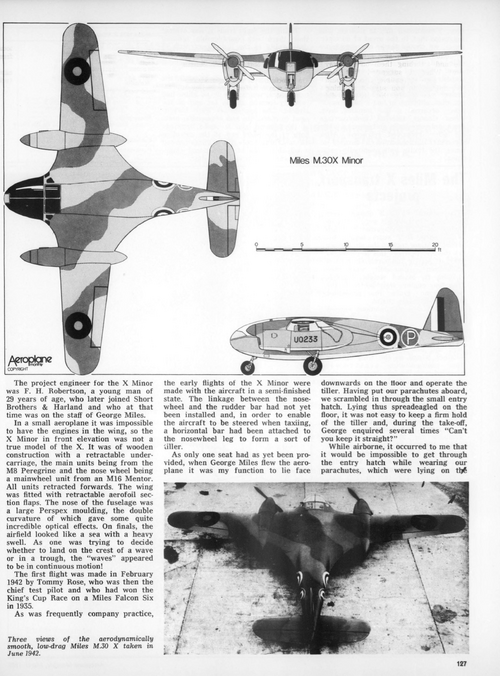

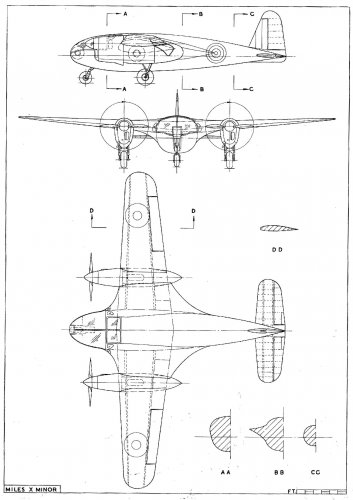

The Miles M.30 X Minor, U-0233, was a one-off, small scale prototype first flown in February 1942 to test the blended wing/fuselage four- and six-engined airliner concepts drawn up by F.G. Miles in the late 1930s. The M.30 ended its relatively brief career as an instructional airframe with the Miles Aeronautical Technical school. Shown inset is the 50 passenger Miles X 11 project of 1943. Performance estimates indicated the X 11 would cruise at 350mph and have a range of 3,450 miles with a full passenger complement. With Miles always considered something of an industry outsider, the X 11 proposal was spurned by officialdom in favour of what was to become the Bristol Brittania.

Source: Aviation Pioneers 1: Research Aircraft 1891-1970 - X-Planes, by Hugh W. Cowin, Osprey Aviation 1999


Attachments

  • Miles M.30 X Minor.jpg
    Miles M.30 X Minor.jpg
    61 KB · Views: 865

alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
619
Reaction score
228
Re: Miles X - blended fuselage-wing airliner project

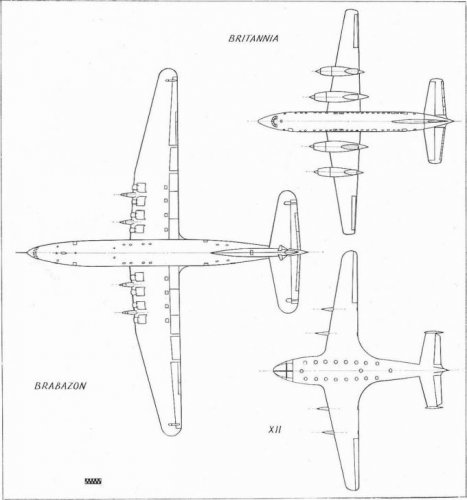

"spurned" not for Bristol T.175, but for T.167 Brabazon I, ITP 3/43. It would have been irresponsible for Ministers to have entrusted the Transatlantic, all-First Class defeater of C-54/C-69 to glue/woodsmiths Phillips & Powis A/C, masters of Magisters and little else. The logic of selection of Bristol was that the wing had already been schemed, for the 100-ton Bomber, by a team backed up by volume metalwork production: so: low risk, so early delivery. Ah, well...

J

joncarrfarrelly

Guest
Re: Miles X - blended fuselage-wing airliner project

There was very good reason to question the Miles performance estimates, despite Don Brown's rather sanguine
claims in his Miles Aircraft since 1925 and his pointless comparison of the X.11 to the Brittania.
"The Ministry done us wrong" is a recurrent theme in the sections dealing with the 'X' projects.

Ken, the X.9 project was for an all-metal aircraft so it is likely that the X.11 was also to be metal, however, Brown
makes no reference to materials in his description. Which is rather odd as he was in charge of the design.
Of course, even if all-metal, who was to build the critter?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
Re: Miles X - blended fuselage-wing airliner project

I just saw this and have to point out that by the end of the war Miles had shifted over to some metal aircraft production, including the Miles Monitor (1944) twin-engine, high-performance target tug and the Miles (later Handley Page) Marathon (1945). While it would certainly be fair to question the Miles production capacity at the time, that is no reason to discount their design ability out of hand. DeHavilland, too, remained primarily a wooden aircraft producer until after the war. Cheers, Matthew


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,249
Reaction score
106
Website
zeef.com
Re: Miles X - blended fuselage-wing airliner project

there was X series : X.11, X.12, X.13 and X.14 ( from Miles Putnam): in first page the project name is X.11 an eight-engined aircraft for transatlantic transport or Miles X.2 (early X -series)


CAO 700

ACCESS: Confidential
Joined
Nov 22, 2009
Messages
91
Reaction score
3
Re: Miles X - blended fuselage-wing airliner project

Does it exist a kit of the Miles M.30 X Minor?


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
693
Reaction score
458
Re: Miles X - blended fuselage-wing airliner project

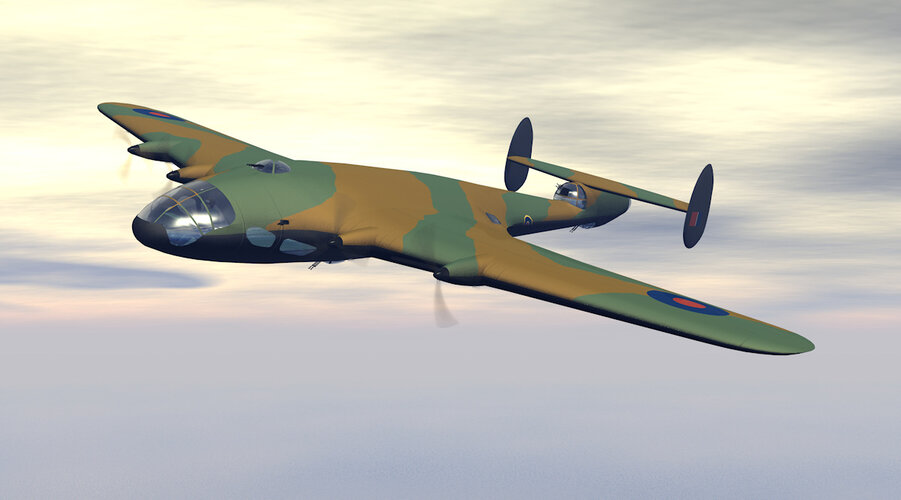

Miles X Minor M.30


Attachments

  • Miles X Minor.jpg
    Miles X Minor.jpg
    344 KB · Views: 696

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
693
Reaction score
458
Re: Miles X - blended fuselage-wing airliner project

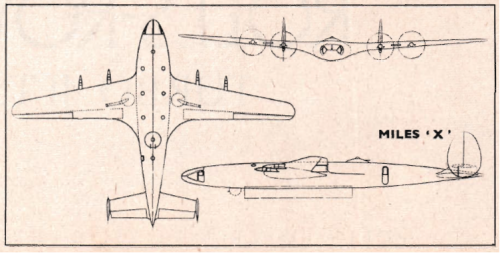

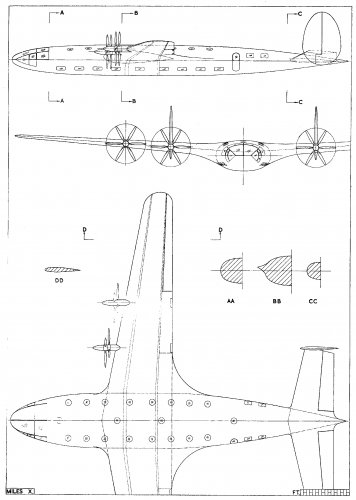

A nice 3-view of the Miles X.


Attachments

  • Miles X.jpg
    Miles X.jpg
    575.1 KB · Views: 284

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,980
Re: Miles X - blended fuselage-wing airliner project

Hi RAP,

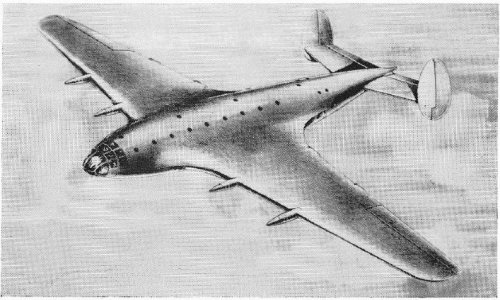

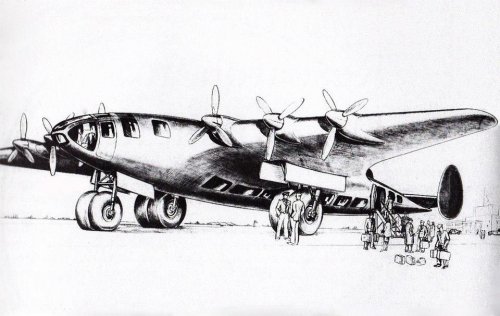

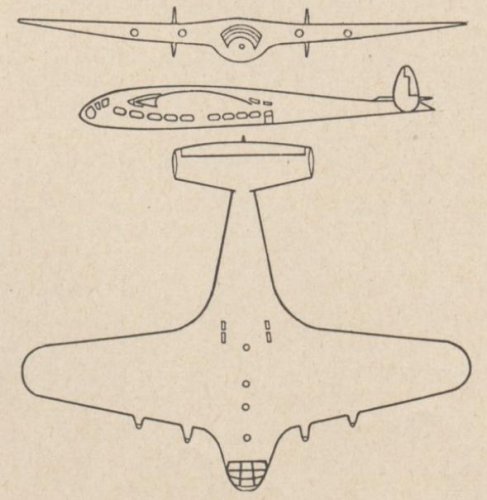

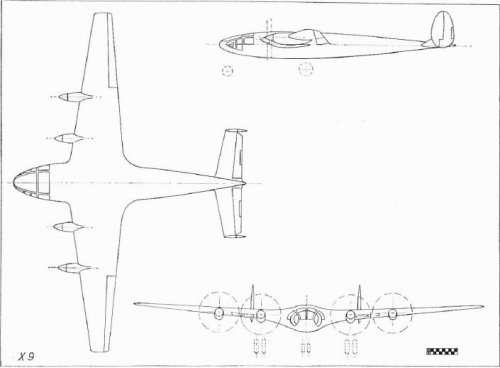

it was Miles X.9,and here is its artist drawing and 3-view imagines.


Attachments

  • X.9   3-VIEW.JPG
    X.9 3-VIEW.JPG
    27.6 KB · Views: 1,120
  • X.9.JPG
    90.3 KB · Views: 1,131

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
693
Reaction score
458
Re: Miles X - blended fuselage-wing airliner project

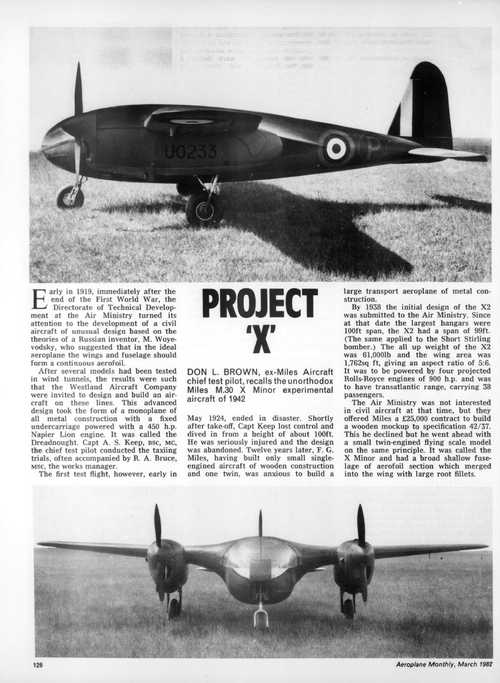

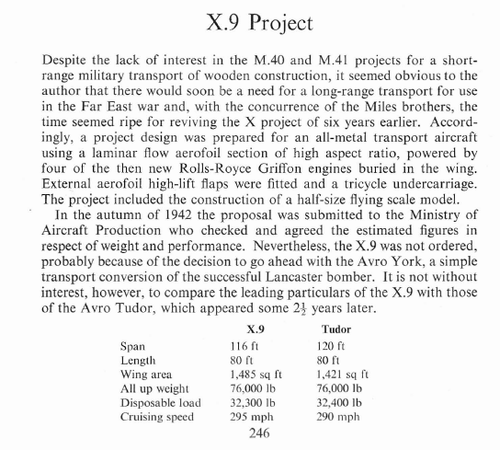

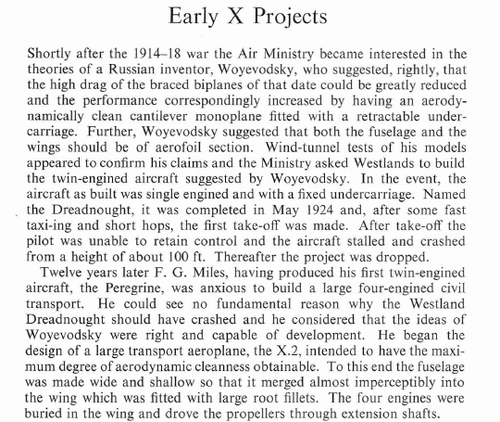

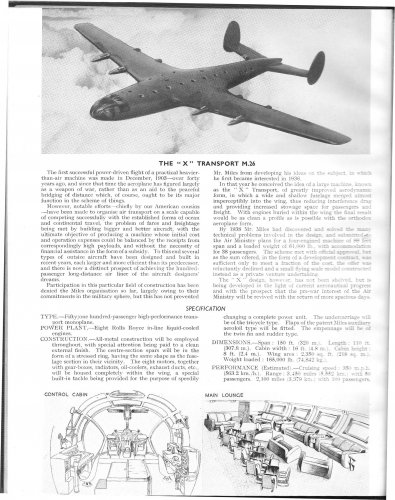

Thanks Hesham. Here is a little more info from the resource I have, The Book of Miles Aircraft, published 1944. No matter what the designation, it is a very attractive design.


Attachments

  • scan0003.jpg
    696 KB · Views: 1,228

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
Re: Miles X - blended fuselage-wing airliner project

RAP said:
A nice 3-view of the Miles X.

There never was a plain "Miles X" designation. There was a series of "X.*" which ran from circa 1941 to circa 1945 which apparently all fitted within the general "M.26" program. However there was one project sometimes found as "Scheme X", whose date seems to indicate it must have been the X.8. Known designations are as follows (this would be better in the "Designations" section but I guess it could be featured in both):

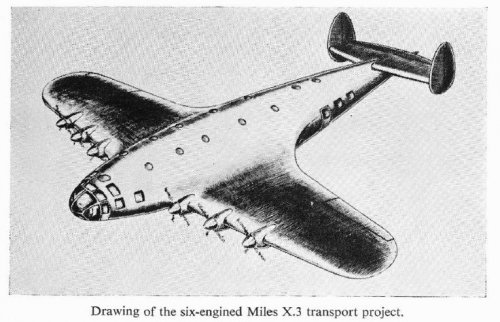

  • X.3 — six-engined project
  • X.7 — 8-engined 50-100 passenger transatlantic project for Spec. 14/38, with eight Rolls-Royce Merlin engines, 4 contra-rotating airscrews, a single fin and a rudder
  • X.7 Mod. — variant of above with two decks to carry 550 troops
  • "Scheme X" (X.8?) — projected as a four (normally mounted)-engined freighter with no windows and a single "bug-eye" cockpit, single fin and rudder
  • X.9 — all-metal development of X.3 using laminar flow aerofoil section of high aspect ratio, 4x RR Griffin II, twin fins and rudders
  • X.9 — alternate military cargo variant with rear loading ramp
  • X.9 Mod. — as X.9 but with the four Rolls-Royce Griffin II engines buried in the wings, driving airscrews through extension shafts
  • X.10 — twin-engined version of X.9 with engines mounted normally, twin fins and rudders (also designated M.26K)
  • X.11 — post-war transatlantic airliner developed from X.7, with eight RR Merlins buried in wings, 4 contra-rotating airscrews, twin fins/rudders; submitted for Spec. 2/44, later Brabazon Committee Type I Specification
  • X.11 — projected troop-carrying version of X.11
  • X.11 Scheme BX — project for 74-passenger civil transport with specification similar to X.9; four RR Griffin II engines mounted normally, twin fins/rudders
  • X.11 Scheme CX — as Scheme BX but with four engines buried in wings driving airscrews through extension shafts; freighter version also projected
  • X.11 (M.26A) — 1/2 scale flying model of Scheme BX configuration; 4x Lycoming engines mounted normally, 7-8 passengers, 1 pilot in "bug-eye" cabin
  • X.11 Heavy Bomber (X.12?) — as X.11 but provision for 10-ton bomb, two cannons in armoured remote-control dorsal turret, 2 m/guns in retractable ventral turret
  • X.13 — troop transport project, existed in long-, medium- and short-range versions
  • X.14 — post-war airliner project, twin fins/rudders; like Scheme BX but 4x Bristol Centaurus CE125M; indirect Atlantic crossing or Empire routes
  • X.14 — projected military freighter variant of above, probably with rear loading
  • X.15 — long-range transatlantic airliner to Spec. 2/44, Brabazon Committee Type I specification; 6x Napier Sabre engines


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,980
Re: Miles X - blended fuselage-wing airliner project

Hi,

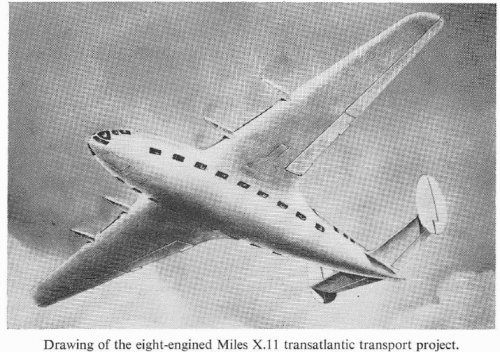

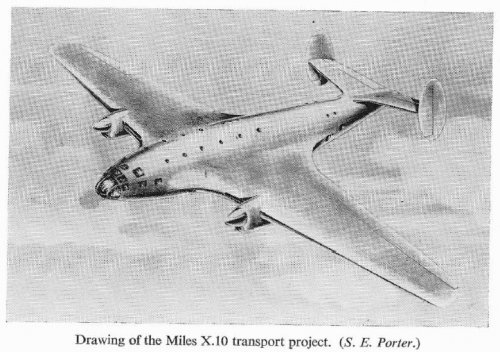

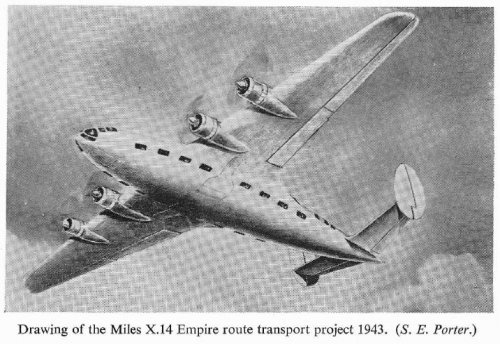

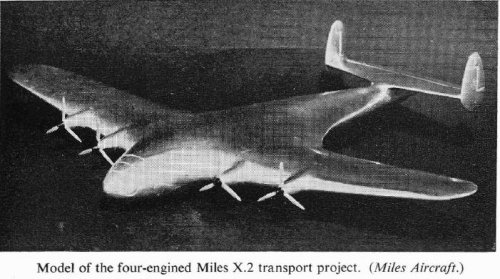

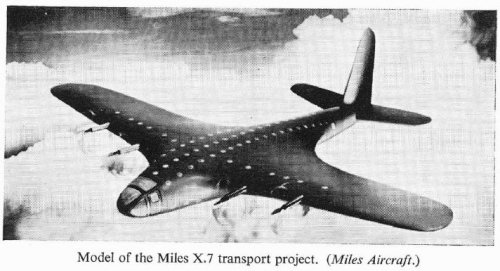

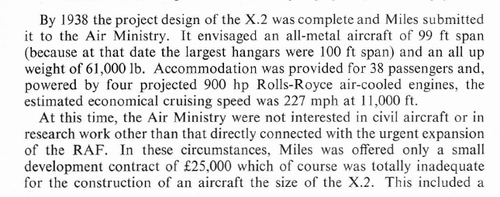

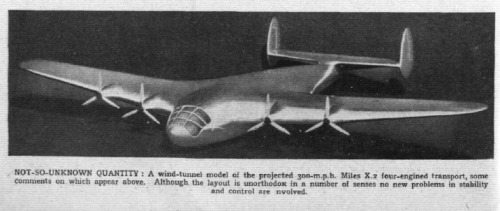

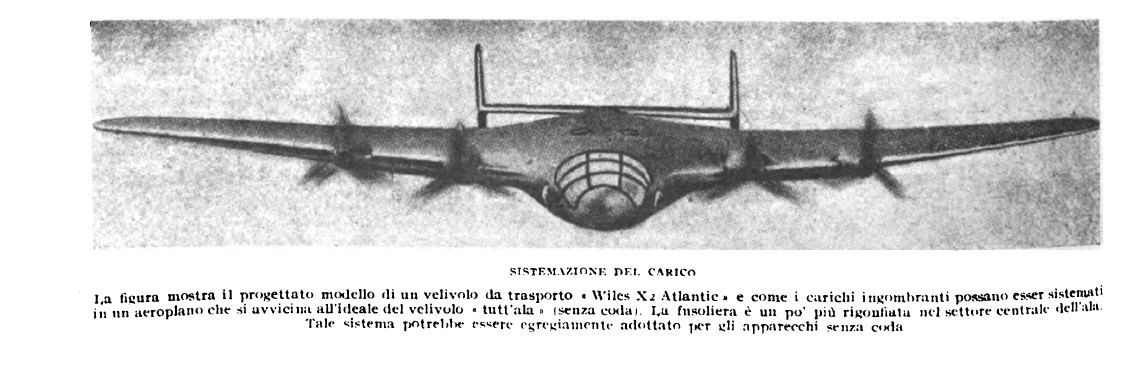

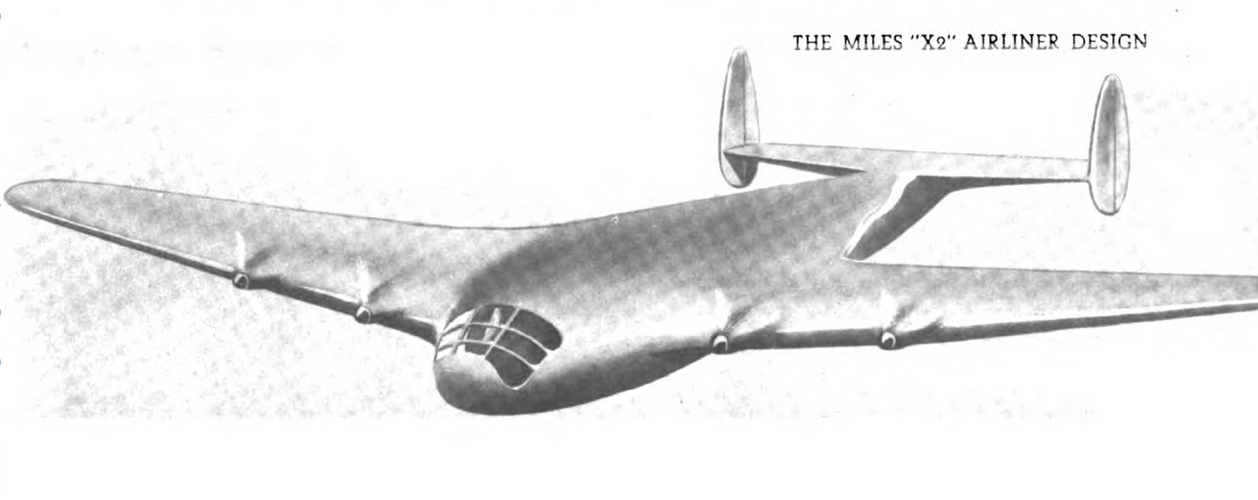

X.2 was a four engined transport project.

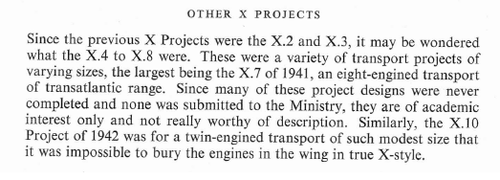

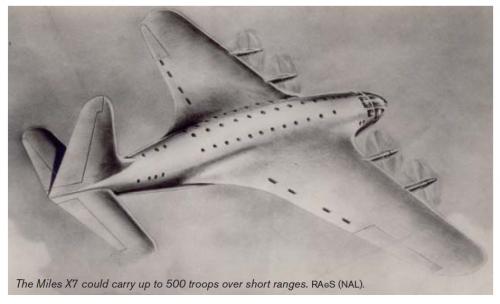

X.4 to X.8 were a very large transport projects.


Attachments

  • X.14.JPG
    106.9 KB · Views: 115
  • X.11.JPG
    116.6 KB · Views: 111
  • X.10.JPG
    107.5 KB · Views: 201
  • X.7.JPG
    67.3 KB · Views: 207
  • X.3.JPG
    89.3 KB · Views: 879
  • X.2.JPG
    72.5 KB · Views: 907

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
Re: Miles X - blended fuselage-wing airliner project

If there was an icon for "love" I would post a string of them! Thanks for sharing this.


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
29
Re: Miles X - blended fuselage-wing airliner project

What a beautiful design. Did any of the designers later worked on the Handley Page Victor?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,980
Re: Miles X - blended fuselage-wing airliner project

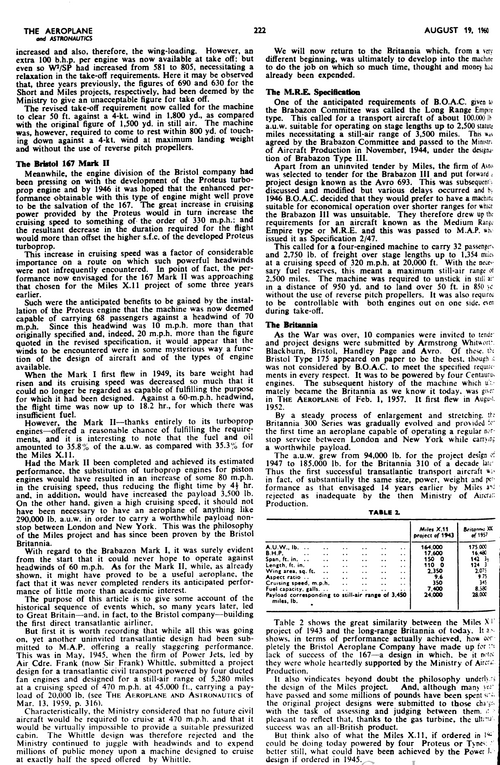

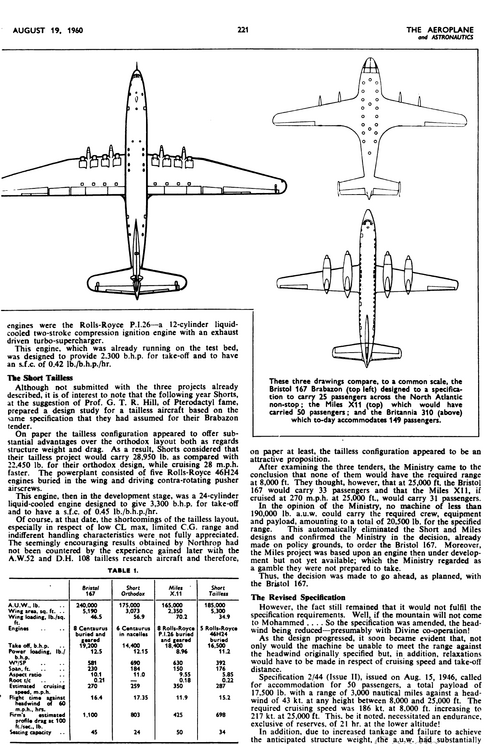

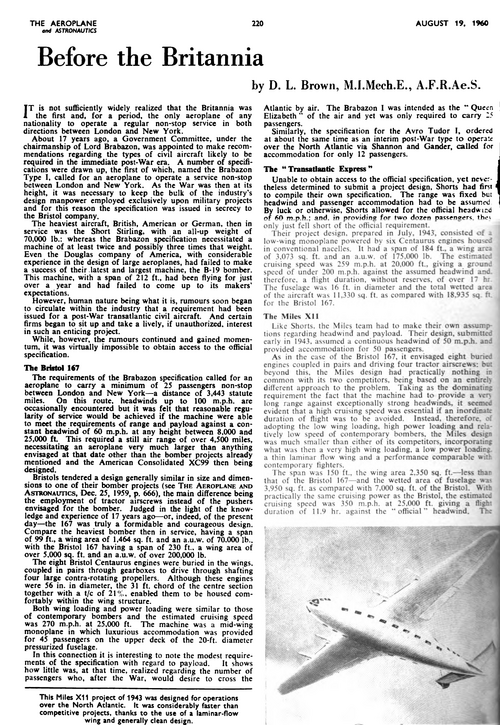

From FR 3/1958,


here is a drawing to Miles X.


Attachments

  • Miles X.png
    Miles X.png
    458 KB · Views: 199

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
193
Re: Miles X - blended fuselage-wing airliner project

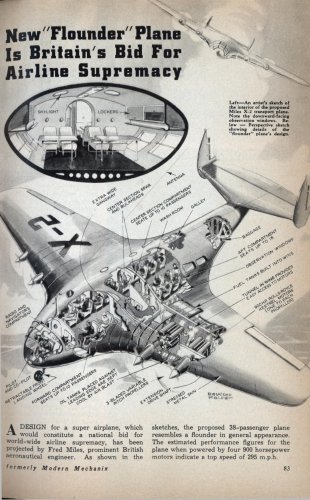

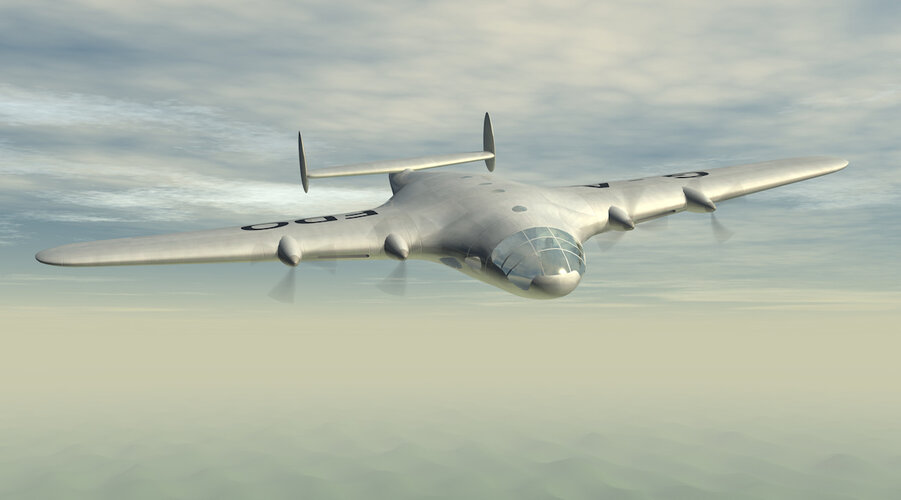

Here is a poster.


Attachments

  • flounder_plane.jpg
    678.5 KB · Views: 277

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,980
Re: Miles X - blended fuselage-wing airliner project

Hi,


the Miles M.26 Project.


http://www.hollilla.com/reader.php?action=thread&thread=3616734&offset=120


Attachments

  • 66536808.jpg
    89.4 KB · Views: 149

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
355

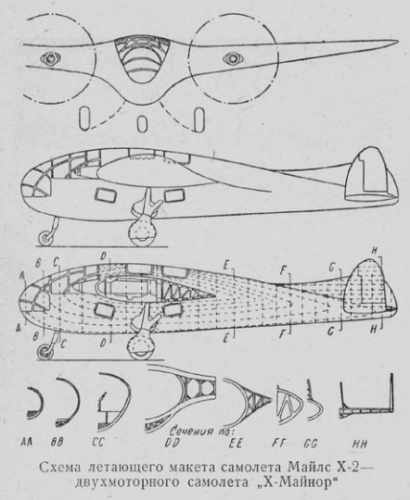

From a Tsagi report

Listed as X-2


Attachments

  • miles x2.png
    miles x2.png
    200.8 KB · Views: 123

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
355

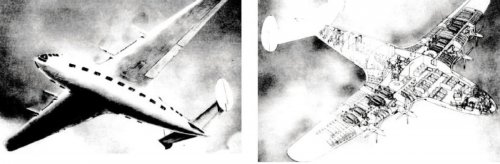

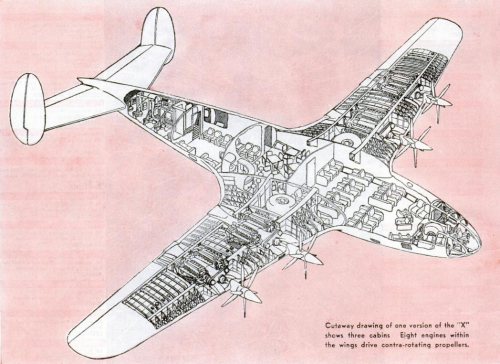

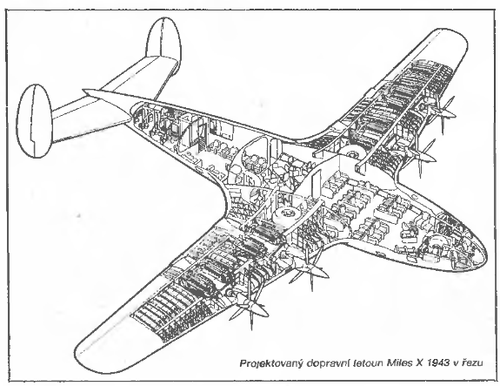

From https://books.google.com/books?id=M3NhrPVyQiIC


Attachments

  • miles x cutaway.png
    miles x cutaway.png
    1.3 MB · Views: 209

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

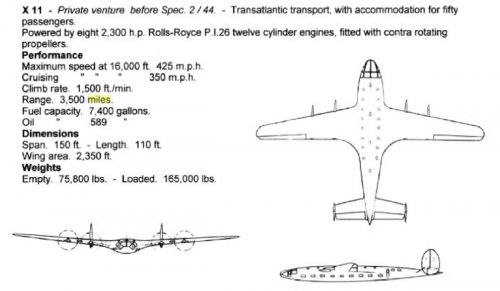

Hi X11. Where are radiators?

https://books.google.co.jp/books?id=-zKTAgAAQBAJ&pg=PA73&lpg=PA73&dq=Miles+M.58+twin+boom+fighter&source=bl&ots=izgrRJdcrD&sig=ni7Jli6kwyj-Xhzx2tA3bDjOvCQ&hl=ja&sa=X&ved=0ahUKEwif68KvoOPWAhVFurwKHRpOC_UQ6AEIQzAG#v=onepage&q=Miles%20M.58%20twin%20boom%20fighter&f=false

https://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=8088.0;attach=578184;image

http://museumofberkshireaviation.co.uk/html/research/m26x.htm

X.11 Heavy Bomber (X.12?) ?— as X.11 but provision for 10-ton bomb, two cannons in armoured remote-control dorsal turret, 2 m/guns in retractable ventral turret.
https://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=8088.0;attach=519547;image


Attachments

  • Miles_X11.jpg
    84.6 KB · Views: 91
  • X11.jpg
    101.1 KB · Views: 88
  • x_transport_m26.pdf
    134.5 KB · Views: 19

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

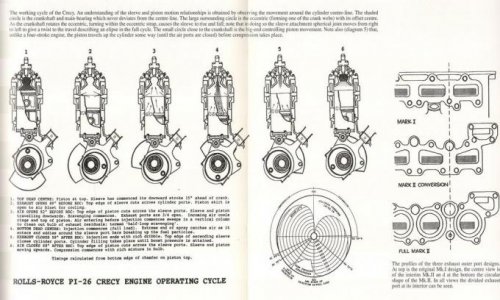

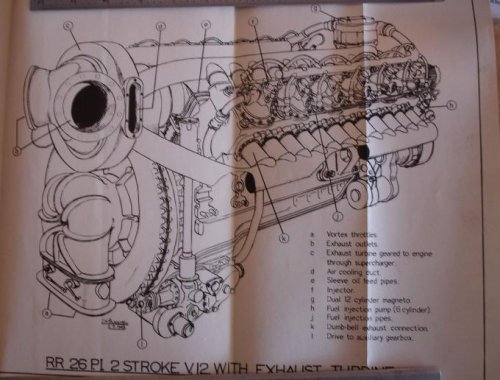

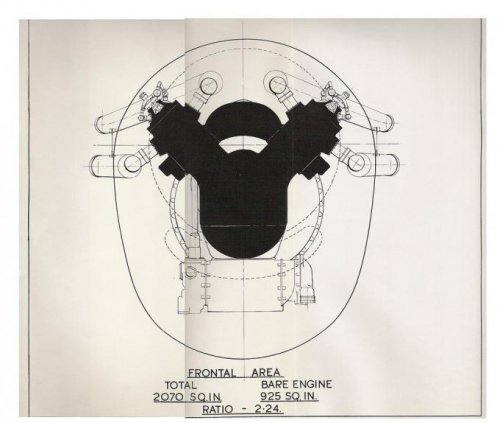

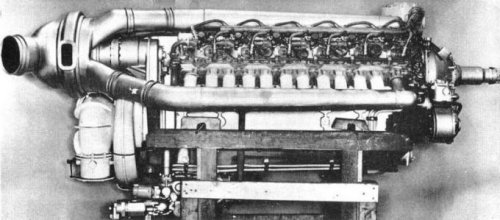

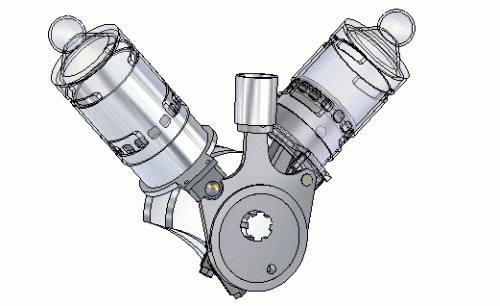

Hi! Interesting Rolls Royce Crecy engine. Bottom picture move. ;)
http://alternathistory.com/aviatsionnyi-dvukhtaktnyi-dvigatel-rolls-royce-crecy-velikobritaniya


Attachments

  • Rolls-Royce_Crecy.gif
    337.5 KB · Views: 77
  • Rolls-Royce_Crecy-08-680x408.jpg
    62 KB · Views: 64
  • Rolls-Royce_Crecy-07-680x574.jpg
    41.6 KB · Views: 63
  • Rolls-Royce_Crecy-06-680x516.jpg
    57.5 KB · Views: 68
  • Rolls-Royce_Crecy-05-680x325.jpg
    56.8 KB · Views: 69
  • Rolls-Royce_Crecy-01-680x299.jpg
    42.6 KB · Views: 86

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Hi!

Russian site. Please try auto translator.
http://alternathistory.com/proekty-samoletov-x-serii-kompanii-miles-aircraft-proekty-x11-x13-velikobritaniya

Can see radiator cooling air intake located between inboard and outboard propeller?


Attachments

  • Miles_X11_Project-03-680x729.jpg
    39.1 KB · Views: 96
  • Miles_X11_Project-01-680x454.jpg
    316.2 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,980

Attachments

  • 1.png
    167.3 KB · Views: 32
  • 2.png
    111.2 KB · Views: 17
  • 3.png
    111.2 KB · Views: 15
  • 4.png
    134.9 KB · Views: 14
  • 5.png
    59.8 KB · Views: 20
