Miles M58 and Martin Baker MB5 Help please

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Hi again
apologies but I am seeking help yet aggain.
If any one can help I will be very grateful.

I am looking for 3-view drawings/refs of the
Miles M58 mixed jet/prop

and the

Martin Baker MB5
to develop a profile of the twin boom/twin engine fighter.
I understand it would have had parts from or similar to the MB5.

Many thanks
Peter
::)
PS: Miles M22A question. The turretted version. Would the turret have been placed just behind the cockpit similar to the BP Defiant?
Again many thanks.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
MB5


Attachments

  • Escanear0001.jpg
    144.4 KB · Views: 502
  • Escanear0002.jpg
    141.2 KB · Views: 433
  • Escanear0003.jpg
    136 KB · Views: 409

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

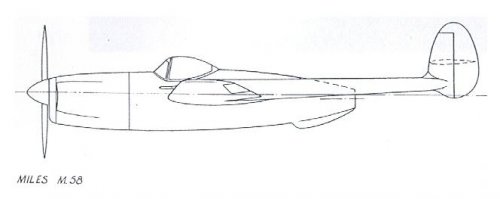

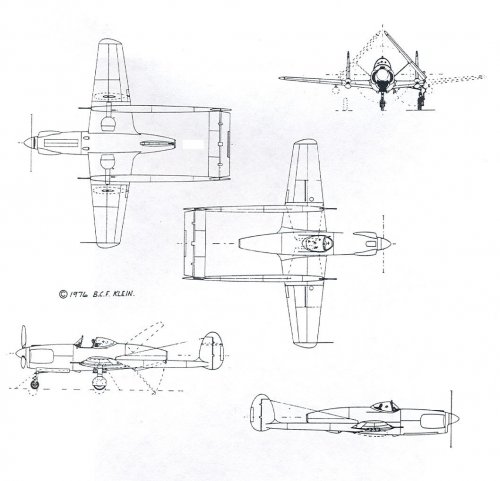

Miles M.58
From B.C.F.K. Publications by Bernhard Klein , via Chuck Davis.


Attachments

  • Escanear.jpg
    94.2 KB · Views: 482

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
I've never seen the M58 before. Doesn't anybody have any specifications/history of the aircraft they could direct me to?


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,882
Reaction score
1,174
What was the planned tubroprop?

I've seen an artists impression which seemed to have intakes on the inner wings and a chin intact. I believe the M.58 was a carrier-based fighter bomber.

Only two wing cannon seems lightweight for a fighter of the late 1940s.


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
What would I do without you all?
...struggle no doubt.
Many many thanks once again.



Cheers
Peter
;D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

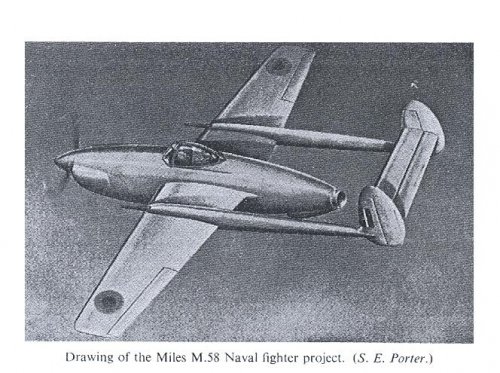

M.58
From "The British Fighter since 1912" by Peter Lewis , Putnam Publishers.London
Single seat carrier fighter
Span (App) 36 ft.,Lenght (app) 32 ft.
Engines ,piston of 500 hp and Power Jets 917 kg thrust
Estimated Max Speed 463 mph
Proposed armament two 20 mm Hispano cannons in tailbooms


Attachments

  • Escanear0002.jpg
    14.2 KB · Views: 62
  • Escanear0001.jpg
    96.1 KB · Views: 58
  • Escanear0002.jpg
    14.2 KB · Views: 56
  • Escanear0001.jpg
    96.1 KB · Views: 57
  • Escanear0002.jpg
    14.2 KB · Views: 99
  • Escanear0001.jpg
    96.1 KB · Views: 289

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
The turretted version ?
My opinion here...


Attachments

  • Escanear.jpg
    184.6 KB · Views: 66

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Thanks Justo.
That's what I imagined or hoped let's say.

Is that the turretted Mossie in the pic?

Cheers
Peter
;D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863
Yes

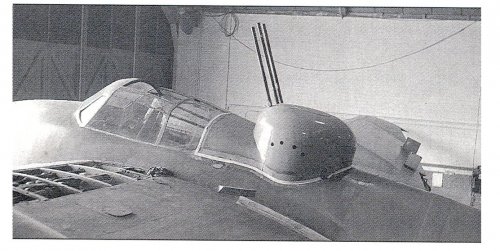

is a mock-up Bristol four gun turret fitted behind the cockpit of Mosquito W4050 , august 6,1941


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74

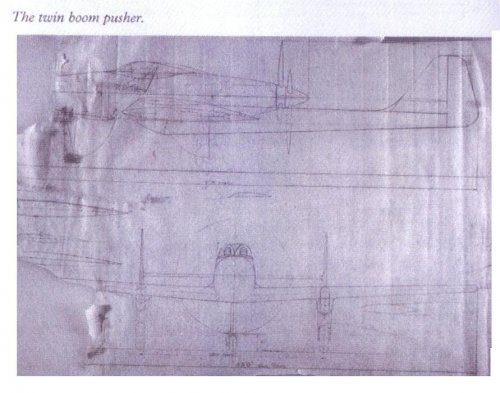

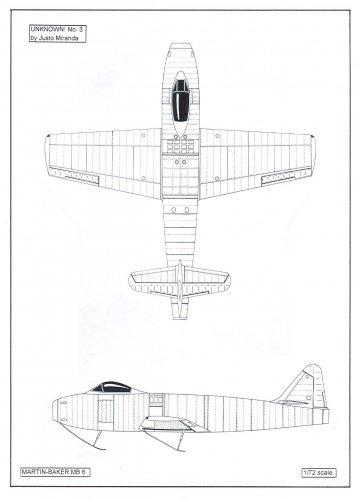

For the Martin-Baker design, I assume you mean this one?

From Martin's biography by Sara Shabnam.


Attachments

  • MBproj001.jpg
    70 KB · Views: 216

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

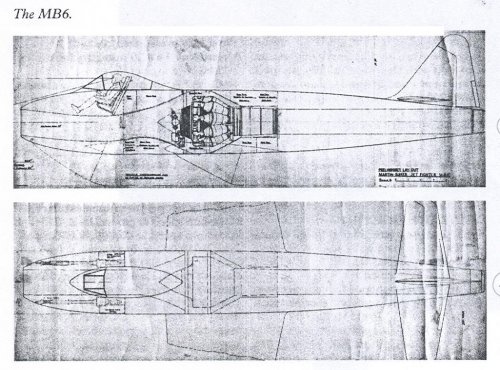

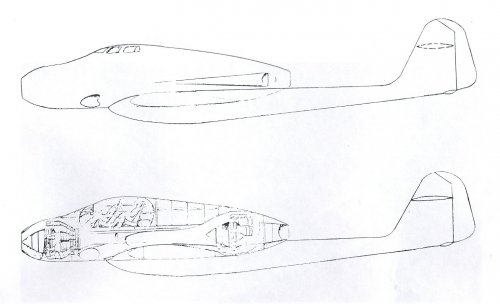

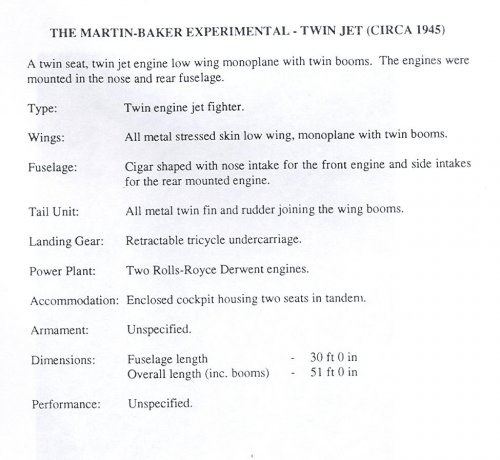

Some additional info (post 1)


Attachments

  • Escanear0003.jpg
    94.8 KB · Views: 121
  • Escanear0002.jpg
    99.7 KB · Views: 156
  • Escanear0001.jpg
    479.9 KB · Views: 106

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

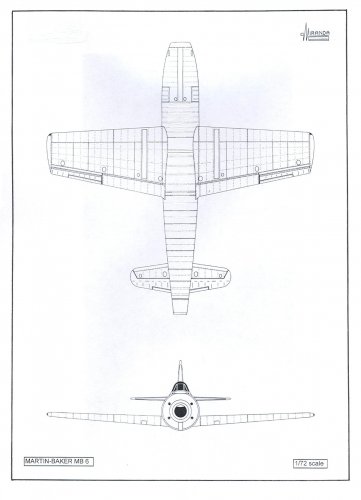

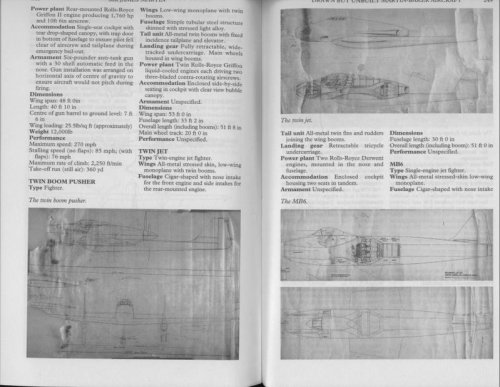

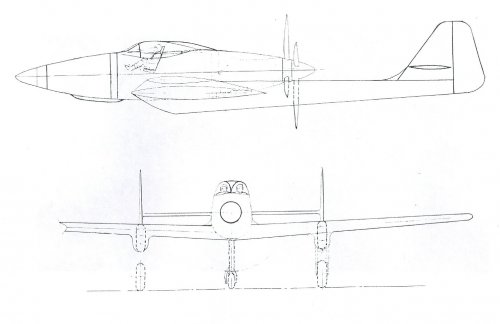

Some additional info (post 2)
Via Linzi Mumford


Attachments

  • Escanear0001.jpg
    98 KB · Views: 112
  • Escanear0002.jpg
    82 KB · Views: 155
  • Escanear0003.jpg
    125.4 KB · Views: 138

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

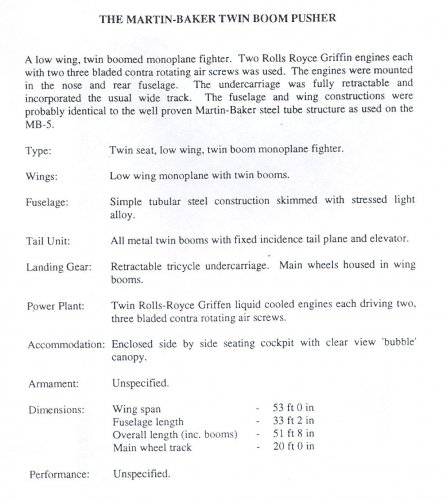

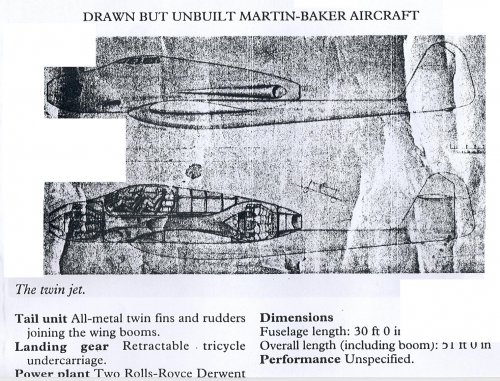

Some additional info (post 3)
Via Tony Buttler


Attachments

  • Escanear0007.jpg
    269.9 KB · Views: 112
  • Escanear0006.jpg
    131.6 KB · Views: 124
  • Escanear0005.jpg
    145.5 KB · Views: 157
  • Escanear0004.jpg
    199.3 KB · Views: 110

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Many thanks Red Admiral and Justo.

Great stuff as always.

Cheers
Peter
;D


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,882
Reaction score
1,174
I'm still mystified over one point.

I thought the M.58 was to have a turboprop. On this I'm wrong since you guys have dug of info that suggests a 500hp piston engine. Which type would it have been? As far as I know there was no such inline engine in British production in the late 1940s. Would it have been a new type or maybe the Armstrong Siddeley ASP would have been fitted?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
The type of piston engine is not specified in the M.58
chapter from 'Miles Aircraft since 1925'
Only the jet engine , Powerjets W.2/700, same engine as planned for the M.52.

Specs. of this in egine already given by Justo.
With the two engines a flight duration was expected of seven hours.
Guns in the forward end of the tailbooms : two Hispana-Suiza,no more info about.

Ministry of Aircraft Production suggested 1000hp. engine to Georges Miles
but this was seen as a retrogade step since the 500hp engine was all that was needed
for long duration patrol at low speed.

Long arguments with the Ministry followed but proved fruitless.
Therefore this interesting and novel 1943 project was never built...

Summary based on the text in :Miles Aircraft since 1925 by Don.Brown.Putnam.London.1970.


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Hi again
One more question please.

On the MB Twin Boom, where would the oil cooler/radiator intakes be positioned?
On the MB5 there is that large scoop under the rear half of the fuselage and wondered where or how a similar arrangement might be installed with there being two engines?

Many thanks.
Peter
;D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

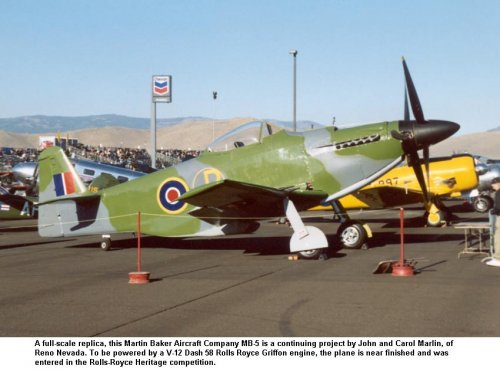

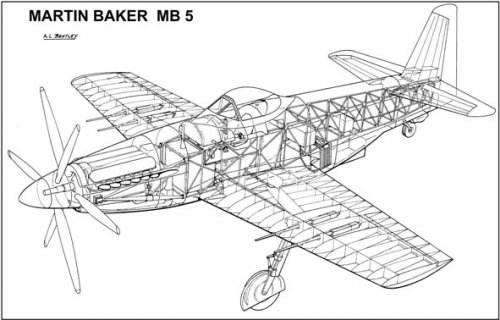

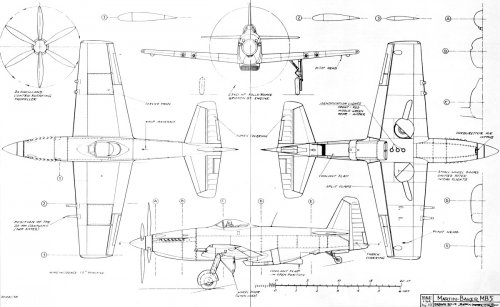

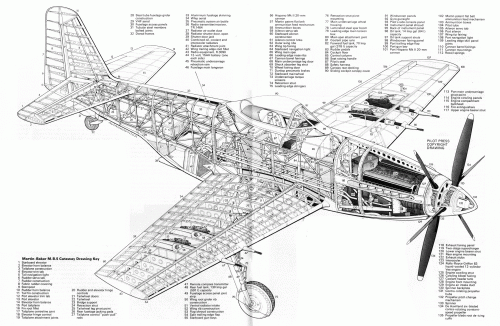

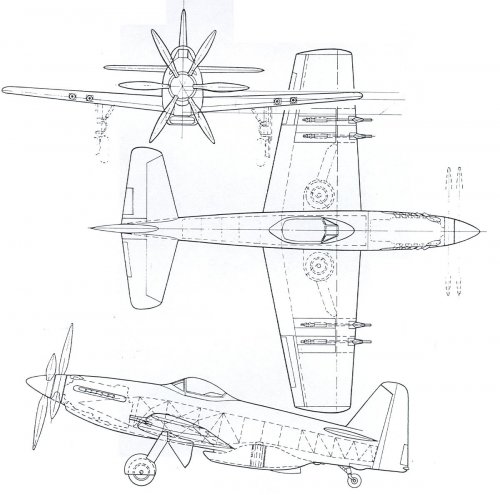

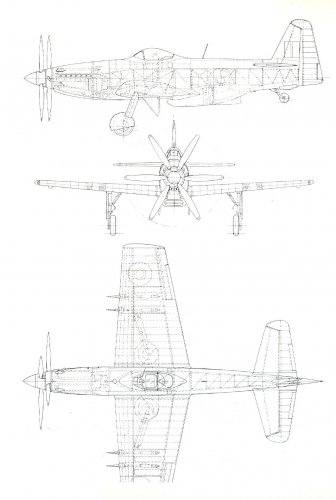

Hi! MB5.
http://www.airwar.ru/image/idop/fww2/mb5/

http://www.airplanesandrockets.com/airplanes/martin-baker-mb5-1971-aam.htm

https://www.albentley-drawings.com/drawings/british-aircraft/martin-baker-mb5/martin-baker-mb5/

https://www.youtube.com/watch?v=81CqbmO_vK8


Attachments

  • mb5-2.gif
    2.7 MB · Views: 226
  • martin-maker-mb5-plans-may-1971-aam-1200x736.jpg
    172.5 KB · Views: 139
  • MB-5.jpg
    52.4 KB · Views: 125
  • 4sdMB5.jpg
    68.7 KB · Views: 114

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Hi,

I suggest that,this topic transfer to User Artwork section.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,882
Reaction score
1,174
hesham said:
Hi,

I suggest that,this topic transfer to User Artwork section.

I think it would be more profitable for a moderator to split the M.58 and M.B.5 posts here and merge them with their respective threads elsewhere.
