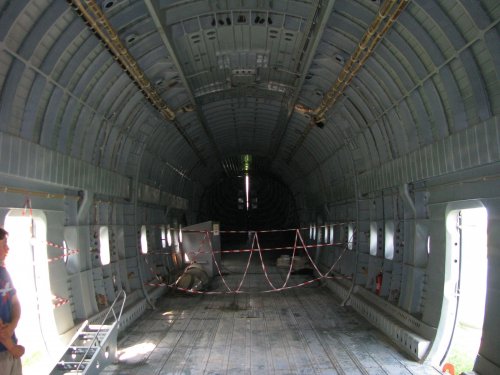

Not often seen stuff. Looking aft the whole length from the crew compartment...


Attachments

  • IMG_0302 [1600x1200].JPG
    IMG_0302 [1600x1200].JPG
    418.7 KB · Views: 259

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
Looking forward. Note super-complicated control linkage post on the pilot's compartment wall and the ceiling.


Attachments

  • IMG_0314 [1600x1200]-.jpg
    IMG_0314 [1600x1200]-.jpg
    448.3 KB · Views: 271

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

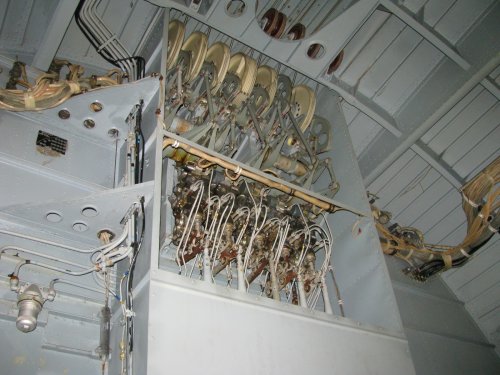

Linkage post in extra detail.


Attachments

  • IMG_0296 [1600x1200].JPG
    IMG_0296 [1600x1200].JPG
    474 KB · Views: 237

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

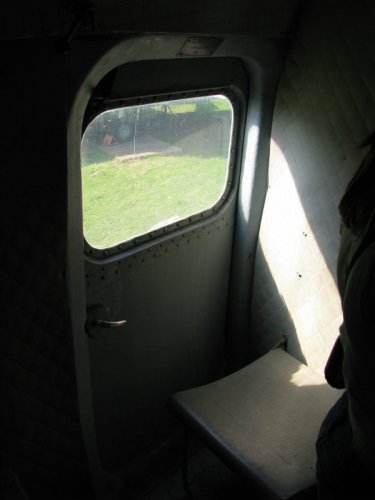

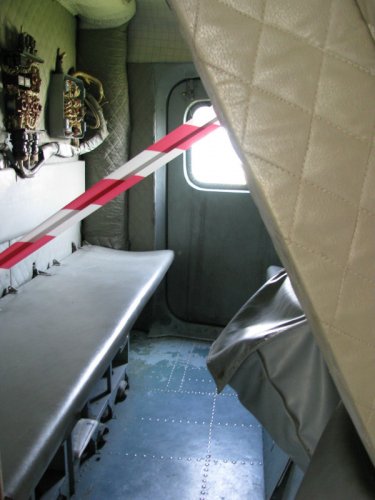

Kind of crew compt. entrance lobby with a doors on both sides - port and starboard side


Attachments

  • IMG_0318 [1600x1200]-.jpg
    IMG_0318 [1600x1200]-.jpg
    111.9 KB · Views: 189
  • IMG_0319 [1600x1200]-.jpg
    IMG_0319 [1600x1200]-.jpg
    67.1 KB · Views: 189

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
Looking from the lobby to the crew station


Attachments

  • IMG_0320 [1600x1200]-.jpg
    IMG_0320 [1600x1200]-.jpg
    439.9 KB · Views: 120

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

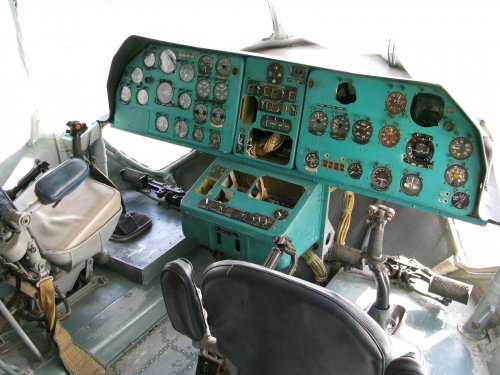

Crew station itself.


Attachments

  • IMG_0327 [1600x1200].JPG
    IMG_0327 [1600x1200].JPG
    439.8 KB · Views: 83

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

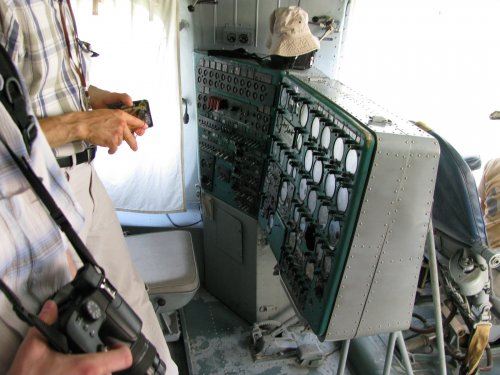

Flight engineer has it's own kingdom of dials


Attachments

  • IMG_0325 [1600x1200].JPG
    IMG_0325 [1600x1200].JPG
    375.5 KB · Views: 58

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
Moving upstairs to the navigator's throne


Attachments

  • IMG_0365 [1600x1200]-.jpg
    IMG_0365 [1600x1200]-.jpg
    119.8 KB · Views: 51
  • IMG_0351 [1600x1200]-.jpg
    IMG_0351 [1600x1200]-.jpg
    379.3 KB · Views: 80

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

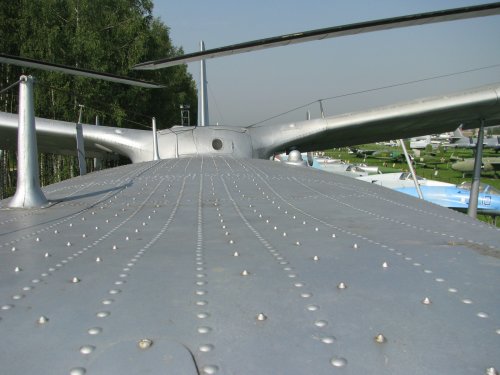

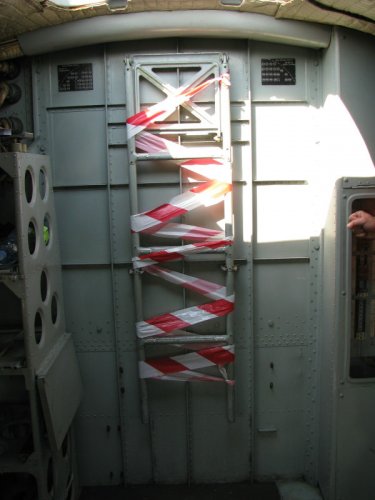

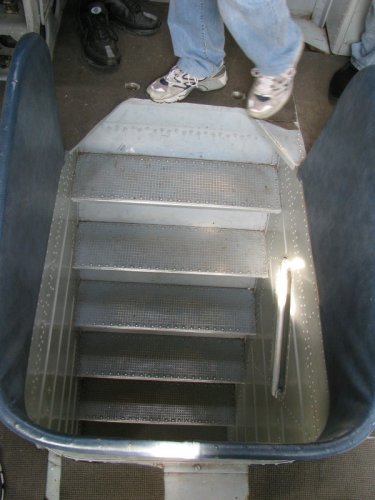

...And still you can go to the next floor - to the fuselage top...


Attachments

  • IMG_0367 [1600x1200]-.jpg
    IMG_0367 [1600x1200]-.jpg
    97.1 KB · Views: 52
  • IMG_0377 [1600x1200].JPG
    IMG_0377 [1600x1200].JPG
    373.5 KB · Views: 72

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,393
Reaction score
425
Boy the thing is cavernous!
the thing is almost the right size to carry elements of FCS (hmmm...interesting thought ;))
I'm surprised the cockpit is not cordoned off. In the US there wouldn't be much left of the instruments after a truckload of fifth graders had passed by on a school trip.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

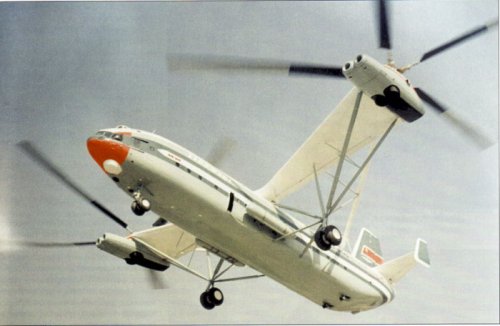

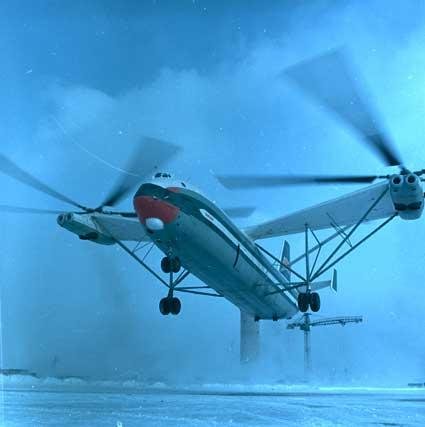

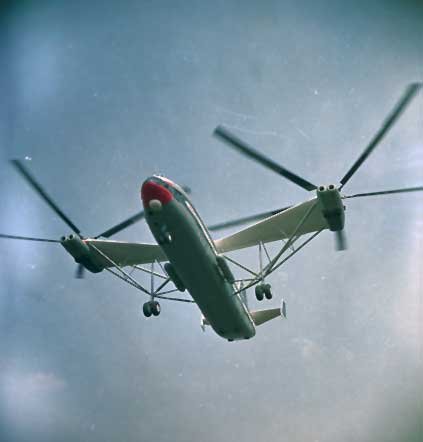

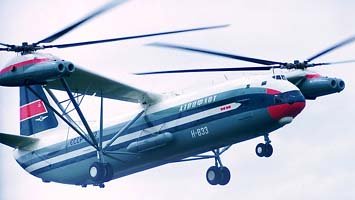

Yes. This is second flight vehicle at Monino AF Museum.
First one is stationed at Mil' Design Bureau facilities in Panki, nearside Moscow - surprisingly, in much worse condition.

Found a short 20 min documentary for those who are interested
http://rutube.ru/tracks/112018.html?v=a151772a890e59f2a2f221f0fab6bc31


Attachments

  • mi12-i.jpg
    27.7 KB · Views: 71
  • post-9010-1180532970.jpg
    54.4 KB · Views: 82
  • 72216.jpg
    17.5 KB · Views: 77

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
1). Because the target objective - transporting ICBMs - was no of use to the end of RD&TE as basing concepts of strategic forces were changed dramatically.
2). Number of ICBMs projects designed along for V-12 carriage, went out to be [highly] unsuccessful.
3). Further development of highly complicated V-12 type would lead to stagnation of another, much more perspective project - Article 90, future Mi-26

http://www.mi-helicopter.ru/rus/index.php?gcat=1&photo=139

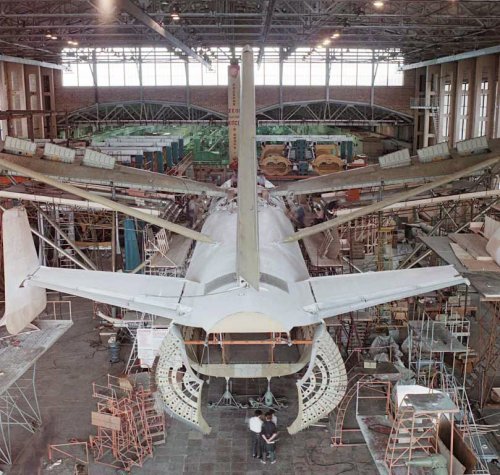

V-12 at Panki http://maps.google.co.uk/maps?f=q&hl=en&geocode=&q=Lyubertsy-Panki&sll=53.800651,-4.064941&sspn=7.115317,22.587891&ie=UTF8&t=h&ll=55.66719,37.932143&spn=0.00219,0.004828&z=18&iwloc=addr


Attachments

  • 4603674B.jpg
    10.5 KB · Views: 56
  • V-12_shop_Panki.jpg
    188.9 KB · Views: 81

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
120
Website
sites.google.com

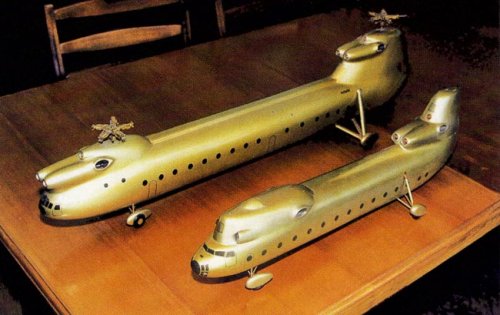

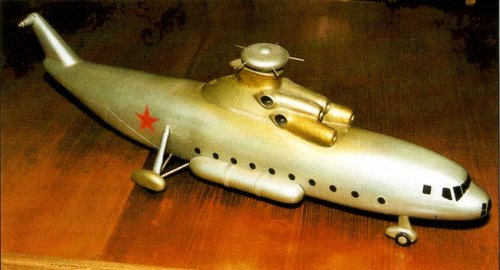

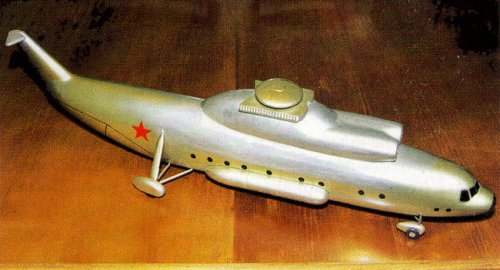

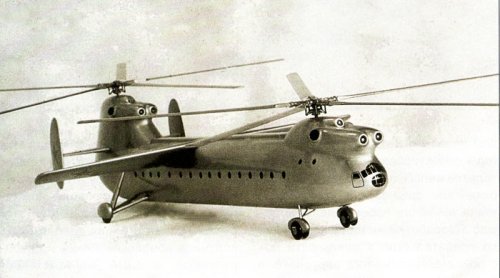

Might be a little offtopic, but here are some early concepts and project options for the V-12 "Homer":


Attachments

  • 43EF9182.jpg
    57.3 KB · Views: 76
  • 43EF920E.jpg
    78.2 KB · Views: 67
  • 43EF91FA.jpg
    51.1 KB · Views: 78
  • 43EF91C1.jpg
    52.7 KB · Views: 81

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,634
http://www.youtube.com/watch?v=hdiXJZjZ5Cs

http://www.youtube.com/watch?v=2v9bwCnRHDI


http://en.wikipedia.org/wiki/Mil_V-12


EDIT: Overlooked this topic somehow: http://www.secretprojects.co.uk/forum/index.php/topic,5082.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
Stingray™ said:
Might be a little offtopic, but here are some early concepts and project options for the V-12 "Homer":


Hi;

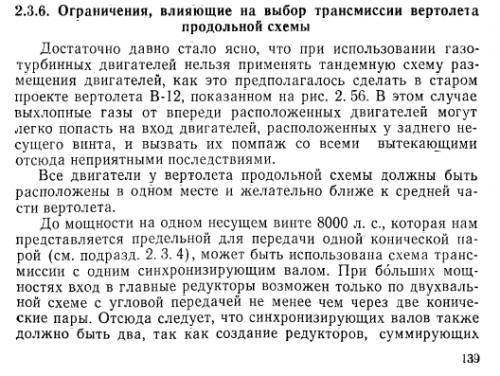

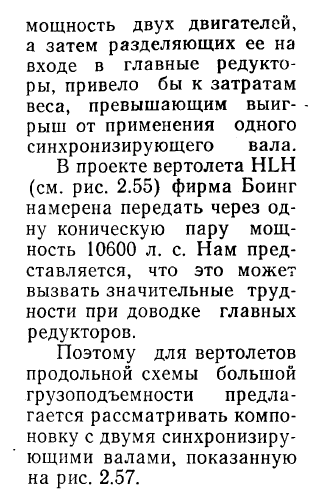

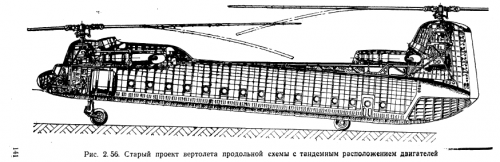

here is an early concept for Mil V-12 in details.


Вертолеты. Выбор параметров при проектировании - 1976


Attachments

  • 1.png
    84.2 KB · Views: 135
  • 1-1.png
    68.9 KB · Views: 127
  • 1-2.png
    44.2 KB · Views: 119

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
24
I'm intrigued as to how the ICBM transportation mission was to be accomplished.

Several Atlas missiles had to be written-off and scrapped after being transported in C-133, having suffered too much vibration during the flights. Was the V-12 particularly smooth for a helicopter? If not then I fear the same outcome.

Or perhaps that was accepted as the cost for the capability it offered.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,550
Reaction score
1,249
View: https://youtu.be/yOApFeEgHcE

Mustard said:
What Happened to The Largest Helicopter Ever Built?
[...]
The Soviets built some of the largest and most technically advanced helicopters in the world. By 1957, the Mil Mi-6 had already emerged as the largest helicopter ever built, far out-sizing helicopters built in the west. But for the Soviet Union, the need to build a helicopter far larger than even the Mi-6, soon became a matter of national security.
By 1960, American U-2 spy planes conducting high altitude reconnaissance flights over the Soviet Union were beginning to uncover the location of the country’s Intercontinental Ballistic Missile (ICBM) sites. These first generation R-7 Semyorka ICBMs were being deployed throughout the Soviet Union as fast as possible, but their enormous size and weight meant they could only be delivered to launch sites using trains. The need to build rail lines to launch sites made the ICBM sites easy to spot in U.S. reconnaissance photos.
Keeping the missile sites hidden was a matter of national security. The Soviets devised a bold plan to airlift ICBMs into the vast and remote Soviet wilderness, thereby eliminating the need for rail lines or even roads. This would make it virtually impossible for spy planes to track down missile sites hidden in over twelve million square kilometres of forests. But to make the plan work, the Soviets would need to build a helicopter with at least twice the lifting power of the Mi-6.
Design studies for the new enormous helicopter began in 1959, with the Soviet Council of Ministers formally approving development in 1962. But development of such an ambitious helicopter would progress slowly, as various configurations (single rotor, tandem and transverse) were studied. Construction of testing-rigs, transmission systems and mock-ups began in 1963, and construction of the first prototype started in 1965. The new prototype would be designated as the Mil V-12 (with plans to designate the production version as Mil Mi-12). The first test flight in 1967 ended in failure as the V-12 crashed back to earth sustaining minor damage due to oscillations caused by control problems. A second test flight a year later proved the helicopter's airworthiness.
The V-12 would go on to break numerous world records for lifting capacity, but it’s fate had already been sealed by a rapidly changing strategic situation. The introduction of spy satellites, and the development of new lighter and mobile ICBMs made hiding nuclear missiles strategically irrelevant.
In 1970, the Soviet Air Force refused to accept the V-12 into state acceptance trials, due to a lack of need. Although a second V-12 prototype would be constructed in 1972, there were simply too few scenarios that would require such a large and complex helicopter. In 1974 development of the V-12 was cancelled and the Mil Design Bureau shifted efforts to designing the Mil Mi-26, the largest helicopter to enter service. [...]
Please also notice the upcoming video about the MiG-25 Supersonic Business Jet project Ye-155 just before the credits. :cool:

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,313
Reaction score
6,305
That Homer, like its Simpsons namesake, was truly overweight... d'oh, d'oh, d'oh, as would say Homer nemesis Frank Grimes.

More seriously, the video is excellent. Never realized before the V-12 true purpose: hidding ICBMs in the countryside, away from those pesky U-2s. Alas, Corona defeated it. And then, trucks defeated Corona.

Last edited:

Flyaway

ACCESS: Above Top Secret
Senior Member
Joined
Jan 21, 2015
Messages
7,013
Reaction score
6,020
That Homer, like its Simpsons namesake, was truly overweight... d'oh, d'oh, d'oh, as would say Homer nemesis Frank Grimes.

More seriously, the video is excellent. Never realized before the V-12 true purpose: hidding ICBMs in the countryside, away from those pesky U-2s. Alas, Corona defeated it. And then, trucks defeated Corona.
You never come across that channel before?

They do some good mini-documentaries on there.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,313
Reaction score
6,305
Youtube videos bore me. I have too short an attention span to stare at a video for 10 minutes.
