Vought VMX (V-600): 1983 Naval Attack Aircraft Study

[overscan (PaulMM)]

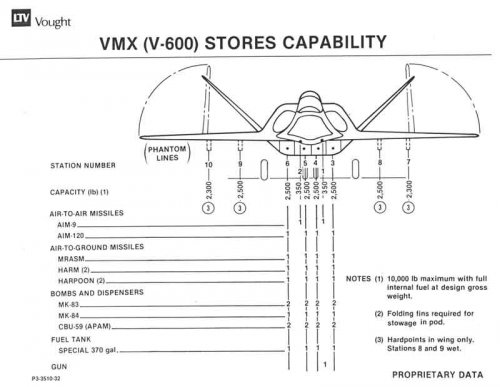

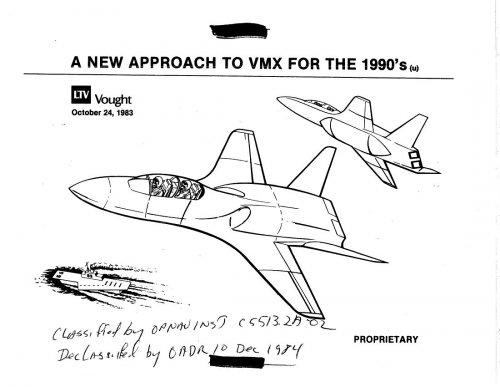

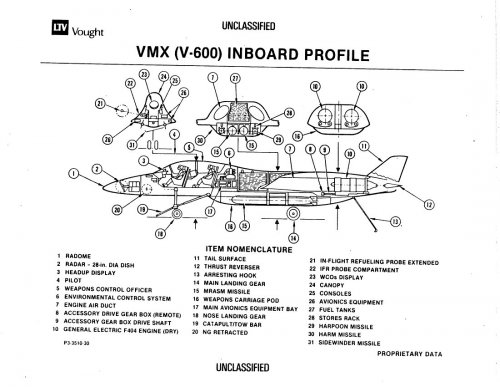

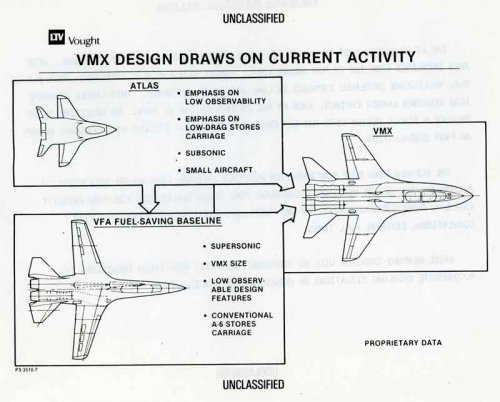

By far the highest V-xxx number in the main sequence I've seen, this is from 1983. Looks a whole lot like some artist's impressions of the ATA (A-12). Draws on the Vought Atlas project.

Scans by Mark Nankivil, PDF previously posted with the ATLAS stuff in SABA topic.



[overscan (PaulMM)]

Speculative A-12 artwork from another topic:

https://www.secretprojects.co.uk/threads/us-navy-ata-advanced-tactical-aircraft-program-a-12-avenger-ii-its-rivals.1169/page-2#post-50525



[AeroFranz]

Good stuff!



[pedrospe]

great findings overscan.


regards

Pedro



[bagera3005]

cool



[Steve Pace]

Far-out overscan! -SP



[XP67_Moonbat]

Overscan! Wow, way to dig up my childhood, dude! I remember that picture.



[sferrin]

Speculative A-12 artwork:

That looks straight out of a Bill Gunston book from the late 80s.



[Bill S]

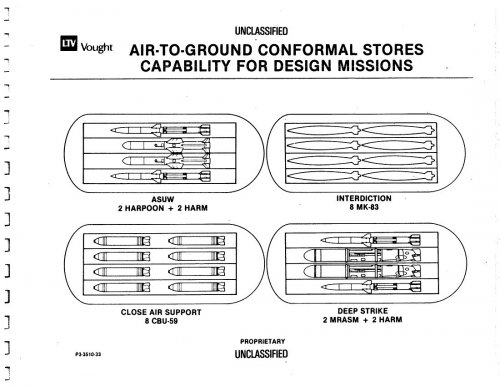

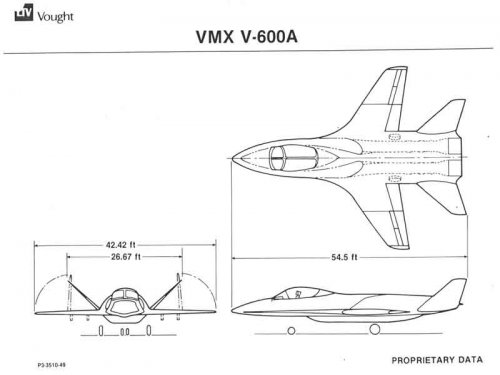

Here are a few more slides of V-600/V-600A
from the Vought Archives.



[XP67_Moonbat]

The book is STEALTH! by Doug Richardson.



[LowObservable]

Looks like this one:

https://www.secretprojects.co.uk/threads/aeronautical-technology-2000-a-projection-of-advanced-vehicle-concepts-1985.1041/#post-8311
