Mig PAK FA

[werewolf0001]

PAK FA from RSK Mig



[frank]

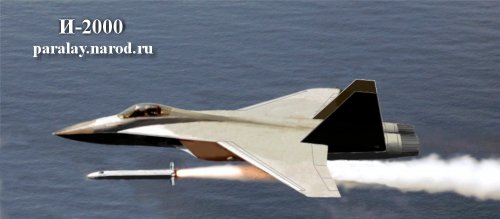

The MiG 2000 concepts go back to the mid 1980s. IIRC, the MiG 2000 was created by General Dynamics.

PAK FA from RSK Mig



[flateric]

Paralay is one the forum members. Everyone here knows his site. Are you going to repost all contents here?

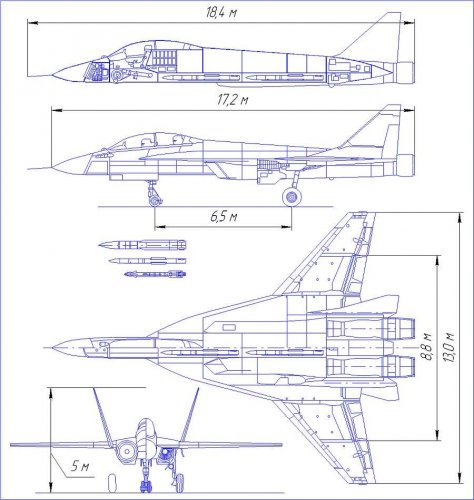

First three pictures is not PAK-FA, these are GD prognosis of how 5 gen Soviet fighter would look like. was first time posted at this forum, reposted at Paralay site, and you want us to wow on your discoveries?



[Sundog]

I already posted a thread here on that design, and that MiG-2000 design was by General Dynamics, as Frank stated, not the Russians. That was one of the designs they came up with, based on what the Russians were studying for their next fighter, in order to aid the design of the ATF. You can see in planform, it wasn't far off from the MiG 1.42/1.44, although they definitely got the weight class wrong.



[paralay]



[flateric]

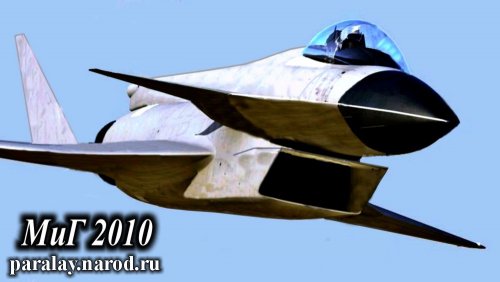

Another fake it is, Sasha.



[Avimimus]

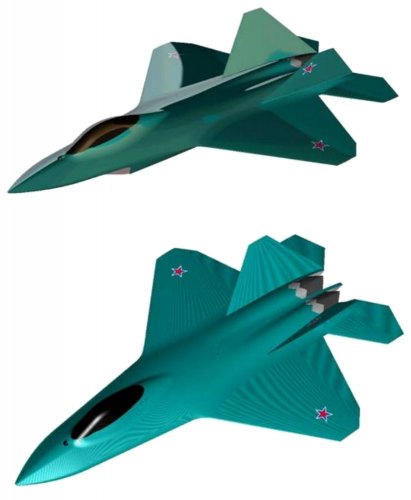

It is funny how F-22 centric most of the concept art is. I personally side with the tailless NPO Saturn leak.

The MiG 2000 concepts go back to the mid 1980s. IIRC, the MiG 2000 was created by General Dynamics.

You know... that actual explains a lot (regarding mystifying layout etc.)
