McDonnell Douglas & Boeing canard rotor wing (CRW) concepts

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
DARPA Opts To End Boeing-Led X-50A Dragonfly UAV Effort
By Jefferson Morris/Aerospace Daily & Defense Report
09/11/2006 09:35:13 AM

The Defense Advanced Research Projects Agency has opted to end the X-50A Dragonfly unmanned aerial vehicle (UAV) program, which was attempting to pioneer a new type of helicopter capable of stopping its rotor in flight and cruising as a fixed-wing jet until it lost both of its flight prototypes in crashes.

Boeing, the prime contractor for the $51.8 million effort, will spend the rest of the program funds preparing a final study that will "draw together final ideas on the potential value of the stopped rotor concept," DARPA spokeswoman Jan Walker told The DAILY. The study should be completed by late fall.

Dragonfly never got as far as a "conversion" flight, which would have seen the aircraft take off as a helicopter, stop its rotor in mid-air for forward cruise, then convert back to a helicopter for landing.

After its first crash in March 2004 at Yuma Proving Ground in Arizona, the aircraft resumed flight in late 2005 with its only spare and got as far as slow forward flight during testing through March 2006. Then, 18 minutes into an envelope expansion flight on April 12, the second Dragonfly lost control and was damaged beyond repair (DAILY, April 21).

A review concluded that the aircraft was lost because of insufficient low-speed control authority, according to DARPA. Fuselage aerodynamic pitch moment for the Dragonfly was very sensitive to airspeed and wake strength. During its final flight, the impact of the rotor's wake on the fuselage caused the Dragonfly to pitch upward, and the flight control system was unable to recover.

Like a tiltrotor, the Dragonfly was intended to combine the operational flexibility of a rotorcraft with the speed of a fixed-wing aircraft. It featured an unusually wide rotor that operated on the same principle as a rotating lawn sprinkler. Exhaust from the aircraft's turbofan engine was directed up the rotor assembly and through outlets at the rotor tips to cause the rotor to spin.

For fixed-wing flight, the exhaust was directed out the aircraft's tail, causing the rotor to stop spinning and act as a wing, while additional lift was provided by the aircraft's fuselage and canards. The concept was called Canard Rotor/Wing (CRW).

Control problems related to the Dragonfly's unique design dogged the program from the beginning, causing the aircraft to drift unexpectedly during initial hover tests. The first prototype had performed only two brief hovers before the first crash in March 2004.

After a lengthy investigation, that mishap was linked to a cross-coupling control phenomenon intrinsic to the aircraft's design. The problem was believed solved by modifications to flight software.

Once the concept was proven, Boeing had hoped to market CRW aircraft to the military, and discussed with the Marine Corps the possibility of unmanned CRW aircraft serving as escorts for the V-22 Osprey.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
940
In the Osprey article in the last AI was an interesting statement, about the
requests by several congress men and othres to cancel the program after the
crashes : In future another rotary wing machine, which suffered the same number
of crashes, as the V-22, will be used to fly a well known person ....
The UH-101, the new helicopter for the US president !

Honi soit qui mal y pense ! ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Hi,

a new VTOL canard wing design from Boeing.


Attachments

  • hybrid.jpg
    74.3 KB · Views: 344

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540

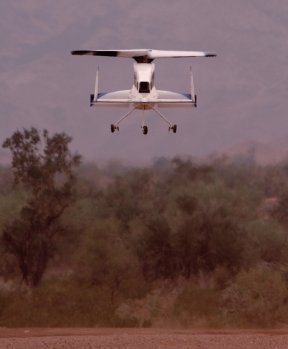

Alas hesham, no. The Canard Rotor Wing program being conducted by Boeing and DARPA is dead. After crashing two prototypes they pulled the plug on further funding. I have attached a picture of one of the prototype in flight.


Attachments

  • DragonflyFlight.jpg
    60.9 KB · Views: 308

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5

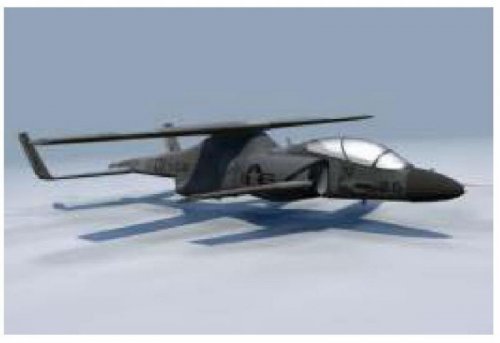

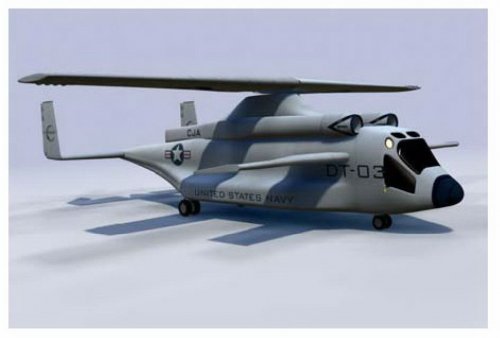

Sorry these are such low resolution, but they come from a paper given at the AIAA's 2003 Centenniel of Flight conference in Dayton. They illustrate Boeing's thoughts on operational applications of the canard rotor wing (CRW) concept for a high-speed, stopped-rotor, V/STOL aircraft. DARPA cancelled the X-50A Dragonfly programme after both unmanned subscale demonstrators crashed while still in hover testing, but apparently there is new interest in the CRW (but not money yet) from an undisclosed source.


Attachments

  • Boeing CRW transport.JPG
    Boeing CRW transport.JPG
    61.3 KB · Views: 679
  • Boeing CRW attack.JPG
    Boeing CRW attack.JPG
    46.2 KB · Views: 742

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

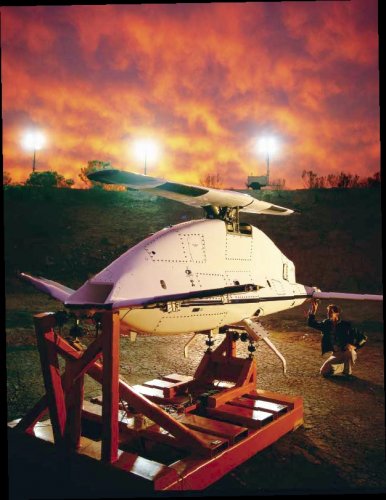

BTW, as we got beautiful pics from CammNut, probably I also can add something to pictorial history of so short-lived Dragonfly (X-50 pics are quite a few so far)


Attachments

  • boedragonfly.jpg
    343.7 KB · Views: 460
  • boedragonfly1.jpg
    116.8 KB · Views: 275

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

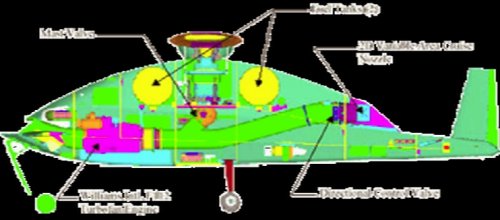

Some more - actually, with McDonnell Douglas roots - CRW concepts, plus Boeing's factory model of evolved X-50 from Chad Slattery collection.


Attachments

  • x-50a.jpg
    140.5 KB · Views: 285
  • CRW_2.jpg
    59.9 KB · Views: 283
  • imageNSQ.jpg
    13.9 KB · Views: 332
  • a498102.jpg
    61.5 KB · Views: 393

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
I have this on my computer, but no idea where it came from


Attachments

  • CRW03.jpg
    49.2 KB · Views: 391

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,472
Reaction score
202
I have this on my computer, but no idea where it came from

There was an article about the future of aeronautics on Popular Science (I think it was published in 2003, the First Flight Centenary). The pics were published online too at popsci site.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Hi,

does anyone hear about the Boeing X-50B ?.


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
Googling X-50B only produces a mistaken reference to the hypersonic X-51B as the X-50B - the X-51B is to be a version of the X-51A with a different scramjet engine - but that doesn't mean there isn't such a thing


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

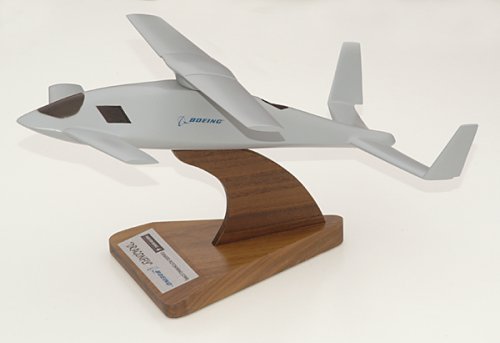

Never heard of it, too. Desktop model shows configuration different from original X-50A, BTW, but X-50B rumors apparently started from one guy mistake at Airliners.Net forum (missed it with X-51 as CammNut said exactly).


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

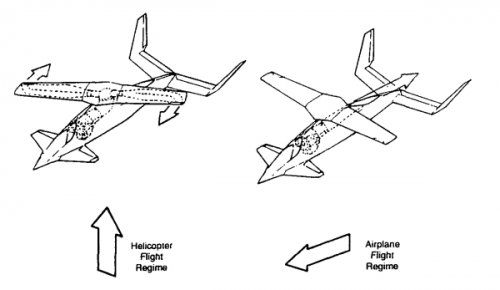

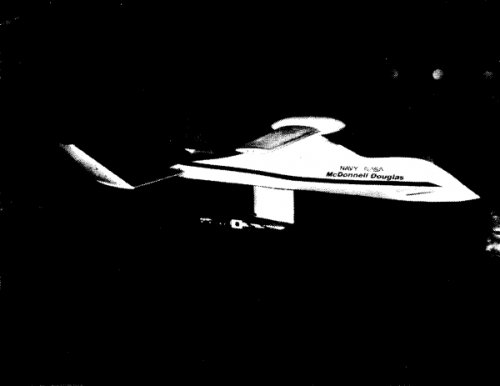

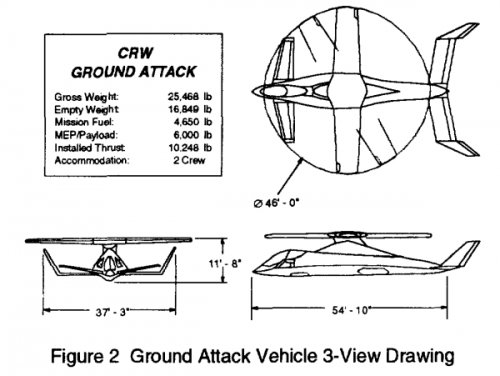

OK, we must always remember that CRW stuff started ca. 1993 in McDonnell Douglas shiny Phantom Works think tank. Here are two concepts, one of it - manned ground attack convertible - is a predecessor of cool artist's rendering shown several posts above, already under Boeing auspices. 1/5 WT model was intensively tested in NASA Ames

FIXED-WING PERFORMANCE PREDICTIONS OF THE CANARD ROTORWING CONCEPT BASED ON WIND TUNNEL TEST RESULTS
Steven M. Bass*, Thomas L. Thompson**, John W. Rutherford***
McDonnell Douglas Helicopter Systems
AIM-95-1887-CP


Attachments

  • crwattack-s.jpg
    87.8 KB · Views: 254
  • crwattack-mdc-ames-s.jpg
    28.9 KB · Views: 176
  • crwuav-s.jpg
    83.4 KB · Views: 162

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

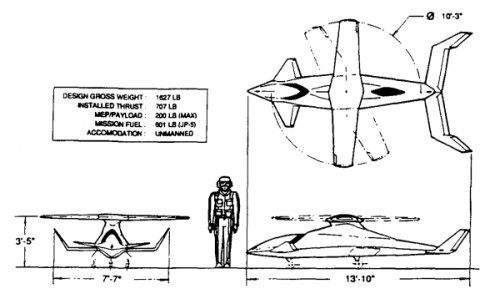

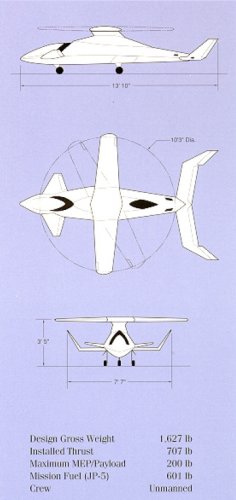

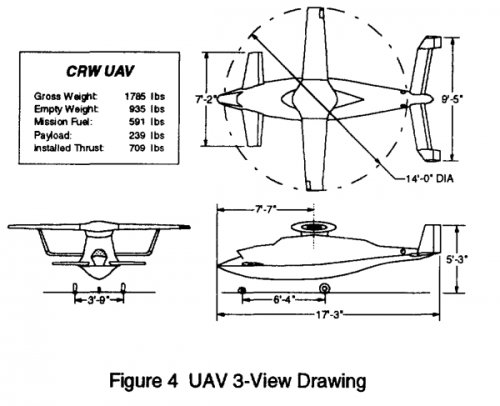

Another UAV CRW concept from Phantom Works (1993)

Canard Rotor/Wing: A Revolutionary High-speed Rotorcraft Concept
J. W. Rutherford, S. M. Bass, and S. D. Larsen
McDonnell Douglas Helicopter Company
AIAA 93-1175


Attachments

  • crwuav2mds93-tr-s.jpg
    44.7 KB · Views: 273
  • crwuav2mds93-3view-s.jpg
    66.6 KB · Views: 279

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,710
Reaction score
3,490
Thank you my dears overscan and flateric,

anther low-drag rotor'wing flap aircraft to Boeing.
http://www.google.com/patents?id=3xx3AAAAEBAJ&printsec=abstract&zoom=4&dq=jane%27s+all+the+world%27s+airplane&as_drrb_ap=q&as_minm_ap=1&as_miny_ap=2007&as_maxm_ap=1&as_maxy_ap=2007&as_drrb_is=q&as_minm_is=1&as_miny_is=2007&as_maxm_is=1&as_maxy_is=2007&num=100#PPP1,M1


Attachments

  • Boeing.JPG
    15.8 KB · Views: 181

Charles Gray

ACCESS: Restricted
Joined
Oct 13, 2007
Messages
36
Reaction score
0
One question, does this mean the CRW concept is dead, or that they're simply planning on taking what they know and moving to another program? given the emphasis on littoral warfare, something like a CRW aircraft would seem very valuable to the navy/marine corps.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
There's not much to know. Both X-50A prototypes crashed so the test program was not completed. What we know now is that it's not very credible concept (yet) so I can't see much ways, how to find additional money to continue in the development.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
I just saw a Boeing video of a CRW Joint Heavy Lift concept. Aaaarrgggh.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
It's torture...can you give a clue of this wunderwaffe sausage?


Charles Gray

ACCESS: Restricted
Joined
Oct 13, 2007
Messages
36
Reaction score
0
Matej said:
There's not much to know. Both X-50A prototypes crashed so the test program was not completed. What we know now is that it's not very credible concept (yet) so I can't see much ways, how to find additional money to continue in the development.

Do you have any links to the problems with the concept? I recall that the X-wing projects of the 1970's were mostly scuttled due to the extreme mechanical complexity of the systems, but what was the major problem with this design?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,393
Reaction score
1,439
Charles Gray said:
Matej said:
There's not much to know. Both X-50A prototypes crashed so the test program was not completed. What we know now is that it's not very credible concept (yet) so I can't see much ways, how to find additional money to continue in the development.

Do you have any links to the problems with the concept? I recall that the X-wing projects of the 1970's were mostly scuttled due to the extreme mechanical complexity of the systems, but what was the major problem with this design?

X-Wing and Canard wing are two different beasts.


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
The CRW demonstrators crashed because of a flow interaction between the rotor and airframe that was considered unique to the X-50. When I spoke to the Boeing folks at AUSA they said "the wing was too small for the vehicle".

Interestingly, the Sirosky folks I talked to said they looked at all their past R&D programmes, including X-Wing, before deciding to start the X-2 advancing blade concept demonstrator. Scarey to think that thing might make a comeback.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,393
Reaction score
1,439
What was wrong with the ABC? Seemed it went fast enough with the turbojets.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
sferrin said:
What was wrong with the ABC? Seemed it went fast enough with the turbojets.

DRAG and blade stiffness. Other than that its great.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Compound helicopters have more excess drag than Gay Pride Day. It's basically an exercise in boosting speed through brute force. X2's about the best you can expect, with complex blade aero and a streamlined hub.


aeroengineer1

ACCESS: Confidential
Joined
Jan 27, 2008
Messages
84
Reaction score
10
I know that this is a little late to the game, but one of my professors was directly responsible for the development of this project. The failure of this project was a direct result of the managers thinking that they knew more than the engineers. Many of the managers of the program saw it as a drain in company funds and wanted to see the program die. They went as far as going to the people that had expressed interest in continuing funding the project telling them that the company was going to discontinue funding. It is sad but true.

Adam

The practical engineer


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
135
yasotay said:
sferrin said:
What was wrong with the ABC? Seemed it went fast enough with the turbojets.

DRAG and blade stiffness. Other than that its great.

Aside from what Yasotay correctly stated, if yo have to hang auxiliary powerplants on it to go fast, that undercuts the whole reason for developing ABC. During the NASA studies on whether to continue working with Tilt-Rotor or ABC, an important fact was noted. When the craft had to be sent to distant sites for testing or demonstration, the crew would climb into the XV-15 and just fly it there. With the XH-59, they loaded it on a train and transported it there, only taking flight after arrival at the site.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
Vibration at higher speeds and excess fuel consumption were other significant issues for the original XH-59 effort. I was told by one of the test pilots that flew the thing that it was very fatiguing with the significant noise and vibration. I really hope that technology has will make ABC viable now. CRW on the other hand will take a lot more work. As Adam mentioned there was not a lot of enthusiasm for the effort even at Boeing. I went to a briefing on it at St. Louis in 2000 and noted that there were more questions from the Boeing people than the press and others not in the company. Knowing a few people at Boeing, they would change the subject as quickly as possible.


dragon72

ACCESS: Confidential
Joined
Aug 8, 2006
Messages
63
Reaction score
0
Got a couple of pics. The first is a larger version of what you've got and the second is from from an old company called Avpro and was used to advertise their EXINT pods.


Attachments

  • CRW Fighter.JPG
    CRW Fighter.JPG
    38.1 KB · Views: 235
  • CRW With EXINT Pods.JPG
    CRW With EXINT Pods.JPG
    89.7 KB · Views: 249

donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
983
Reaction score
31
Yes, it is an idea before the merger. It was reborn as the x-50 dragonfly, but the thing is dead as DARPA realized the flaws of the design, and withdrew the funding, though Boeing still pursued the research (probably going back to the drawing board and doing wind tunnel testing). There are thread about this already, and I remember there are several pictures of them on there.
http://www.secretprojects.co.uk/forum/index.php/topic,775.0/highlight,canard+rotor.html


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

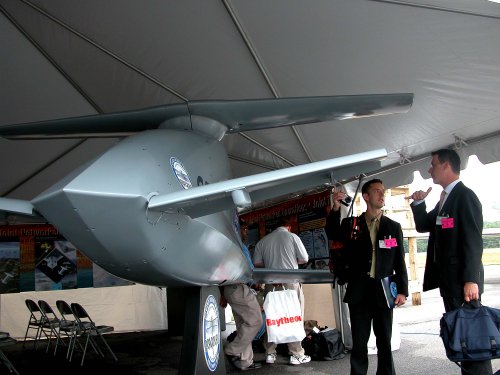

Nice X-50 photo


Attachments

  • 200307144d_hr.jpg
    339.3 KB · Views: 246

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
July 14, 2003 – unmanned aerial vehicle flight demonstration - Webster Field annex to Naval Air Station, Patuxent River.
Photo by Jim Garamone

http://www.defenselink.mil/news/newsarticle.aspx?id=28728


Charles Gray

ACCESS: Restricted
Joined
Oct 13, 2007
Messages
36
Reaction score
0
CammNut said:
Sorry these are such low resolution, but they come from a paper given at the AIAA's 2003 Centenniel of Flight conference in Dayton. They illustrate Boeing's thoughts on operational applications of the canard rotor wing (CRW) concept for a high-speed, stopped-rotor, V/STOL aircraft. DARPA cancelled the X-50A Dragonfly programme after both unmanned subscale demonstrators crashed while still in hover testing, but apparently there is new interest in the CRW (but not money yet) from an undisclosed source.

I'm inerested in these concepts-- was there ever any more information about them, or were these simply: Hey, this looks cool illo's on the part of the artists?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874
official Boeing's NAVY CRW 3-view


Attachments

  • 20070722221201953.jpg
    28.8 KB · Views: 120
  • Image16.gif
    94.5 KB · Views: 186
  • Boeing_GRW.jpg
    108.7 KB · Views: 243

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

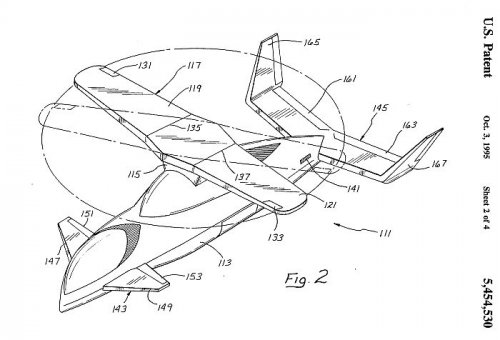

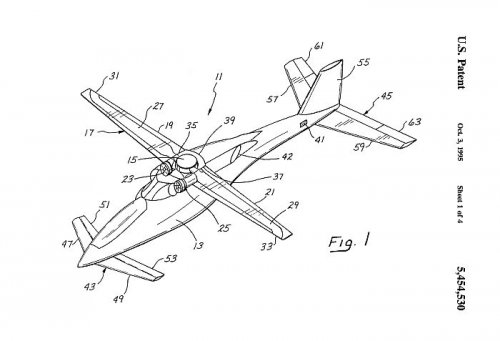

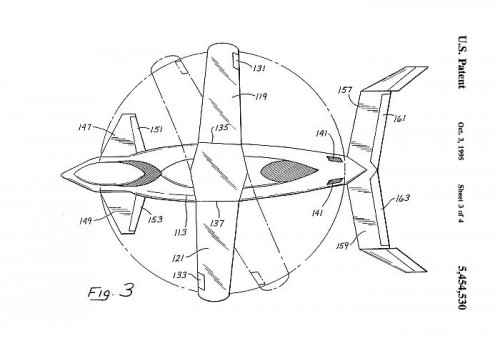

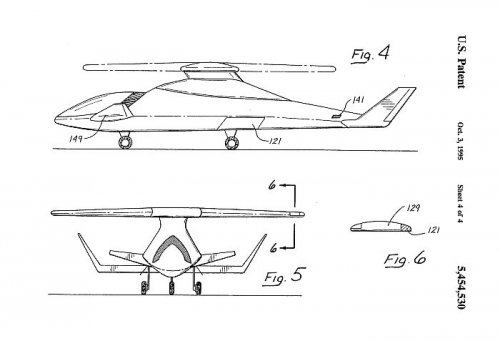

McDonnell Douglas - original patent of two CRW configurations from 1995
Interesting to compare to official 3-view in previous post


Attachments

  • MDC_CRW_1_1995_1.jpg
    50.3 KB · Views: 101
  • MDC_CRW_1_1995_2.jpg
    41.2 KB · Views: 82
  • MDC_CRW_2_1995_1.jpg
    34.9 KB · Views: 87
  • MDC_CRW_2_1995_2.jpg
    38.2 KB · Views: 74

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
874

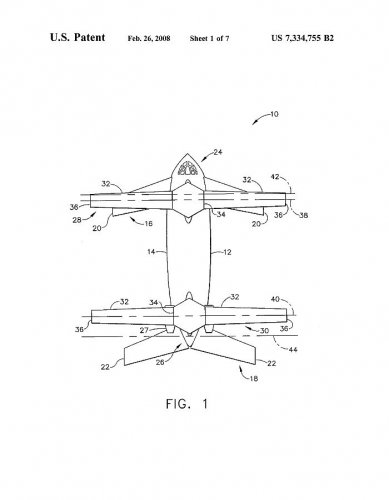

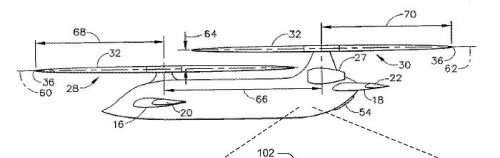

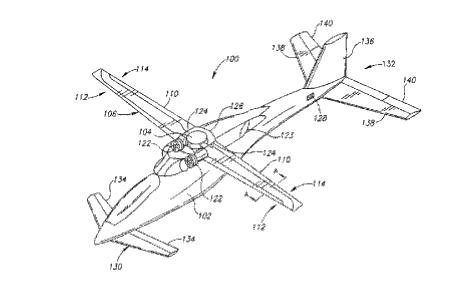

and now for something bigger...Boeing 2005 transport CRW patent


Attachments

  • Boeing_B_CRW_2005_01.jpg
    39.7 KB · Views: 79
  • Boeing_B_CRW_2005_02.jpg
    24.4 KB · Views: 81

Similar threads

Top
