McDonnell Douglas 253 V/STOL Lift Fan Research Transport study

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
flateric said:
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740019385_1974019385.pdf


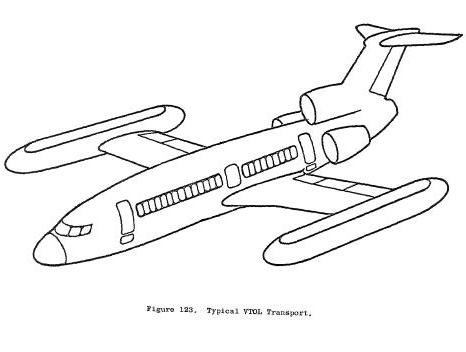

Attachments

  • 1.JPG
    39.5 KB · Views: 816
  • 2.JPG
    45.9 KB · Views: 740

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703

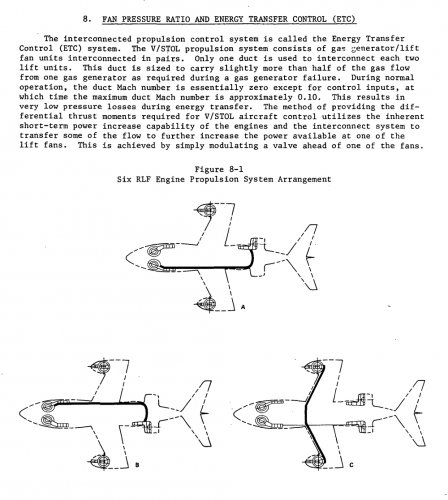

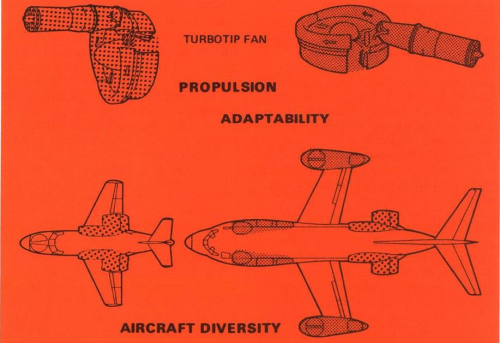

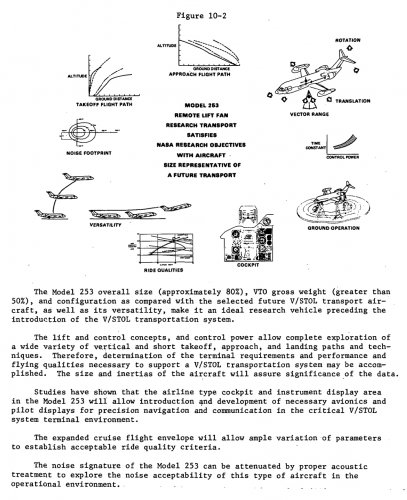

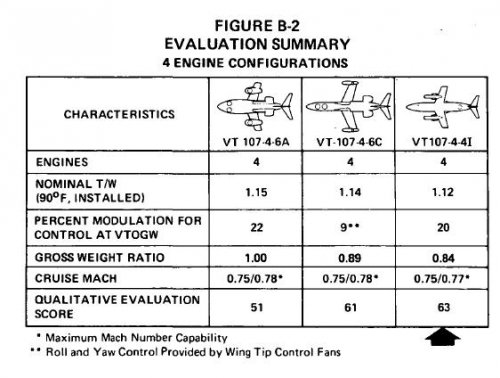

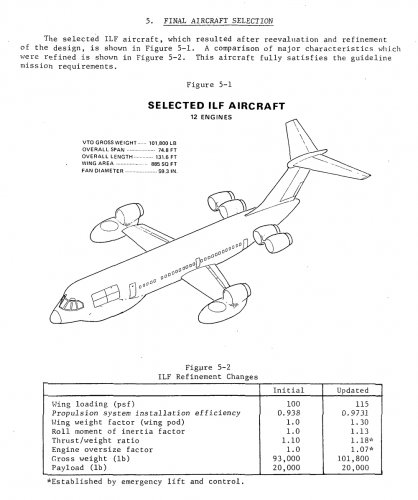

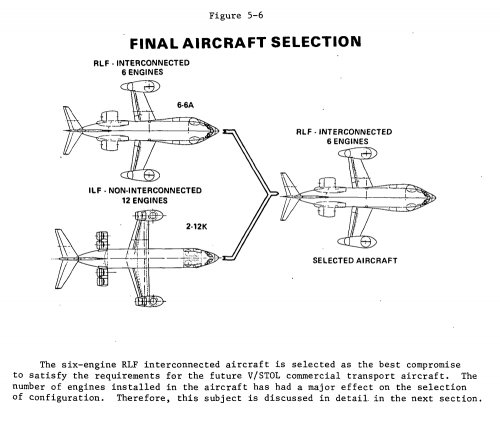

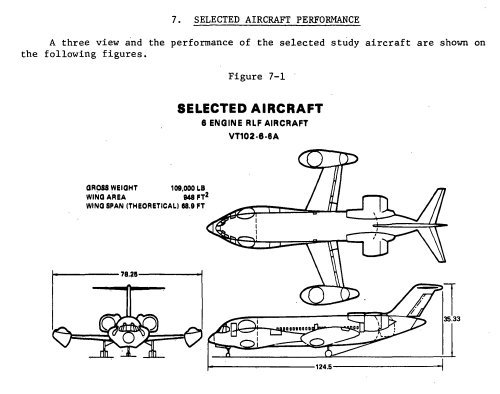

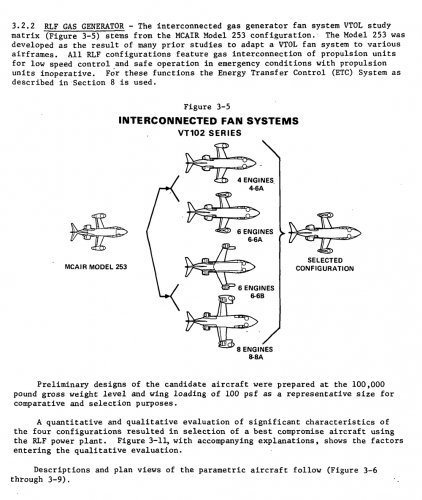

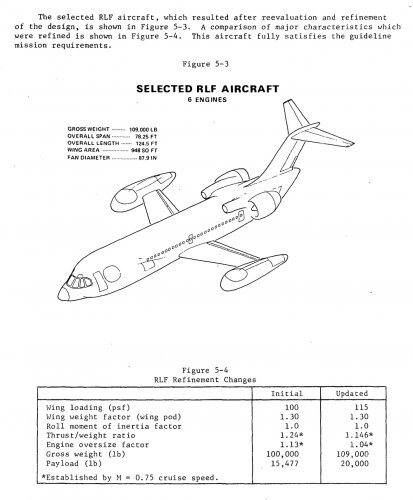

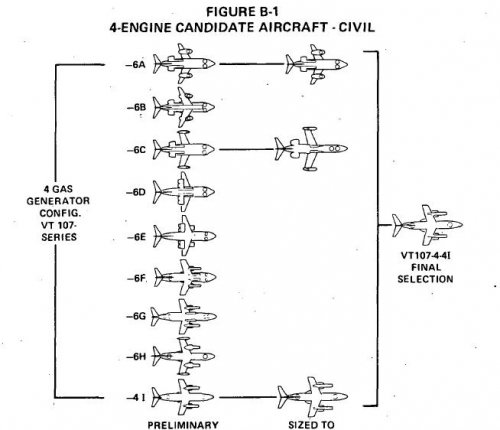

The McDonnell Douglas Model 253 was developed as a result of many prior studies to adapt a VTOL fan system to various airframes. The studies led to a 6 engine interconnected RLF configuration as the most representative candidate configuration for a 1985 VTOL civil transport. The study efforts validated the initial research transport configuration as the Model 253, which was about 80% the size of the 1985 100-passenger aircraft. The Model 253 overall size, VTO gross weight and configuration, as compared with the selected future V/STOL transport aircraft, as well as its versatility, made it an ideal research vehicle preceding the introduction of the V/STOL transport system.

Source: CONCEPTUAL DESIGN OF A V/STOL LIFT FAN COMMERCIAL SHORT HAUL TRANSPORT - SUMMARY (NASA, JANUARY 1973)


Attachments

  • Image8.jpg
    379 KB · Views: 50
  • Image7.jpg
    239.5 KB · Views: 47
  • Image6.jpg
    268 KB · Views: 61
  • Image5.jpg
    149.7 KB · Views: 97
  • Image4.jpg
    170.9 KB · Views: 85
  • Image3.jpg
    227.7 KB · Views: 86
  • Image2.jpg
    237.7 KB · Views: 619
  • Image1.jpg
    298 KB · Views: 690

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,314

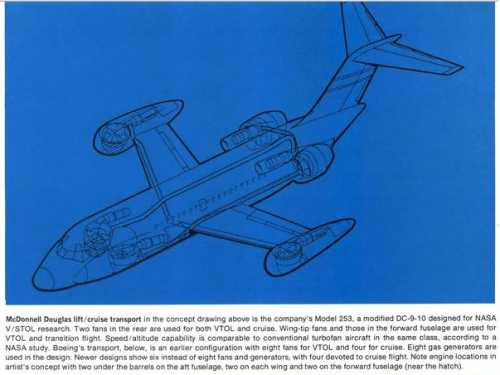

From Aviation Week July 1973 a cut-away, showing the engine arrangement
of the 253:


Attachments

  • MDD-253_1.jpg
    43 KB · Views: 88

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Greetings All -

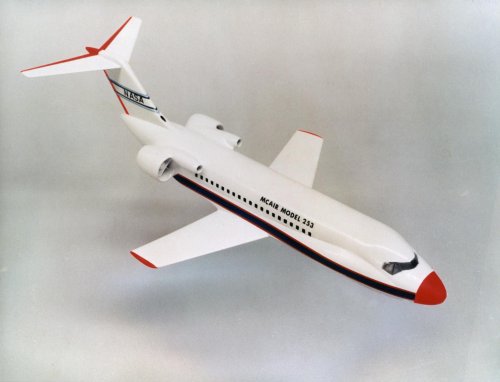

A recent donation to the Museum, I also have a very nice drawing which awaits a new large format scanner at work. hope to have that in a few weeks.

Enjoy the Day! Mark


Attachments

  • zD4C 72773C Jun-12-70.jpg
    zD4C 72773C Jun-12-70.jpg
    238.9 KB · Views: 96

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Greetings All -

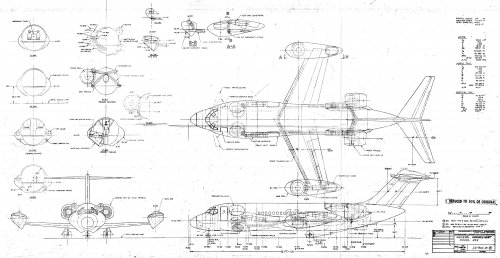

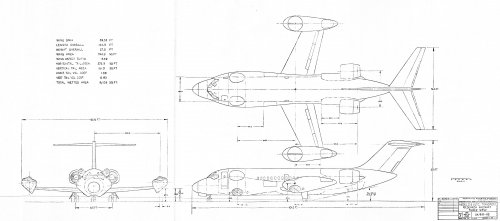

I have a new engineering plotter/scanner at work so can now scan some larger format drawings to my satisfaction. Here's the Model 253 for your viewing pleasure....

Enjoy the Day! Mark


Attachments

  • zMcDonnell Douglas Model 253 General Arrangement.jpg
    zMcDonnell Douglas Model 253 General Arrangement.jpg
    561.1 KB · Views: 143

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703
Mark Nankivil said:
I have a new engineering plotter/scanner at work so can now scan some larger format drawings to my satisfaction.

Oh wow. :eek:

I was already in awe with the quality of all that you shared with us... Can only begin to imagine the wonders you will come up with in the near future!!! ;D

Keep up the good work! ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
Hi,

http://archive.aviationweek.com/image/spread/19730716/32/2
http://archive.aviationweek.com/image/spread/19730716/33/2


Attachments

  • 2.png
    329.4 KB · Views: 39
  • 3.png
    722.9 KB · Views: 48

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Good Day All!

A few more items on the Model 253 from one of the engineers that worked on the design proposal. Now in the collection of the Greater St. Louis Air and Space Museum.

Also have a few photos to post once they are scanned.

Enjoy the Day! Mark


Attachments

  • zModel 253 VSTOL Transport Research Aircraft 3V SK910-115 Mar-1972.jpg
    zModel 253 VSTOL Transport Research Aircraft 3V SK910-115 Mar-1972.jpg
    342.1 KB · Views: 81

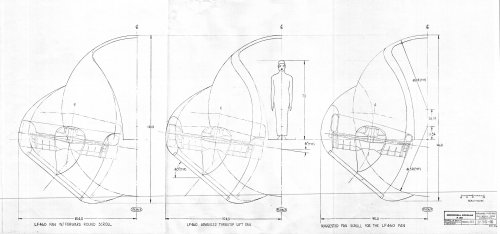

  • zModel 253 Fwd Fuselage Fan Scroll MODIR Comparison SK910-92 Sht 1 of 3 Jul-28-71.jpg
    zModel 253 Fwd Fuselage Fan Scroll MODIR Comparison SK910-92 Sht 1 of 3 Jul-28-71.jpg
    472.3 KB · Views: 78

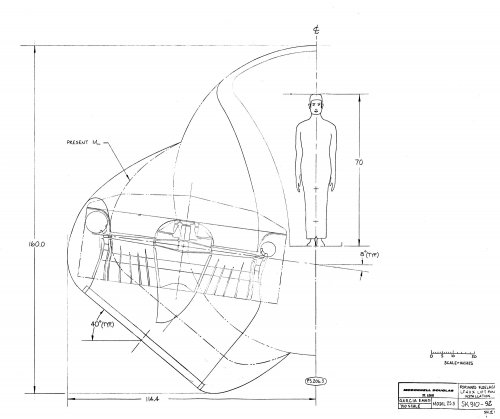

  • zModel 253 Fwd Fuselage LF4XX Lift Fan Installation SK910-92 Sht 2 of 3 Aug-3-71.jpg
    zModel 253 Fwd Fuselage LF4XX Lift Fan Installation SK910-92 Sht 2 of 3 Aug-3-71.jpg
    194.6 KB · Views: 59

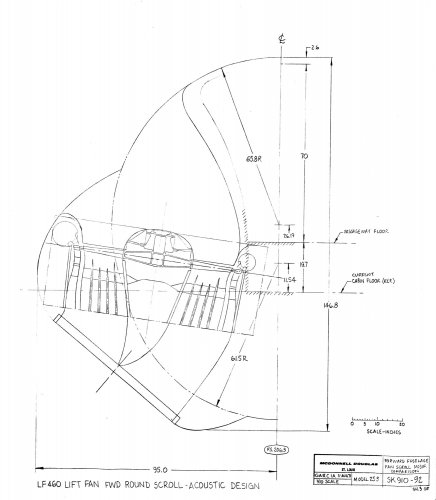

  • zModel 253 Fwd Fuselage Fan Scroll MODIR Comparison SK910-92 Sht 3 of 3 Aug-17-71.jpg
    zModel 253 Fwd Fuselage Fan Scroll MODIR Comparison SK910-92 Sht 3 of 3 Aug-17-71.jpg
    200.2 KB · Views: 58
