Martin Model 177

Yeager

CLEARANCE: Restricted
Joined
Nov 15, 2019
Messages
30
Reaction score
13
As per the Martin model designations list, the Model 177 was a project for an attack bomber for the US Army Air Corps that was submitted in response to the 1939 CP 39-400 requirement and Specification C-103A. The American Secret Projects volume about projects from the 1937-1945 period has the following specs for the Model 177:

Baseline 177 design:
Crew: 3
Span: 61 feet 4 in (18.69 m)
Length: 46 feet 7 in (14.20 m)
Armament: 0.30 in machine gun in dorsal turret, 0.50 in machine gun in rear fuselage turret; one 1,100 lb bomb, 2x 600 lb bombs, 4x 300 lb bombs, 8x 100 lb bombs

Model 177A design:
Span: 50 feet 0 in (15.24 m)
Length: 41 feet 5 in (12.62 m)


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,932
Reaction score
17
Any idea about the pilot position? I should pick up that book.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
207
Reaction score
29

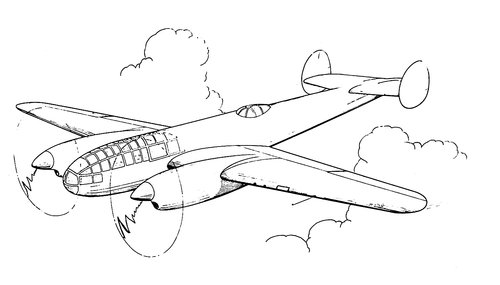

From my files on the 177, here is an artist's rendition of the Model 177A in flight.

AlanG
co-author, "American Secret Projects, Vol. I".

Martin 177A artwork  72dpi.jpg
