MAI (Moscow Aviation Institute) ATF style model?

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,862
Reaction score
4,774

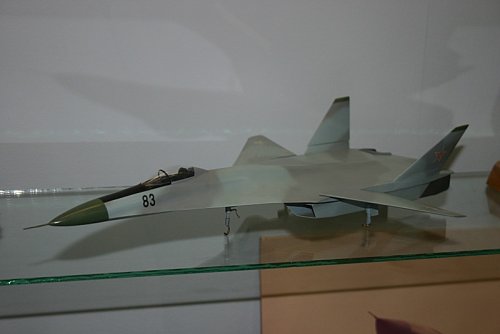

Photo by Ken Duffey at keymags, from MAI in Moscow. Possibly a student design project, it looks quite similar to Rockwell ATF studies. Anyone know more?


Attachments

  • mai_20.jpg
    79.2 KB · Views: 1,194

Gavin

ACCESS: Confidential
Joined
Apr 4, 2006
Messages
59
Reaction score
3
Also, notice the experimental landing system, that doesn't require tires ;D

But seriously, look closely and the wings seem to be all-moving. I've heard of such things for hyper-sonic aircraft, but this clearly isn't that.

It also seems to have 2-D engine nozzles.

Hopefully, Duffey took more pictures from other angles. It could be the students' idea of an MFI or even PAK FA.

--Gavin.


Merv_P

ACCESS: Confidential
Joined
Jul 29, 2006
Messages
115
Reaction score
5
Interesting; I can't throw any more light on this, except to agree that the overall layout is strikingly similar to the mid-80s Rockwell ATF design.


Gavin

ACCESS: Confidential
Joined
Apr 4, 2006
Messages
59
Reaction score
3
For comparison, here's the Rockwell concept.

http://www.aircraftdesign.com/atfpnt.jpg


Attachments

  • RockwellATF.jpg
    47.7 KB · Views: 840

stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
13

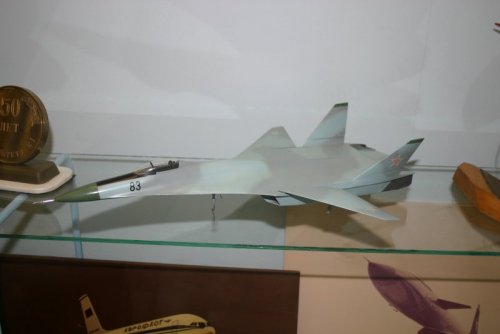

The photos were made in MAI.

As I suppose, this model is from the end of 80th.
What can it be?


Attachments

  • 0_bb3f5_1c321820_XL.jpg
    77 KB · Views: 689
  • 0_bb3f6_b6854fa2_XL.jpg
    35.4 KB · Views: 688

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
It's not 'Sukhoi'. it's just one of hundreds graduate projects.
And I presume that year was 1983.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,979
Reaction score
98
Interesting thouh - is this the four engined design?

I'm curious about how it was supposed to gain control in pitch. 2d thrust vectoring? Spoilers?


stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
13
flateric said:
It's not 'Sukhoi'. it's just one of hundreds graduate projects.
And I presume that year was 1983.
How did this graduate project call?


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,877
Reaction score
368
Avimimus said:
Interesting thouh - is this the four engined design?

I'm curious about how it was supposed to gain control in pitch. 2d thrust vectoring? Spoilers?

It's twin engined; look at the reflections in the glass shelf of the bottom of the model. Also, it appears it as 2D nozzles. It looks very similar to the work done by McDonnell Douglas in the 70's on variable incidence wings, which are also on this forum.


Kryptid

ACCESS: Secret
Joined
Mar 13, 2009
Messages
275
Reaction score
7
Website
www.facebook.com
Avimimus said:
Interesting thouh - is this the four engined design?

I'm curious about how it was supposed to gain control in pitch. 2d thrust vectoring? Spoilers?
Looks like there is a pitch-control flap between the engine nozzles to me.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
I sent this picture before,but I don't remember where,


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
stashandr said:
How did this graduate project call?
usually something like non-exciting 'twin-engined air superiority fighter'


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289

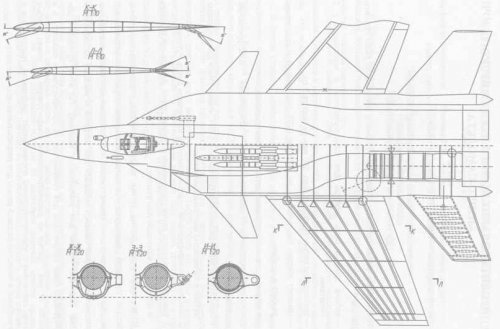

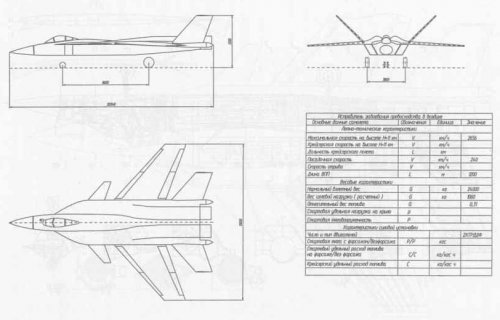

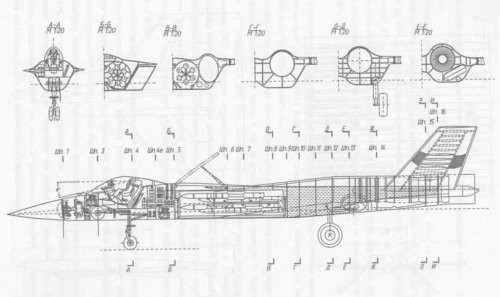

1999 graduate advanced fighter project
thesis supervisor was Oleg Samoylovich


Attachments

  • samoylovich 1.jpg
    samoylovich 1.jpg
    179.7 KB · Views: 786
  • samoylovich 2.jpg
    samoylovich 2.jpg
    181.6 KB · Views: 689
  • samoylovich 3.jpg
    samoylovich 3.jpg
    199.2 KB · Views: 664

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
while looking at side view, I bet it would receive smth like 'Rickets' nickname among ground service crews
inlet duct cross-section at B-B rises one's eyebrows,
but Paralay would be satisfied with number of missiles though)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
btw, Mikhail Pogosyan graduate project was a joined-wing fighter


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,113
Reaction score
424
:eek:

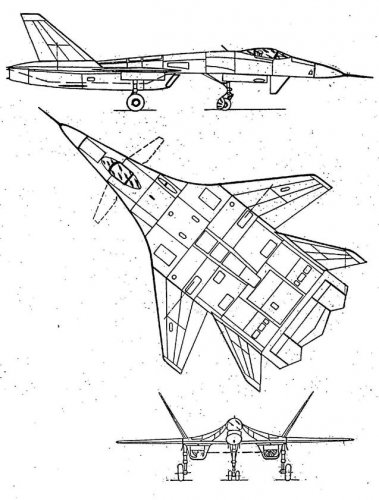

http://studopedia.su/12_80272_k-viboru-shemi-samoleta.html

So, our mystery fighter appears to be an optimized Su-27 layout created to serve as an example for a particular configuration design strategy. Not Sukhoi, but using a Sukhoi as the starting point. The dashed pivot axes indicated mid-chord at the wing roots suggest the variable incidence wings are no accidental damage to the model either, and there are other features not present on the model - Mirage Milan style retractable "moustaches" and an AFTI F-16 like direct lift control surface.


Attachments

  • image377.jpg
    78.8 KB · Views: 362

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
598
Reaction score
297

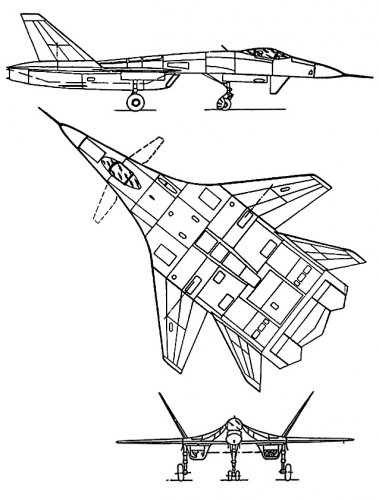

A little cleaner. :)


Attachments

  • image377 .jpg
    image377 .jpg
    123.4 KB · Views: 322

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,962
Reaction score
849
Perhaps it is just me but, I expect there to be similarities. The laws or rules of aerodynamics will be the same so using my logic, there will be similarities between aircraft from different nations but in the same class.

Like formula one cars set to the same current rules in the formula.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
686
Reaction score
346
Foo Fighter said:
Perhaps it is just me but, I expect there to be similarities. The laws or rules of aerodynamics will be the same so using my logic, there will be similarities between aircraft from different nations but in the same class.

Like formula one cars set to the same current rules in the formula.

Not just aerodynamics but structure and power plant as well.

Remember the Breguet range equation B)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
Dan Raymer's Rockwell ATF and CCV studies influence is obvious.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,877
Reaction score
368
...and the McDonnell Douglas Vectored Lift designs like the one at the header of this site.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,962
Reaction score
849
sienar said:
Foo Fighter said:
Perhaps it is just me but, I expect there to be similarities. The laws or rules of aerodynamics will be the same so using my logic, there will be similarities between aircraft from different nations but in the same class.

Like formula one cars set to the same current rules in the formula.

Not just aerodynamics but structure and power plant as well.

Remember the Breguet range equation B)

Yes, I was trying to keep it simple but I get the reminder point. I am reminded how much I hate what I would call maths or mathematics, yes I am old.
