Here is the virtual tour to see the exhibition of MAI' museum.
Lot of personnel' photos and memorabilia.
No real aircraft, but a number of scale models and some curious projects.

http://artstudio-3d.ru/www-77/mai/index.html
Use the navigation arrows on the page' down edge.

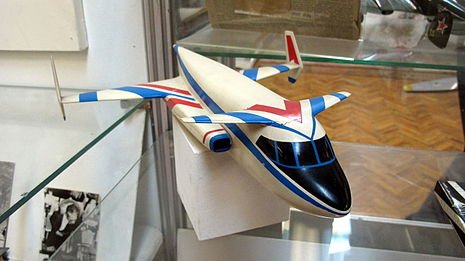

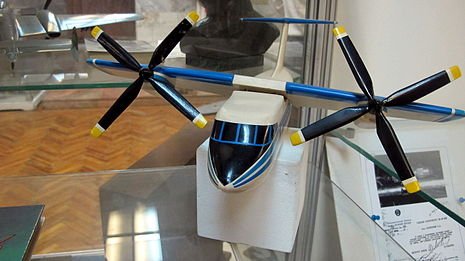

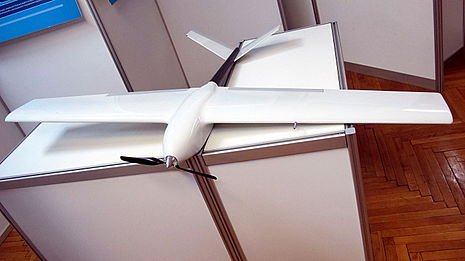

Some teasers:


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Amazing find my dear Silencer,

but who can ID them ?,and thanks.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,700
Reaction score
22

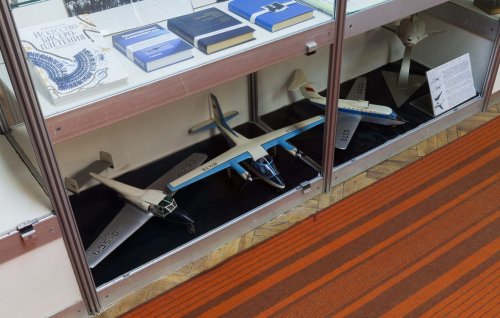

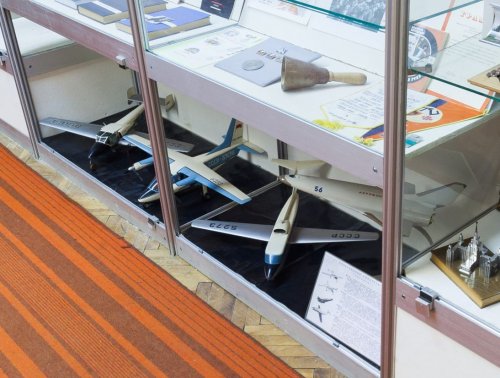

From left to right - Grach (Rook), Foton (Photon) and Semurg


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Thank you my dear Flateric.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
509
Reaction score
9

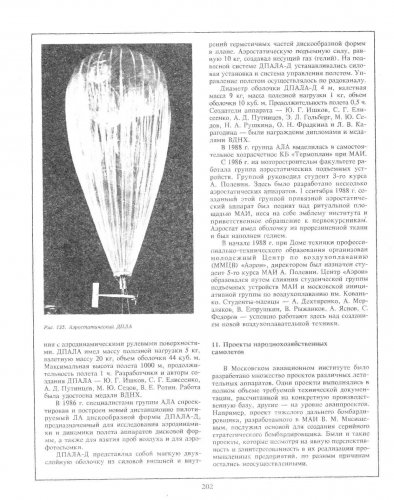

As supplement to MAI museum - page of OSKBES (Design Bureau of an Experimental Aircraft Construction of Aircraft Constructing Faculty) of the same university.
English and Russian versions available.

Some historical background: http://www.oskbes.ru/about-h-e.html
Flying machines (from aircraft to dirigibles, from UAVs to autogyros): http://www.oskbes.ru/prod-e.html

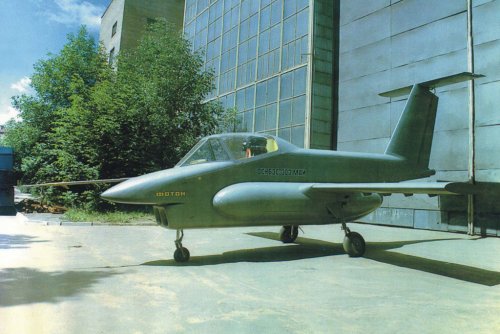

Including Photon, testbed for wing boundary layer control.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,700
Reaction score
22
There were two various MAI aircrafts dubbed Photon. First one - an multipurpose general aviaton type based on several students projects under auspices of chief designer Badyagin - is on exibit at museum.

corrected


Attachments

borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
777
Reaction score
1
more:

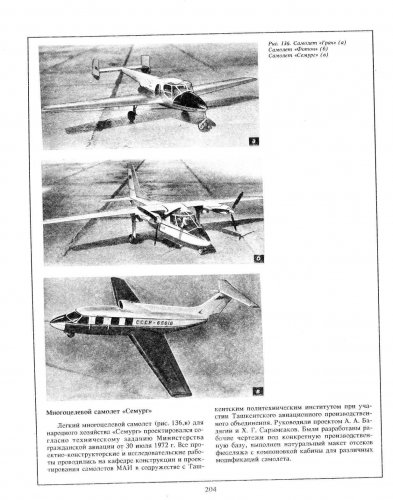

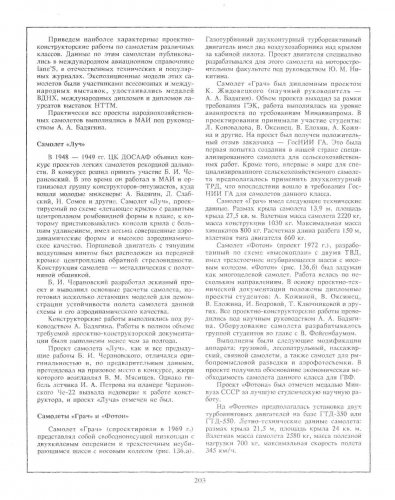

"Грач"/"Grach"/"Rook" (1969) - thesis project K. Zidowetski, under the direction of A.Badyagin.
Span - 13.9 m
Wing area is - 27,5m2
Takeoff weight - 2220 kg
Payload - 800kg
The length of the run - 150m
The thrust of the engine is 660 kg.

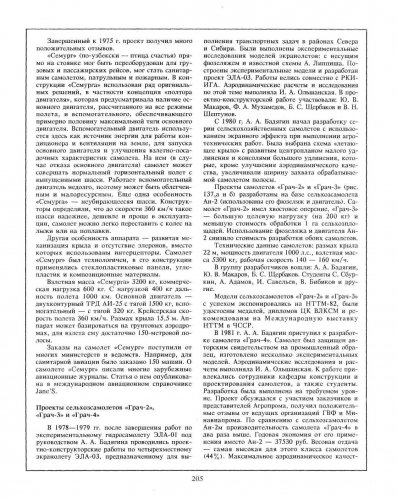

The aircraft projects "Grach-2" and "Grach-3" (1980) (the head of the works of A. Badyagin) was developed on the basis of An-2 (used some of his fuselage, landing gear, engine and agricultural equipment)
"Grach-4" (1981) (the head of the works of A. Badyagin) http://www.secretprojects.co.uk/forum/index.php/topic,4168.0.html
All work stopped at the level of drawings, patents and models.
_____________

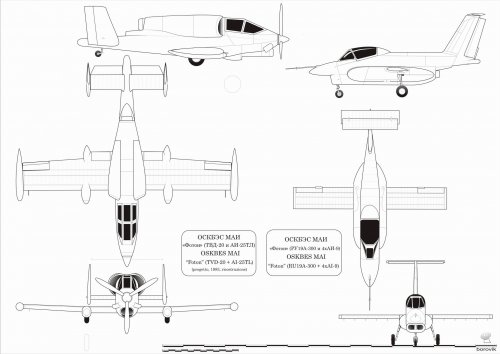

"Фотон"/"Photon" /2GTD-350/ (1972) - under the direction of A.Badyagin.
Span - 21,5 m
Wing area is - 24m2
Takeoff weight - 2580 kg
Payload - 700kg
Speed - 345 km/h

In the early eighties in the MAI under the leadership of K. Zhidovetsky, for the study of energy systems increase the lift force of the aircraft was developed by several projects (including light attack) under the name "Photon"...
_____________
About the project "Semurg" - http://www.secretprojects.co.uk/forum/index.php/topic,19066.msg218646.html#msg218646


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Thank you my dear Borovik,

and that's Grach-?.


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,353
Reaction score
15
And what about the space shuttle identity?


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
808
Reaction score
5
It's the RP-Kh ('РП-Х'), designed at MAI in 1978.


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,881
Reaction score
0
To the left of the display case (in another case with the photo of the miniature helicopter) there is a model that looks like an enlarged MAI-63... any idea what that is?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Thank you my dear Boxkite.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,700
Reaction score
22
hesham said:
Thank you my dear Borovik,

and that's Grach-?.

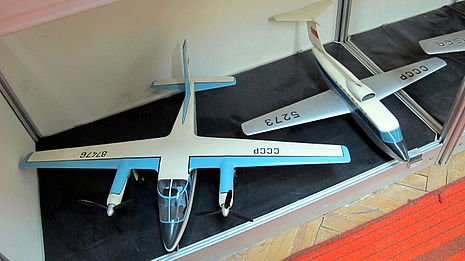

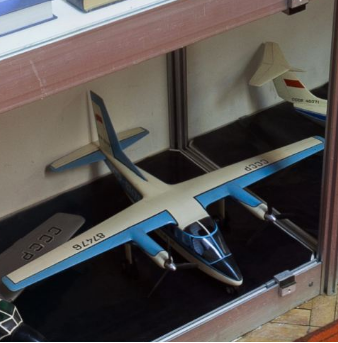

Once more. This is Foton (first with this designation).


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
777
Reaction score
1
To Hesham-
As Grigory (and Thomas) wrote - from left to right
1) Grach (1969), 2) Photon (1972), 3) Semurg (1972), 4) RP-X (1978)
To the left of the display case (in another case with the photo of the miniature helicopter) there is a model that looks like an enlarged MAI-63... any idea what that is?
- Avimimus

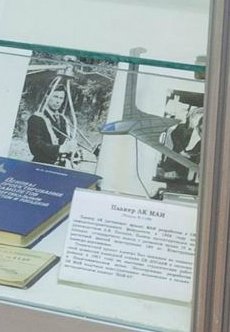

Glider LK-MAI (1958)


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Many thanks to you my dear Borovik


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,881
Reaction score
0
Ah - the predecessor to the MAI-63! Now I know what it looks like! :)

Thanks Borovik!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,700
Reaction score
22
https://tinyurl.com/luzn8ud


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
7
flateric said:
https://tinyurl.com/luzn8ud
Looks like a great museum to visit. Some awesome stuff there!


Great topic folks, thanks a lot to everyone!


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
516
Reaction score
2
Looks a bit like a Petlyakov Pe-3 (1941) with the guns installed in the nose, some aircraft were also equipped with 8 × RO-80 rockets.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
509
Reaction score
9

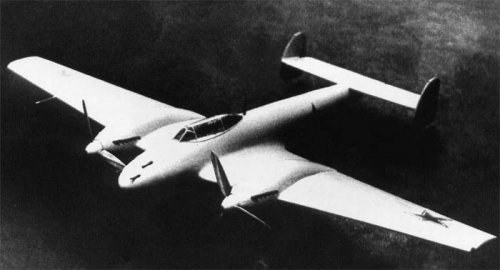

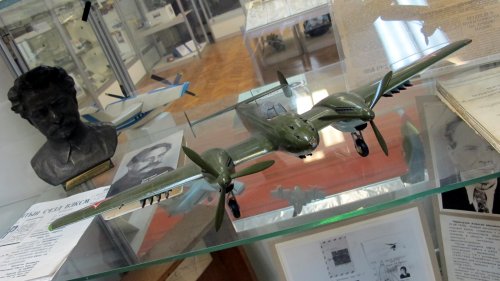

Grushin Gr-1 heavy fighter, first flight in 1941
http://airwar.ru/enc/fww2/gr1.html

It's author, Pyotr D. Grushin after WW2 became surface-to-air missiles desinger.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,700
Reaction score
22
https://ru.m.wikinews.org/wiki/Вики-экскурсия_в_музей_Московского_Авиационного_Института
