Lockheed XV-4 'Hummingbird'

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Lockheed produced several initial designs leading
to the Hummingbird.
One of them was the GL-224-2 concept.
Is there anyone who can help with a decent three view drawing or an
other illustration about?

The 'X' plane book No.5 -HPM Publications haves an illustration
but in my copy the drawing is almost invisible.

Thanks in advance.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,475
Reaction score
203
It's almost impossible to see anything but it looks almost identical to GL-224-3 whith less prominent intakes.


JJC

ACCESS: Restricted
Joined
May 2, 2009
Messages
27
Reaction score
1

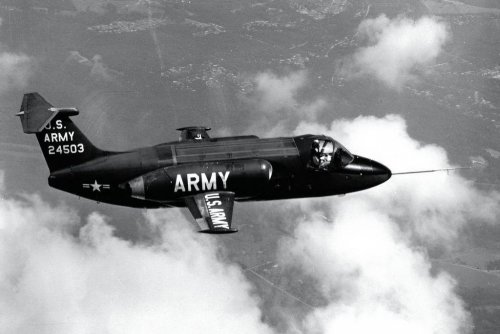

Lockheed XV-4 hummingbird


Attachments

  • LockheedXV-4Hummingbird.jpg
    25.7 KB · Views: 1,158

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

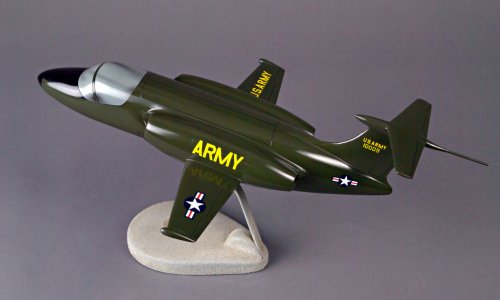

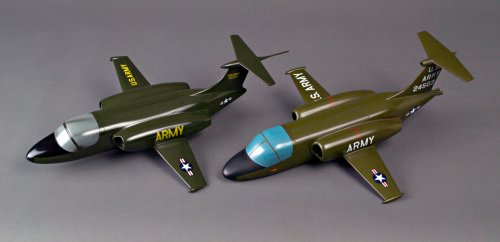

While testing the XV-4A (but prior to the XV-4B redesign) Lockheed offered a production variant of the Hummingbird, which is briefly described in Jane's All The World Aircraft, 1964-65.

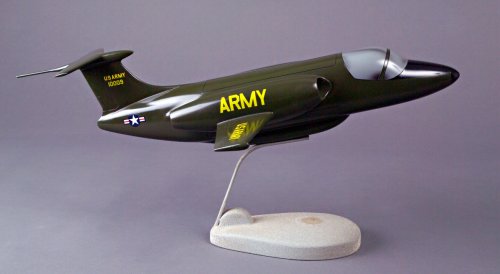

Attached is a factory model of this production variant (V-4A?). A comparison photo with the VZ-10 (XV-4A) model shows numerous aerodynamic and design improvements. Among them is the large ventral weapons fairing, shorter tail fin, reduced stabilizer area, extended intakes, different canopy, integrated puffer jets, canted wingtip fairings, tail probe, single VTOL intake doors (instead of split louvers), etc.

Additional info, drawings and data are always welcomed.


Attachments

  • Lockheed V-4A 01.jpg
    Lockheed V-4A 01.jpg
    265.7 KB · Views: 1,297
  • Lockheed V-4A 02.jpg
    Lockheed V-4A 02.jpg
    225.7 KB · Views: 1,222
  • Lockheed V-4A & XV-4A.jpg
    Lockheed V-4A & XV-4A.jpg
    205.4 KB · Views: 1,191

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

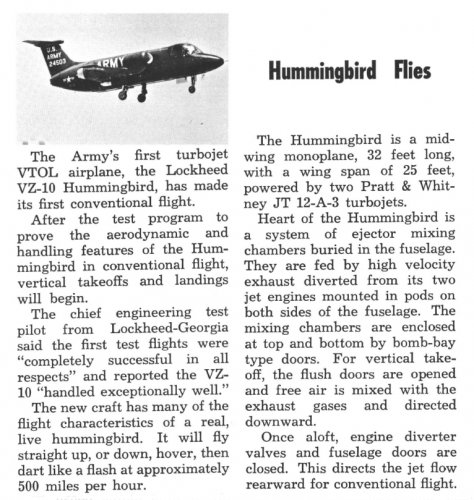

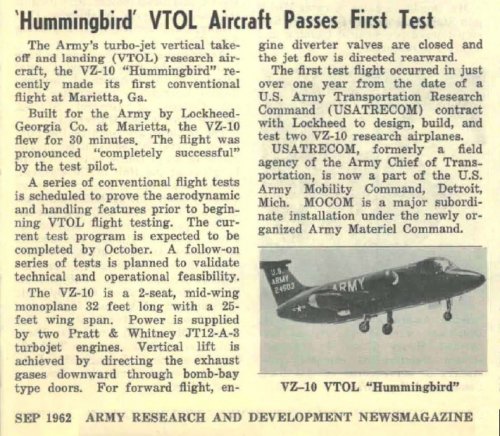

  • An item on the Hummingbird's first flight (Army Research and Development Newsmagazine, September 1962)
  • Another item on the Hummingbird's first flight (US Army's Aviation Digest, September 1962)

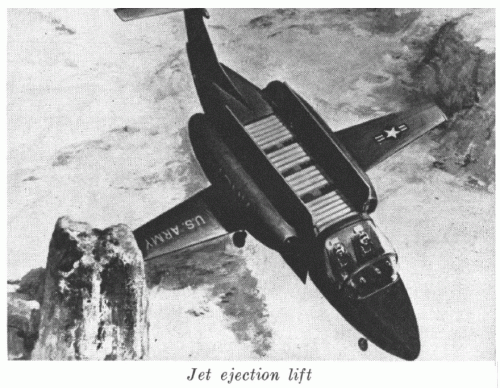

  • Artwork depicting jet ejection lift


Attachments

  • Jet ejection lift.gif
    Jet ejection lift.gif
    631.3 KB · Views: 96
  • Hummingbird Flies (Sep 1962).jpg
    Hummingbird Flies (Sep 1962).jpg
    323.4 KB · Views: 78
  • VZ-10 (Sept 1962).jpg
    VZ-10 (Sept 1962).jpg
    376.4 KB · Views: 246

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895

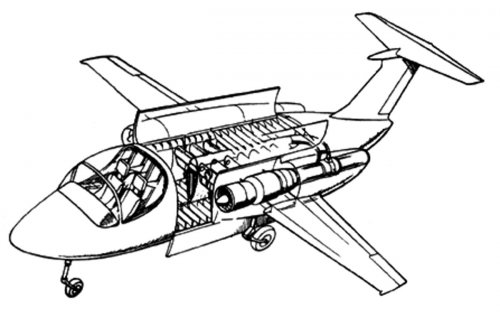

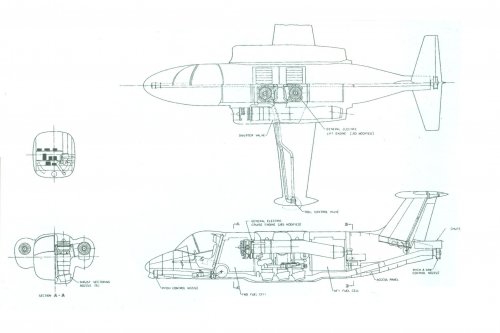

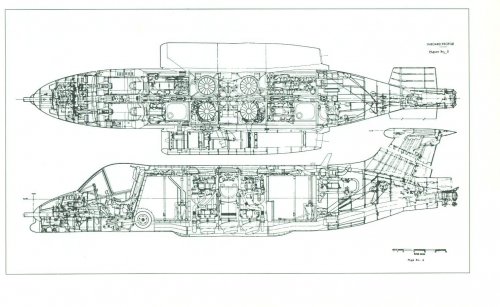

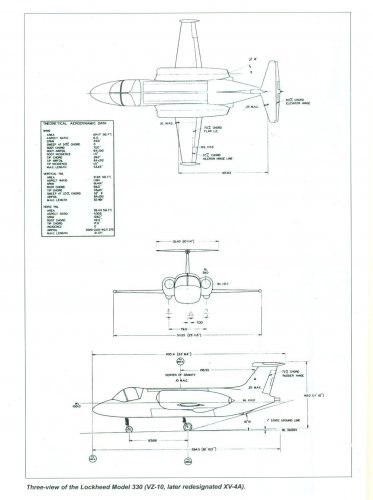

Drawings here


Attachments

  • hummingbird.jpg
    192.4 KB · Views: 208
  • hummingbird 001.jpg
    hummingbird 001.jpg
    109.8 KB · Views: 225
  • hummingbird 002.jpg
    hummingbird 002.jpg
    168.3 KB · Views: 212

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

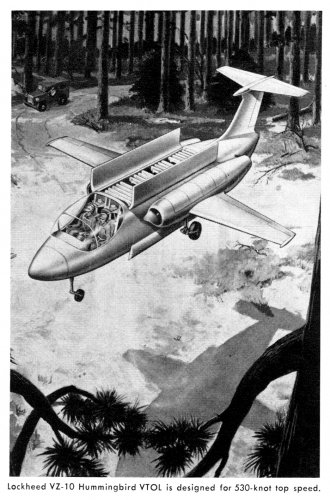

  • Beautiful artwork of the Hummingbird when it was still known as the VZ-10 (source: Flying, May 1962)


Attachments

  • VZ-10 artwork (FLYING, May 1962).jpg
    VZ-10 artwork (FLYING, May 1962).jpg
    1.1 MB · Views: 111

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
689

Attachments

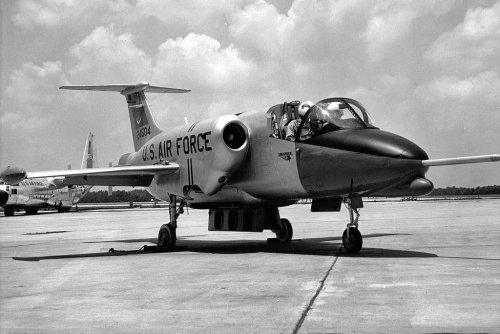

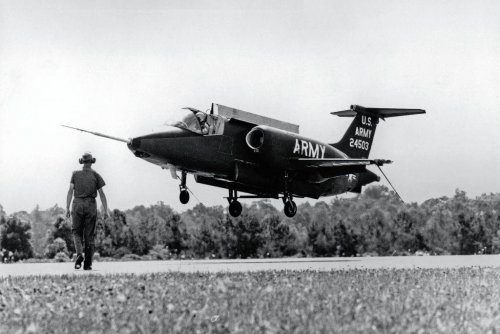

  • Lockheed XV-4 Hummingbird-XV-4B.jpg.4416826.jpg
    Lockheed XV-4 Hummingbird-XV-4B.jpg.4416826.jpg
    114 KB · Views: 132

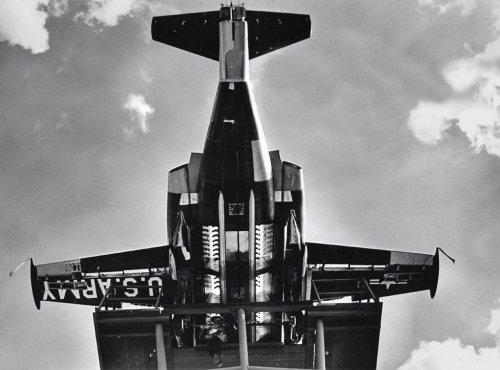

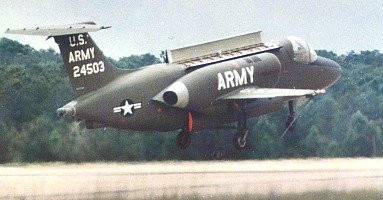

  • Lockheed XV-4 Hummingbird-Bodenversuche.jpg.4416772.jpg
    Lockheed XV-4 Hummingbird-Bodenversuche.jpg.4416772.jpg
    84.6 KB · Views: 125
  • Lockheed XV-4 Hummingbird-Schema Ejektor-System_frei.jpg.4416808.jpg
    Lockheed XV-4 Hummingbird-Schema Ejektor-System_frei.jpg.4416808.jpg
    74 KB · Views: 112
  • Lockheed XV-4 Hummingbird-konventioneller Flug.jpg.4416790.jpg
    Lockheed XV-4 Hummingbird-konventioneller Flug.jpg.4416790.jpg
    81.4 KB · Views: 101
  • Lockheed XV-4 Hummingbird-Aufmacher.jpg.4416754.jpg
    Lockheed XV-4 Hummingbird-Aufmacher.jpg.4416754.jpg
    87.3 KB · Views: 94

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

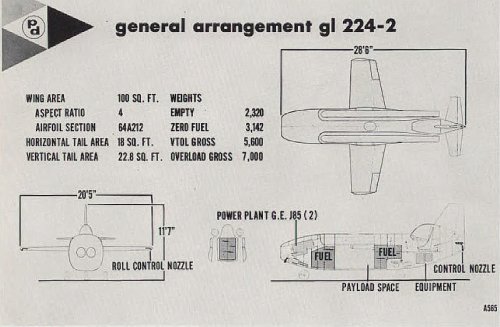

lark said:
... Is there anyone who can help with a decent three view drawing or an
other illustration about?

Have looked through this and some other threads, but couldn't find a better drawing,
so I hope, that this one, though far from being perfect, is just about 8 years late .... ;)

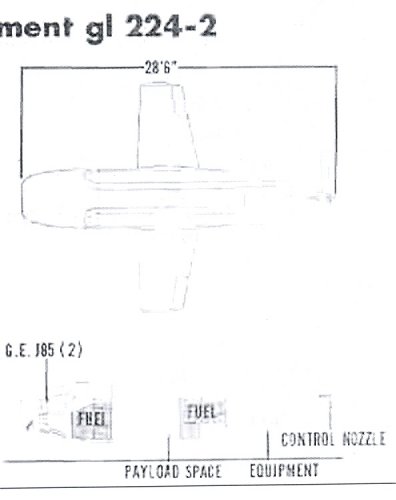

(from vertiflite July 1963)


Attachments

  • gl224-2_July_1963.jpg
    262.9 KB · Views: 139

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Thanks Jens,

Better late than never :)

We,at last have an idea about now..


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,838
Reaction score
197
Justo Miranda said:
Drawings here

Hey, nice find gents with the desk-top models and drawings gents!!
Justo Miranda that cut-away drawing of the Hummingbird really emphasised to me the internal volume and weight of the separate lift and propulsion jet arrangement takes up within such a design!!

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

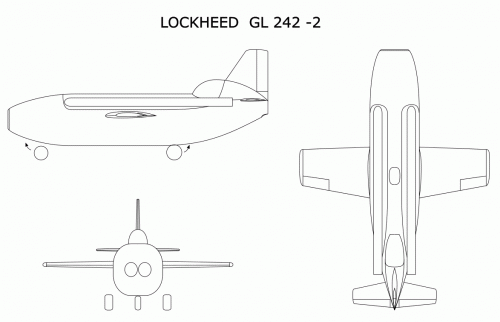

Tried to clean up the above posted drawing, but without much success. So
I decided to redraw it, but I encountered several uncertainties.
The actual arrangement of the augmentor on the upper side of the
fuselage isn't clear to me, as well, as the position of the bulge at the
fuselage sides, visible on the top view, but not on side view.
If someone has better ideas, just tell us.
And if someone wants to make changes by himself, I've attached the sketch
as pdf-file, suitable to be imported to Inkscape or CorelDraw.


Attachments

  • GL242-2.gif
    27.3 KB · Views: 77
  • GL224-2.pdf
    12.8 KB · Views: 18

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,838
Reaction score
197
Nice job Jemiba on the clean up!!

Regards
Pioneer


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com

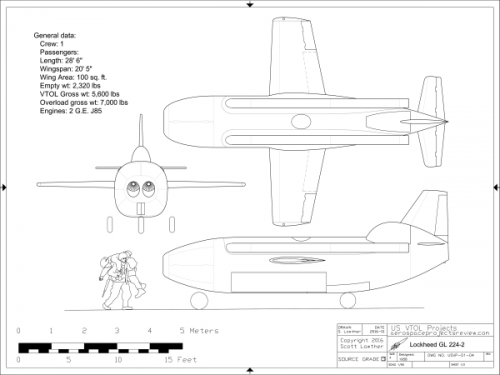

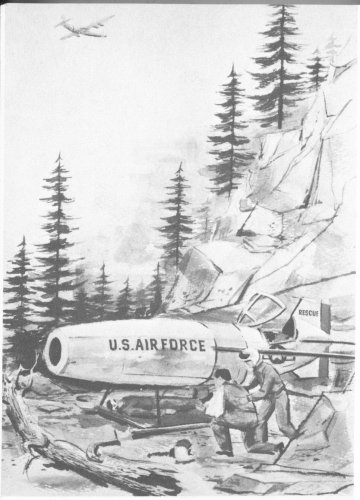

Here's a kinda craptacular piece of art showing the GL-224-2 pilot rescue vehicle in action with the C-130 mothership orbiting above.


Attachments

  • gl-224-2.jpg
    672.5 KB · Views: 543

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Hi!

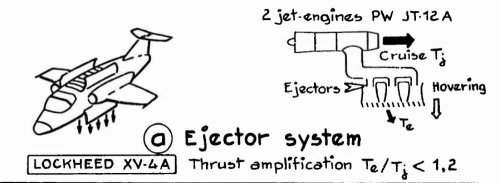

Lockheed XV-4A ejection system. (jet pump)
Source : NATO report

https://www.youtube.com/watch?v=t1J7ouZ5scY


Attachments

  • LOCKHEE XV-4A EJECTION SYSTEM.jpg
    LOCKHEE XV-4A EJECTION SYSTEM.jpg
    60.1 KB · Views: 406
  • XV-4A.jpg
    88.4 KB · Views: 393

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
This picture shows XV-4A main engine, exhaust gas shout off valve, exhaust gas manifold and ejector nozzle manifold.
Upper engine shows cruising condition and bottom engine shows hovering condition.
Correction is given to this picture. (White color zone, parts name)
Thrust amplification of this system is small.(smaller than 1.2)
The ejector principle was applied with notably disappointing results to the Rockwell XFV-12A and the Lockheed XV-4A.
Ejector induced flow also push the aircraft to downward direction. ;D

Rockwell XFV-12A

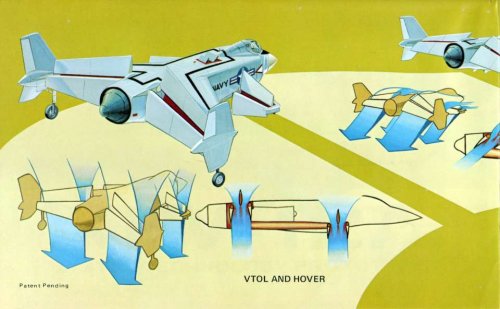

https://thelexicans.files.wordpress.com/2013/08/rockwellxfv12athrustaug.jpg


Attachments

  • Rockwell_XFV-12%20(2)-960.jpg
    52 KB · Views: 367
  • main engine gas manifold ejector tube.jpg
    main engine gas manifold ejector tube.jpg
    74 KB · Views: 389

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com

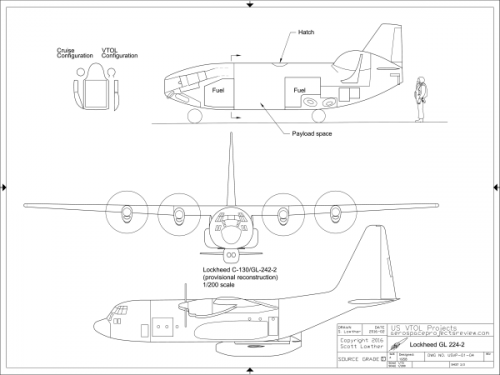

Here's my take on the GL-224-2, as included in US VTOL Projects #1:
http://www.aerospaceprojectsreview.com/blog/?p=2555


Attachments

  • usvp01-04-1-Model.png
    26.7 KB · Views: 106
  • usvp01-04-2-Model.png
    27.2 KB · Views: 121

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Orionblamblam said:
Here's my take on the GL-224-2, as included in US VTOL Projects #1:
http://www.aerospaceprojectsreview.com/blog/?p=2555

Excellent work my dear Scott.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Ummm....

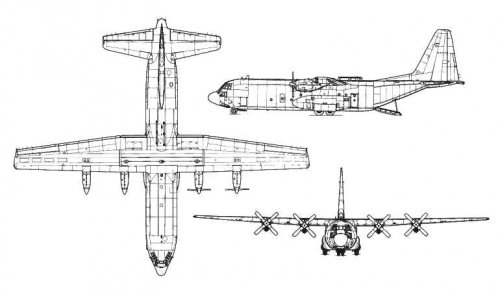

What is the operating procedure of this combination?


Attachments

  • c130.jpg
    26.8 KB · Views: 83

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com
The two aircraft would take off independently; rendezvous shortly after; the VTOL would dock to the C-130 via a trapeze system; the VTOL would shut its engine down and the pilot transfer to the C-130 for long-range cruise. At the target area the VTOL would separate, land, pick up passengers, launch, return to the C-130, be flown home and would separate and land independently.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Thanks a lot. I can understand very hard story.
So C-130 is a range extender for this rescue aircraft. To use retractable vertifan is the better solution.
I want to see this aircraft in next 007 movie. ;D


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com
blackkite said:
So C-130 is a range extender for this rescue aircraft.

Yes. The Bell D-190 seems to have been designed for the same requirement.
http://www.secretprojects.co.uk/forum/index.php/topic,15543.msg10280.html#msg10280

To use retractable vertifan is the better solution.

No. The point was to have a small rescue VTOL with global range; these two requirements are contradictory. Even today, the only way to accomplish this would be with a two-stage vehicle.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Tnaks a lot. Nice information. :D
I used to see a hard to believe another solution in Thunderball. ;D


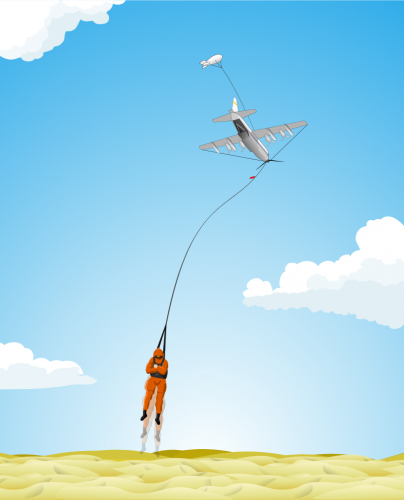

Attachments

  • Illustration_of_Fulton_surface-to-air_recovery_system_(STARS)_svg.png
    188.9 KB · Views: 78
  • ent_3719_1630.jpg
    262.5 KB · Views: 82

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
blackkite said:
Tnaks a lot. Nice information. :D
I used to see a hard to believe another solution in Thunderball. ;D
The Fulton Skyhook was quite real. The Thunderball B-17 was, I believe, an actual CIA aircraft. Later the FUlton system was installed on the HC-130/MC-130 and tried on the Grumman S2. It was not a popular system as near as I know.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
622
Reaction score
103
Funnily enough there was an episode of Worlds Weirdest Weapons on yesterday that feature that very system.

An early version had a wire attached to two poles and an aircraft flying in low and hooking the wire as it flew over. This was found to be difficult as it required a large clear area for the plane to be able to line up and grab the wire. It was also quite arduous for the user as they would be accelerated to the planes speed very rapidly. They featured a test of the system using a sheep, as the poor creature was snatched up from the ground all you could hear was a Baaaaa as it disappeared into the distance.

When the process was changed to the system with the cable suspended from a balloon it was found to be much more user friendly, as the user would travel more or less vertically until they matched the planes height and speed.

The programme also featured an inflatable plane that was being developed by Goodyear for use by escaping spies and downed pilots. The plane feature a kind of webbing structure between the two outer surface to help keep the right shape and make it rigid; it was sufficiently rigid to have a man stood on each wing. It was powered by a small motor which could achieve about 60mph and give a range on about 600 miles. The engine also bled of air to keep the structure fully inflated. The project went on for a while, but then a prototypes wing failed and the test pilot was killed and the whole project was binned.

Regards.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
770
Reaction score
297
Fulton Skyhook

iverson said:
FUlton system was installed on the HC-130/MC-130 and tried on the Grumman S2. It was not a popular system as near as I know.
I'd bet that it was very popular with whoever was rescued from harm's way by it.
IMO it just was made completely obsolete by helicopters as soon as their range + IFR made it possible.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
Thanks a lot. :D
https://www.youtube.com/watch?v=PErEsNhDmo8

https://www.youtube.com/watch?v=t5GJ4cu311o

https://en.wikipedia.org/wiki/Fulton_surface-to-air_recovery_system


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
770
Reaction score
297
Fulton Skyhook

iverson said:
the FUlton system was installed on the HC-130/MC-130 and tried on the Grumman S2.

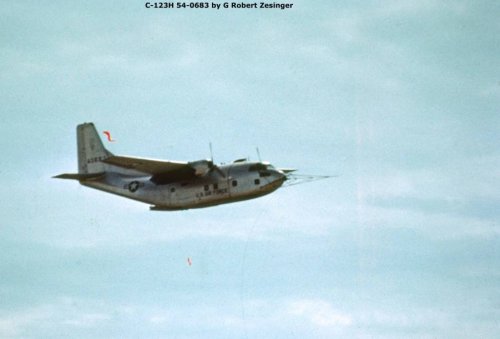

It was also implemented on a C-123H.


Attachments

  • C-123H Provider 54-0683 with Fulton Skyhook.jpg
    C-123H Provider 54-0683 with Fulton Skyhook.jpg
    39.1 KB · Views: 521

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
I actually know a fellow who worked on the Fulton system as a summer intern. If memory recalls, he said the first challenge was not snapping the neck of the participant (although the crash dummies did not seem to mind). Next was figuring out how much open space was required so as not to drag the participant through trees and other impediment that might not agree with their safe retrieval. Third problem was finding someone to actually try the idea.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,386
Reaction score
2,576
The person who challenged this rescue way actually has the courage really. I think this rescue way is incredible and fearful.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
For more informtion on Skyhook, see the following links.

Operation Coldfeet:
https://www.cia.gov/library/center-for-the-study-of-intelligence/csi-publications/csi-studies/studies/95unclass/Leary.html


Evergreen's B-17, James Bond, and the Fulton Recovery System:
http://www.robertnovell.com/evergreens-b-17-james-bond-fulton-recovery-system/


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
Wasn't the Fulton system used in John Wayne's Green Berets?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
I'm very grateful for seeing the GL-224 project at last, Jens, for which I thank you.
Thanks and congrats to both you and Scott for the beautiful artwork, too!

HOWEVER... I'm surprised that none of you (or any forum member for that matter) noticed that in your artwork you BOTH made a big typo by writing "242" instead of 224... Here are the images in question:



Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Good Day All -

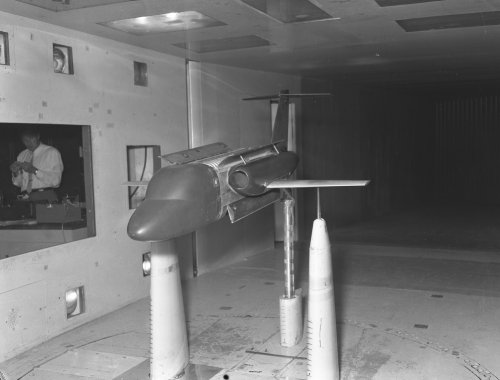

Photo of the Lockheed XV-4 model in the Vought Low Speed Wind Tunnel Model. Need to look at this in detail to see whether this is the XV-4 or the proposed production variant as noted by Circle-5's models.

Enjoy the Day! Mark


Attachments

  • zLockheed XV-4.jpg
    zLockheed XV-4.jpg
    405 KB · Views: 159

Similar threads

Top
