Lockheed "Micro" S-3 Viking variant (US Navy "Type A" proposal)

nova10

ACCESS: Confidential
Joined
Apr 24, 2008
Messages
58
Reaction score
5
Does anyone have any information or pictures on the design for the proposed shortened smaller "micro" or "mini" S-3 Viking variant intended to operate from smaller carriers? I've been looking everywhere for it with no success. I'm sure I've seen pictures of it somewhere. Many thanks.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,537
Reaction score
804
Orionblamblam said:
Didn't I see this same question a day or two back? Or have I finally developed precognition? ???

Yes, but you knew that.


nova10

ACCESS: Confidential
Joined
Apr 24, 2008
Messages
58
Reaction score
5
OK, hands up, I did ask that question a few days OK but I have an excuse! As many of you know, the "jack of all trades" "swiss army knife of the Fleet" S-3 Viking is undergoing it's sundown plan and it's days are numbered. Soon it will grace the decks of the flattops no more. Unlike it's predecessor the S-2 Tracker, the Viking was too large and too heavy to use on the smaller foreign aircraft carriers. However a smaller "micro" or "mini" (I can't remember which term, I think it was micro) variant was proposed with an eye to foreign sales. This plan never came to fruition. I have been asked to contribute to a friend's book on the Viking to coincide with the type's retirement. I am contributing to a chapter on the type's early development and it's variants. I really want to add some pictures and information on the aforementioned "micro" Viking but I can't find them anywhere. Not for want of trying. Any information and pictures would be gratefully received.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,062
Reaction score
1,490
Website
www.aerospaceprojectsreview.com
nova10 said:
OK, hands up, I did ask that question a few days ...

Ah. My finely honed skills at postcognition have won the day.

I am contributing to a chapter on the type's early development and it's variants.

Never heard of a smaller version. I've seen a few proposed derivatives such as STOL, VTOL and oblique wing, but not the "micro."

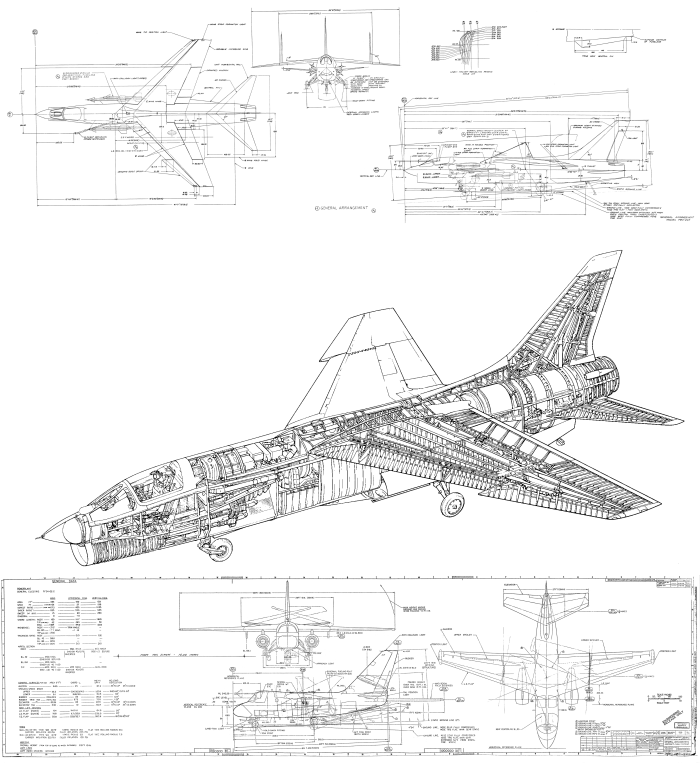

I also have this:

http://www.up-ship.com/drawndoc/drawndocair.htm#airdwg15



Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Nova10

Are you thinking of the designs that the US aerospace companies were playing with for deployment aboard the planned US Navy’s Sea Control Ships (SCS)
Was it the Type ‘A’ or Type ‘B’ ??
Some of these VSTOL designs had a somewhat S-3 Viking look too them!

Regards
Pioneer


nova10

ACCESS: Confidential
Joined
Apr 24, 2008
Messages
58
Reaction score
5
Pioneer said:
Are you thinking of the designs that the US aerospace companies were playing with for deployment aboard the planned US Navy's Sea Control Ships (SCS)
Was it the Type ‘A’ or Type ‘B’ ??
Some of these VSTOL designs had a somewhat S-3 Viking look too them!

It would have been a Type A. The Type B didn't enter service until late 1987. I can't say I'm absolutely certain it was not a proposed STOL, VTOL or oblique wing variant. I can't say for certain I'm not thinking of a SCS design. I'm pretty sure I'm not. The Canadair CL-84 AEW/ASW was the design proposed for the SCS. Either that or the ASW/AEW mission would have been fulfilled by a SH-2 Seasprite variant.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,608
Reaction score
1,747
nova10 said:
It would have been a Type A. The Type B didn't enter service until late 1987. I can't say I'm absolutely certain it was not a proposed STOL, VTOL or oblique wing variant. I can't say for certain I'm not thinking of a SCS design. I'm pretty sure I'm not. The Canadair CL-84 AEW/ASW was the design proposed for the SCS. Either that or the ASW/AEW mission would have been fulfilled by a SH-2 Seasprite variant.

Type A and Type B were two notional VSTOL aircraft proposed for the USN in the 1970s. Neither entered service. Type A was a subsonic design for ASW and surveillance; Type B was a supersonic fighter.

There's one design for the Type A that kind of looks like a mini S-3, referenced in a thread here:

http://www.secretprojects.co.uk/forum/index.php/topic,783.msg30841.html#msg30841

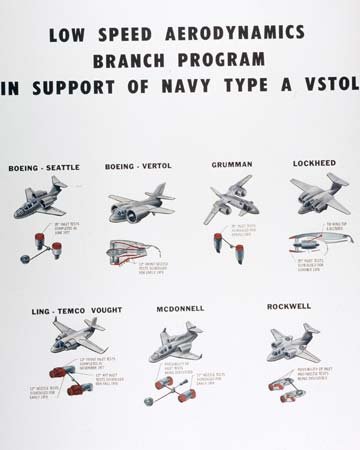

That design and several others can be seen in the attached picture, which I found on Scramble (It's not as good as it might be; anyone got a larger version?)

Edited: CL-84 was only one of several designs proposed for SCS. Type A was defnitiely targeted for SCS as well, as the long-term design target. IN the interim, SH-3s or possibly the abortive LAMPS II were more likely than LAMPS I SH-2s.


Attachments

  • 1978_02347L.jpg
    18.6 KB · Views: 934

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,772
Reaction score
4,463
This could be seen as a Lockheed "S-3 successor" design.
http://www.secretprojects.co.uk/forum/index.php/topic,2012.0

And here are other competitors to S-3 design
http://www.secretprojects.co.uk/forum/index.php/topic,409.0


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,062
Reaction score
1,490
Website
www.aerospaceprojectsreview.com
nova10 said:
Does anyone have any information or pictures on the design for the proposed shortened smaller "micro" or "mini" S-3 Viking variant intended to operate from smaller carriers? I've been looking everywhere for it with no success. I'm sure I've seen pictures of it somewhere. Many thanks.

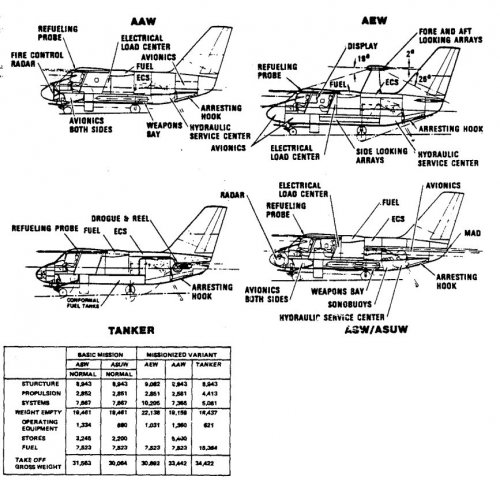

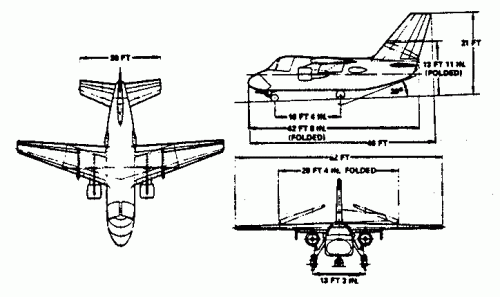

Howsabout this...


Attachments

  • minis3.gif
    7.9 KB · Views: 778

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
74
Orionblamblam said:
nova10 said:
Does anyone have any information or pictures on the design for the proposed shortened smaller "micro" or "mini" S-3 Viking variant intended to operate from smaller carriers? I've been looking everywhere for it with no success. I'm sure I've seen pictures of it somewhere. Many thanks.

Howsabout this...

The drawings seems to indicate smaller turbofans, a significant reduction in span and a very significant reduction in wing area. I find this design to be very surprising, and unless there was a tremendous reduction in weight, I don't see how it would have been practical. Any further specifications or details?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
74
Orionblamblam said:
TinWing said:
Any further specifications or details?

Dates from 1981 or earlier (1981 pub date). Has a crew of three rather than the S-3's four. No data on what engines were chosen.

Considering the date, maybe a derivative of the Lycoming ALF502/YF102? Does the nacelle look right?


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,312
Reaction score
228
The nacelles look like they are for a separate flow turbofans. Most of the ALF-502 installations I've seen were mixed flow. But the thrust range should be about right...


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Sadly still nothing found on this mini / micro S-3 Viking?? :'(

Regards
Pioneer
