Lockheed High Altitude Powered Platform (HAPP): sun-powered and unmanned

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013

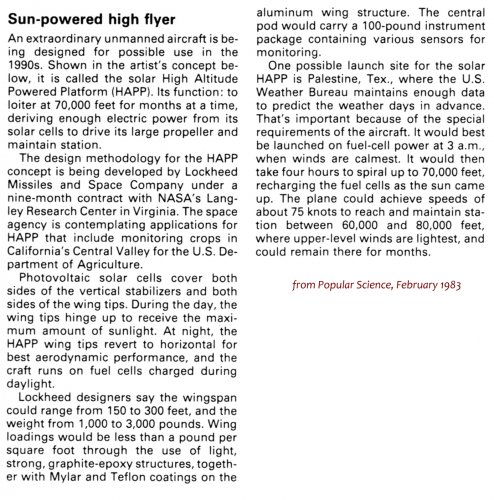

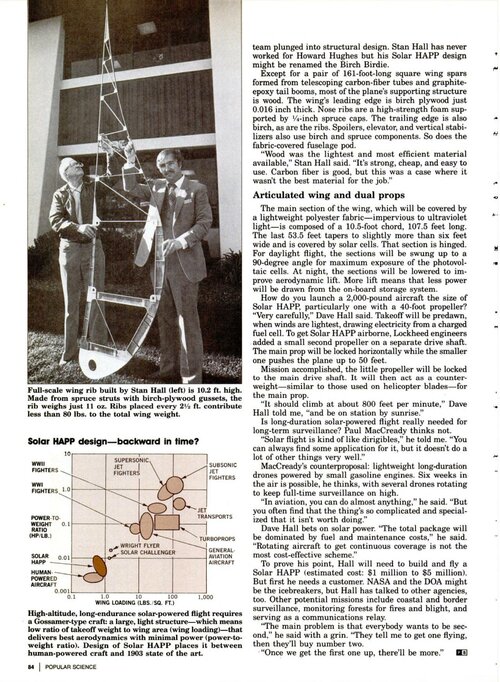

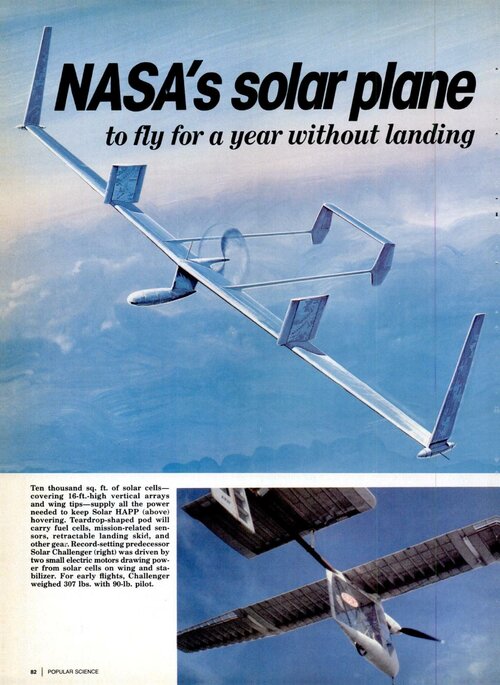

This is an article I saved from the February 1983 issue of Popular Mechanics.

It describes the Lockheed HAPP, a high-flying unmanned aircraft destined to loiter at 70,000 ft for months at a time on sun-provided electric power alone.


Attachments

  • Lockheed HAPP.jpg
    Lockheed HAPP.jpg
    456.8 KB · Views: 944
  • HAPP text.jpg
    HAPP text.jpg
    689.7 KB · Views: 813

quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,307
Reaction score
536
Thanks! I can NEVER remember this name/acronym. In the early to mid 80s the HAPP concept was all over the place. Books, magazines, DARPA studies - I do not recall Lockheed specifically being lead on it.
The HAPP concept though is what lead to several programs - Condor, AARS/Tier III, and others. Ironically, HALSOL/Pathfinder, which is the closest thing to realizing the HAPP concept, does not seem to have been directly connected to the HAPP effort.

IIRC, HAPP was not limited to solar power - there was also attention given to beamed microwave power


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,178
Reaction score
823
There's a couple of paragraphs, and two pictures, on pp.94-5 of
Gunston's 'Future Fighters'...


cheers,
Robin.


Attachments

  • solar HAPP.png
    solar HAPP.png
    1 MB · Views: 728
  • solar HAPP - large.png
    solar HAPP - large.png
    559.1 KB · Views: 689

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,424
Reaction score
516
I know a guy who was working on HAPP at LockMart missile and space in Sunnyvale in the 80's, which was at least on if not the home for these activities. He told me the microwave stuff was considered but rejected early on as the state-of-the art of technology just wasn't good enough. the aircraft required a big antenna (for some reason it's called a 'rectenna' in technical literature) was pretty big and draggy and very detrimental to drag, thus power requirements. I'll see if I can dig up some more stuff.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,503
...


Attachments

  • happ_nasa_langley.jpg
    203.2 KB · Views: 612

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,424
Reaction score
516

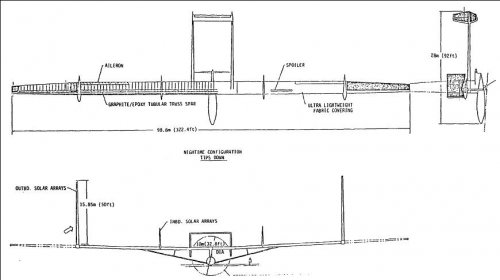

coincidentally, i just found the three view for another one with folding panels ;) Note wingspan of 322ft!


Attachments

  • High altitude solar.JPG
    High altitude solar.JPG
    42.1 KB · Views: 129

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
313
I'm posting this here because this is a color copy of the version posted by Stargazer2006, and it is different from the color image posted by robunes. Notice that that vertical object (nose gear?) has been painted out on both the day and night depictions of the aircraft.

I found this in Airplanes of the Future by Don Berliner, Learner Publications, 1987


Attachments

  • HAPP - missing details.jpg
    HAPP - missing details.jpg
    592.7 KB · Views: 98

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
An image of the twin-boom HAPP from Krylia Rodine, May 1991:

Lockheed began developing the "Solar HAPP" in the late 70's. In the early 80's there were reports that the company contracted with NASA to create a high-altitude unmanned aircraft powered by solar cells. Since then, numerous studies followed, with test flights planned for 1990. Now, the first flight is scheduled for 1993. (...)
The HAPP is meant to use graphite-epoxy composite materials, aluminum alloys and a Teflon film coating.
A TV equipment is to provide an accurate picture from heights of 18,000 to 24,000 m.
Two types of layouts have been studied: a flying wing and a twin-boom tail design.

Wingspan: 98.15 m
Length: 28.04 m
Take-off weight: 910 kg
Payload weight: 115 kg
The "Solar HAPP" can fly at an altitude of 19,800 ft.


Attachments

  • from Russian magazine, May 1991.jpg
    from Russian magazine, May 1991.jpg
    62.1 KB · Views: 61

dannydale

ACCESS: Top Secret
Joined
May 13, 2007
Messages
547
Reaction score
383

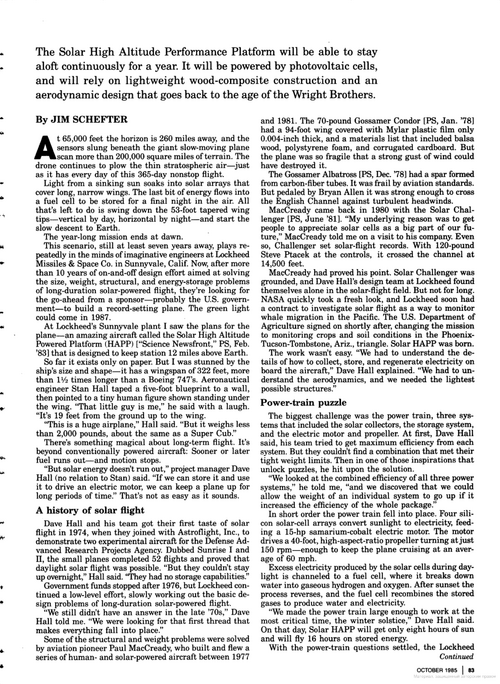

I think I've seen this show before. Popular Science, October 1985. Those old science magazines held my interest as a kid far better than any Playboy ever could! ;D


Attachments

  • 07-20-2011-19-01-12-434_edited-1.jpg
    197.3 KB · Views: 89
  • $T2eC16VHJFoE9nh6oV+uBP47h+5lMg~~60_58.JPG
    70.2 KB · Views: 61

xstatic3000

ACCESS: Confidential
Joined
Sep 16, 2008
Messages
91
Reaction score
25
Sorry to bring this thread back from the dead, but after reading over the AARS thread again I can’t help but wondering - was this ENCHANTMENT?

To refresh everyone’s memory, ENCHANTMENT was apparently a Lockheed concept for the same bomber-detecting mission for the Navy as Boeing’s Condor. The dimensions and configuration seem to match, and the shot of the model with an F-14 is certainly intriguing.


Whisperstream

I really should change my personal text
Joined
Dec 19, 2011
Messages
79
Reaction score
99
The Boeing Condor was given the codename FENNEL and designated a technology demonstration system (TDS). A series of TDS flights demonstrated the vehicle's basic handling qualities and performance capabilities. DARPA also directed Boeing to integrate a representative mission payload suite and a combination line-of-sight and satellite high-bandwidth data link into the vehicle for a series of mission demonstration system (MDS) tests. Additional DARPA interests included assessing survivability and vulnerability characteristics, identifying typical payload suites for various missions, and performing a series of trade studies to identify a HALE APV operational configuration. As a special access program, some aspects of the Condor project were initially classified SECRET/ADMIXTURE (S/AXT) and SECRET/ENCHANTMENT (S/ENT), but were later downgraded to UNCLASSIFIED.


sublight_

ACCESS: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
960
Reaction score
321
Whisperstream said:
The Boeing Condor was given the codename FENNEL and designated a technology demonstration system (TDS). A series of TDS flights demonstrated the vehicle's basic handling qualities and performance capabilities. DARPA also directed Boeing to integrate a representative mission payload suite and a combination line-of-sight and satellite high-bandwidth data link into the vehicle for a series of mission demonstration system (MDS) tests. Additional DARPA interests included assessing survivability and vulnerability characteristics, identifying typical payload suites for various missions, and performing a series of trade studies to identify a HALE APV operational configuration. As a special access program, some aspects of the Condor project were initially classified SECRET/ADMIXTURE (S/AXT) and SECRET/ENCHANTMENT (S/ENT), but were later downgraded to UNCLASSIFIED.

Do you have any references for that? Thanks!


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,307
Reaction score
536
sublight is back said:
Whisperstream said:
The Boeing Condor was given the codename FENNEL and designated a technology demonstration system (TDS). A series of TDS flights demonstrated the vehicle's basic handling qualities and performance capabilities. DARPA also directed Boeing to integrate a representative mission payload suite and a combination line-of-sight and satellite high-bandwidth data link into the vehicle for a series of mission demonstration system (MDS) tests. Additional DARPA interests included assessing survivability and vulnerability characteristics, identifying typical payload suites for various missions, and performing a series of trade studies to identify a HALE APV operational configuration. As a special access program, some aspects of the Condor project were initially classified SECRET/ADMIXTURE (S/AXT) and SECRET/ENCHANTMENT (S/ENT), but were later downgraded to UNCLASSIFIED.

Do you have any references for that? Thanks!

ENCHANTMENT was the Navy compartment for airborne BACKFIRE defenses. Several companies participated. After ENCHANTMENT Boeing took Condor and developed it with company funds and DARPA.


sublight_

ACCESS: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
960
Reaction score
321
quellish said:
sublight is back said:
Whisperstream said:
The Boeing Condor was given the codename FENNEL and designated a technology demonstration system (TDS). A series of TDS flights demonstrated the vehicle's basic handling qualities and performance capabilities. DARPA also directed Boeing to integrate a representative mission payload suite and a combination line-of-sight and satellite high-bandwidth data link into the vehicle for a series of mission demonstration system (MDS) tests. Additional DARPA interests included assessing survivability and vulnerability characteristics, identifying typical payload suites for various missions, and performing a series of trade studies to identify a HALE APV operational configuration. As a special access program, some aspects of the Condor project were initially classified SECRET/ADMIXTURE (S/AXT) and SECRET/ENCHANTMENT (S/ENT), but were later downgraded to UNCLASSIFIED.

Do you have any references for that? Thanks!

ENCHANTMENT was the Navy compartment for airborne BACKFIRE defenses. Several companies participated. After ENCHANTMENT Boeing took Condor and developed it with company funds and DARPA.

But is there anything in the national archives or DTIC.mil on this?


Whisperstream

I really should change my personal text
Joined
Dec 19, 2011
Messages
79
Reaction score
99

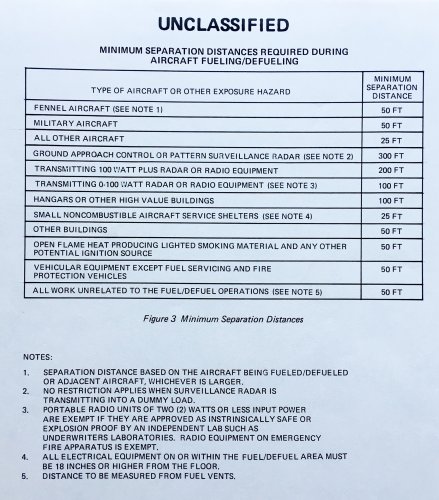

Back in the late 1990s there used to be thousands of pages of declassified Boeing Condor documents inside a warehouse in Yermo, California, along with the second air vehicle. Many of the pages were labeled FENNEL and there were references to Condor as the "FENNEL aircraft." Boeing and any relevant customer agencies had sanitized the documents of any sensitive material by cutting out words, sentences, and paragraphs with a razor. Classification markings were crossed out but it was possible to make out ADMIXTURE on those associated with the Condor technology demonstration system (TDS) test series and ENCHANTMENT on those associated with the mission demonstration system (MDS) test series. Not sure where all those documents are now. You might check with NASA.


Attachments

  • FENNEL_1.jpg
    481 KB · Views: 120
  • FENNEL_2.jpg
    445.9 KB · Views: 128
  • FENNEL_3.jpg
    605.8 KB · Views: 115

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,424
Reaction score
516

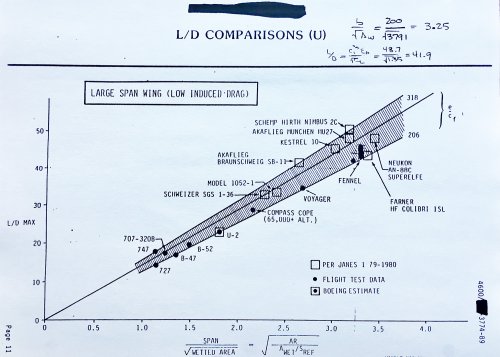

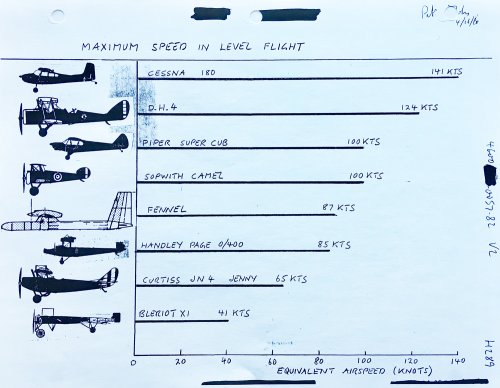

Good stuff...the hand-written notes on the margin of the L/D chart allow you to do a little bit of reverse engineering.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,503

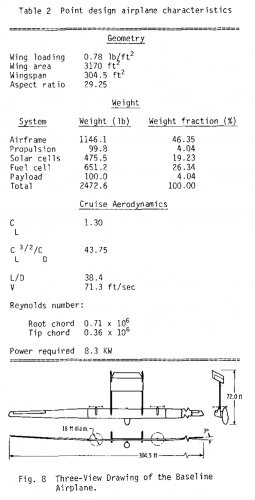

https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840017634.pdf
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19850022759.pdf
