Lockheed F-12B Model

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40

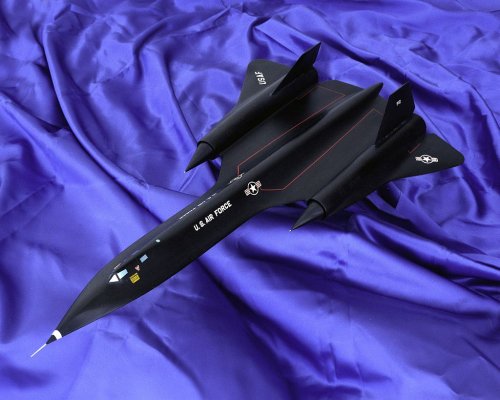

Before they were canceled Lockheed recieved an order for 93 production F-12B LRIs to serve in the USAF Air Defense Command. I believe this photo from LM illustrates what a production F-12B would have looked like.


Attachments

  • F-12 for USAF ADC-small.jpg
    F-12 for USAF ADC-small.jpg
    141.1 KB · Views: 456

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40
Re: Lockheed F-12B

Notice that this F-12B model (what it said on the envelope the transparency was in) does not have cut-off chines like the YF-12A nor the infra-red eye balls.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40
Re: Lockheed F-12B

Doesn't look like it does it? But it must have had some sort of radar.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu
Better? I thought that the YF-12A was much simplier and effective solution with the low cost in a a bit lower speed. It seems that it is optimized for the high speed and low drag, which can cause the problems with the heating distribution in the dielectric material, not to mention also significant mass of the material just in front of the antenna. It can be done, but isnt it much complicated way?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40
Here's the original...


Attachments

  • SR028 YF-12A No. 1 lands after first flight 8-7-63-small.jpg
    SR028 YF-12A No. 1 lands after first flight 8-7-63-small.jpg
    429.7 KB · Views: 403

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,570
Reaction score
1,586
Matej said:
Better? I thought that the YF-12A was much simplier and effective solution with the low cost in a a bit lower speed. It seems that it is optimized for the high speed and low drag, which can cause the problems with the heating distribution in the dielectric material, not to mention also significant mass of the material just in front of the antenna. It can be done, but isnt it much complicated way?

Just telling ya what their intention was. There's a picture of the mockup of the forward fuselage of the F-12B in an issue of Classic Wings and a writeup. That's essentially what they said IIRC.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,201
Reaction score
39
The F-12B was an A-12 derivative, and didn't have the extended tail of the R-12/SR-71. They did re-chine the nose to get back the stability lost when they hacked it up and had to add the ventrals. That model looks like the first SR-71A (note the white ring on the nose) painted to say F-12 (F12 actually, doubtful LockMart would've screwed that up in the model shop).


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40
The image came directly to me via LM ADP (Skunk Works) today via email.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40

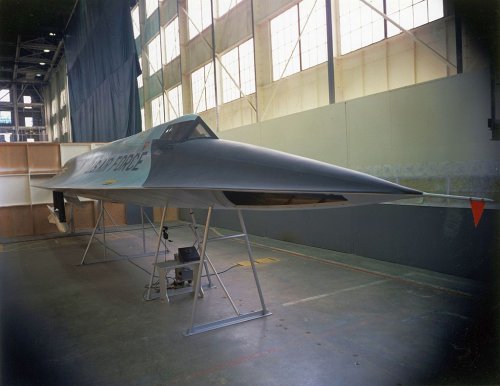

Prior to being designated YF-12A and F-12B, the interceptor version was known as AF-12 (Archangel Fighter-12). Here's a nose section mockup of the AF-12 (note extended missile). Photograph courtesy of Lockheed Martin


Attachments

  • SR081 AF-12 nose section mockup-small.jpg
    SR081 AF-12 nose section mockup-small.jpg
    122.7 KB · Views: 357

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,570
Reaction score
3,856
I believe the cutaway chines affected stability, so they restored them. It certainly would complicate the radome design.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
137
Also restoring the chines would mean giving up the IRST sensors mounted at the front of the cutaway ones.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
2,626
Reaction score
1,153
In my memory, after the recon bird, they first went to the bomber and then to the fighter (SR-71 was even a later design). This could explain the hasty reconfigured mockup (see cockpit fully flushed in the fuselage) with chines fully on.
