I have always had a special place in my heart for aircraft intended to bring aviation within reach of ordinary folks. Pietenpol Air Camper, Mignet Pou-du-Ciel, Evans Volksplane--the simpler they are, the better I like them.

The great little James G. Robins book The Wooden Wonder: A Short History of the Wooden Aeroplane (Adelaide: Rigby, 1975) has a lovely drawing and some tantalizing details (p. 51) about David Livesey's D.L.5, a minimalist British homebuilt in the works when the book went to print. Below are reduced-quality scans of the drawing and caption.

I have fished around cyberspace a couple of times looking for more, but never found anything much. Does anyone have any more info, pics, specs, drawings, articles, etc. of the D.L.5 that they could share?

Cheers,

Matthew


Attachments

amsci99

CLEARANCE: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
I not too sure about this but I think you could contact these guys at http://www.air-britain.com/
for more information. On the topic of homebuilt aircraft though not all wooden, there's this Russian effort for a suitcase ultralight documented in the Jan 93 issue of Popular Science. I do not know what became of it.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,910
Reaction score
280
Mmmmmhhh ???

Livesey D.L.5, so I believe this is the 5th design by Livesey. Do you know the other 4 aircrafts by this man???


ursrius

CLEARANCE: Confidential
Joined
Dec 13, 2007
Messages
68
Reaction score
1
There is a comment in Flight :
http://www.flightglobal.com/pdfarchive/view/1973/1973%20-%201333.html

The Air Warfare Forum shows a picture of a model of the D.L.5
http://www.airwarfareforum.com/viewtopic.php?p=43183&sid=3b2692d5032b46a5f80ea6d3fa4b9da2
(the real G-LIVE was a GROB G109B)

Seems to be nothing in the PFA, so I guess it never flew.


burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
72
Reaction score
20
There was an article about D.L.5 project in "Aeroplane Monthly" # 7 (2) 1973 p.137-139 and also it has been mentioned in Jane's all the world's aircraft 1975-1976 p.217 - also as a project.

It seems, this plane was never really built.

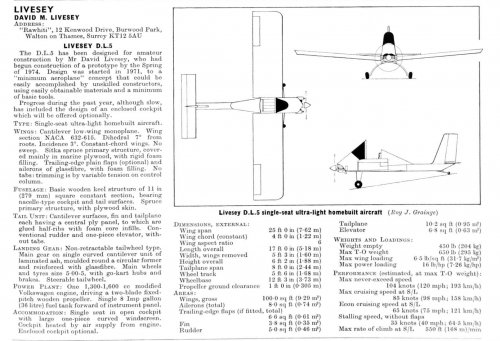

From JAWA:


Attachments

cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,357
Reaction score
84
Website
cluttonfred.info

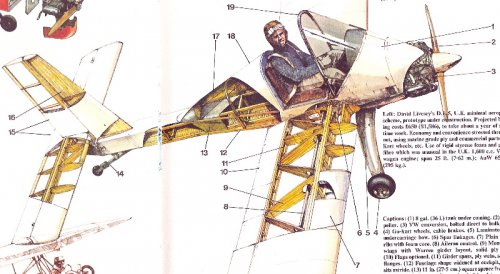

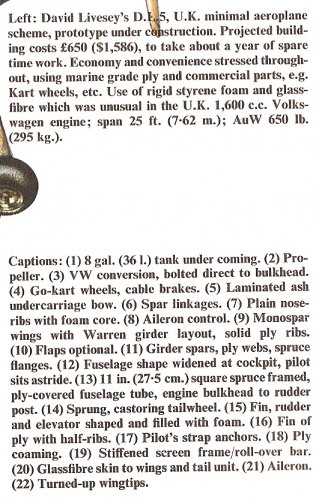

Thanks, burunduk, nice to see an old thread revived with some new info. That 3-view from JAWA clearly shows that good looks were not part of the design brief! ;-) Some drawings and model pics from the Aeroplane Monthly article are available here: http://aviadejavu.ru/Site/Crafts/Craft32509.htm


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,357
Reaction score
84
Website
cluttonfred.info

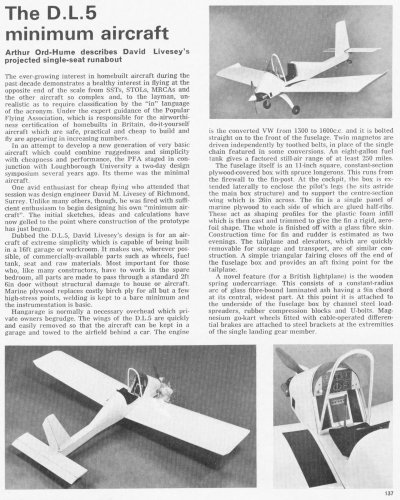

If anyone has access to the 1972 Aeroplane Monthly issue (#7 (2) 1973 p.137-139) that burunduk mentioned, that article would make a great addition to this thread.


Crimso

CLEARANCE: Restricted
Joined
Jul 23, 2013
Messages
4
Reaction score
0
Website
aviadejavu.ru
cluttonfred said:
If anyone has access to the 1972 Aeroplane Monthly issue (#7 (2) 1973 p.137-139) that burunduk mentioned, that article would make a great addition to this thread.


Attachments
