layout of pre-Piaggio P.108 project

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
There were some competiters of P.108 before it has been chosen to produce. Some like Ca.204,Ca.211,Z1014,G.30B,S.404,and P.112 etc. those I never known, who can show me.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
Posted here and elsewhere before;

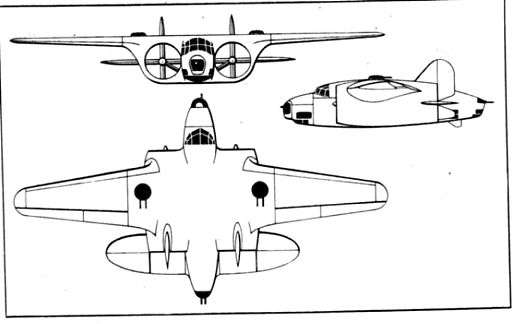

S.404



P.112 developed from P.108 with different tail and nose.



Z.1014


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
I have all of them. Unfortunately, my scanner is out of order. If you have a couple of days' patience, I'll post them...

Cheers


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Hi, Paul! Yes, back at last.... Received all... And you? In the meantime my home PC went bang (HD....), so reconstructing the DB from backups.... Yesterday shipped another one, this is a surprise...

And now, for the all of you, the 1938-39 Long Range Bomber Competition projects...


Attachments

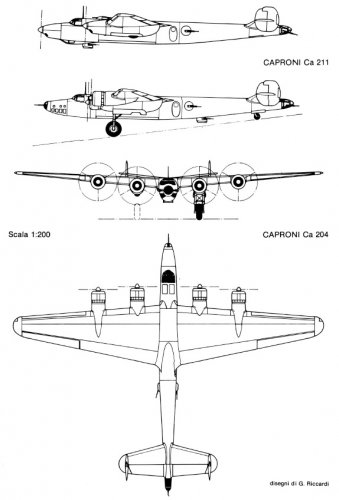

  • Caproni_CA204-211.jpg
    81.1 KB · Views: 571

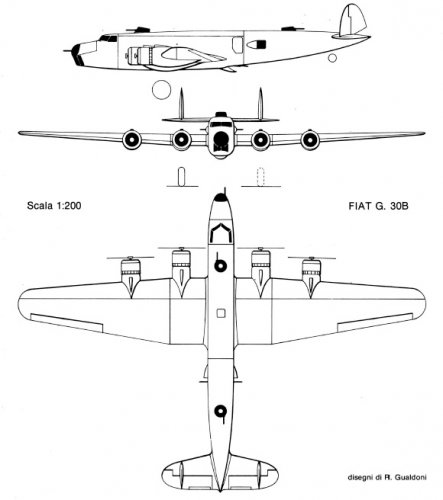

  • Fiat-G30B.jpg
    51.4 KB · Views: 497
  • Piaggio_P-112-114.jpg
    74 KB · Views: 458

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Wonderfull ! Fiat project unseen before.
This is one for under the Christmastree.. :)


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
Excellent. Many thanks for posting those.

Do you happen to have any stats for the Caproni types?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Cqaproni, yes, give me another day, and I'll post...

Merry Christams (very late) to you all, BTW.. :p


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
Bump.

Hi Skybolt, Could you post stats for the Ca 211 and 204 please?

Thanks


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,769
Hi,

see also;
http://www.secretprojects.co.uk/forum/index.php/topic,236.0.html


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Ca-204. Span 31,5, length 23,2 m, GTOW 22,500 Kg, engine 4 Alfa 135, max speed 515 Km/h at 3200 m, cruise speed 456 Km/h, max range 4360 Km at 4500 m, 5 12,7 mm machine guns, crew 8
Ca 211, Span 31,5, length 24 m, GTOW 21,000 Kg, engine 3 IF L.180, max speed 536 at 5000 m, cruise speed 475 Km/h, max range 4930 at 4500 m, 5 12,7 mm machine guns, crew 8.The Ca.201 h a version with IF L.180 RC 60 for high altitude bombing (no pressurized cabin, although).
First round of selection selected the Ca.204 among others (there was no confidence in the still unproven IF engines)


MANTUS

ACCESS: Restricted
Joined
Nov 5, 2009
Messages
21
Reaction score
3
excellent discussion! congratulations!

Someone knows the data of the FIAT G.30B and Piaggio p.112?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
FIAt G-30B lenght 23 mts, span 31.7 mts, gtow 23,700 kgs, engines 4 GIAt A82s, max speed 480 Km/H at 4,000 mys, range, 4,000 Kms at 400 Km/h.
Piaggio P-112: lenght 22 mts, span 32 mts, gtow 22,500 kgs, engines 4 P.XXI, max speed 500 KM/h at 4,500 mts, range, 4000Kms at 400 Km/H
