Latecoere 570

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,317
Reaction score
4,672
Website
www.amazon.com

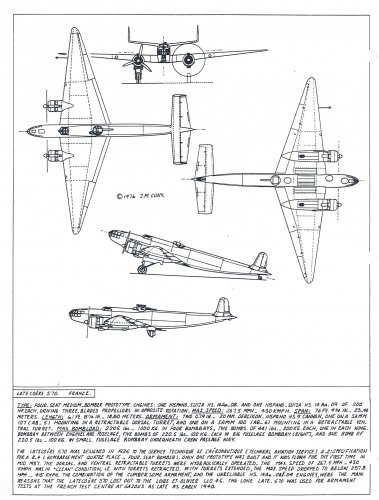

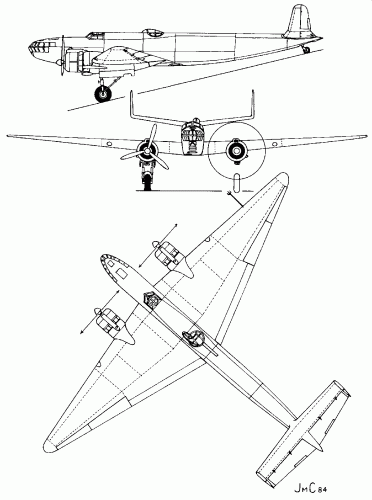

French medium bomber prototype
source
-B.C.F.K. publications-five views album-1973


Attachments

  • Escanear.jpg
    390.5 KB · Views: 520

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,392
Reaction score
422
Justo, is this "French week"? ;D
keep 'em coming.


CAO 700

ACCESS: Confidential
Joined
Nov 22, 2009
Messages
91
Reaction score
4
Same program than Amiot 350 series and Lioré et Olivier 450 series.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,951
Reaction score
1,074
Justo Miranda said:
I have found lost french archive for sharing... :D

This is good, France produced a lot of aircrafts - in 1930/40 timeframe - that remain still little-known today.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,270
Reaction score
957
First flight on august 1939. Captured by german troops in june 1940.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
153
HI justo.
Very,very interesting all your French planes
Try to continue, and THANK YOU
Bye


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,301
Reaction score
153
Website
zeef.com
http://www.aviafrance.com/aviafrance1.php?ID=872&ID_CONSTRUCTEUR=795&ANNEE=0&ID_MISSION=0&MOTCLEF=

a great plane ! :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,270

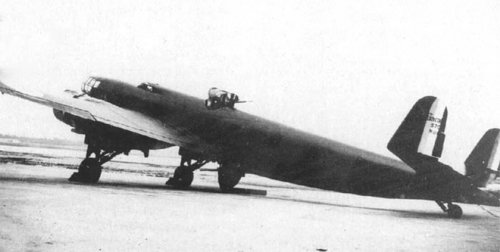

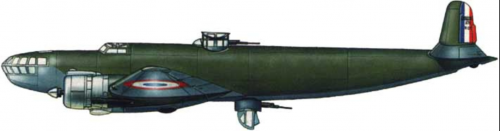

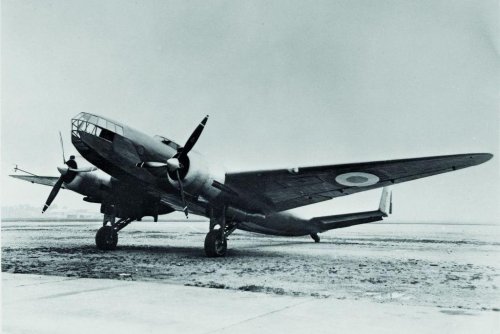

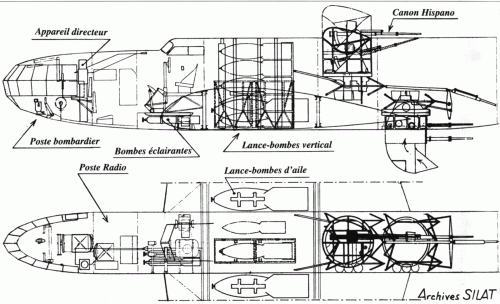

More Late 570.

https://en.wikipedia.org/wiki/Lat%C3%A9co%C3%A8re_570
"The Latécoère 570 was a twin-engined medium bomber designed to a 1934 specification. It did not fly until 1939, by which time competitor aircraft had gone into service."
"The Latécoère 570 was the French company's response to the specification of a four-seat bomber (B4) in the programme A-21 of November 1934. This called for an aircraft that could deliver, for example, a 1000 kg (2,200 lb) bomb load over a range of 1,500 km (940 mi), have a maximum speed of 400 km/h (250 mph) at about 4,000 m (1,200 ft) and to be able to reach this altitude in 15 minutes. The latest devices were specified, such as variable-pitch propellers, retractable undercarriage and retractable dorsal and ventral gun turrets. Nine manufacturers responded but only Latécoère and three others produced prototypes. These were the Amiot 341, the Lioré et Olivier LeO 45 and the Romano 120."

http://www.airwar.ru/enc/bww2/late570.html
https://www.pinterest.jp/pin/673499319248516742/?lp=true


Attachments

  • late570-1.gif
    31.8 KB · Views: 197
  • late570-2.gif
    586.8 KB · Views: 182
  • fa4b10b96b6f8a6c4fca480a7ce6ad4b.png
    361.4 KB · Views: 168
  • latecoere570-bia.jpg
    99.8 KB · Views: 147
  • latecoere+570_jpg_4851782.jpg
    79 KB · Views: 48

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,270
Reaction score
957
What is interesting in the case of the Latécoère 570 is the engine Hispano-Suiza 14AA.

In 1928, Hispano-Suiza (HS), specialist in in-line engines, bought from Curtiss-Wright the licenses of 5 and 9 cylinders radial engines. All the HS dérivatives of these engines (5Q, 9Q, 9V, 14Hb/AB and 14Ha/AA) were failures. The most powerful was the 14Ha (45.6 L), renamed later 14AA. This engine was seen as an alternative to the Gnome & Rhône (GR) french radial engines for the future french combat Aircrafts. So, the HS 14AA was foreseen for a lot of prototypes. But because of its lack of reliability on a lot of flying prototypes, it was finally replaced for all the foreseen prototypes by the GR 14 N. It's a reason (among a lot of others) in the retards of these planes to be tested and/or built before and during the first months of the WW2.

But Hispano-Suiza continued the work on this engine. Because of the lack of GR 14 N (because of the need to build a lot of ordered warplanes), there were finally two planes to equip : the not French Koolhowen FK 58 and the delayed Latécoère 570. No problem of the HS 14AA is known on these two planes...

But it was too late. The HS 14AA was abandoned and the GR 14N and the HS 12Y continued to be built... But the engines beyond the versions GR 14N-49 and HS 12Y-49 were not reliable (including the most powerful dérivatives GR 14R and HS 12Z), when the finally reliable HS 14AA (as powerful as the 14 N and more powerful than the 12Y) was no more there...


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,270
HmHm......Thanks a lot.

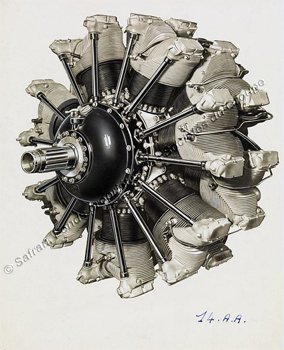

Hispano-Suiza radial engine!!


Attachments

  • 39_-_materiel_hispano-suiza.jpg
    78.1 KB · Views: 30
