SNCAC (Centre) NC-150 high altitude medium bomber

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,811
Reaction score
3,579
Website
www.amazon.com

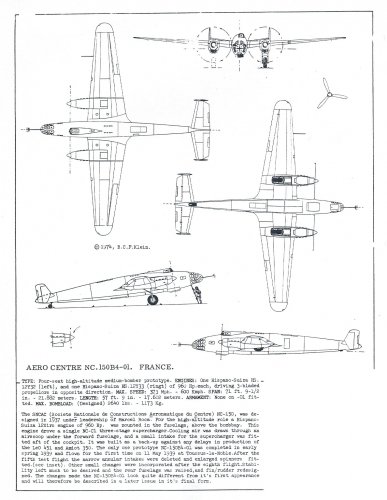

Prototype
sources
-B.C.F.K. publications-five views album-1973
-"LeO 45,Amiot 350 "by Jean Cuny et Raymond Danel,DOCAVIA Nº23,Editions Larivière


Attachments

  • Escanear0001.jpg
    334.5 KB · Views: 237

CAO 700

ACCESS: Confidential
Joined
Nov 22, 2009
Messages
91
Reaction score
4
I know it! ;D Who will realize a good kit of this aircraft? (Stratospheric bomber)


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,811
Reaction score
3,579
Website
www.amazon.com

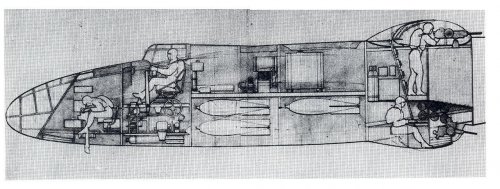

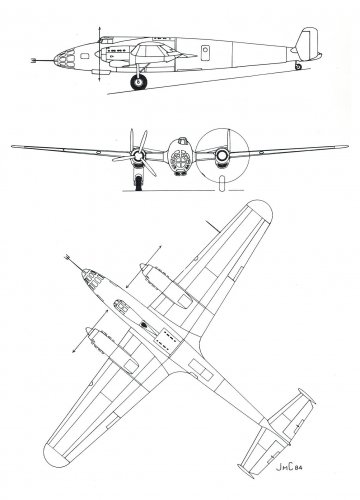

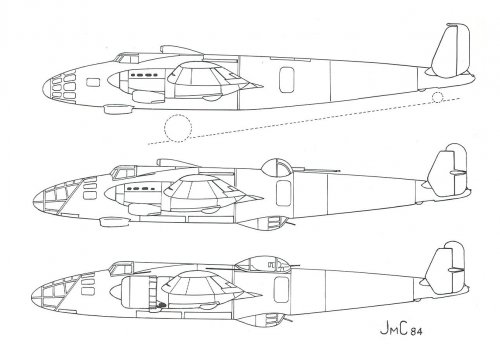

Additional info


Attachments

  • Escanear0001.jpg
    156.6 KB · Views: 129
  • Escanear0003.jpg
    94.4 KB · Views: 140
  • Escanear0002.jpg
    250.4 KB · Views: 133

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234

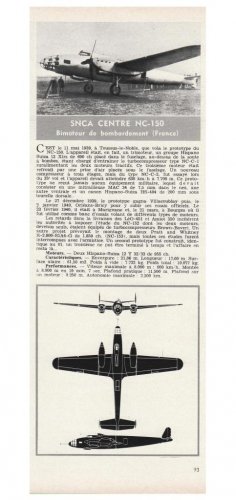

Dear Boys and Girls, here is an article in French about the SNCAC Centre NC-150 high altitude medium bomber prototype. The NC-150 prototype actually had three engines; a third Hispano-Suiza 12Xirs engine mounted in the upper fuselage above the bomb-bay drove a NC-CI supercharger for the two Hispano-Suiza 12Y 32/33 engines. The NC-150 had replaced the NC-140 "project" as the Armée de l'Air 's new high altitude bomber programme in 1938.....

In the Autumn of 1939, development of the composite wood/metal NC-150 was redirected to be a non-pressurised and non-strategic back-up insurance against any further disruption to the production of the Amiot 350 series and the Lioré & Olivier LeO 45 series......

The article comes from the 1st October 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • SNCAC Centre NC-150-01 bombardier stratosphérique - Aviation Magazine International - No.jpg
    SNCAC Centre NC-150-01 bombardier stratosphérique - Aviation Magazine International - No.jpg
    83.9 KB · Views: 137

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,018
Reaction score
4,749
A third engine above the bomb bay? Somewhat risky, methinks. :eek:


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,858
Reaction score
791
In a similar installation, the Tupolev TB-7 prototypes had a Klimov M-100 housed on top of the centre-section to drive a supercharger for their Mikulin AM-34FRNs. Two production aircraft had the same arrangement.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,992
Reaction score
430
For more information on this, see here :-

http://www.secretprojects.co.uk/forum/index.php/topic,10886.0/highlight,hz-anlage.html




cheers,
Robin.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234
Grey Havoc said:
A third engine above the bomb bay? Somewhat risky, methinks. :eek:

It's probably the best and strongest part of the fuselage to hold a third engine Grey Havoc. On the NC-150, the third engine is mounted above the rear-spar carry-through structure. The dorsal air intake is behind the offset cockpit canopy, the exhaust ports are flush with the fuselage upper decking and the ventral radiator is under the cockpit......

Terry (Caravellarella)


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,858
Reaction score
791

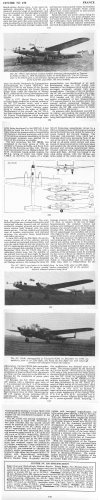

Source: "Warplanes of the Second World War - Volume 7 - Bombers and Reconaissance aircraft" by William Green, Macdonald 1967


Attachments

  • Centre NC 150.jpg
    Centre NC 150.jpg
    1.4 MB · Views: 89
