Last Handley Page HP.117 configuration

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,782
Reaction score
4,907
Hi,

of course all of us know the Handley Page HP.117,but here is the
last configuration to it.
http://www.flightglobal.com/PDFArchive/View/1962/1962%20-%201140.html


Attachments

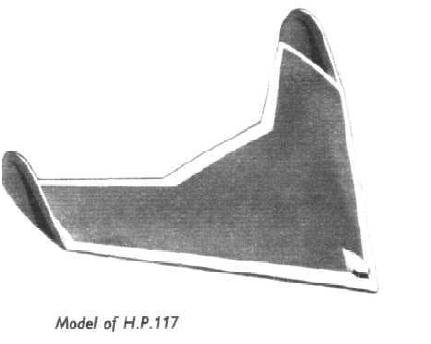

  • HP.117.JPG
    12.5 KB · Views: 861
  • HP.117 last.JPG
    HP.117 last.JPG
    22.8 KB · Views: 911

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,782
Reaction score
4,907
Hi,

http://www.belowtopsecret.com/forum/thread109762/pg65


Attachments

  • 300-seat.jpg
    97.7 KB · Views: 895

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
936
Reaction score
142

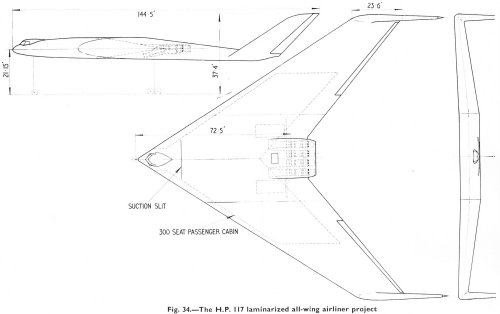

From Aircraft Engineering, sorry no date on page.


Attachments

  • Misc_0003a.jpg
    99 KB · Views: 832

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,478
Reaction score
989
Barrington Bond said:
From Aircraft Engineering, sorry no date on page.
That report From Aircraft Engineering was translated and published in the German Magazin Flug-Revue, May 1963.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,173
Reaction score
1,888

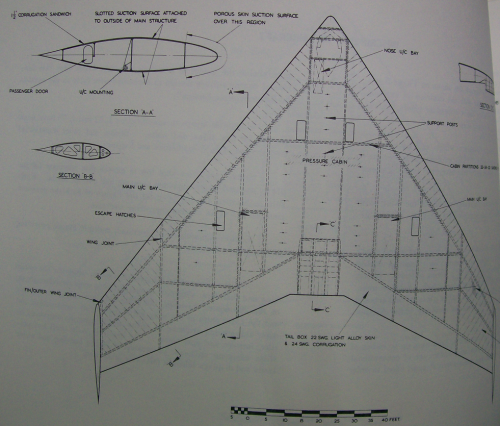

I've attached a drawing showing the main structure of the HP.117 200-seater from the brochure.

It's worth noting that the 200-seat and 300-seat designs had different planforms to optimise each airframe. The 300-seat design had the cabin extended towards the wingtips.


Attachments

  • Handley Page HP.117 structure.png
    Handley Page HP.117 structure.png
    1.6 MB · Views: 564

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,521
Reaction score
695
There is a nice paper on laminar flow research, that includes discussion of the HP117 in Laminar Flow Control – Back to the Future? by John E. Green, a paper published by American Institute of Aeronautics and Astronautics in 2008

http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.530.2364&rep=rep1&type=pdf

It is also well covered in Vulcan's Hammer by Chris Gibson


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,782
Reaction score
4,907

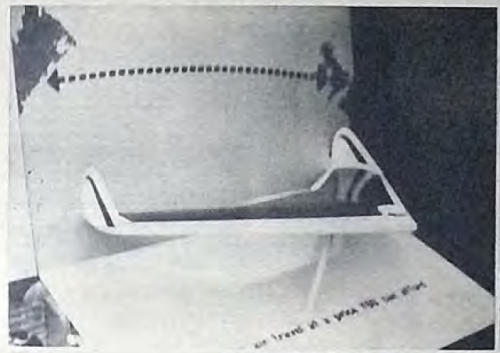

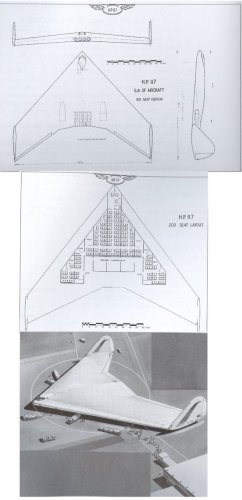

From Ali Nuove 9/1961.


Attachments

  • 1.png
    448.1 KB · Views: 76

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,756
Reaction score
3,367
Hi!


Attachments

  • download.pdf
    951 KB · Views: 32
  • 88792main_Laminar.pdf
    2.3 MB · Views: 21

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,756
Reaction score
3,367
Hi!


Attachments

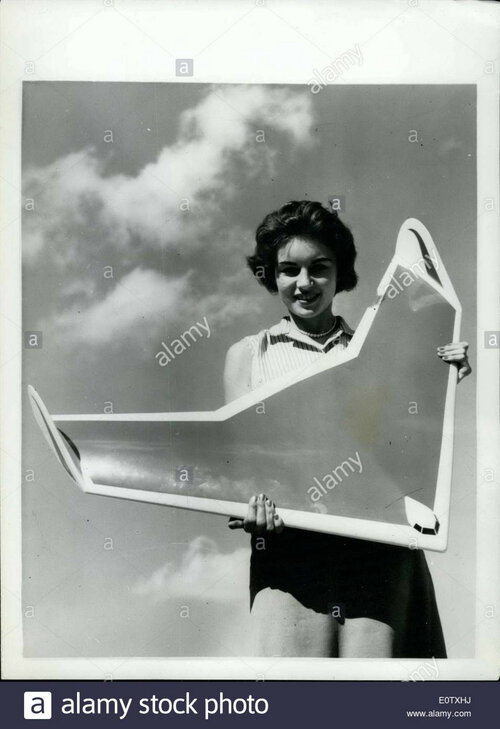

  • E0TXHJ.jpg
    255.2 KB · Views: 21

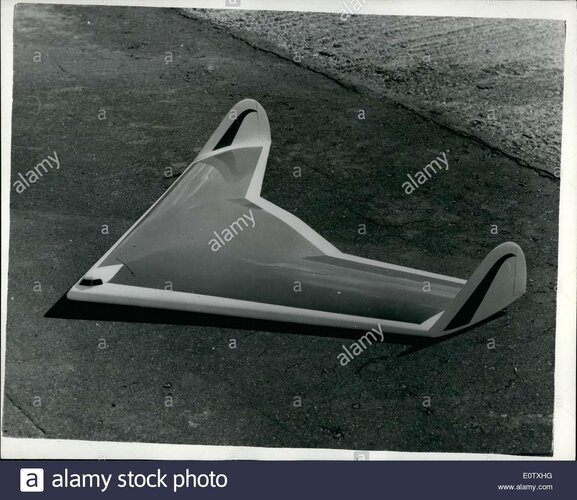

  • E0TXHG.jpg
    186.6 KB · Views: 22
