Handley Page HP.127 Jet Herald proposal

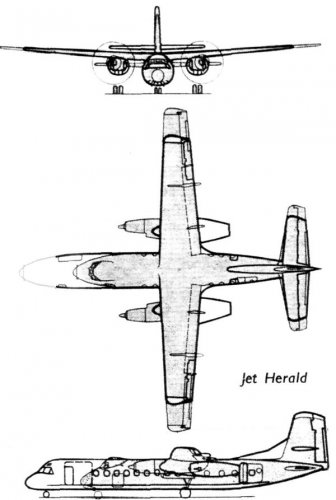

A slightly better version of the Flight HP.127 image and a 3-view comparison between the Dart Herald and HP.127 Jet Herald proposal.

The nose section of the top view was distorted/missing in the original. I've ghosted in the revised nose but this shape is speculative.

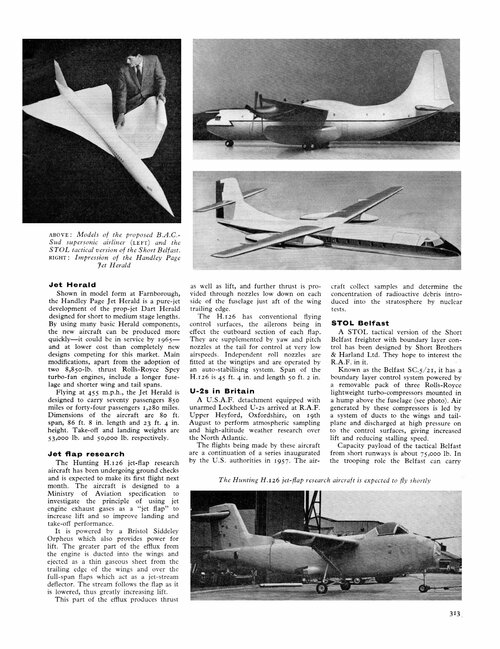

http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%201909.html
http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%202120.html

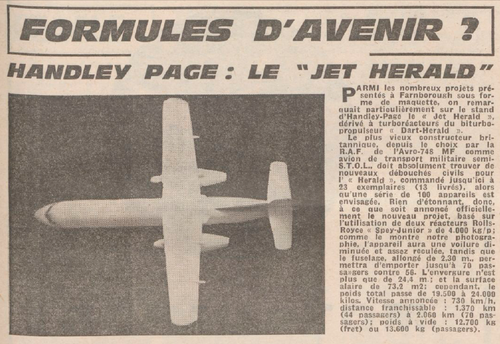

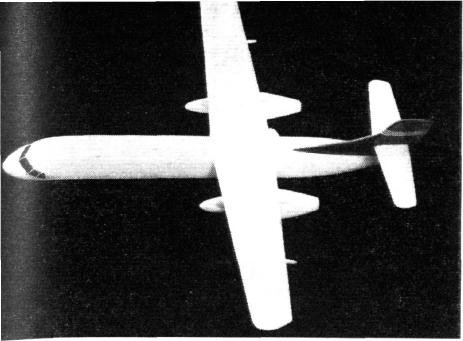

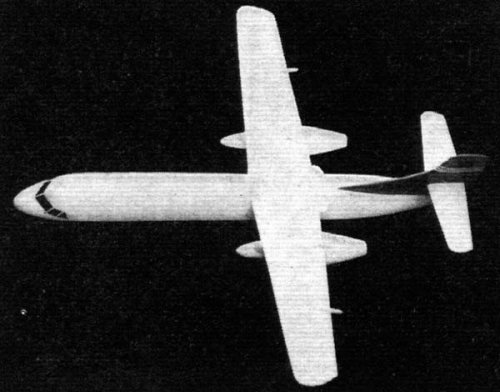

HP.127 Jet Herald Flight 6 Sept 62, 2 x 8850 lb st RR RB.183/1 Spey Juniors. Fuselage lengthened by 11 ft (3 seat rows), span reduced by almost 15 ft, area by 100 sq ft. MTOW 53,000 lb, cruise 455 mph, 4-abreast seating (44 to 70 pax depending on pitch), range with max payload (16,000 lb) 1050 miles, 1770 miles with 44 pax. Planned for 1965 if orders for 20 appeared before end of 1962.

Bifurcated intakes, main undercarriage retracts forward. "military beaver-tail rear door" as a future option. Field performance the same as Dart Herald due to greater engine power.


Attachments

  • JetHerald-Flight.jpg
    40.2 KB · Views: 330
  • JetHerald-3view-Flight.jpg
    67.5 KB · Views: 378

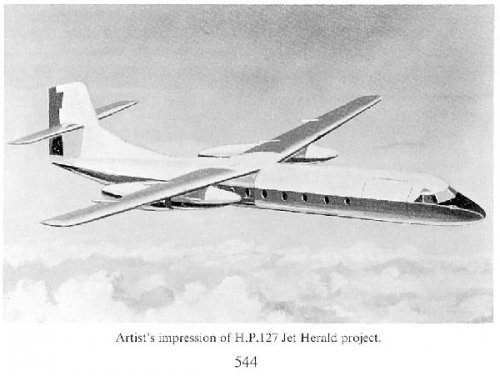

H.P. 127 Jet Herald from putnam's Handley Page, pp. 544-545.
note the difference in nose shape, sorry, no top view here, either. :-[

cheers,
Robin.


Attachments

  • HP.127 jet herald.jpg
    HP.127 jet herald.jpg
    45.7 KB · Views: 367

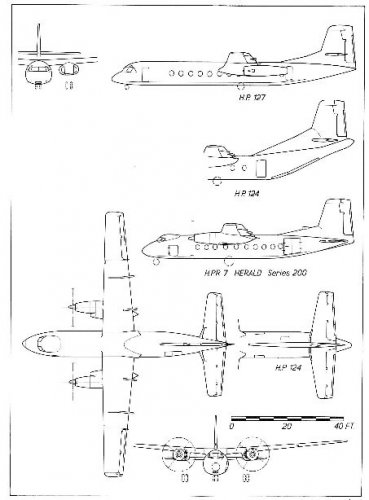

  • hp127- hpr.7 comparo.jpg
    hp127- hpr.7 comparo.jpg
    44.6 KB · Views: 385
Thanks Robin.

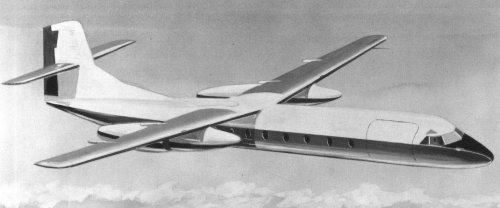

Your 3-view gives a much clearer impression of the bifurcated intakes of the HP.127. I notice in the artist's impression, the horizontal tail has been raised slightly. Another tweak from the original or just artistic licence, I wonder?

probably a bit of both, i suppose, as we know from this site, these projects are always constantly evolving, until either construction, or cancellation.

cheers,
Robin.
