Hi,

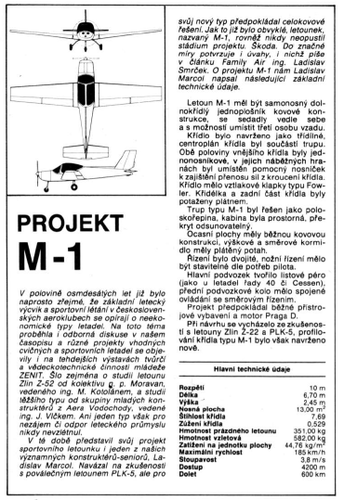

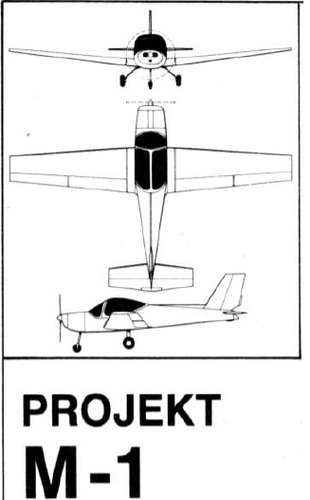

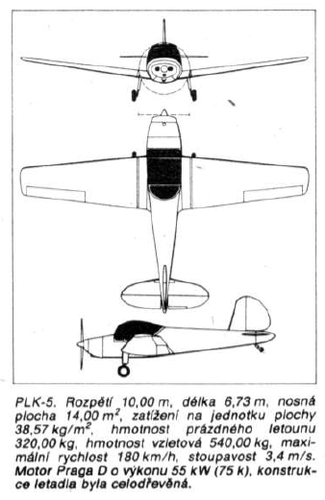

Mr. Ladislav Marcol was the designer of PLK-5,later he created the Zlin Z-22,he also developed the Family Air and M-1 Projects.

L+K 9/1991


Attachments

  • 2    9-1991.png
    2 9-1991.png
    85.5 KB · Views: 22
  • 1   9-1991.png
    1 9-1991.png
    80.6 KB · Views: 25
  • 3   9-1991.png
    3 9-1991.png
    67.6 KB · Views: 21
  • 4   9-1991.png
    4 9-1991.png
    154.5 KB · Views: 17
  • 12.png
    214.4 KB · Views: 28

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
From L+K 10/1993,

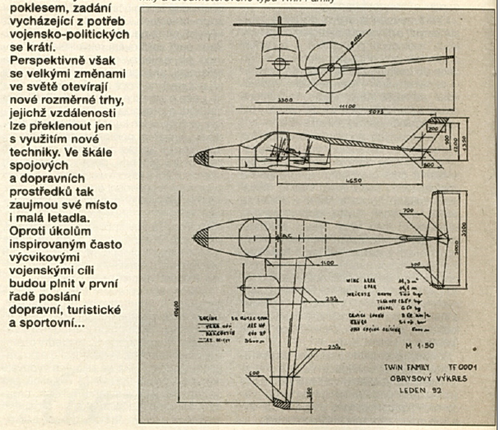

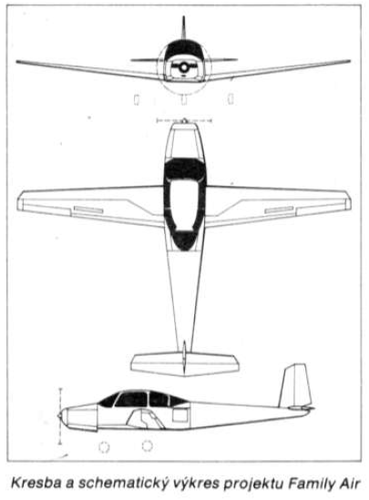

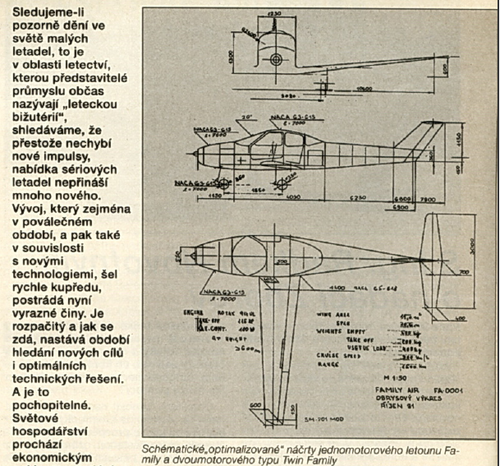

here is a two designs to Family Air,single and twin engines.


Attachments

  • 1  10-1993.png
    1 10-1993.png
    698.9 KB · Views: 22
  • 2  10-1993.png
    2 10-1993.png
    636.4 KB · Views: 21
  • 3  10-1993.png
    3 10-1993.png
    3.8 MB · Views: 17
