Hi,

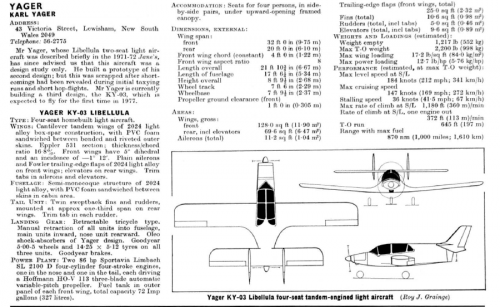

Mr. Karl Yager is Australian and he designed the KY-01 Libellula as a two-seat light
aircraft,remained a project only,he built the KY-02 but soon scrapped and he also

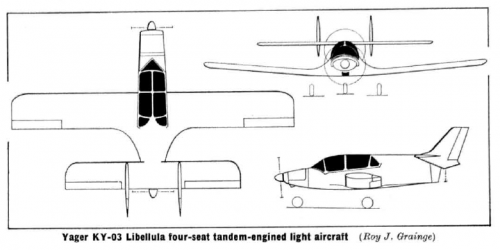

created the KY-03,a four-seat low-wing light aircraft project with twin tail fin,powered
by one 86 hp Sportavia Limbach SL 1200 D engine.


Attachments

  • KY-03.png
    102.7 KB · Views: 108
  • Yager.png
    312.4 KB · Views: 93
